New figtek Flatbed Nesting CNC for sale - LNC 1530 ATC Router

Inclusions
Working Area: 1500 x 3000 x 300mm
Acceptable Material Thickness: 150mm
Working Table: Vacuum Table
Vacuum Pump: 7.5 KW Water Vacuum Pump
Processing Resolution: ±0.1mm
Re-positioning resolution: ±0.02mm
Spindle Motor: 7 Spindle motor 9 kW Air Cooled Spindle
Tool Changer: Duel-process Pneumatic Tool Changer
Spindle Rotating Speed: 24000rpm
Transmitting System: X\Y axis Rack and Opinion+ Square guide; Z axis ball screw+ Square guide
Driving Motor: 11 Driving motor X/Y/Z 1.5KW Yaskawa Servo Motor & Driver

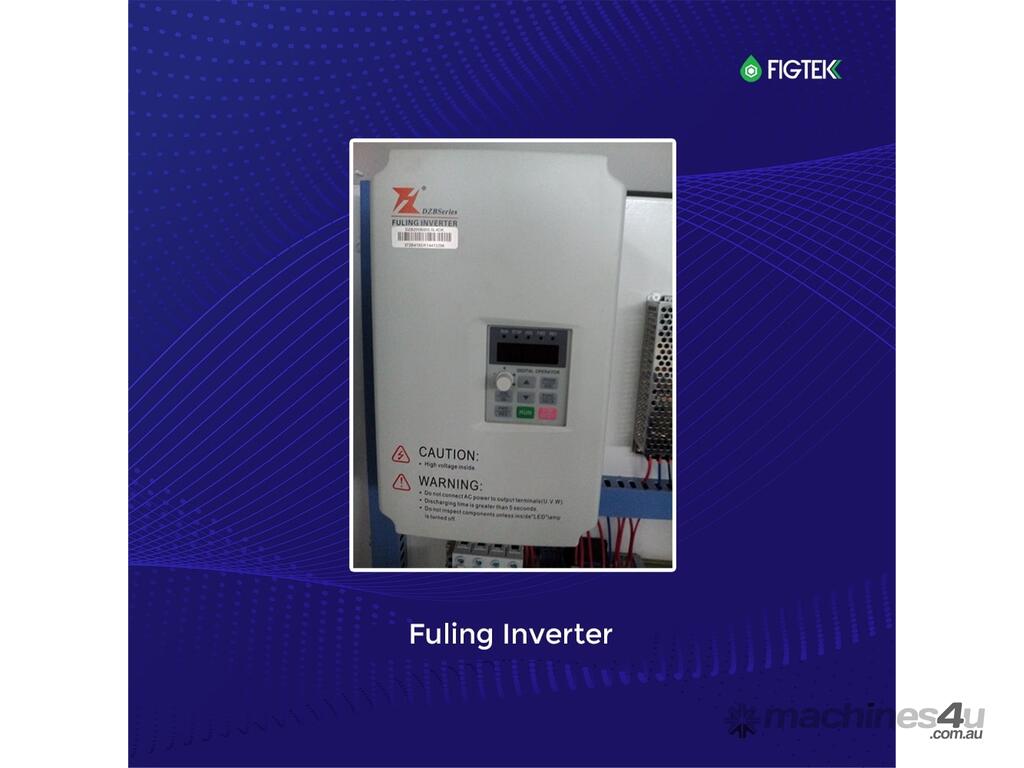

Inverter: Fuling 11KW
Control System: LNC-MW2200
Processing Speed: ?20000mm/min
Tool Holder: 12Pieces
Voltage: 3 Phase 380V, 50HZ

Technical Specifications:

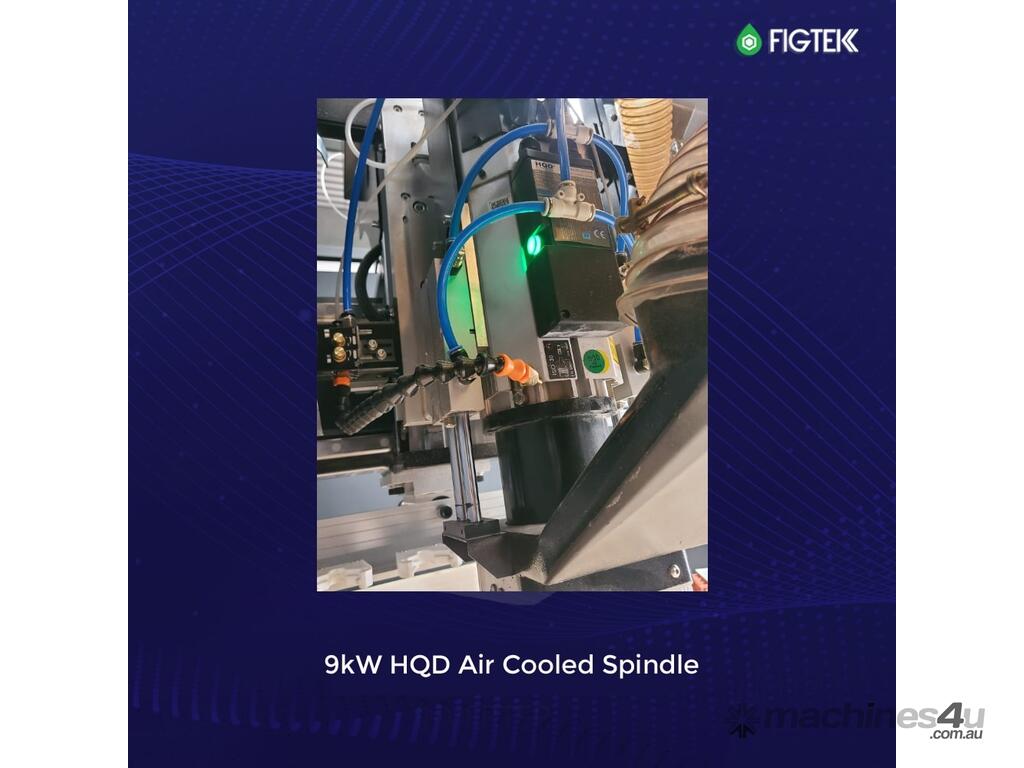

Spindle: 9KW HQD Air Cooling Spindle

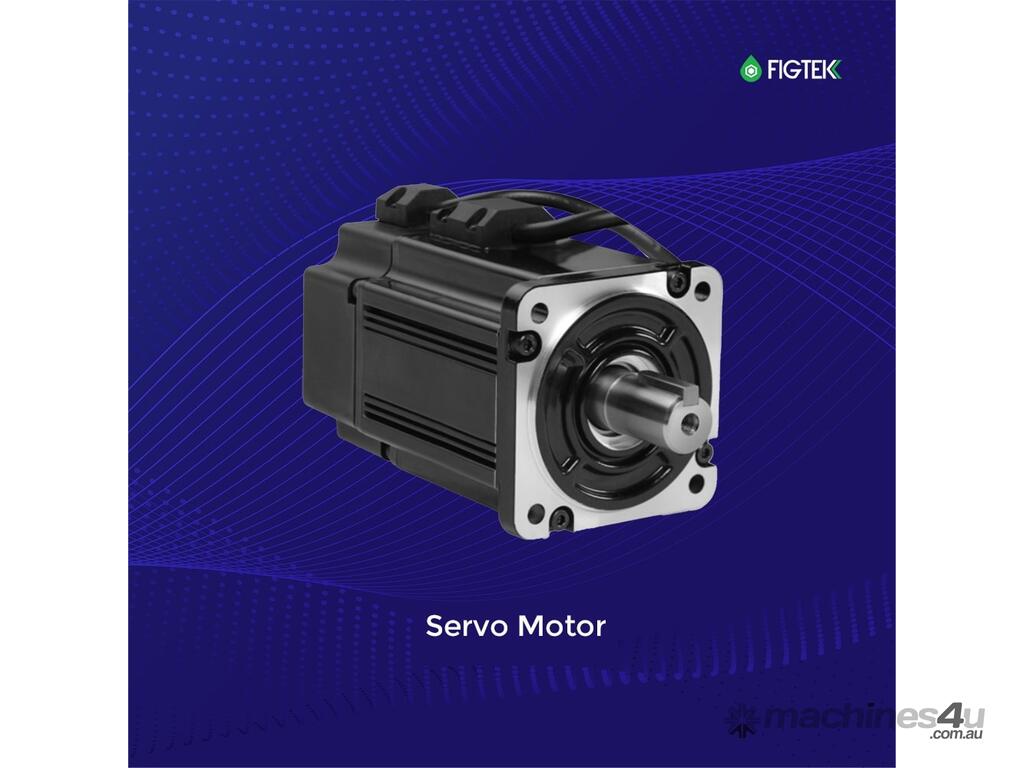

Motor and Driver: X/Y/Z 1.5KW Leadshine Servo Motor and Driver
Control System: LNC MW2200

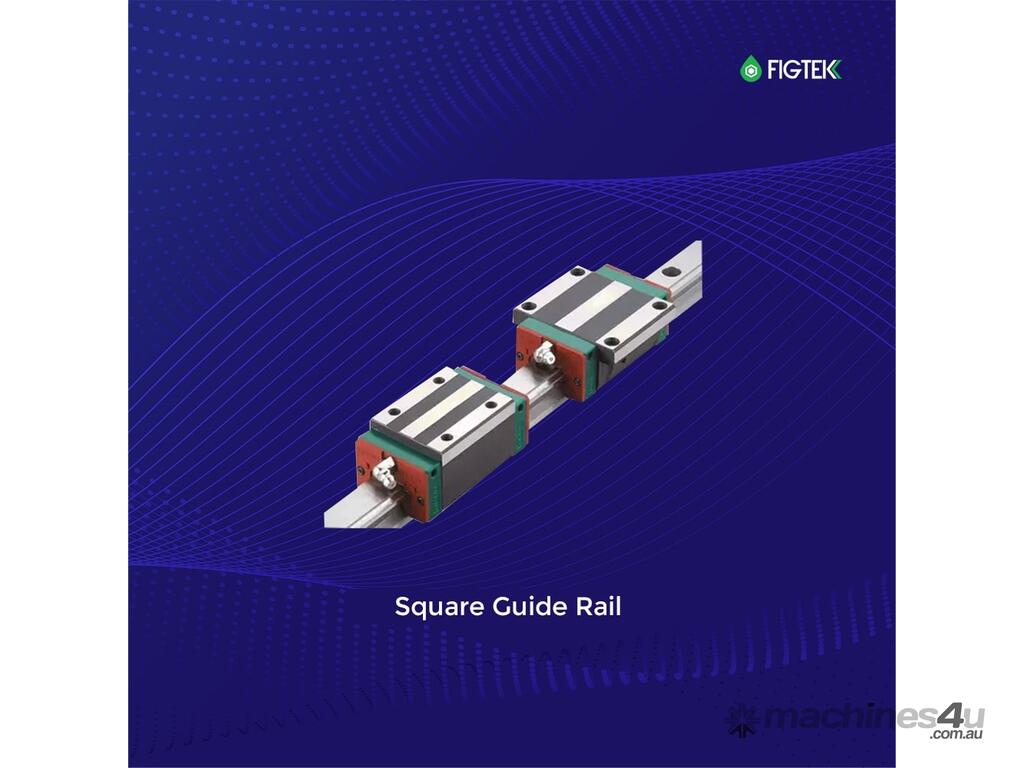

Guide Rail: Taiwan Original PMI/CSK/Taiwan - X/Y/Z:25MM
Blocks: Taiwan Original PMI/CSK/Taiwan

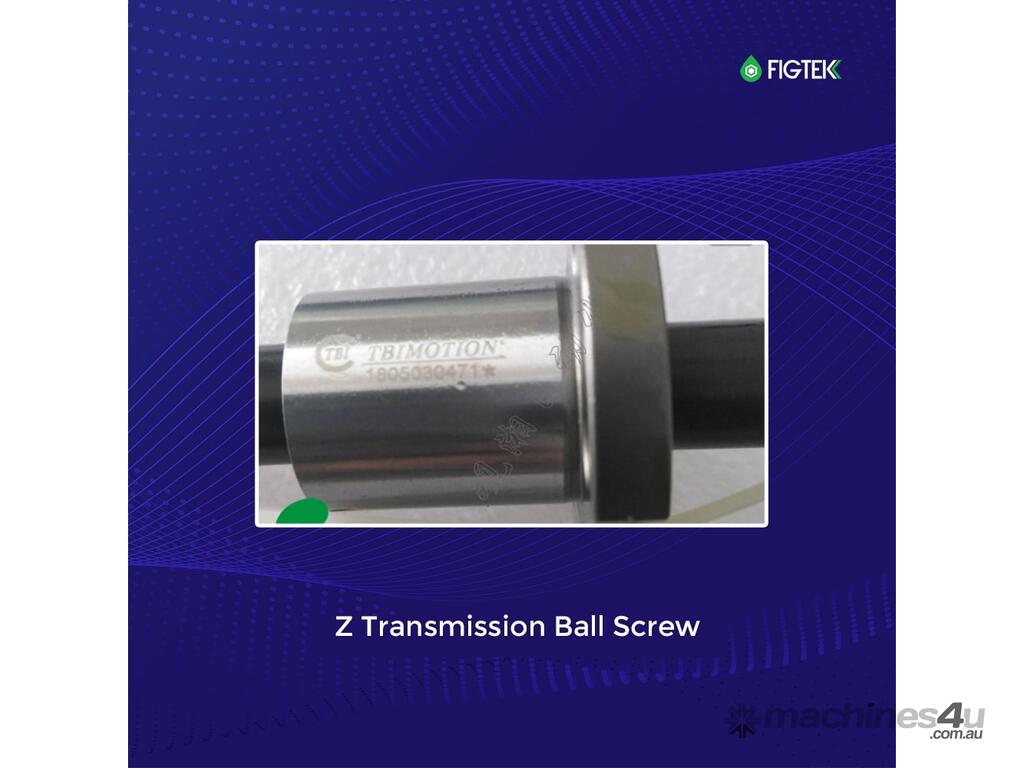

Ball Screw: Taiwan TBI

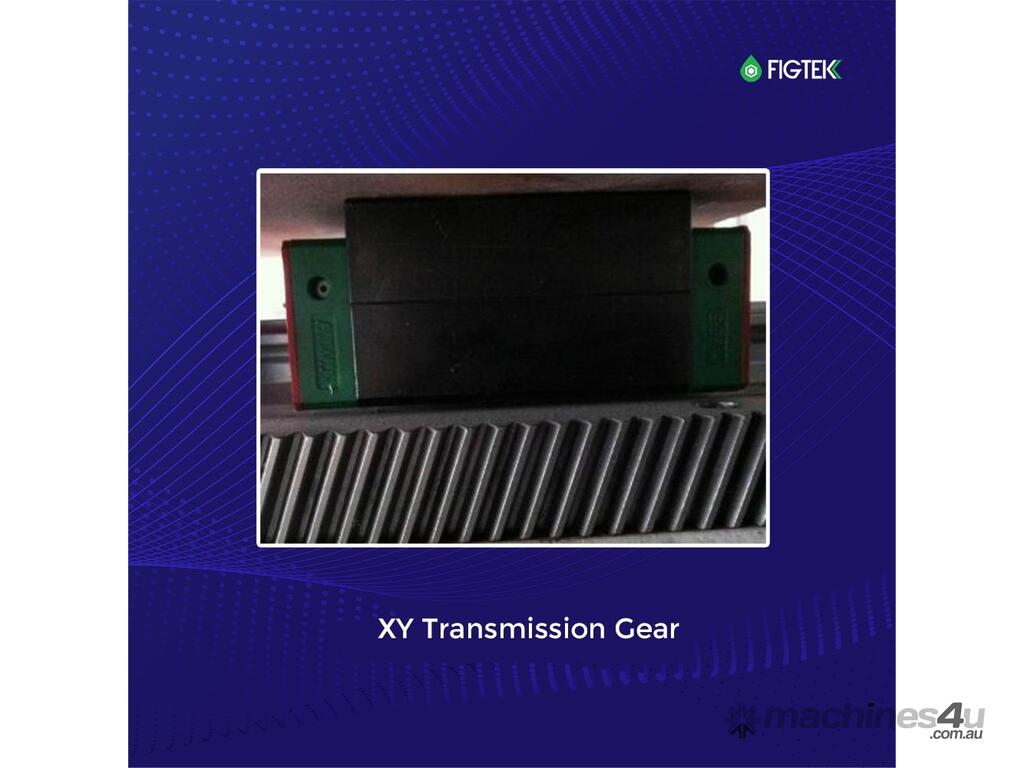

Rack and Opinion: High Precision Taiwan Designed Helical Tooth?T-WIN 2.0?
Machine Structure: Heavy Duty Structure and Strong Structure (Double Strengthened Structure)

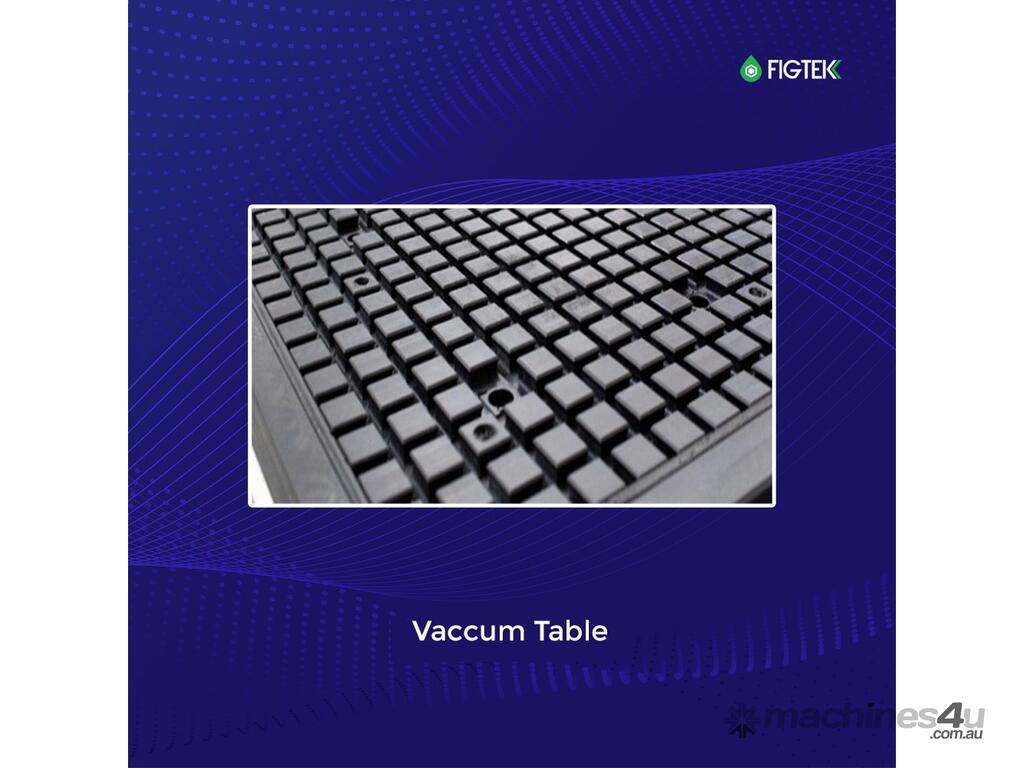

Working Table: Vacuum Table
Vacuum Pump: 7.5KW Water Cooling Pump
Electronics: Original France Schneider Brands
Tool Sensor/Z Probe: Included
Z Axis Cover: Included
Auto Feeding Table: Included
Up & Down Table: Included

Features:

Integrally cast lathe bed, robust and without distortion
3axes transmission with imported ball screws ensures stable and smooth movement of the machine
Application of driver with high-definition subdivision ensures fast speed and high accuracy
High power spindle, brushless, Air cooling, working vigorously with low noise, guarantees long time mass processing
Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate
Humanized design ensures easy disassembly of the machine for convenient transportation.

Applications:

Used in processing single lines, milling, 3D Cutting and engraving.
Router can be used in furniture processing industry, woodworking, decoration, wood art work, home decor and door's manufacturing.

Services we provide:
We offer installation and training
We deliver machines anywhere in Australia
We also commission it to ensure the machine is performing as it should at your factory.
We also ensure calibration is done
We train and up-skill you on how to use the machine and software on-site
