Drive Type 4WD
FEL N/A
Number Cylinders/cc 4
Rated Engine Power - hp 70
Manufactured by Weichai Lovol Heavy Industry

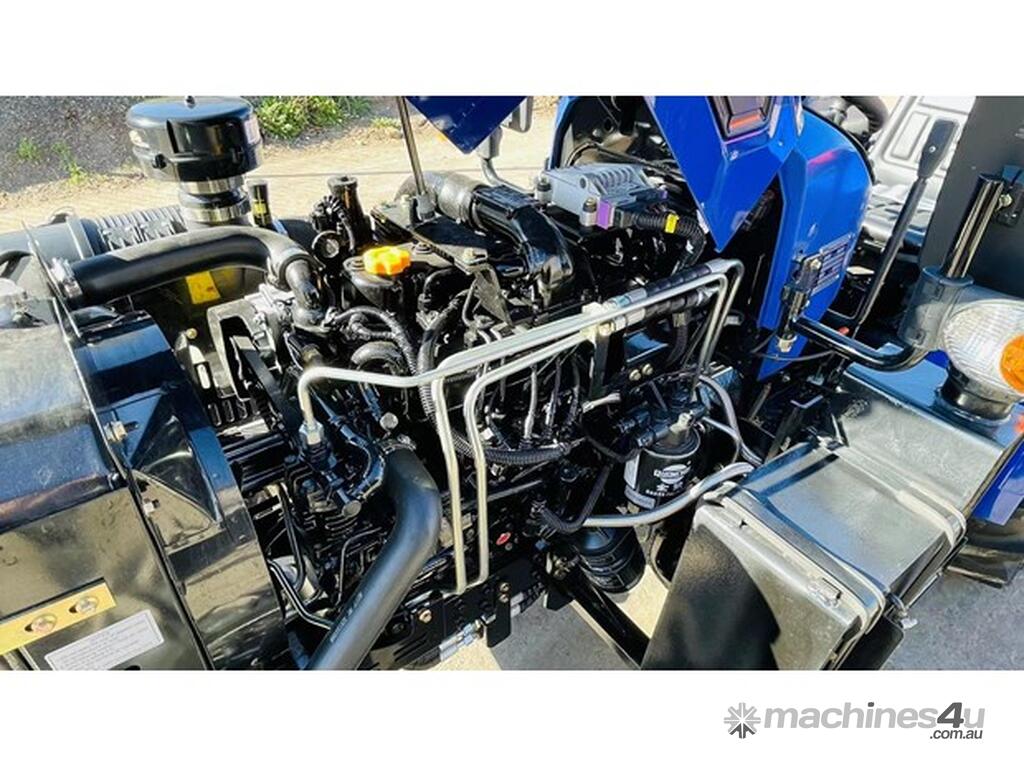

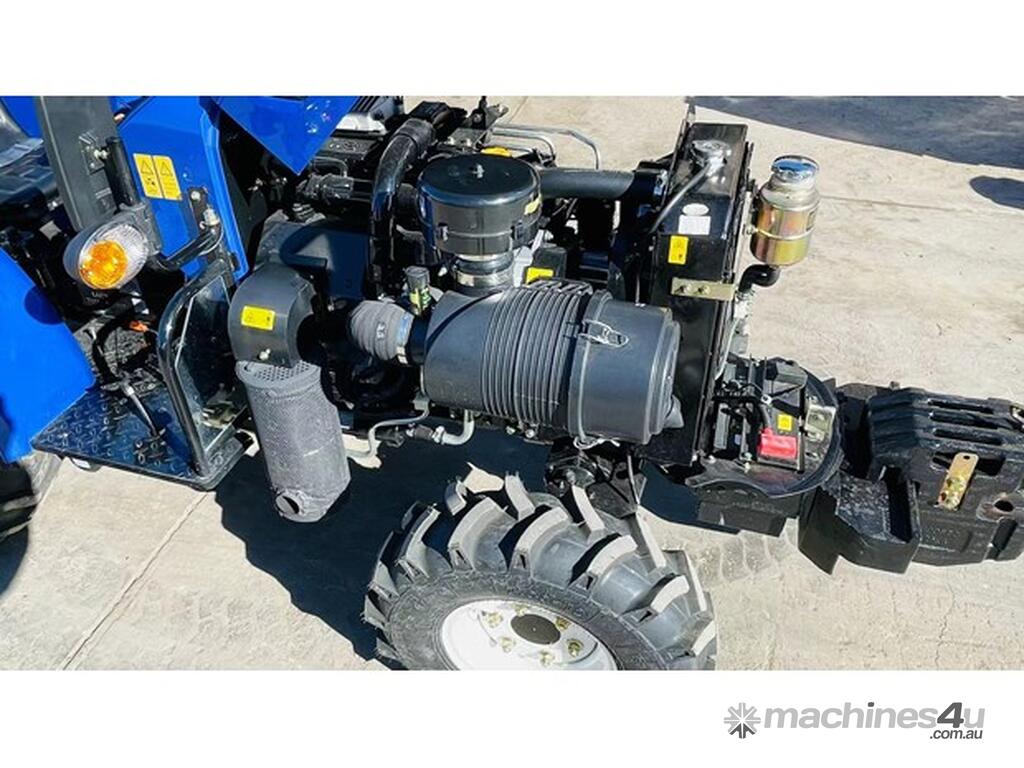

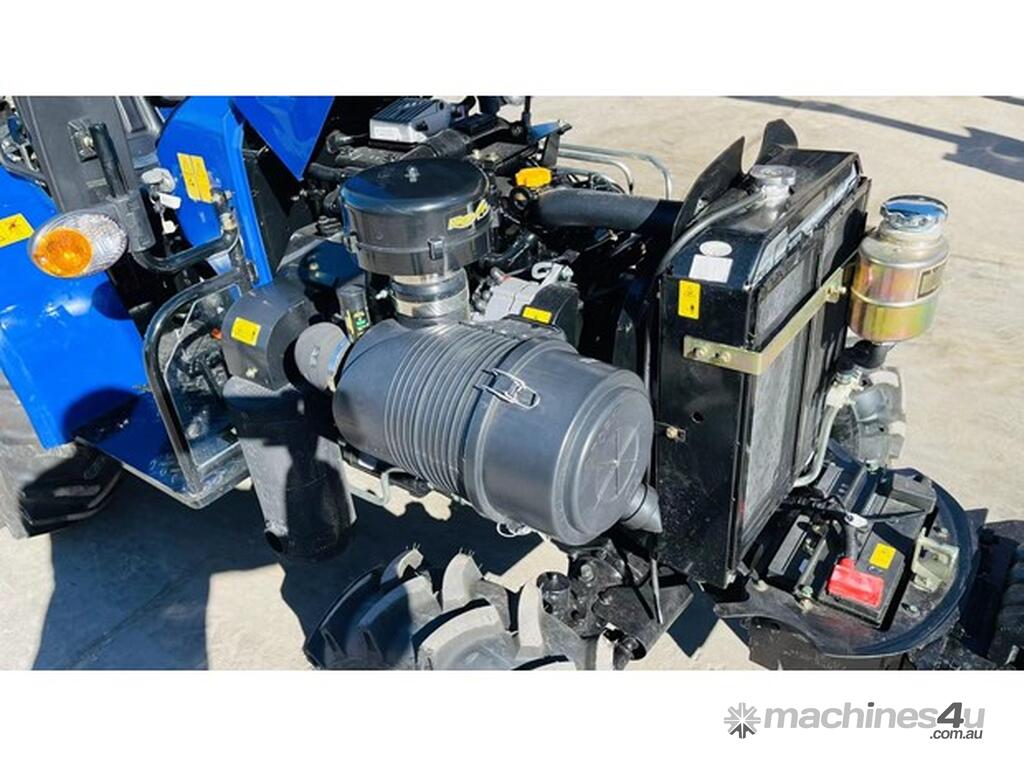

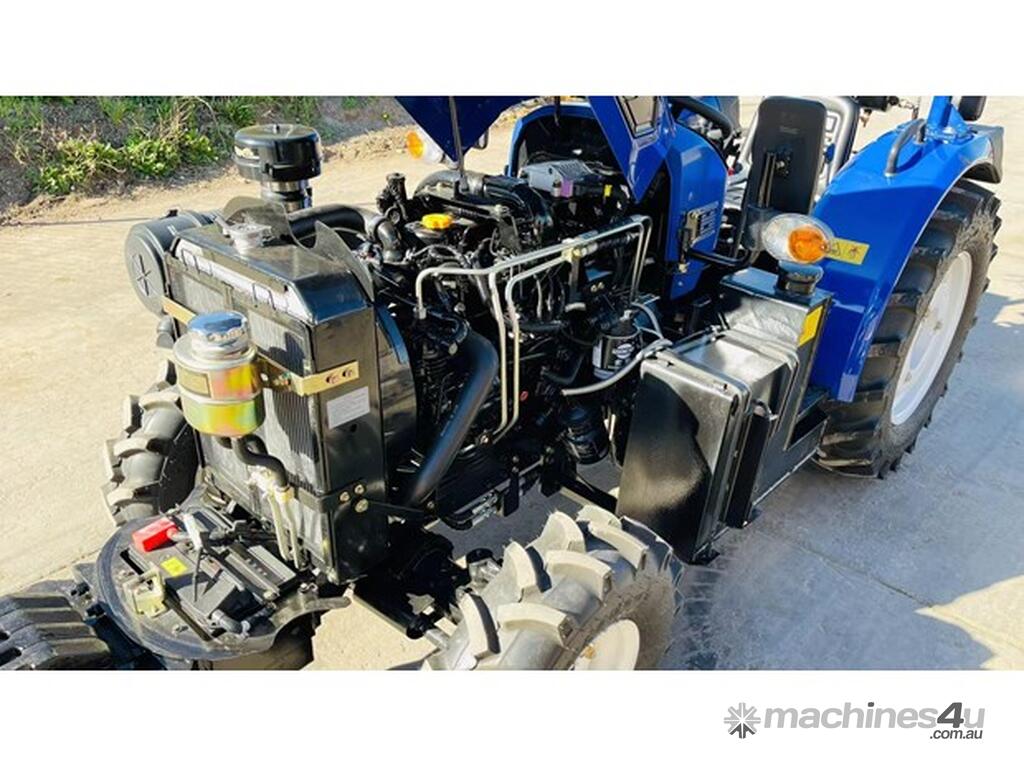

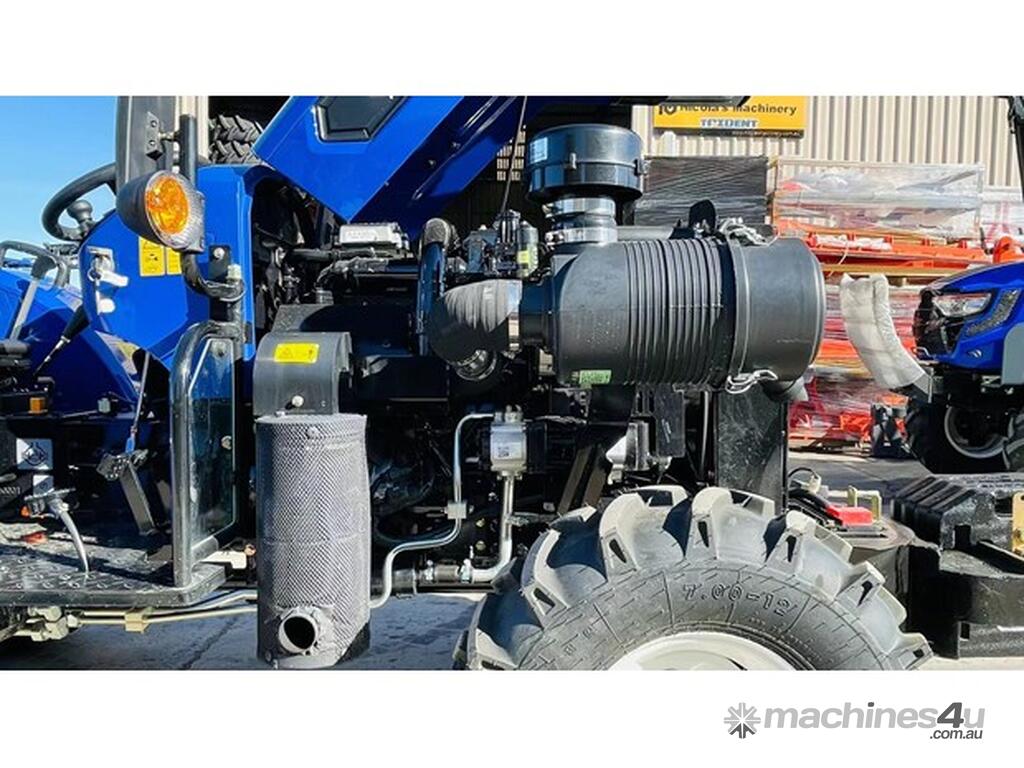

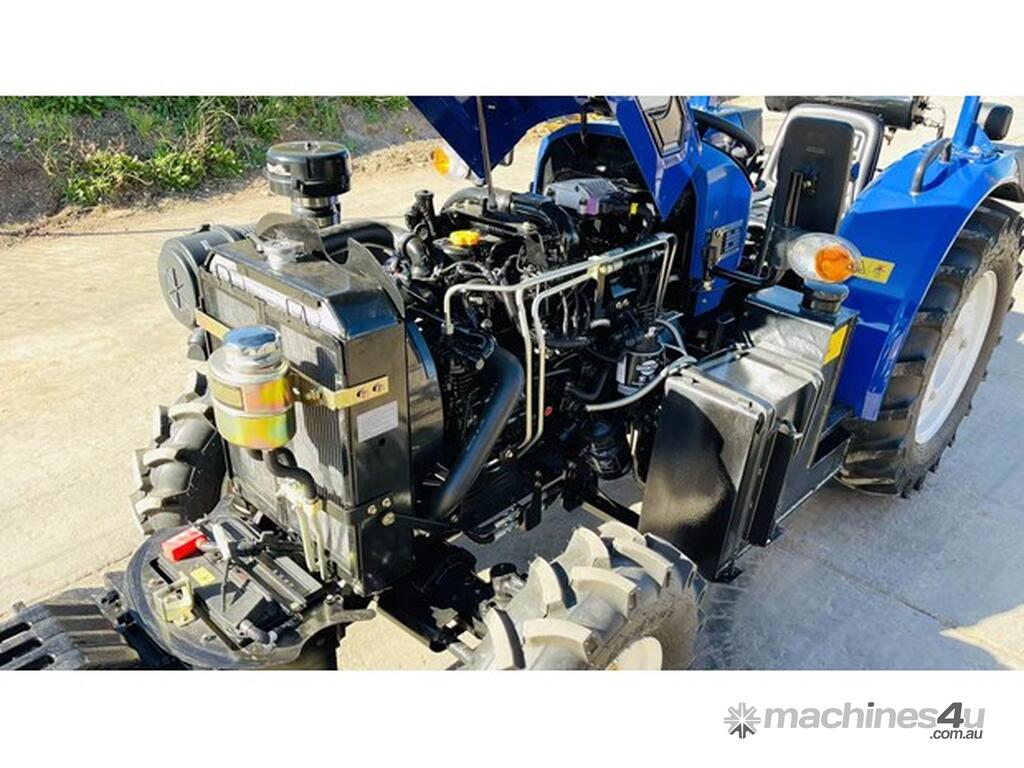

ENGINE
Engine Model QuanChai 4B5-70U32
Engine type Diesel
Engine gross power 70hp 51.5kW
PTO Power 43.8kw 59.5hp
No. of cylinders 4
Total displacement2.83cc
Rated speed 2400 rpm
Battery 12V100ah
Alternator 14V750w
Fuel tank capacity 29L
DRIVE 4X4
Transmission Constant meshing sleeve Shuttle shifts gears 8+8
Hydraulic steering
Brakes Dry Clutch
PTO 540 /720 rpm
HYDRAULICS
Hydraulic remotes Dual

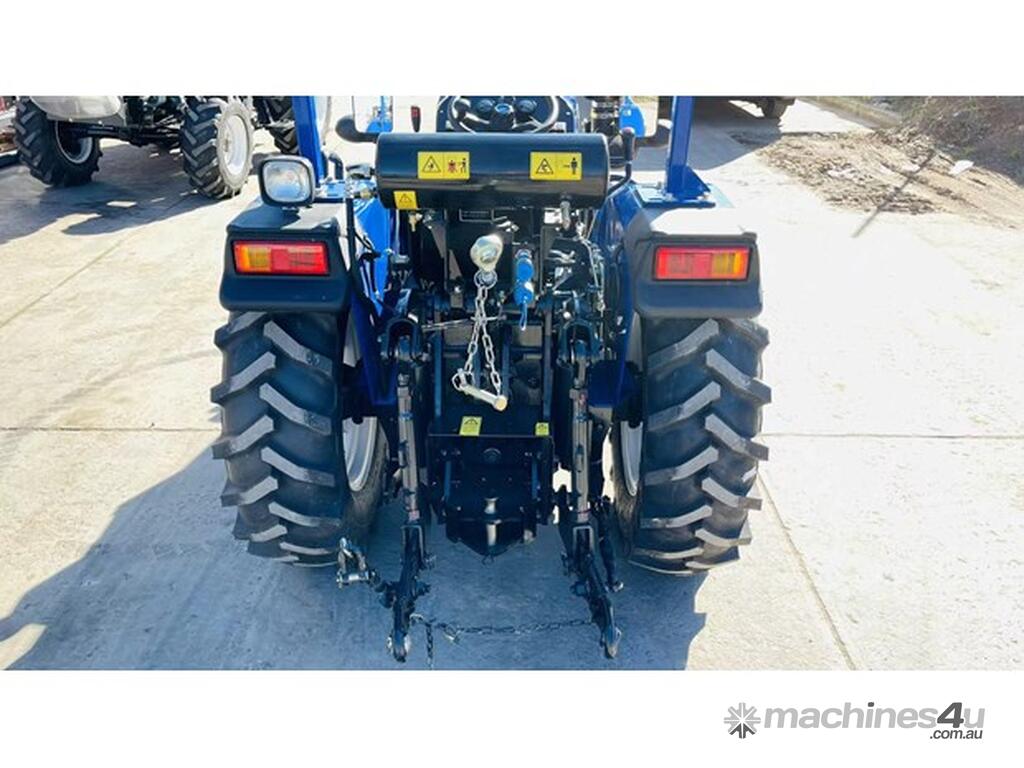

TPK Cat 1
Lift capacity at 610mm1158kg
DIMENSIONS
overall length 3175mm
overall width 1200-1310mm
overall height 2040mm
Min. ground clearance 220mm
Weight with loader 1620kg
Tyre size Front 7.0-12; Rear 13.2-16
