HAFCO LSG-1000 Lathe Leadscrew Cover Kit Up to 1000mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G660
Manufactured in Taiwan
Exposed rotating leadscrew shafts on lathes now can be guarded with the new release of LSG covers, the cartridge roller blind system is designed to reduce the risk of the operator becoming accidentally entangled with the exposed rotating shafts.

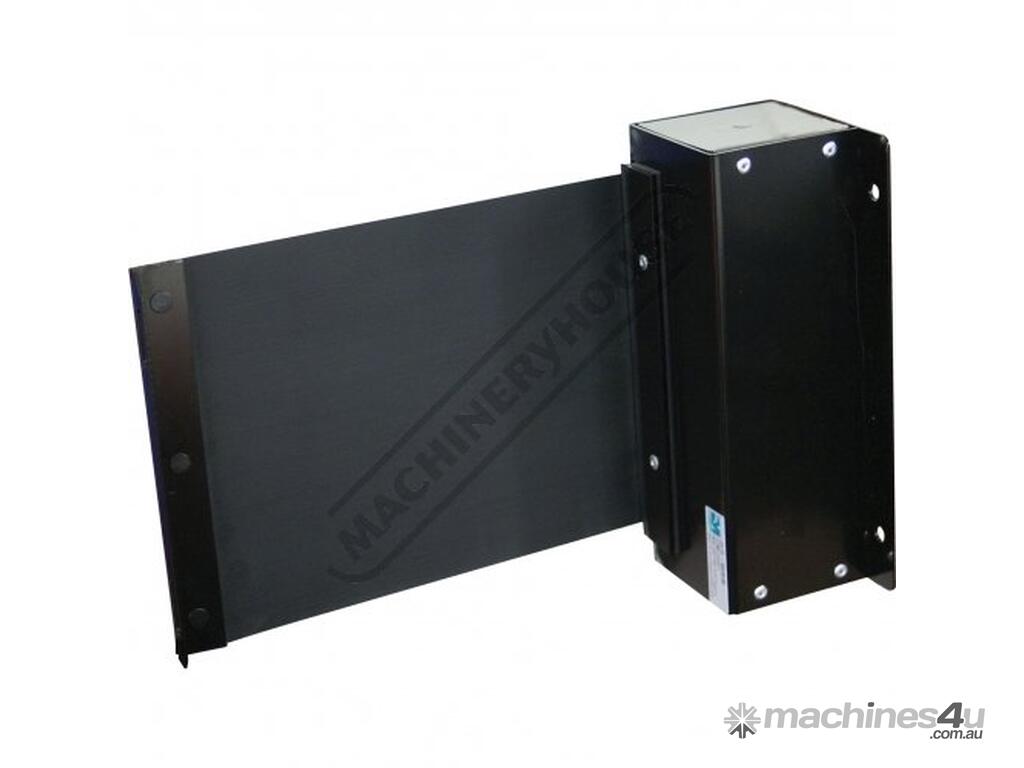

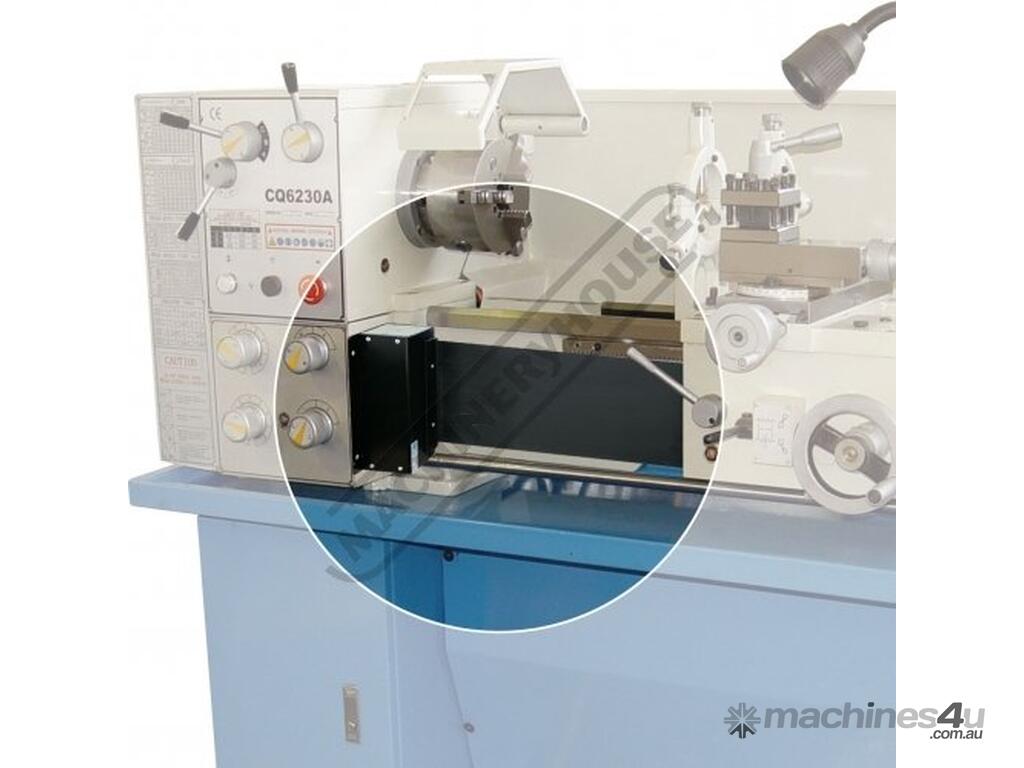

The cartridge roller blind consists of two steel rectangular boxes housing a robust neoprene nylon material, the nylon material is spring loaded and when extended out of the box it covers over the exposed shafts. A complete LSG system consists of 2 roller blinds, 1 set of brackets. One box is fitted to the tailstock end of the machine; the other is fitted to the left hand side of the saddle. Depending upon obstructions on certain types of machines, additional fixing brackets may be required.
Features:
Suitable for bench & centre lathes
Neoprene material dust & oil proof & rated up to 120?
Ease of installation - shafts do not need to be removed
Can be used on machines up to max bed length of 1000mm

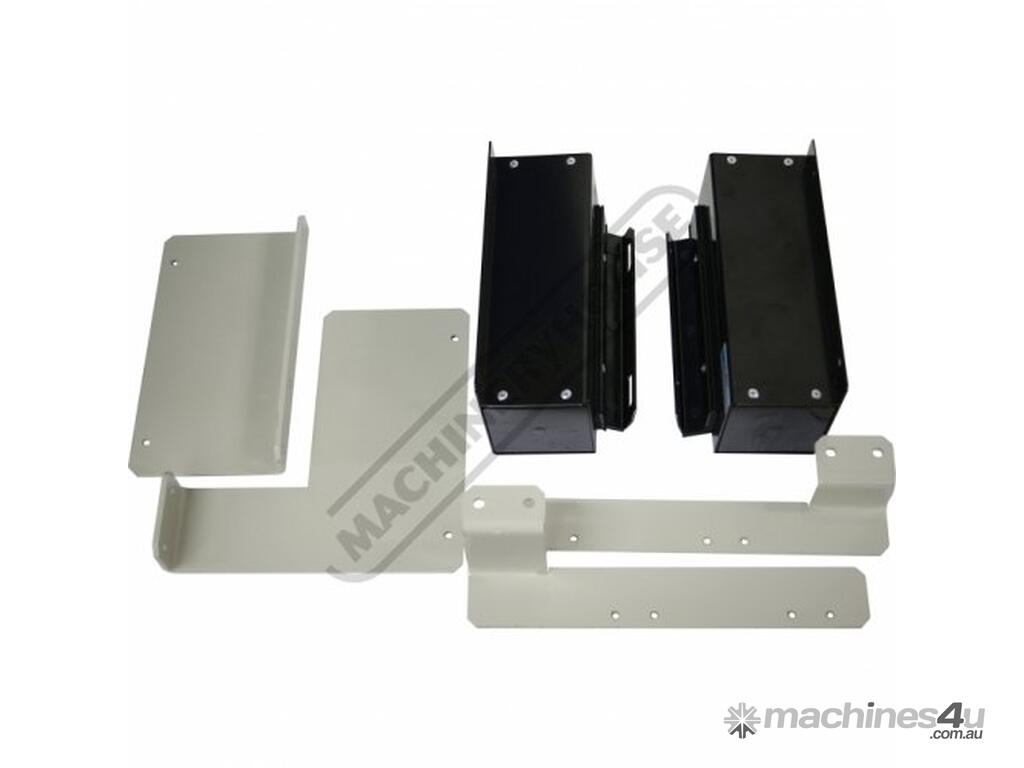

Includes:
- 2 x retractable leadscrew covers
- 1 set of standard brackets that may require modification to suit your machine
-
Specifications:
ORDER CODE: G660
MODEL: LSG-1000
Guard Type: Safety Leadscrew Cover
Material Type: Neoprene-Retractable
Leadscrew Cover Width (mm): 200
Suits Lathe - Distance Between Centres (mm): Up to 1000
Suits Lathe Centre Height (mm): ~
Suits Lathe Chuck Size Max. (mm): ~
