LSG-3000 Lathe Leadscrew Cover Kit Up to 3000mm

HAFCO LSG-3000 Lathe Leadscrew Cover Kit Up to 3000mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G666

Manufactured in Taiwan

Exposed rotating leadscrew shafts on lathes now can be guarded with the new release of LSG covers, the cartridge roller blind system is designed to reduce the risk of the operator becoming accidentally entangled with the exposed rotating shafts.

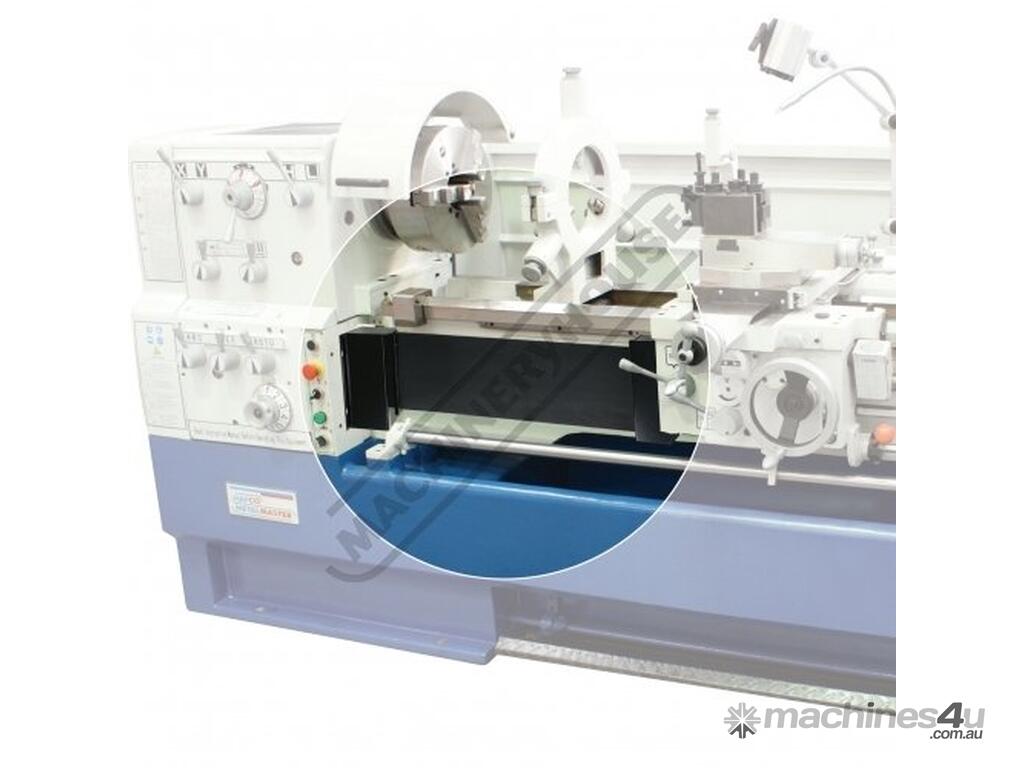

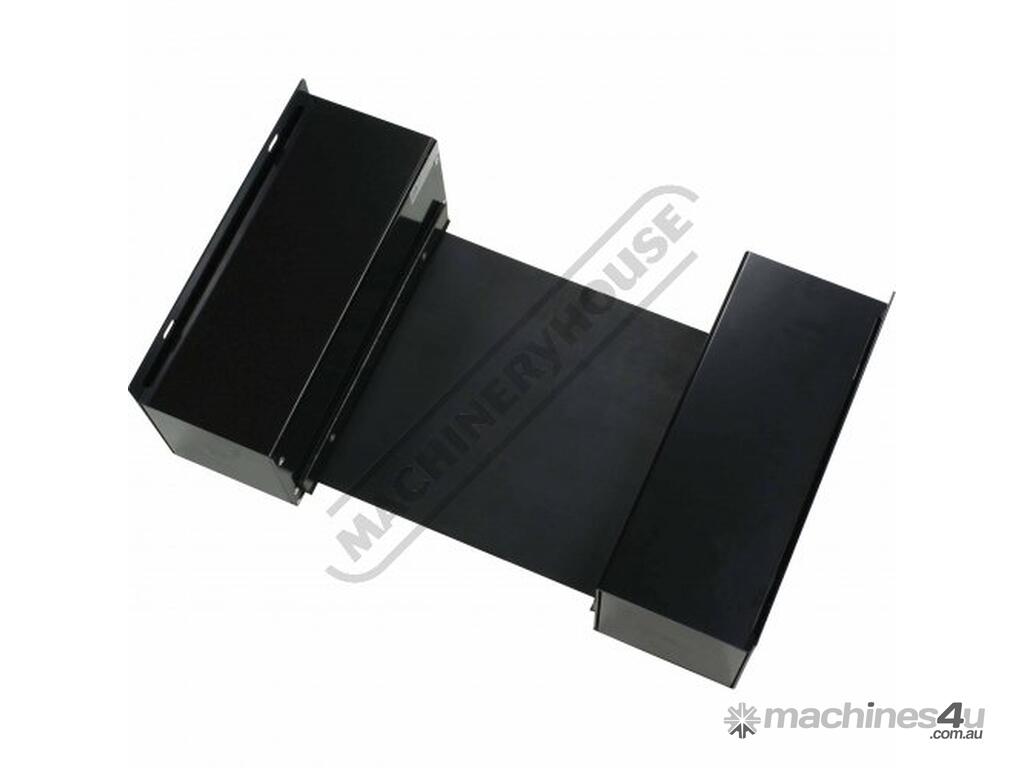

The cartridge roller blind consists of two steel rectangular boxes housing a robust neoprene nylon material, the nylon material is spring loaded and when extended out of the box it covers over the exposed shafts. A complete LSG system consists of 2 roller blind sets, 1 set of brackets. One box set is fitted to the tailstock end of the machine; the other is fitted to the left hand side of the saddle. Depending upon obstructions on certain types of machines, additional fixing brackets may be required.

Features:
Suitable for bench & centre lathes
Neoprene material dust & oil proof & rated up to 120?
Ease of installation - shafts do not need to be removed
Can be used on machines up to max bed length of 3000mm

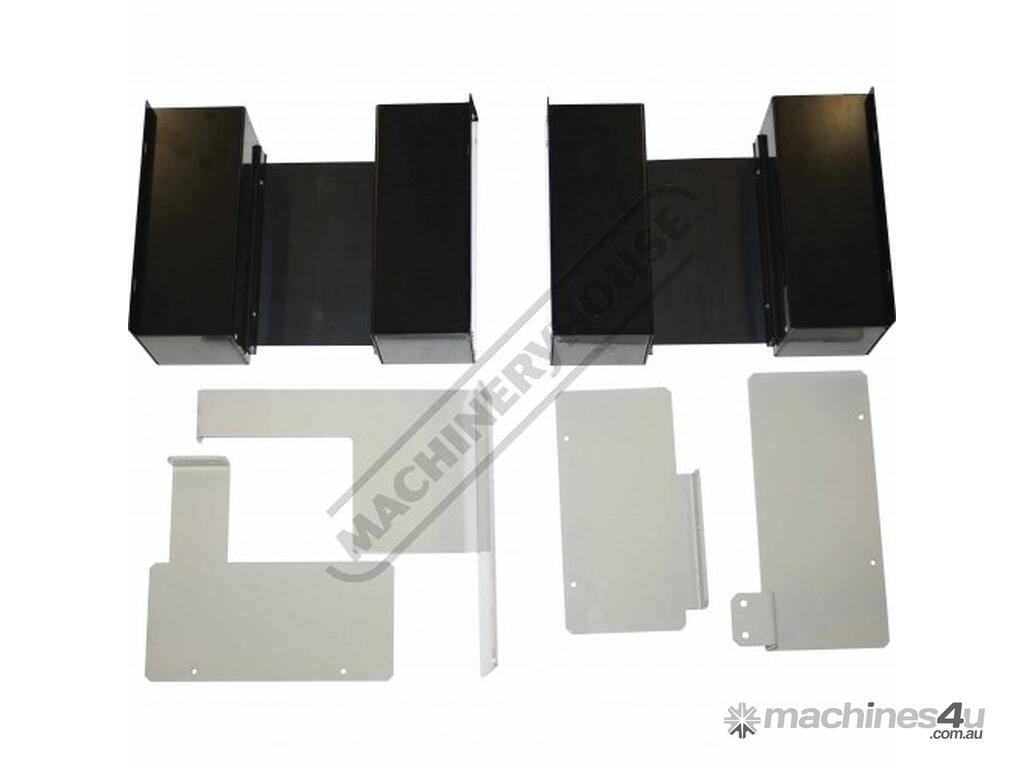

Includes:
- 2 x retractable leadscrew covers
- 1 set of standard brackets that may require modification to suit your machine



Specifications:
ORDER CODE: G666
MODEL: LSG-3000
Guard Type: Safety Leadscrew Cover
Material Type: Neoprene-Retractable
Leadscrew Cover Width (mm): 250
Suits Lathe - Distance Between Centres (mm): Up to 3000
Suits Lathe Centre Height (mm): ~
Suits Lathe Chuck Size Max. (mm): ~
