LSGC-1000 Lathe Leadscrew Cover Kit - Concertina Up to 1000mm

HAFCO LSGC-1000 Lathe Leadscrew Cover Kit - Concertina Up to 1000mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G659

Manufactured in Taiwan

Exposed rotating leadscrew shafts on lathes now can be guarded with the new release of LSGC covers, the steel concertina type system is designed to reduce the risk of the operator becoming accidentally entangled with the exposed rotating shafts.

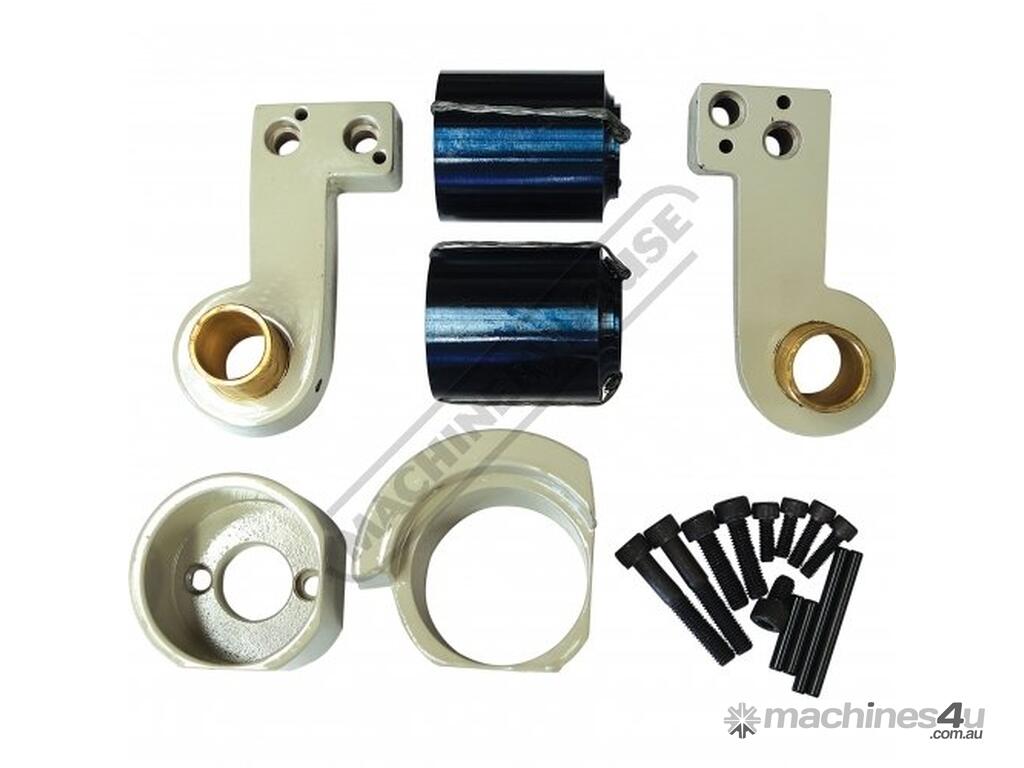

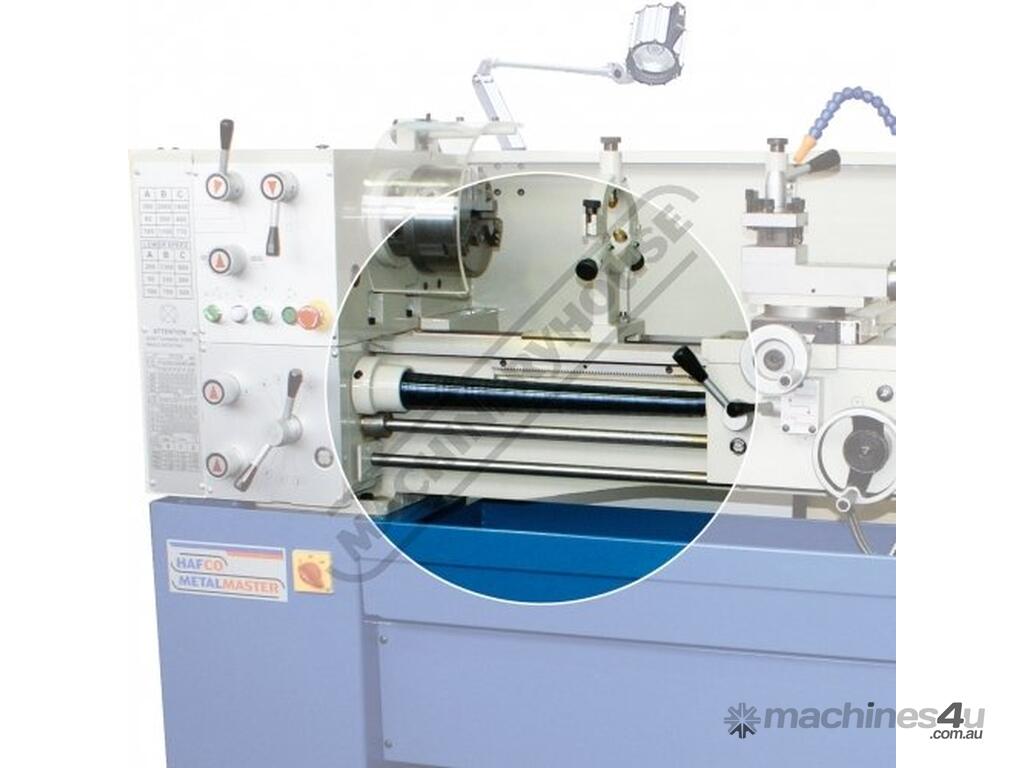

A complete LSGC system consists of 2 concertina metal guards, 1 set of brackets etc and mounting screws and pins. One concertina guard is fitted to the tailstock end of the machine; the other is fitted to the left hand side of the saddle. Depending upon obstructions on certain types of machines, additional fixing brackets may be required.

Features:
Suitable for bench & centre lathes
Metal concertina covers resistant to swarf and shavings
Suitable for leadscrew Ø22 - Ø24mm diameter
Can be used on machines up to max bed length of 1000mm

Includes:
- 2 x concertina leadscrew guards
- 1 set of standard brackets that may require modification to suit your machine
-



Specifications:
ORDER CODE: G659
MODEL: LSGC-1000
Guard Type: Safety Leadscrew Cover
Material Type: Steel - Concertina
Leadscrew Cover Width (mm): ~
Suits Lathe - Distance Between Centres (mm): Up to 1000
Suits Lathe Centre Height (mm): ~
Suits Lathe Chuck Size Max. (mm): ~


To Purchase Online Please Visit The Machineryhouse & Search For 'G659'
