Dr. Staiger Mohilo & Co.
These units were originally from ZF Services Australia Pty Ltd who made suspension components for Holden and others.
They are fully electric non hydraulic press, they have the ability to record a force profile for every part assembled with the press for quality assurance and validation of safety critical automotive parts.
The machine frames are very heavily built and would be capable of operating at greater tonnage if fitted with hydraulics.

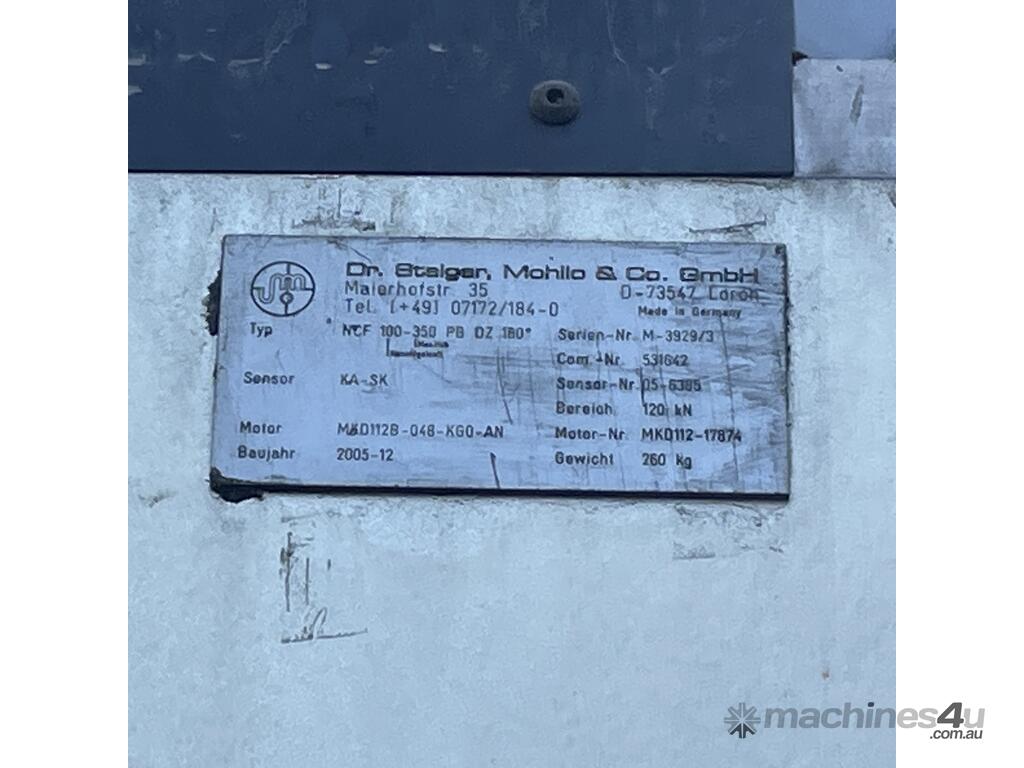

Type NCF 100-350 PB OZ 1B0
Sensor KA-SK
Motor MXD112B-048-KG0-AN

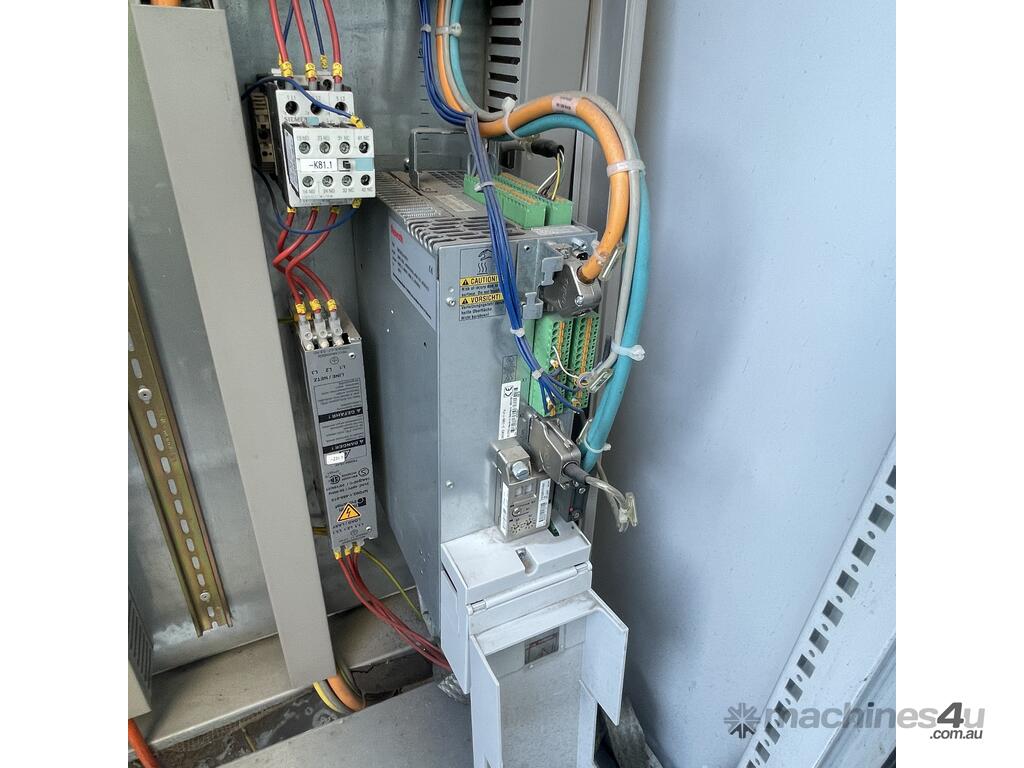

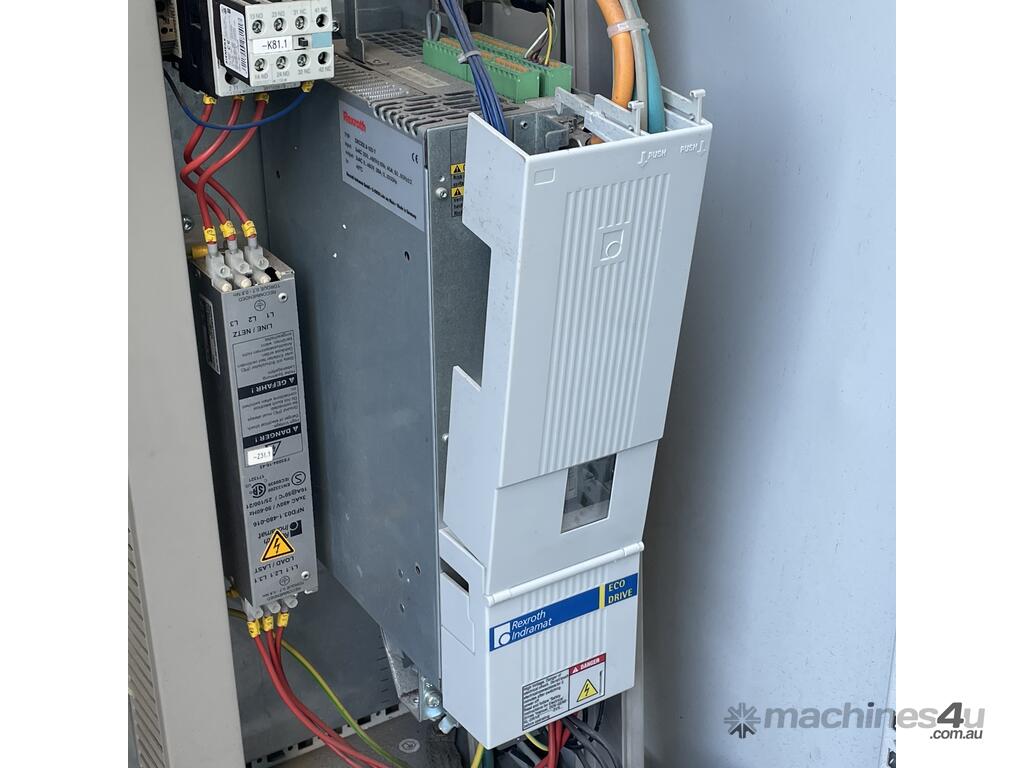

REXROTH indramat ECO DRIVE

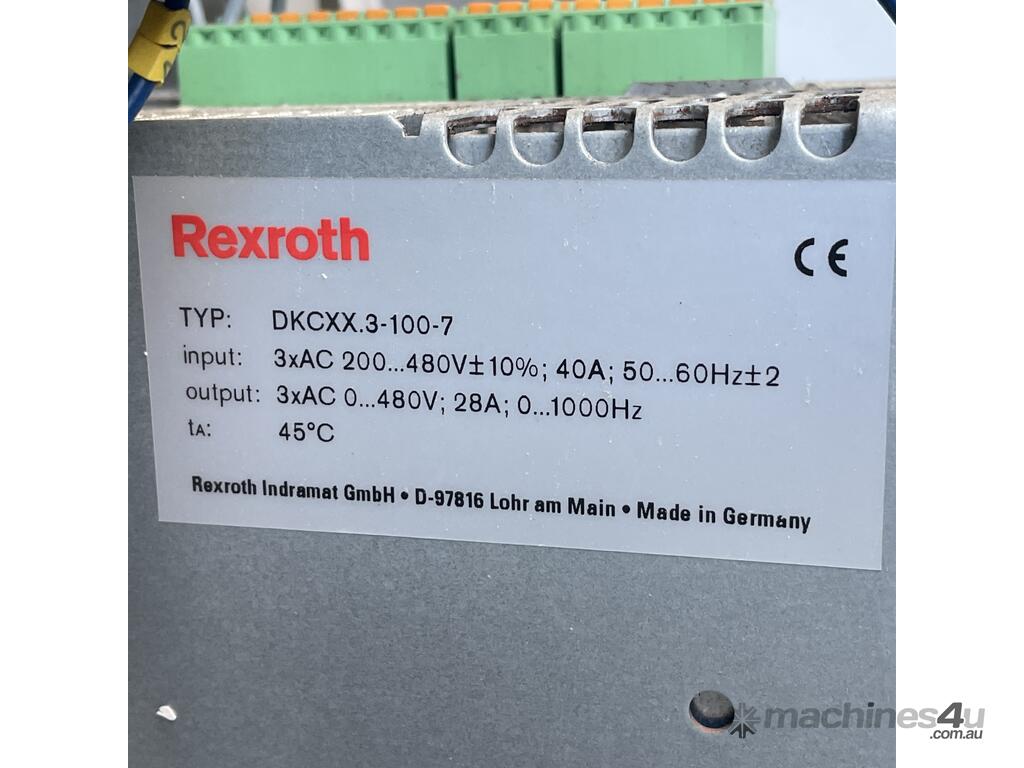

DKCXX. Servo Drive

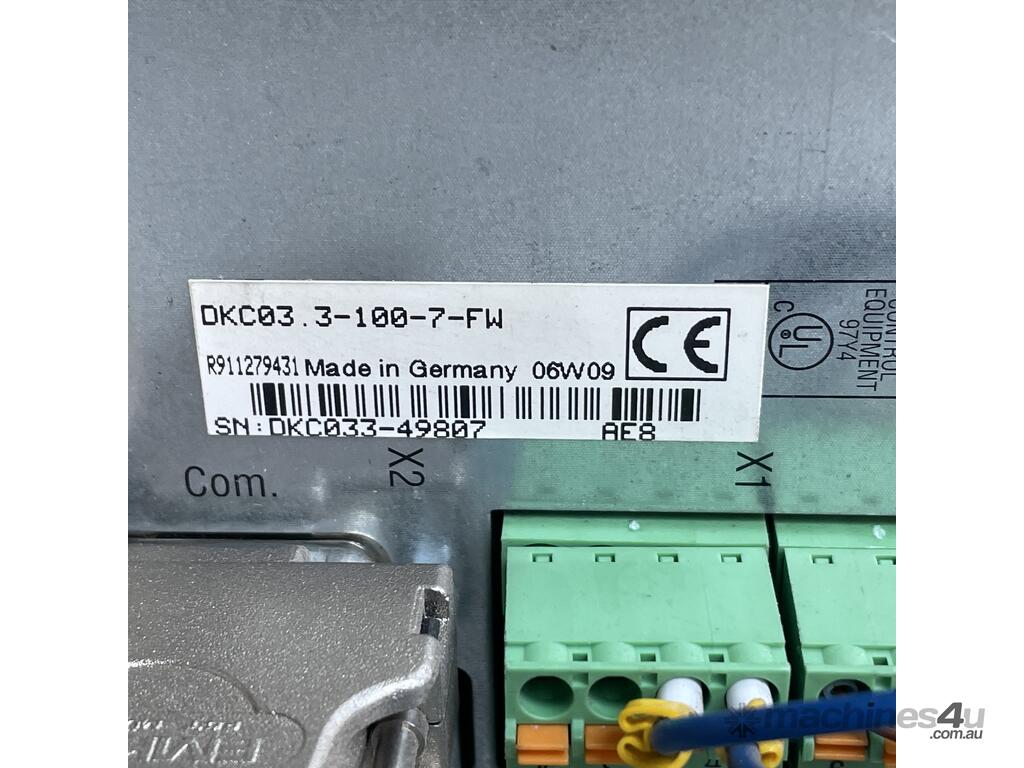

DKC03.

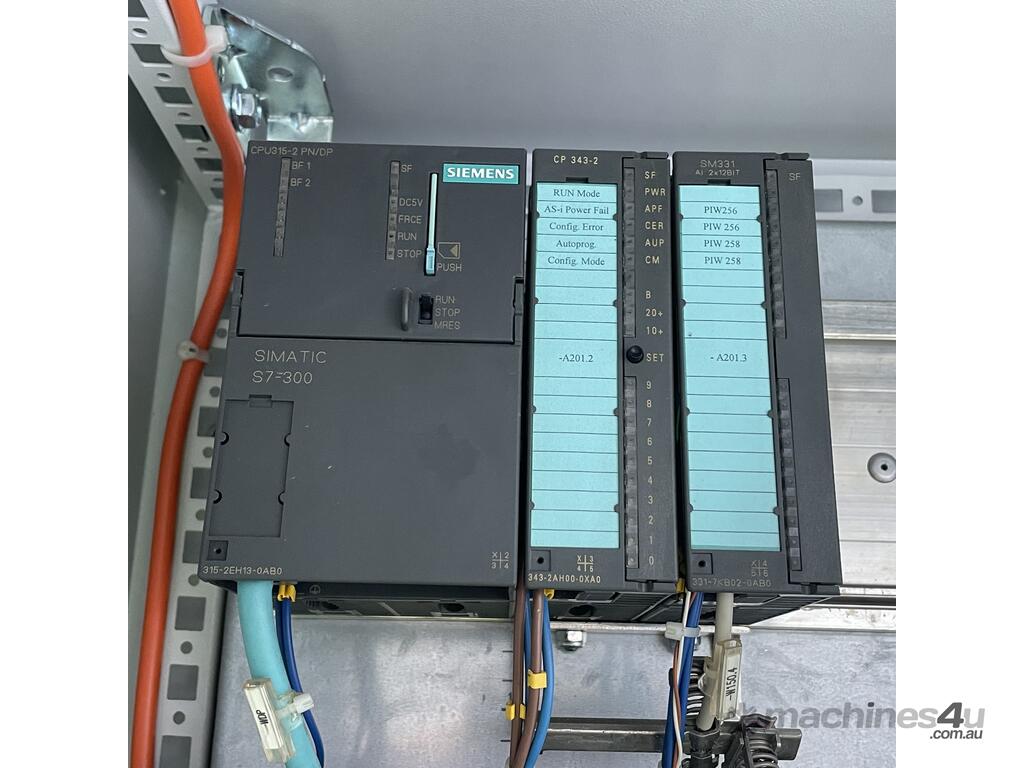

SIMATIC S7-300
315-2EH13-0AB0
CPU315-2 PN/DP
CP 343-2
343-2AH00-0XA0
SM331 AI 2X12BIT
331-7KB021-0AB0

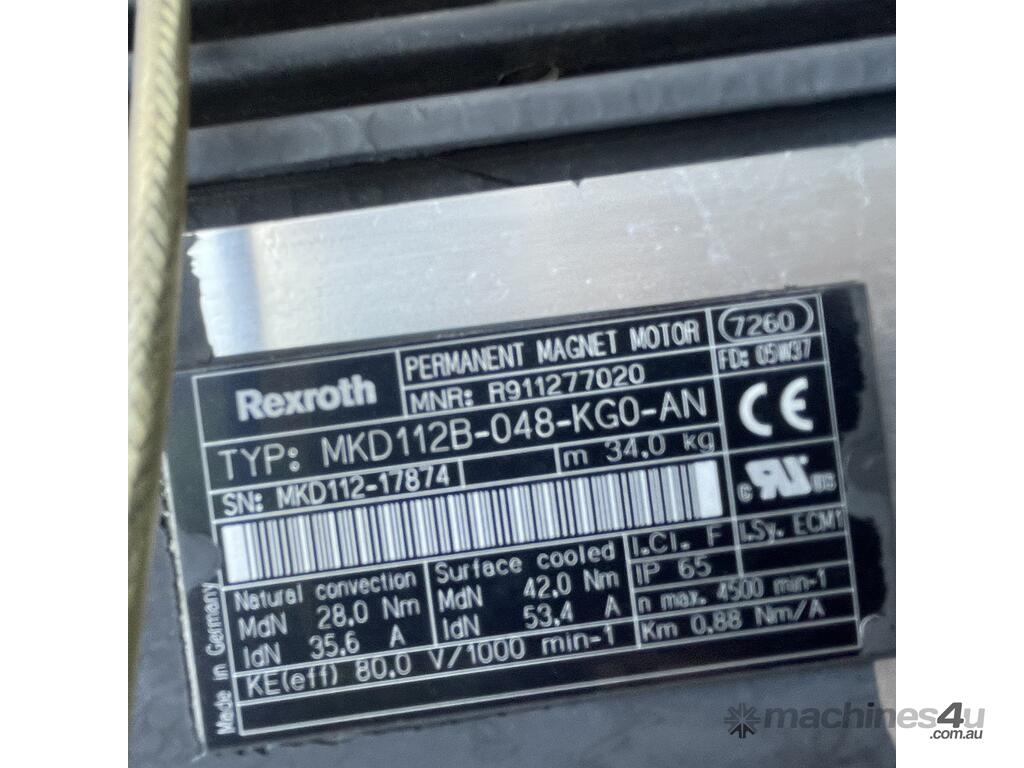

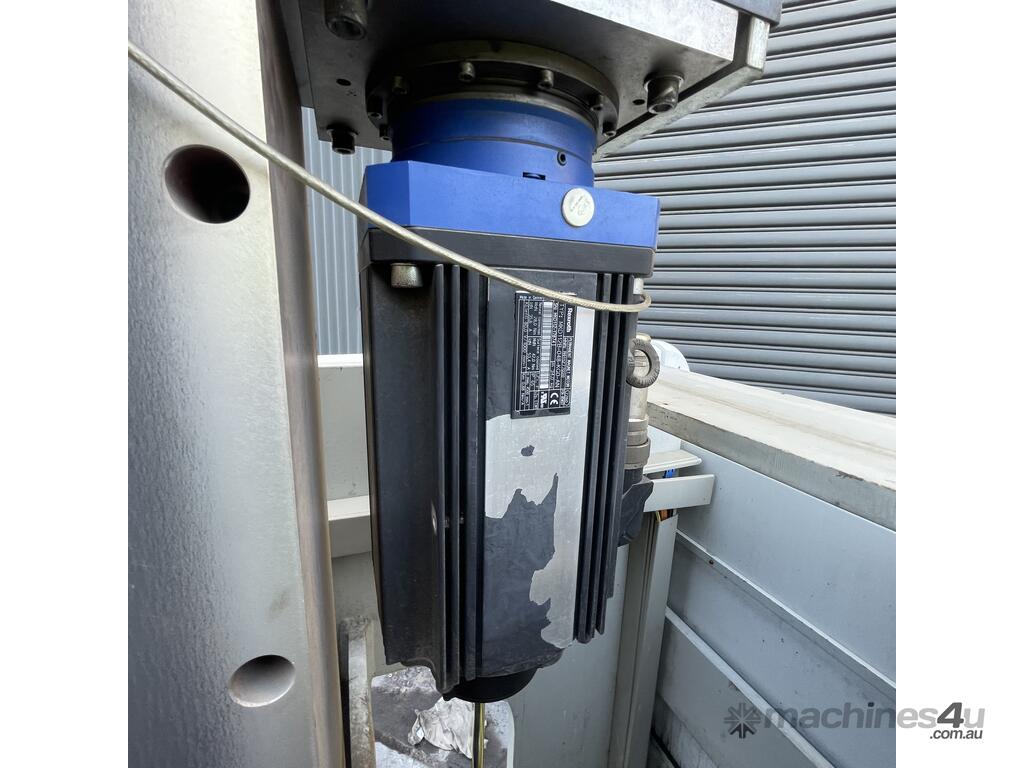

REXROTH Permanent magnet Motor MKD112B-048-KG-AN 4500RPM

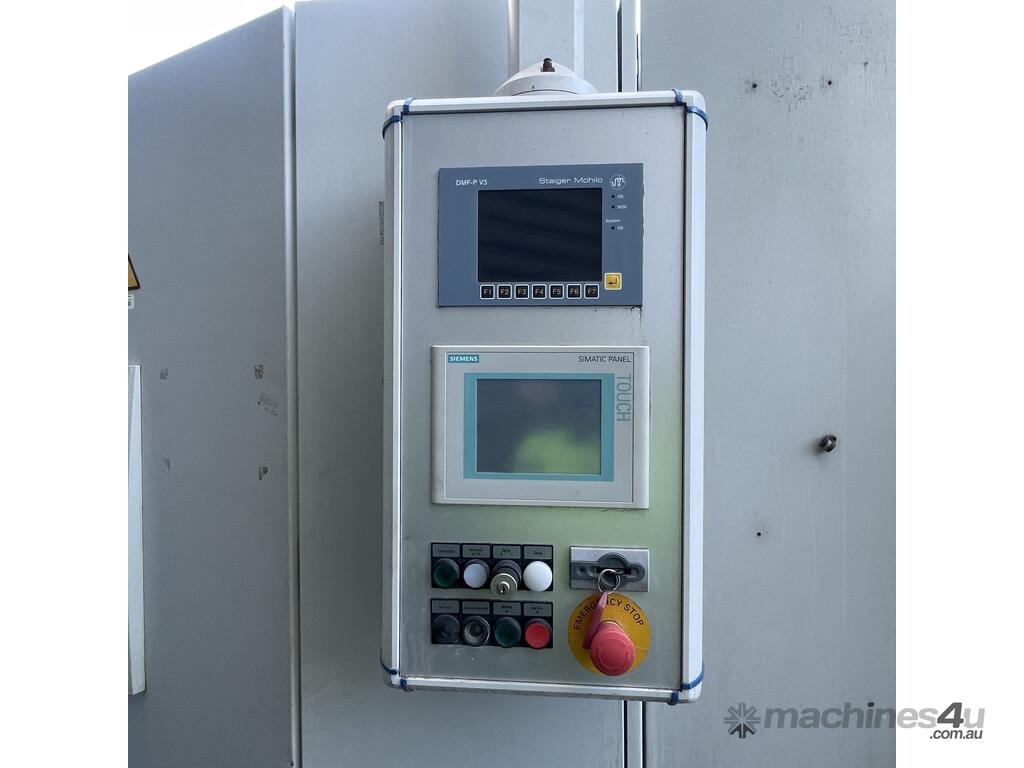

DMF-P V3 Staiger Mohilo PC (probably a data logger for each part processed with this machine).

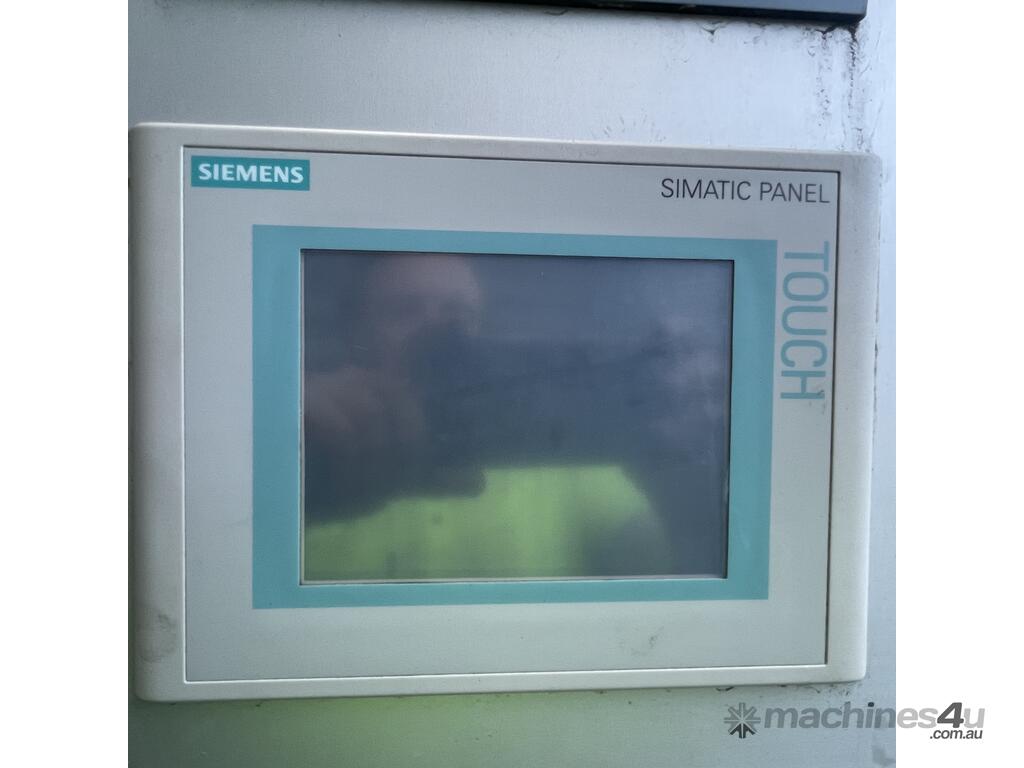

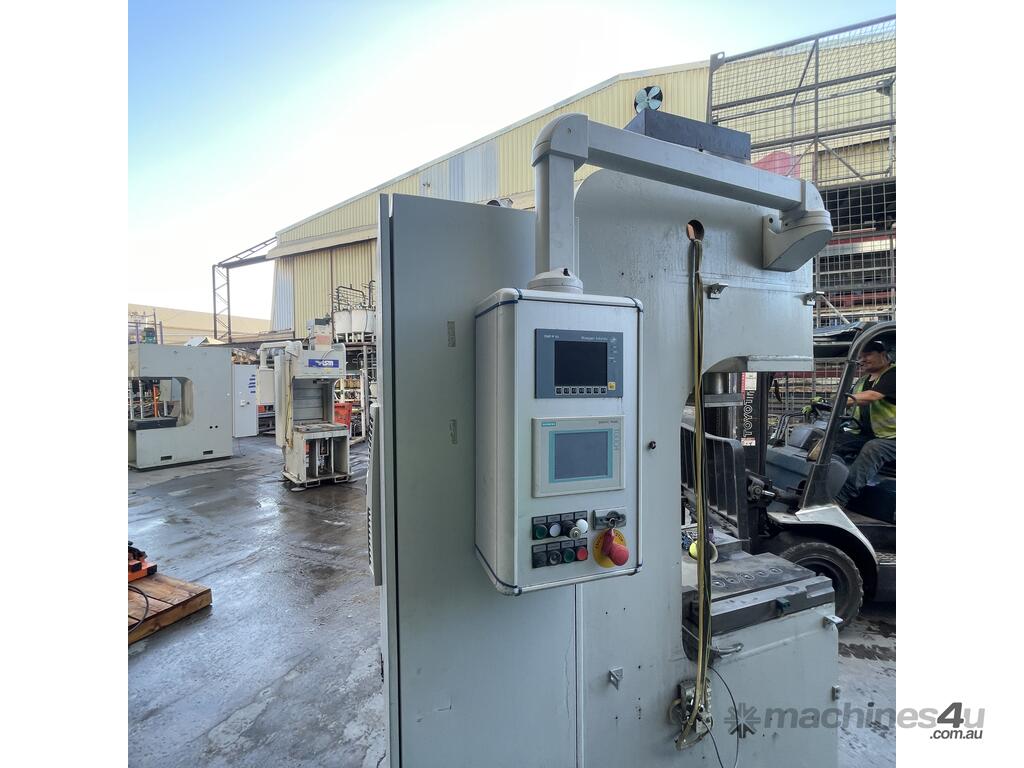

Siemens SIMATIC PANEL TOUCH HMI 6AVBA01-1AX1 TP177B PN/DP-6 CSTN

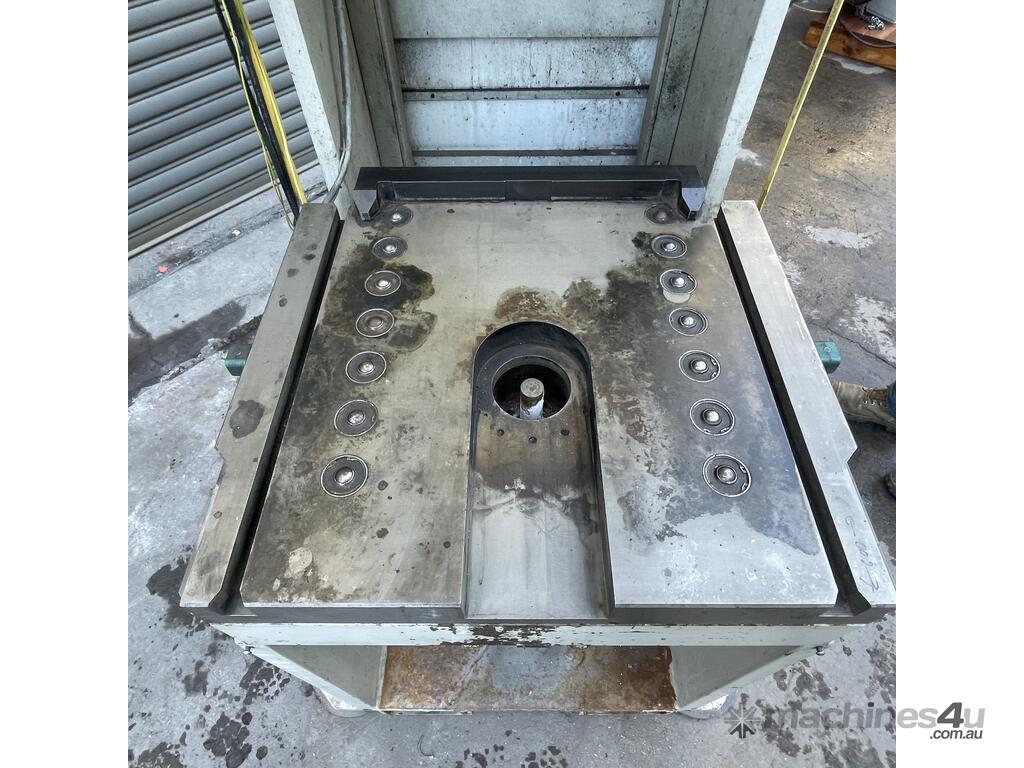

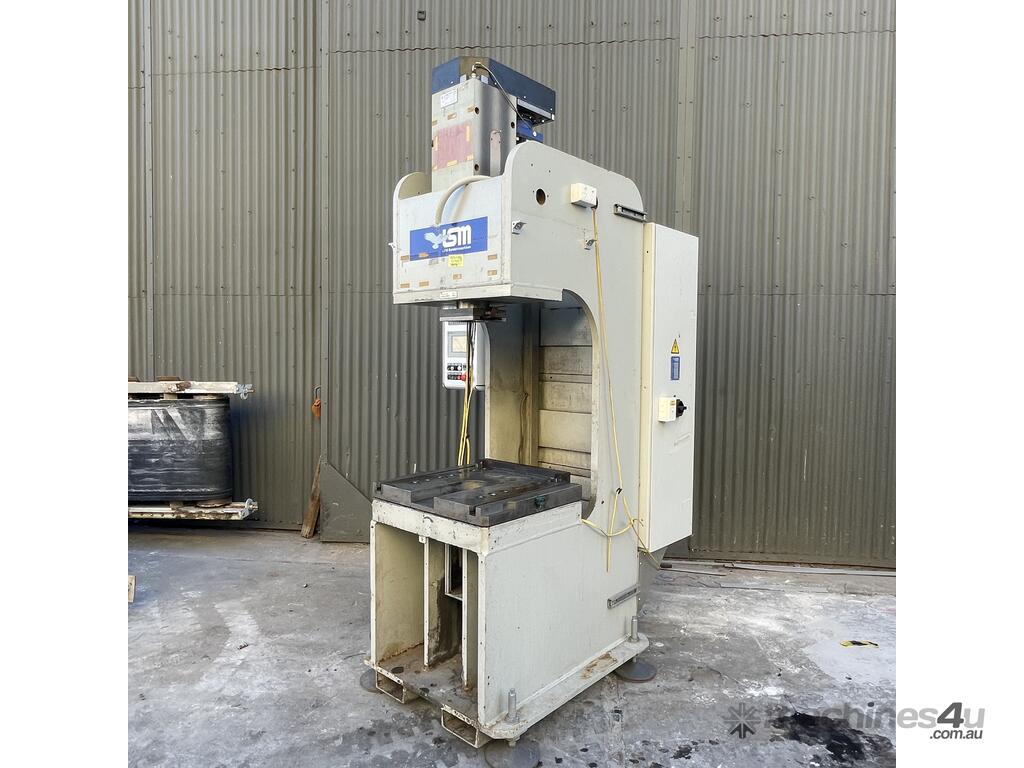

Heavy duty steel construction

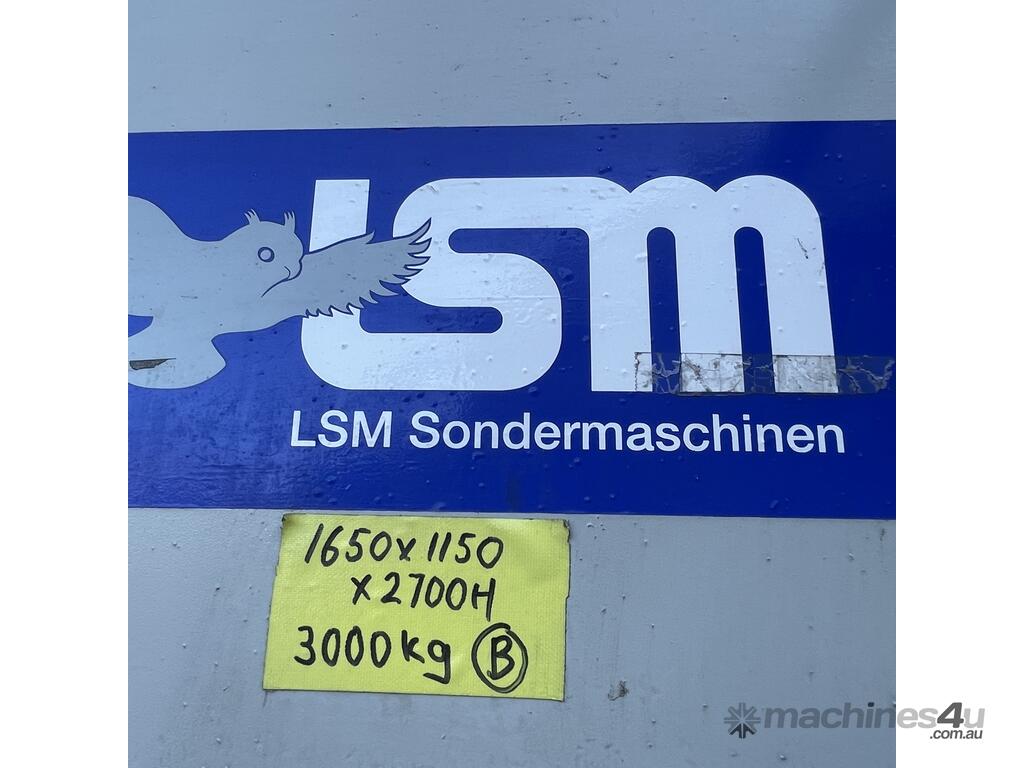

1650 X 1150 X 2700mm
3000 kg
We have 2 of these available, one has some damage to the Siemens HMI cover (screen is good).
We have loading facilities available, and we can also assist you with making freight arrangements if required.
Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
