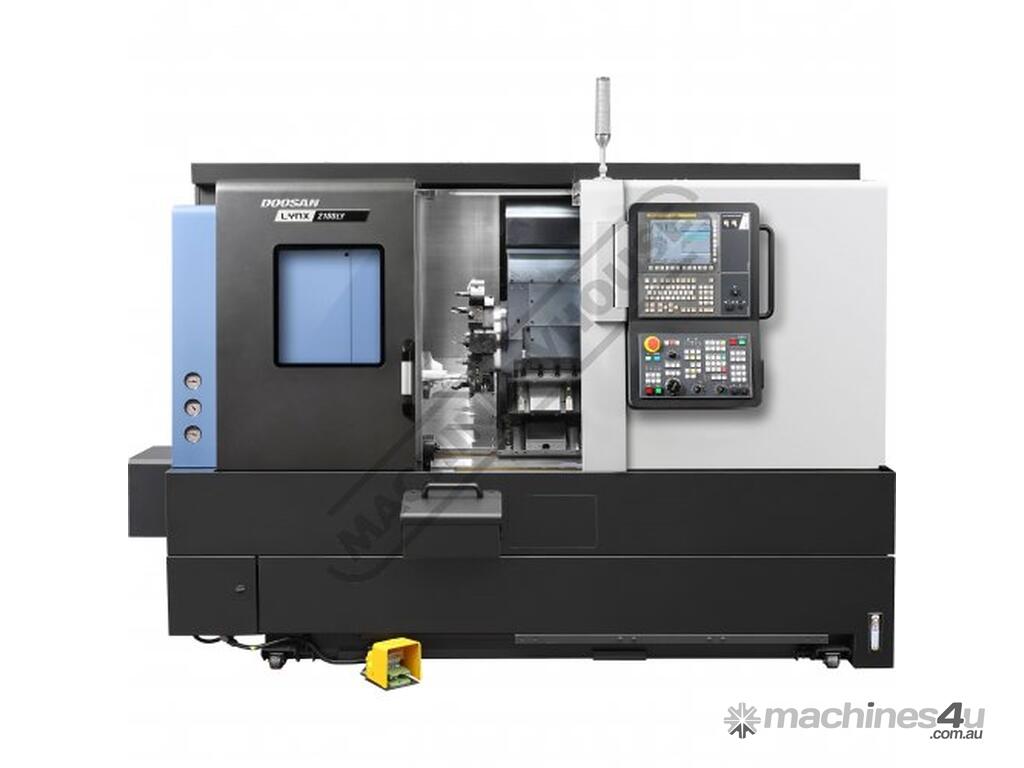

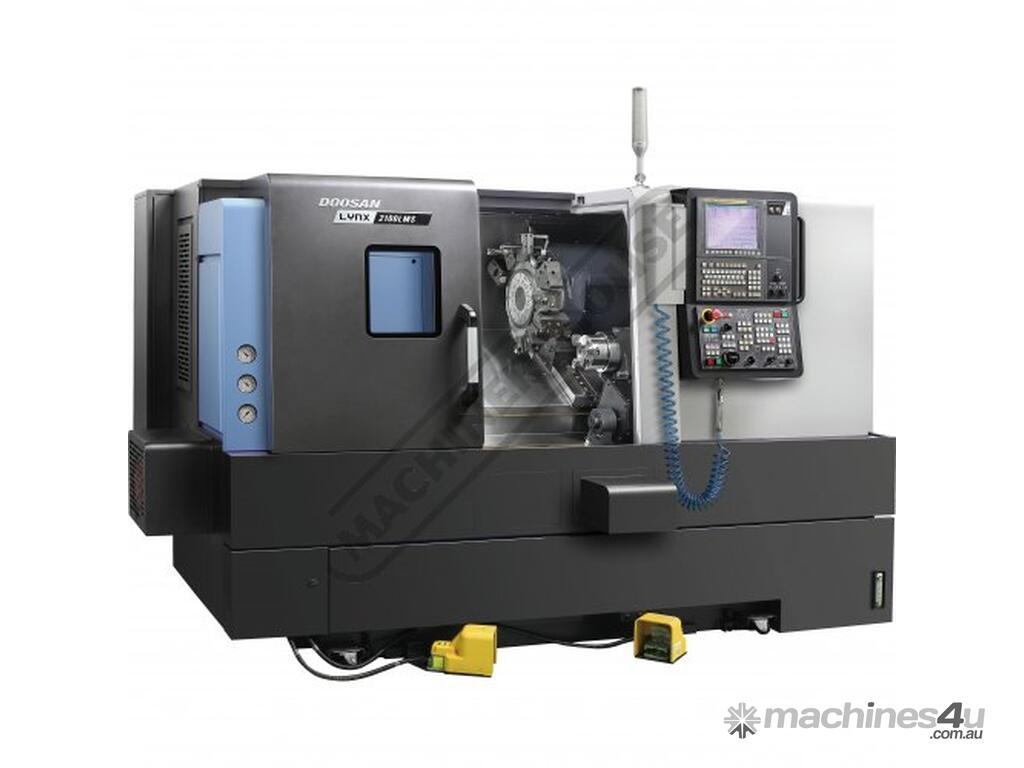

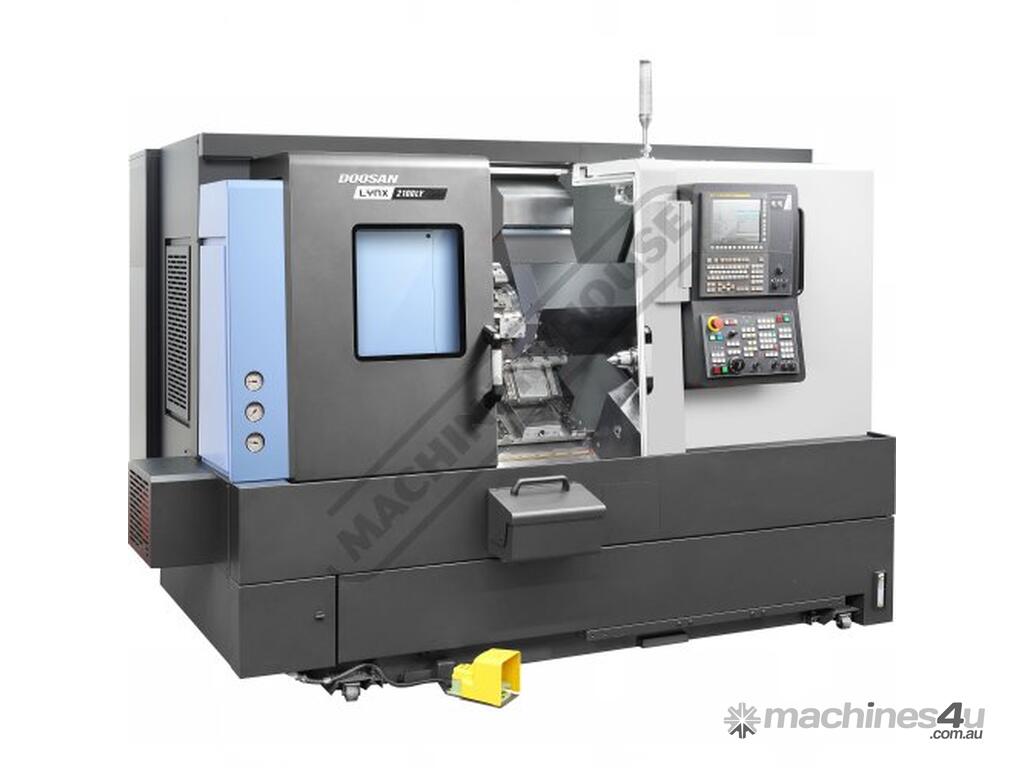

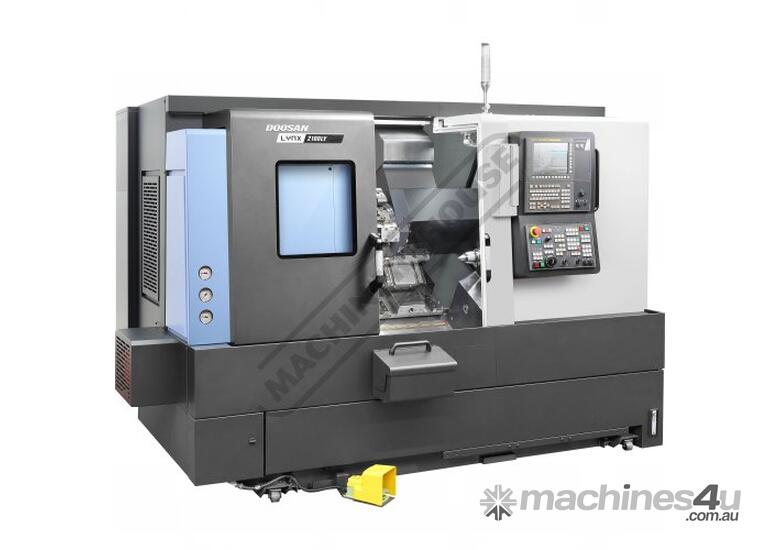

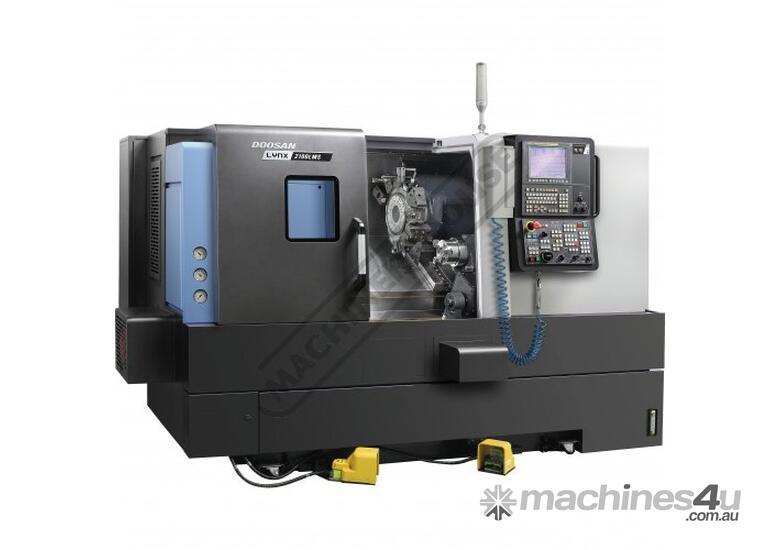

LYNX 2100 CNC Turning Centres Series Details

DOOSAN MACHINE TOOLS LYNX 2100 CNC Turning Centres Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8000

Features:

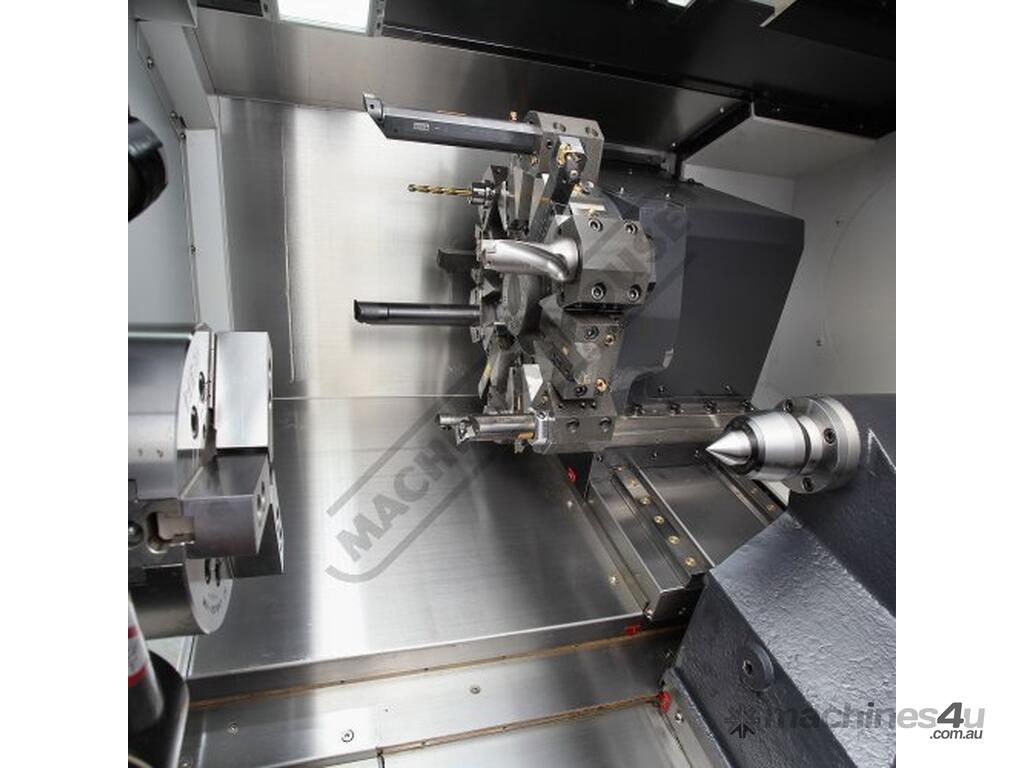

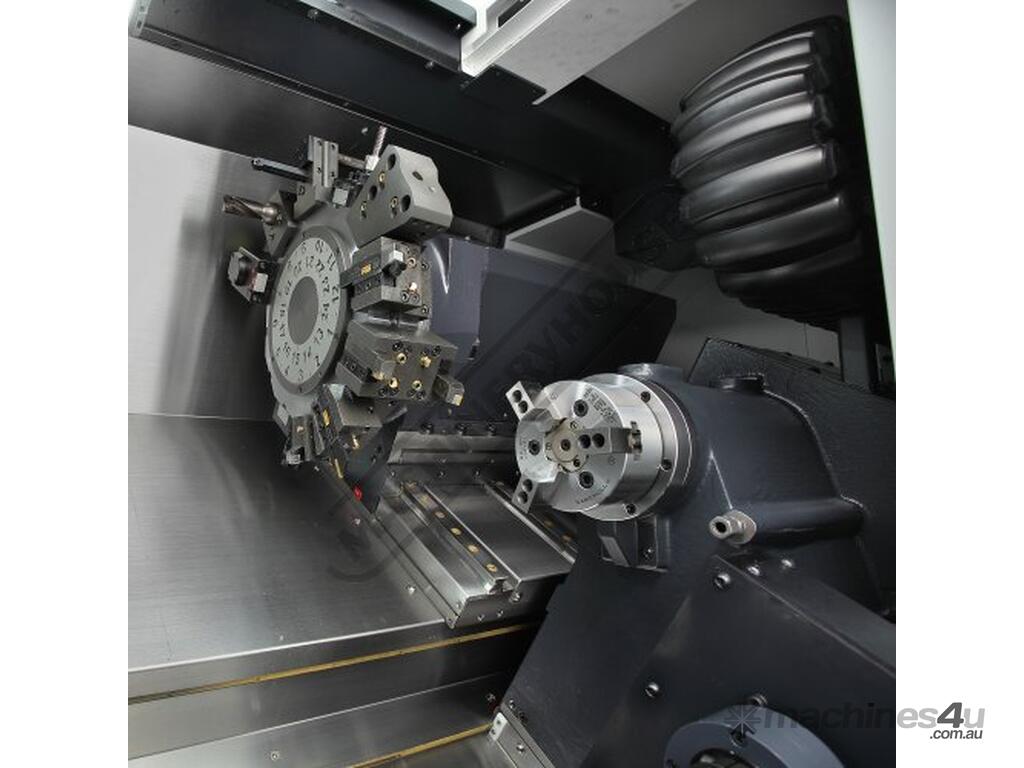

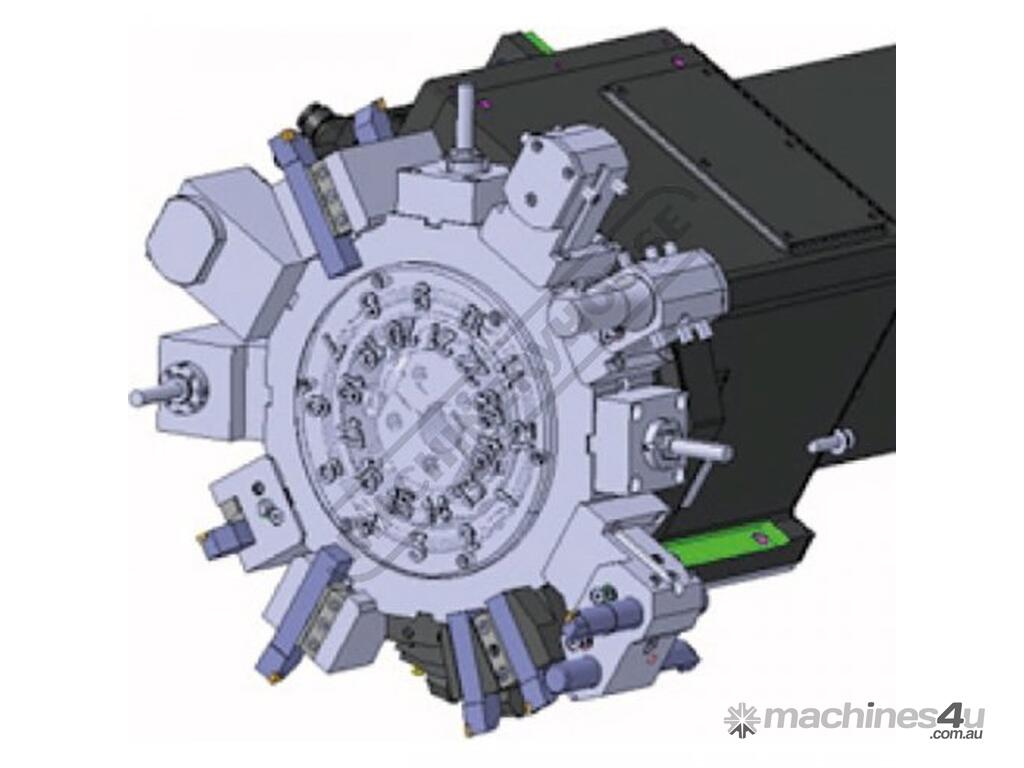

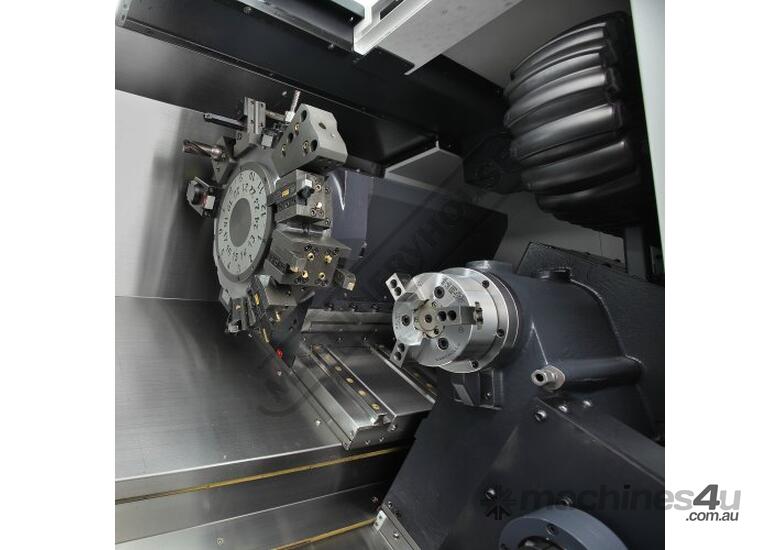

Turret Tool Holder Set

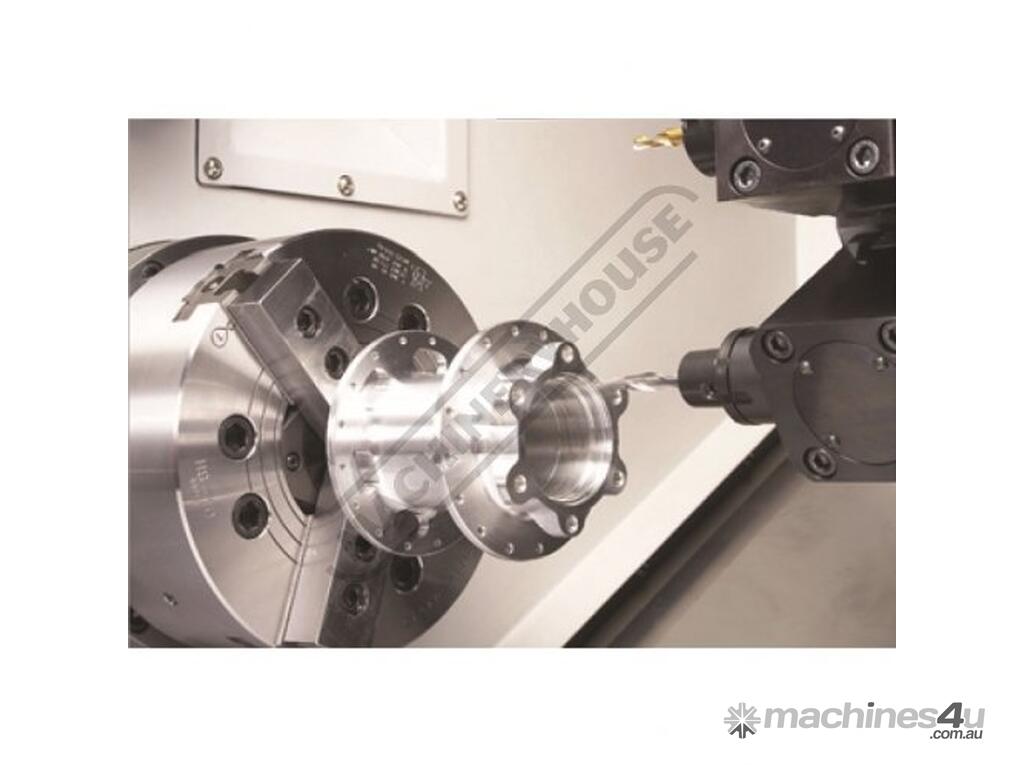

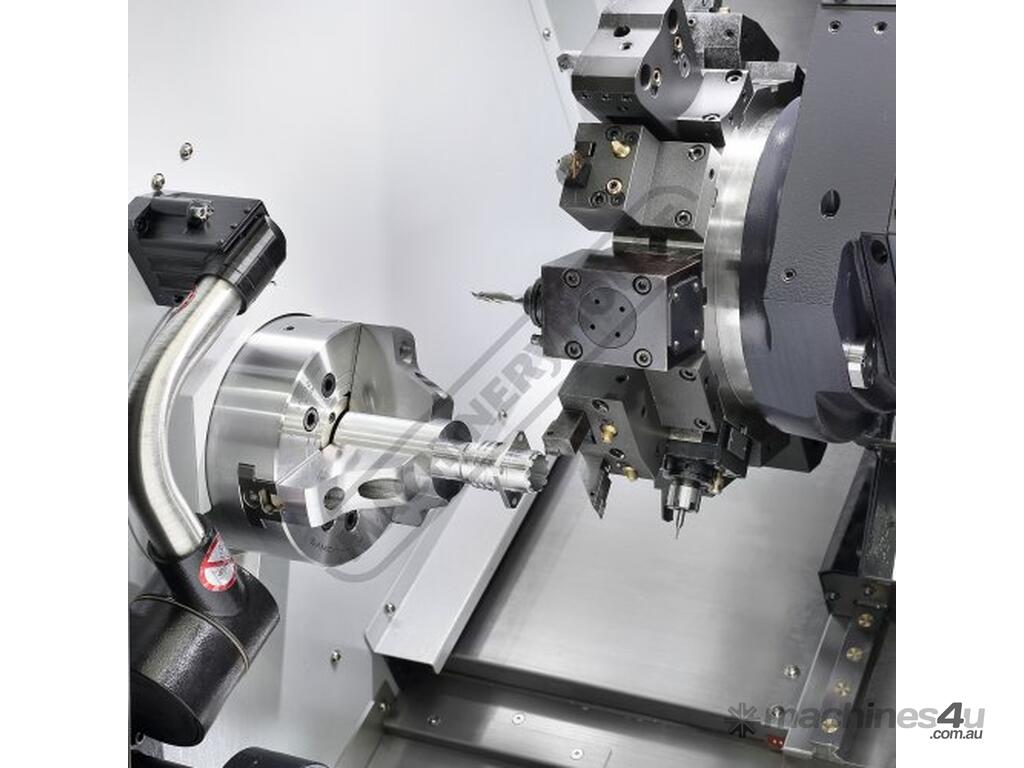

Eppinger BMT Live Tooling (C & Y Axis Models)
Hydraulic Chuck
Hard and Soft Jaws
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide


Specifications:
ORDER CODE: I8000
MODEL: LYNX 2100 Series
Swing (mm): 510~600
Max Turning Diameter (mm): 250~380
Turning Length (mm): 290~525
Chuck Diameter (mm): 150/210
Bar Diameter Capacity (mm): 45~65
Tool Stations (No.): 12/24
Spindle Speed (rpm): 4000~6000
Spindle Motor (kW): 15
Guideways: LMG
Control: Doosan Fanuc I Series
Programming: EZI Guide I Conversational

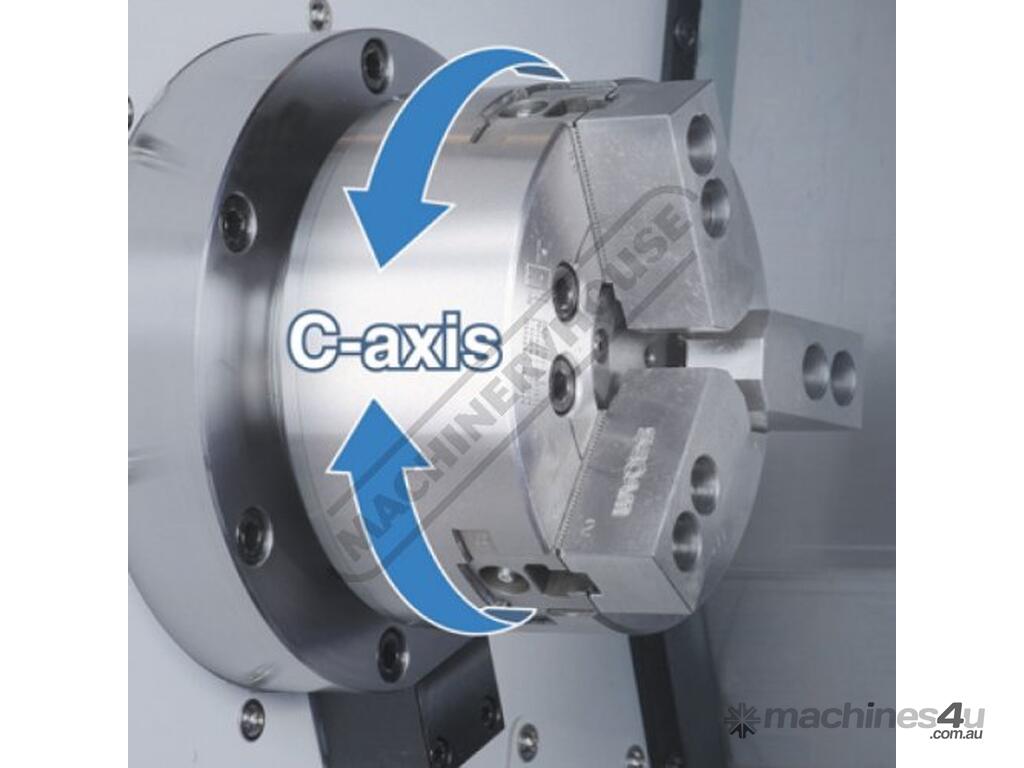

C Axes Resolution (deg): Optional
Milling Speed (rpm): Optional
Milling Collets: Optional

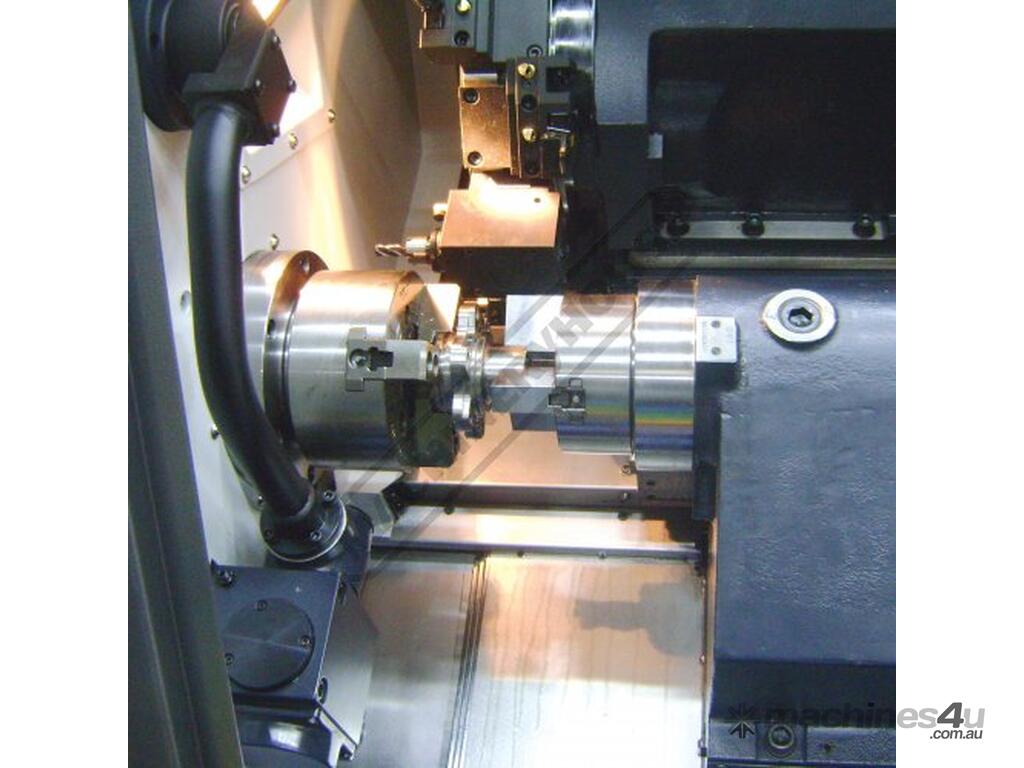

Sub Chuck Diameter (mm): Optional
Y Axis Travel (mm): Optional
