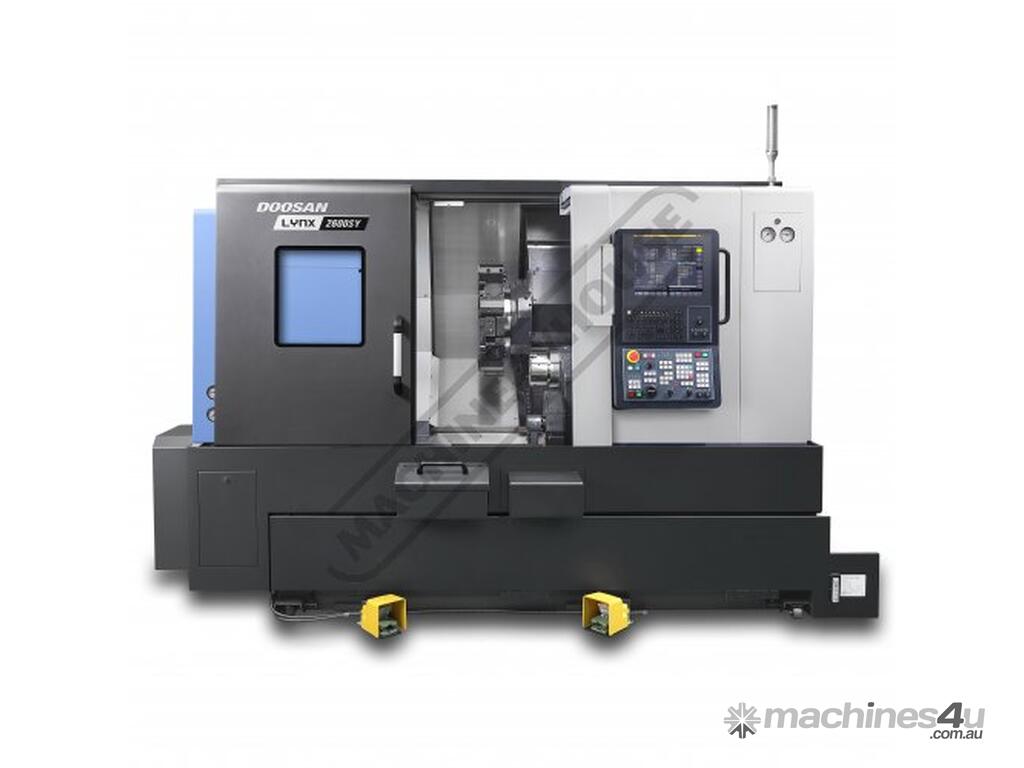

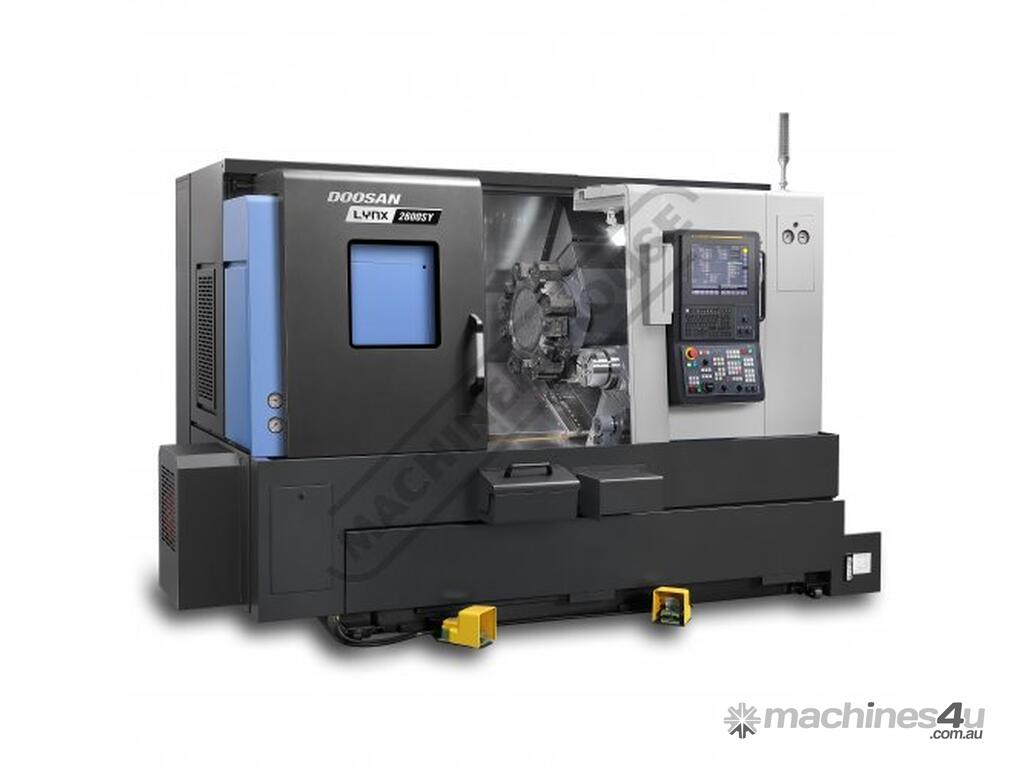

LYNX 2600SY CNC Turning Centre Doosan Fanuc I Series (0iPlus) CNC Controller

DOOSAN MACHINE TOOLS LYNX 2600SY CNC Turning Centre Doosan Fanuc I Series (0iPlus) CNC Controller
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7080

Basic Specifications
630mm Swing Over Bed
460mm Swing Over Saddle
610mm Turning Length
380mm Turning Ø
105mm (±52.5mm) Y Axis Travel
360deg (0.001deg Resolution) C Axes, Main & Sub Spindles
260kg Main Spindle Capacity, 520kg Shaft Work Capacity

Features:

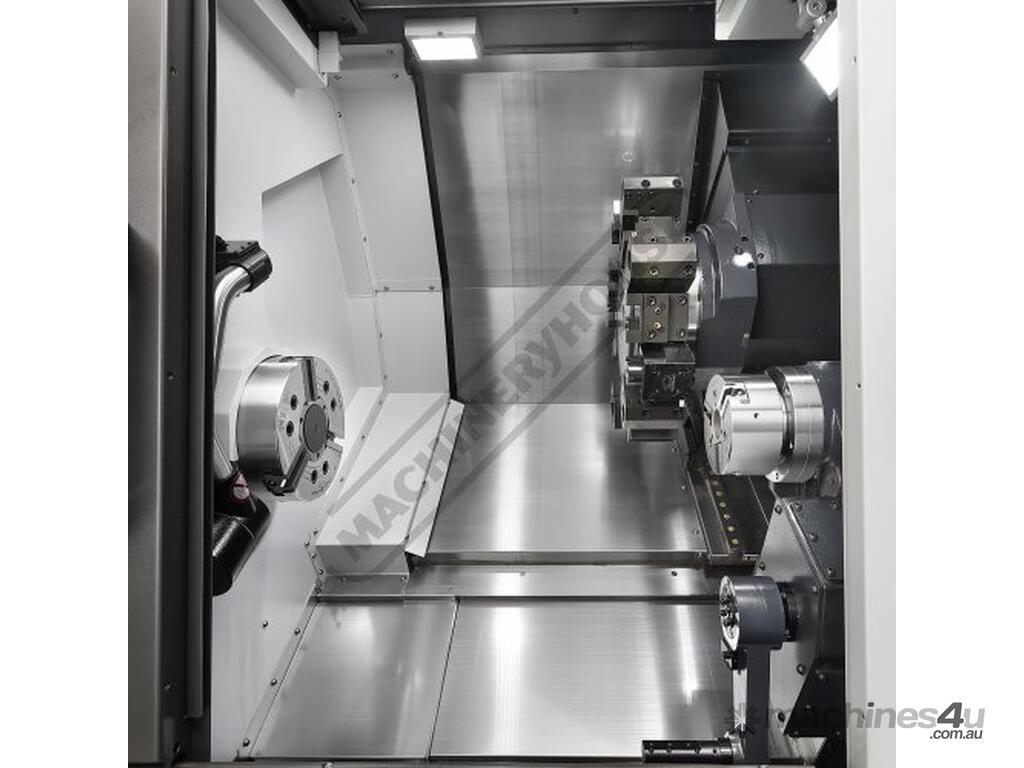

Main Spindle
81mm Bar Capacity (Main)
250mm Ø Hydraulic Chuck
3500RPM Spindle Speed
18.5kW Spindle Power
403Nm Spindle Torque

Sub Spindle
50mm Bore of Draw Tube
152mm Ø Hydraulic Chuck
4500RPM Spindle Speed
7.5kW Spindle Power
84Nm Spindle Torque

Turret
BMT 55 Tool Mounting
5000RPM Live Tool Speed
5.5kW Live Tool Power
42Nm Live Tool Torque
24 Position / 12 Station Turret
20mm Square / 32 & 25mm Ø Tool Capacity
ER25 Live Tool Collet Size
Eppinger PreciFlex Tooling System

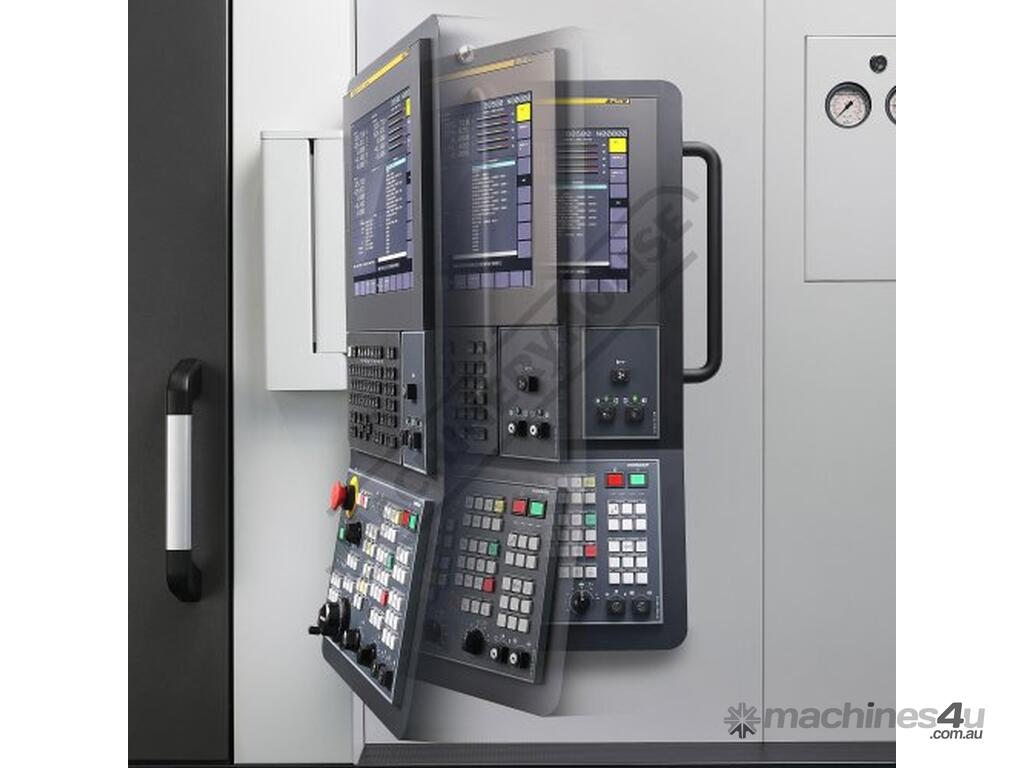

CNC Control
Doosan Fanuc I Series (0iPlus) CNC Controller
15" Colour LCD Monitor
Rigidsynchronised tapping
Custom Macro B
Ethernet Interface
RS232 Interface
USB & PCMCIA Memory Card Slot
Doosan Ezi Guide "I" Conversational software:
Graphical Turning Cycles
Graphical Milling Cycles
Full 3D Graphical Simulation
Onboard G & M code assistance
+ more

Standard Equipment Included
3 Jaw Hydraulic Power Chucks
Grease Cartridge Auto Lubrication System
Chuck Cleaning Air Blast
Eppinger rotary tool holders with PreciFlex adapter set
Coolant supply equipment
Foot switches
Transformer
Full enclosure chip and coolant shield with front door interlock
Hand tool kit
Automatic lubrication equipment
Comprehensive manuals incorporating Operation Maintenance Programming Spare Parts Diagrams Hydraulic Schematics Electrical Schematics and Ladder Diagrams.
Safety name plates / tags where required
Risk assessment
Work light

Includes:
- Standard Turret Tool Holder Package Included
- 2 x OD Tool Holder Main (R & L)
- 1 x DBL OD Tool Holder Main (R & L)
- 3 x ID Tool Holder Main
- 1 x Triple ID Tool Holder
- 1 x Face Tool Holder Main (R & L)
- 1 x U Drill Cap Main
- 2 x Straight Milling Unit
- 2 x Angular Milling Unit
- 1 x Boring Sleeve Kit
- 1 x U Drill Sleeve Kit
- 1 x PreciFlex Adapter Kit
- 1 x ER 25 Milling Collet Set
- 1 x Hard & Soft Jaws per Chuck
-
- Optional Equipment Included
- Chuck open close confirmation proximity switches
- Chip Conveyor (Side Discharge Hinged Belt)
- Auto Tool Setter
- 7 Bar High Pressure Coolant
- Barfeed Interface
- Parts Catcher with Parts Conveyor
- Sub Spindle Work Ejector
- Chuck Cleaning Air Blast
- Auto Power Off Function
-
-
- Doosan Machine Tools changes its name to DN Solutions
- Read more at:



Specifications:
ORDER CODE: L7080
MODEL: LYNX 2600SY
Swing (mm): 630
Max Turning Diameter (mm): 380
Turning Length (mm): 610
Chuck Diameter (mm): 225
Bar Diameter Capacity (mm): 81
Tool Stations (No.): 12/24
Spindle Speed (rpm): 3500
Spindle Motor (kW): 18.5
Guideways: LMG
Control: Doosan Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
C Axes Resolution (deg): 0.001
Milling Speed (rpm): 5000
Milling Collets: er25
Sub Chuck Diameter (mm): 152
Y Axis Travel (mm):
