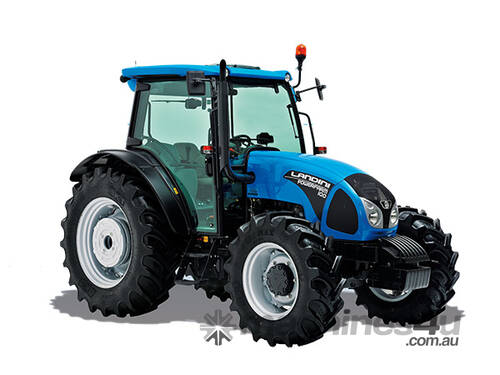

Landini Powerfarm Synchro-Shuttle Cabin Utility Tractor

Powerfarm 110 Cab and Plat is a tractor featuring a clean and modern design. The Perkins 1104 series 4-cylinder turbo engine offer high fuel efficiency low noise with reduced emissions to ensure a high torque backup. The modular transmission is equipped with mechanical Reverse Shuttle. The tractor's excellent performance and functionality are enhanced by the comfort of the “Total View” cab. The “Total View” cab features a mechanical suspension seat (on request a pneumatic suspension seat) and an under hood muffler with vertical exhaust. The height adjustable sprung seat and the rounded, plunging line of the hood provide total visibility when manoeuvring.

FEATURES OF THE LANDINI POWERFARM CAB
ENGINE
Landini Powerfarm 110 Synchro Engine
Powerfarm 110 Synchro tractors powered by Perkins 1104D 4 cylinder engines delivering 106.8HP
Meets Tier 3 emission ratings
Turbo charged engine
Advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency. Combines high levels of power and torque with low running costs

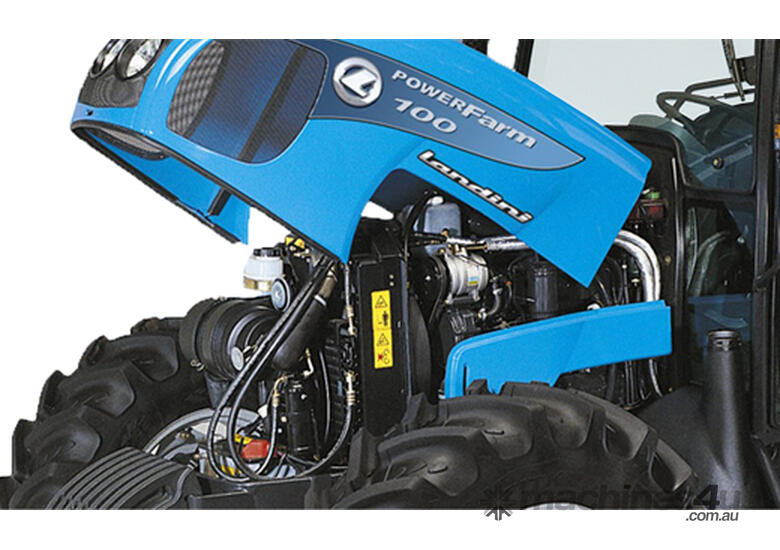

The tilt-up hood opens wide to provide easy access to the engine compartment for routine service and maintenance

TRANSMISSION
Landini Powerfarm 110 Synchro Transmission
Mechanical 4WD engagement
Synchronised mechanical reverse shuttle
Mech. rev. shuttle + Speed Four + creeper: 24FWD + 12REV
Mech. rev. shuttle + Speed Four + overdrive: 24FWD + 12REV (40Km/h)

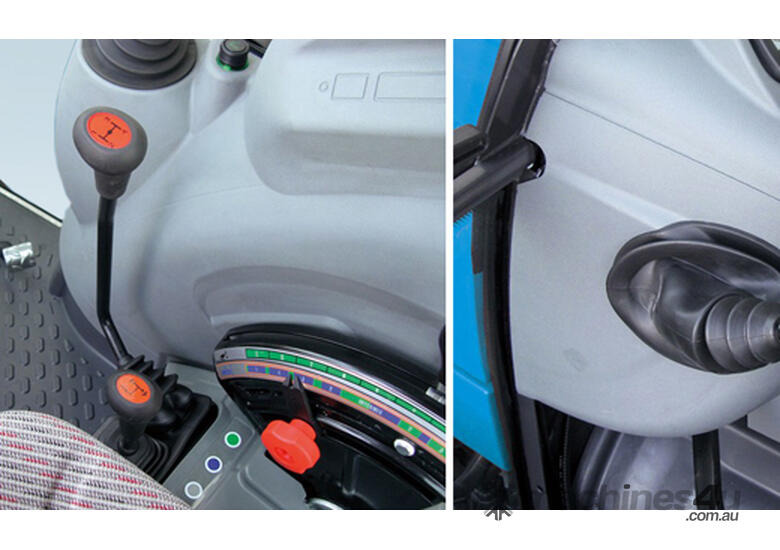

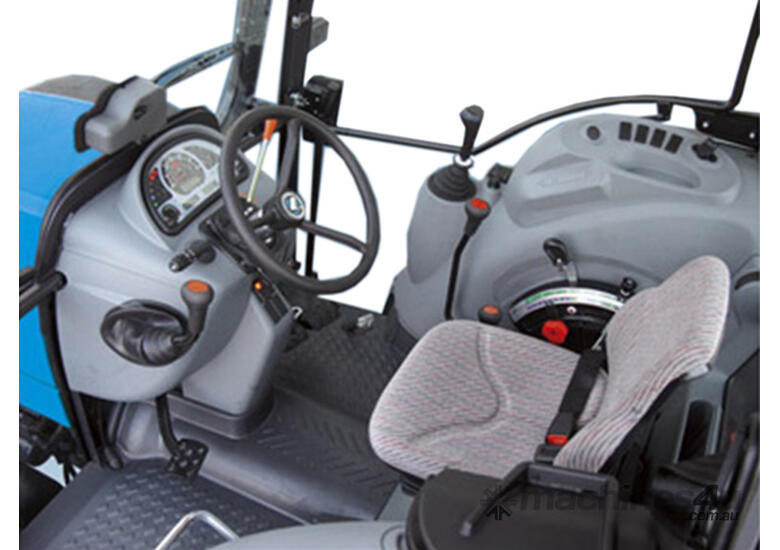

CABIN
Landini Powerfarm 110 Synchro Cab Cabin
All-round visibility of the "total view" cab provided by the all-glass side doors
Control layout designed to allow the operator to have more room to manoeuvre
Tilt adjustable steering column
Ergonomic lever positons
Good rear mirror visibility
Rear mirror support out of operator area
Levers close to seat for ergonomic operation
Cab with Air Conditioning

HYDRAULIC SYSTEM
Landini Powerfarm 110 Synchro Hydraulics
The mechanical hitch provides a maximum total flow of 82 litres/min
The hitch, equipped with a cat. 2 three-point linkage, provides position, draft, intermix and float control functions and ensures a maximum lift capacity of 4350 kg
The system features up to 4 remote valves, two of which controlled by Joystick for front loader work, and two controlled by standard levers conveniently located beside the driver’s seat

PTO & LINKAGE
Mechanical PTO 540/540E rpm
4WD Hydralock front axle with brakes
Oil collecting kit
Swinging drawbar'
2 hydraulic additional lift rams
4 Spool valves S/D acting (2 standard + 2 float) + joystick

SPECIFICATIONS
POWERFARM 110 SYNCHRO
Tractor Power (hp) 106.8
Engine Perkins 1104D-44T 4cyl
Engine Capacity (L) 4.4L Turbo
Width (m) 2.06
Height (m) 2.49
Weight (kg) 3450
