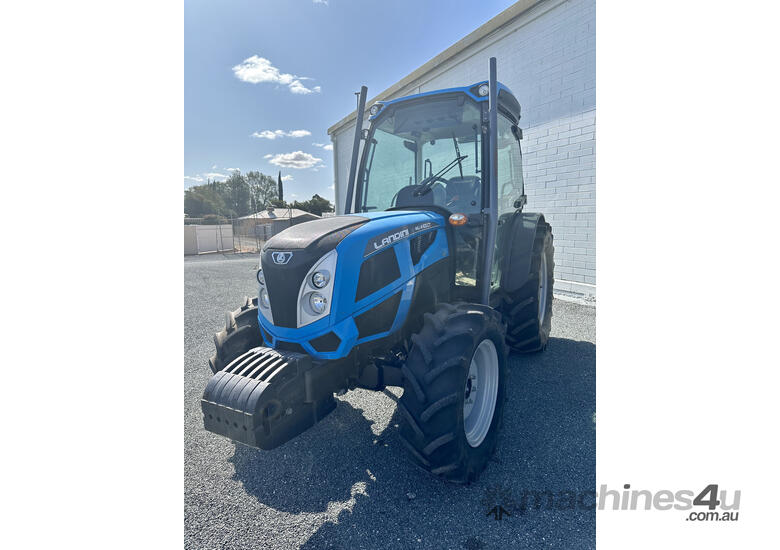

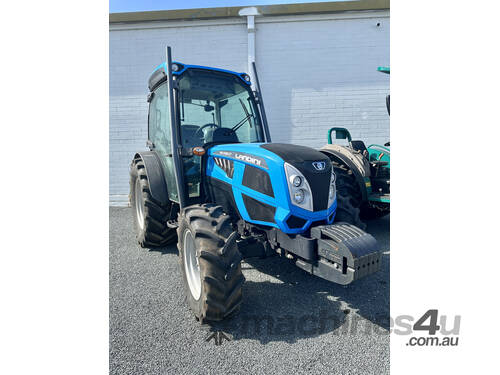

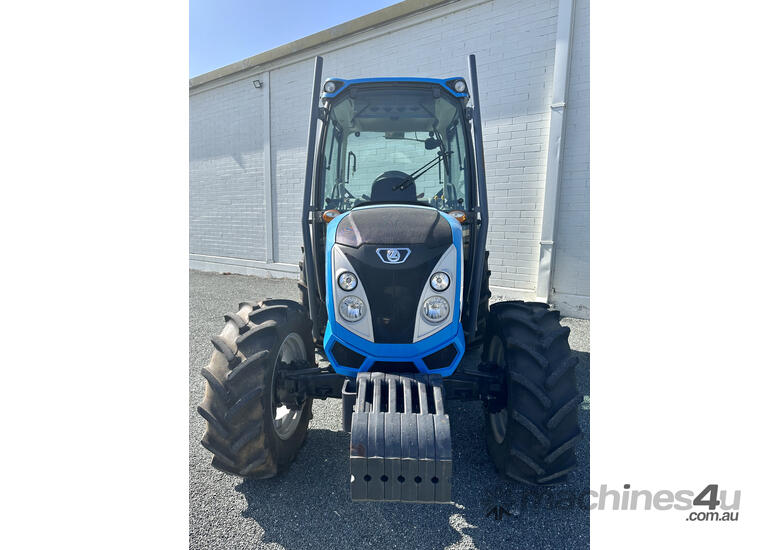

Landini REX 4 Tractor

Landini REX4
GT 100 Vineyard Orchard Tractor

The new Rex offers the same high standards of comfort and performance as its predecessor. The driving position is designed to offer the driver a roomy and comfortable workstation with ergonomically-arranged controls capable of responding more efficiently to the ever more specialized needs of modern farming. Powered by powerful Perkins Tier 3 turbo-aftercooled engines, the new Rex series features a transmission with Hi-Lo splitter gear and power shuttle, a PTO with electrohydraulic engagement, an electronically-controlled rear hitch and a variety of hydraulic options. Plus, a tight steering radius provides excellent manoeuvrability, further enhancing the tractor performance and productivity.

REX GT100 93HP - Engine Perkins 1104D-44 TA 4cyl - Capacity 4.4L Turbo
Tyres front - rear: 280/70R18 - 420/70R24 -
Standard 2 Speed PTO - 540/540E rpm & Ground Speed PTO
W 1.554 m x H 2.260 m x 2995 kg

ENGINE
Rex GT tractors powered by Perkins 1104D 4 cylinder engines delivering from 83 - 110HP
Meets Tier 3 emission ratings
All Rex GT engines come Turbo charged
Advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency. Combines high levels of power and torque with low running costs
The tilt-up hood opens wide to provide easy access to the engine compartment for routine service and maintenance

TRANSMISSION
Italian made Mechanical Transmission
Synchro shuttle
40 + 40 gearbox and creeper 40km/h
Mechanical Synchronised reverse shuttle at the steering wheel

CABIN
All-round visibility of the "total view" cab provided by the all-glass side doors
Control layout designed to allow the operator to have more room to manoeuvre
Tilt Adjustable steering column
Ergonomic lever positons
Good rear mirror visibility
Rear mirror support out of operator area
Levers close to seat for ergonomic operation
Cab with Air Conditioning with DE LUXE air suspension seat

HYDRAULIC SYSTEM
3 point linkage cat. 2 with quick coupling and mechanical top link
2 spool valves double acting (1 standard + 1 float) with quick coupling
Easily accessible high-quality quick-release rear couplings ensure optimum comfort of operation and improved tractor productivity

PTO & LINKAGE
Mechanical PTO 540/540E rpm
4WD Hydralock front axle with brakes
Oil collecting kit
Swinging drawbar
