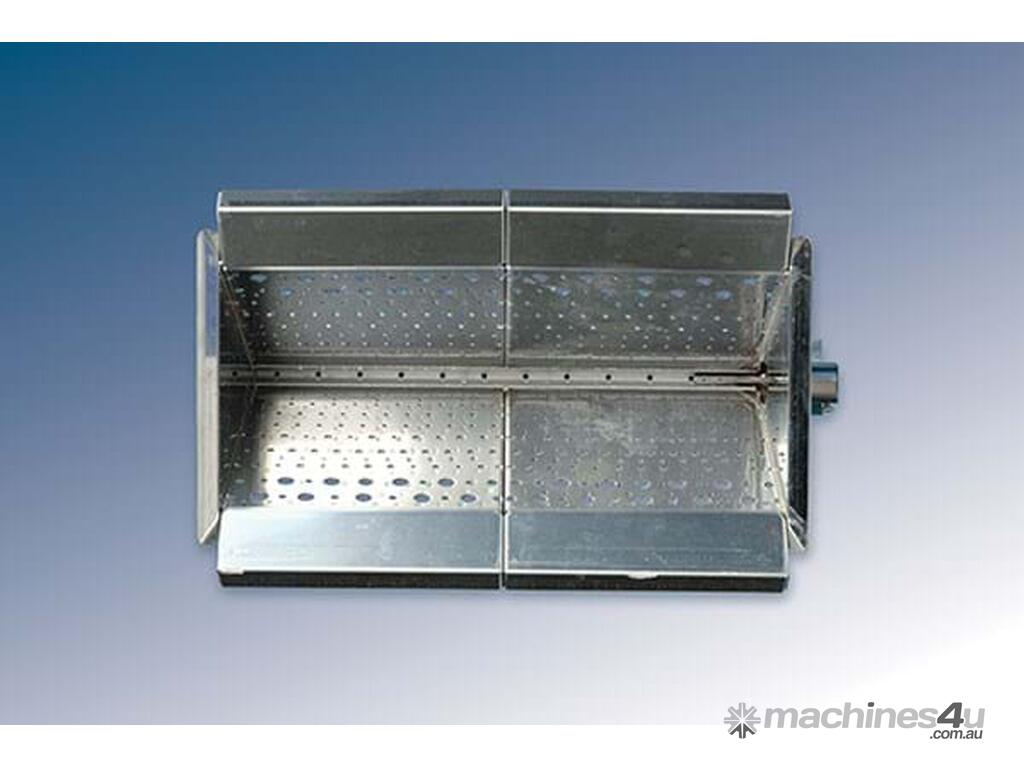

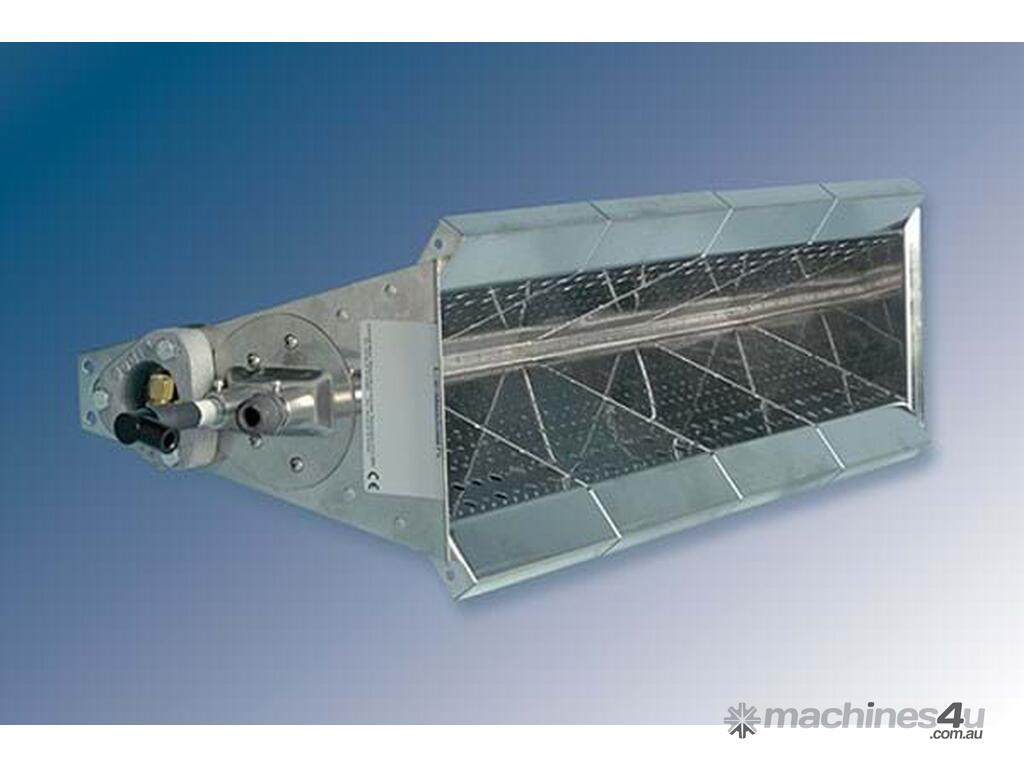

Lanemark Midco HMA2A Air Heating Burner

Lanemark Midco HMA2A series air heating duct burner systems can be configured either as straight sections or in various shapes, such as H or I-shaped designs, by the use of compact elbows and tees to fit within required duct dimensions.

Gas manifolds are available in cast iron and aluminium, significantly reducing the weight of larger burner assemblies.

Category:
Baking
Drying
Industrial Heating
Process Heating
Thermal Comfort
Spray Booth Heating
Drying and Curing Ovens

Industries:
Agriculture
Food and Beverage
General Industry
Manufacturing
Hospitality

Heat Input: 146 – 205kW per 305 mm section length

Air Velocity: 7.5 – 18 m/s

Required Air Pressure: 0.5 – 3.0 mbar (50 – 300 Pa)

Turndown: 30:1 max

Typical Flame Length: Natural Gas: 280 – 405 mm; LPG: 205 – 330 mm

Efficiency: 100% (LHV) or 92% (HHV)

Burner Head Gas Pressure: Natural Gas: 8.8 – 19.5 mbar; LPG: 3.3 – 7.5 mbar

Burner Head Orientation: Parallel to process airflow
