Large Capacity 5 Axis Machining

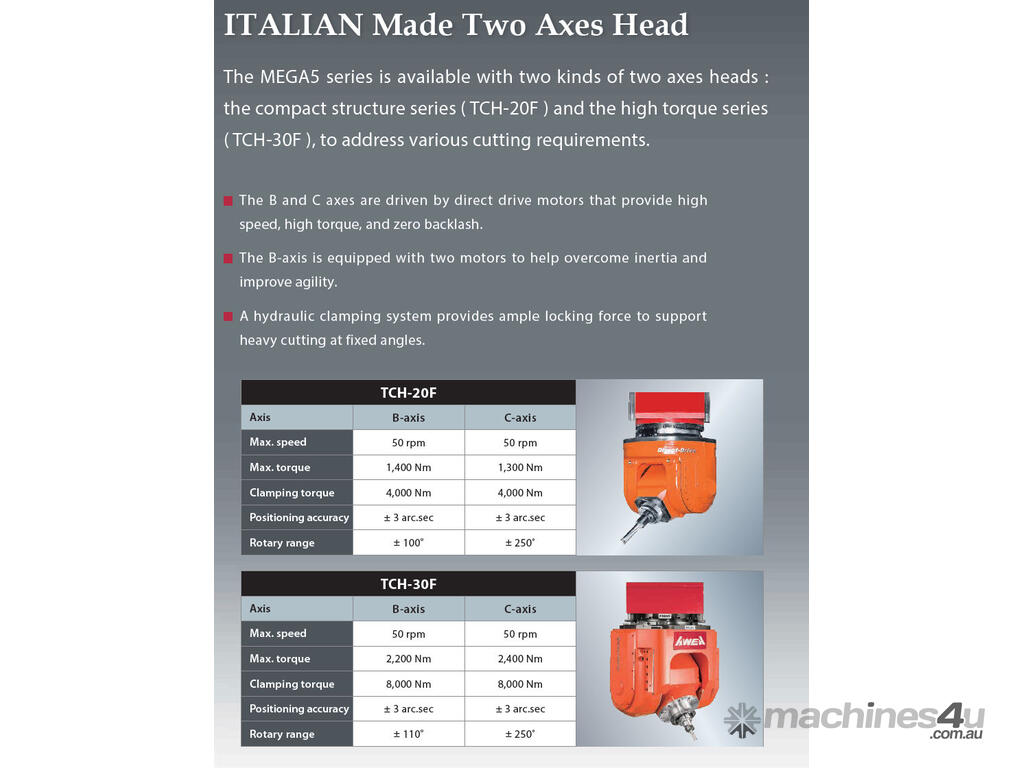

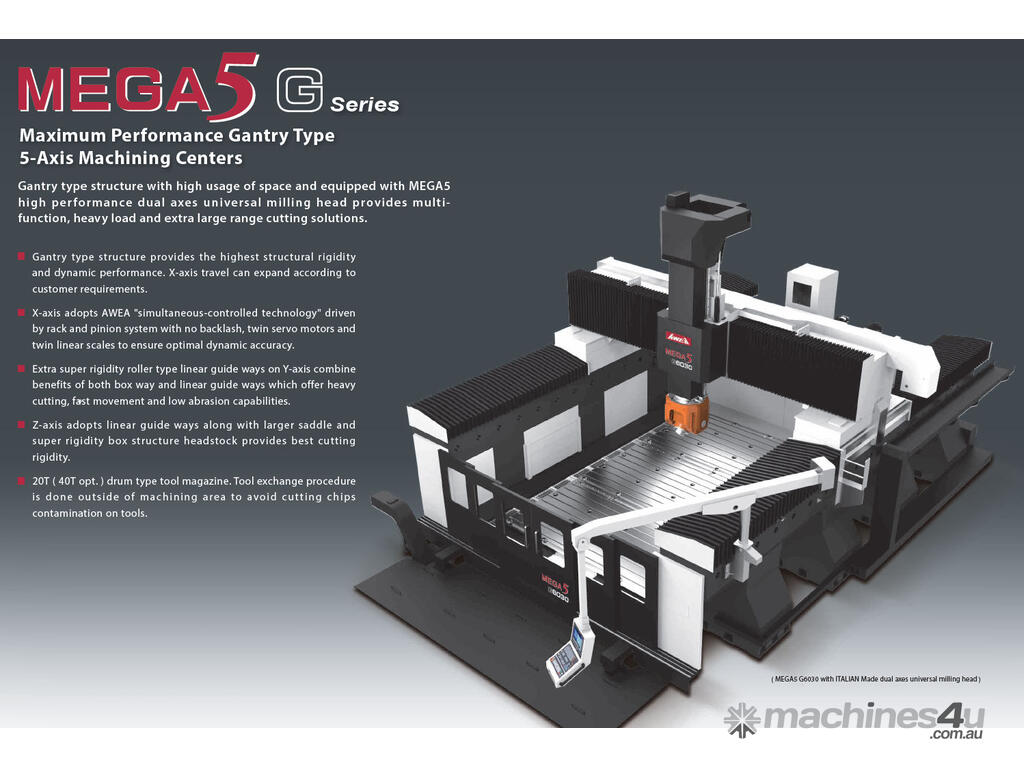

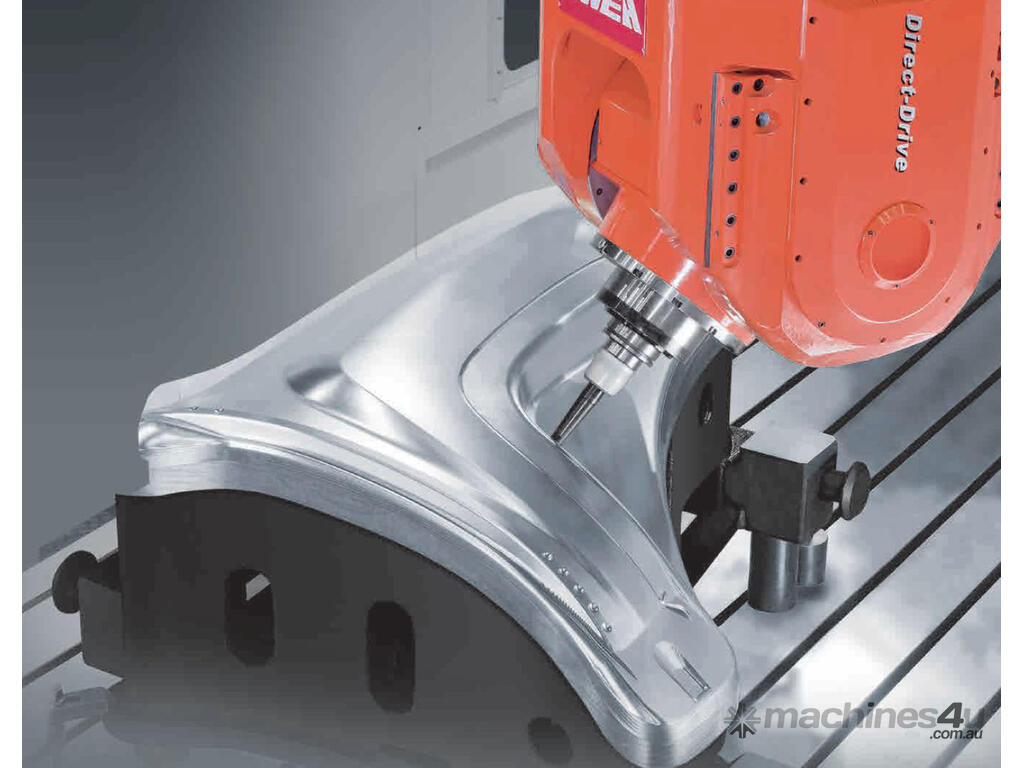

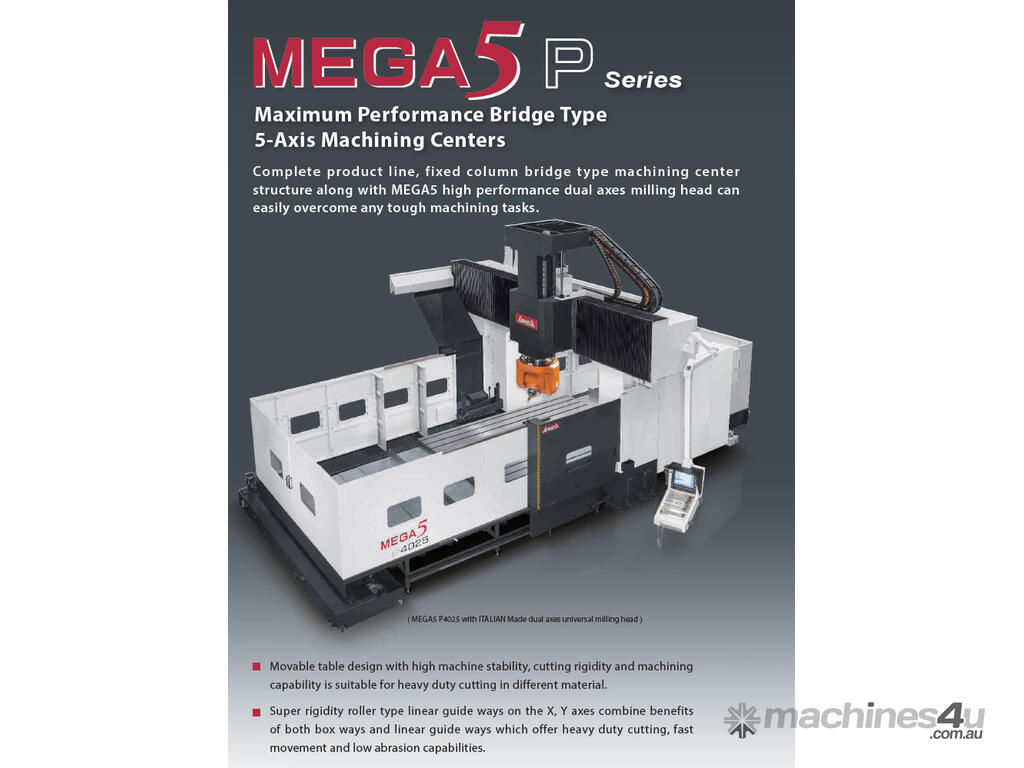

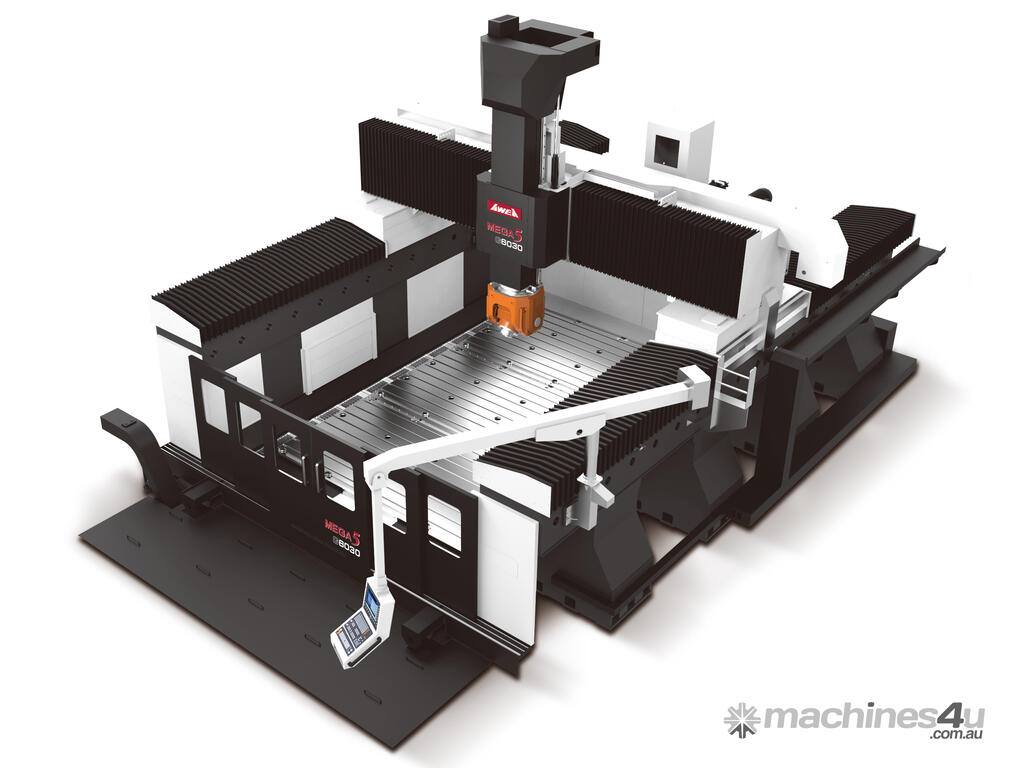

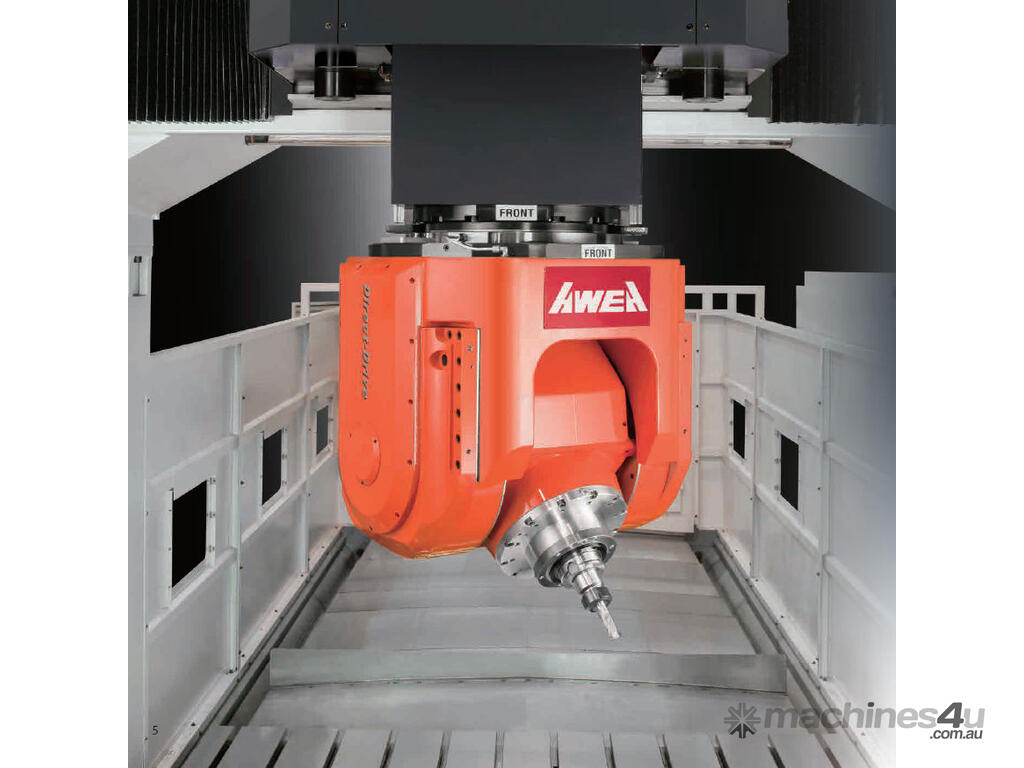

From Awea, the No 1 DMC manufacturer in Taiwan, 5 axis, large capacity machining capability (high speed or heavy duty spindle options available) designed with the integration of the ultimate electro-mechanics and high quality components, AWEA presents the MEGA5 5-axis machining centre. The MEGA5 series is available with a fixed bridge (MEGA5 P series) or with a dynamic gantry (MEGA5 G series). Both versions are based on AWEA’s super rigid bridge type design. The two axes ITALIAN made high performance milling head enables simultaneous 5 axes ( X , Y , Z , B , C ) machining of large, compound angular work-piece machining needs. The MEGA5 series is the best choice when advanced machining requirements need to be met. Looking for value without sacrificing quality? Look no further !!!

Ron Mack Machinery are excited to announce the launch the extensive range of High Quality CNC Machine Tools from AWEA Mechantronics into the Australian market with special introductory pricing, $$$$’s off the recommended selling price so get in quick and request a quote.

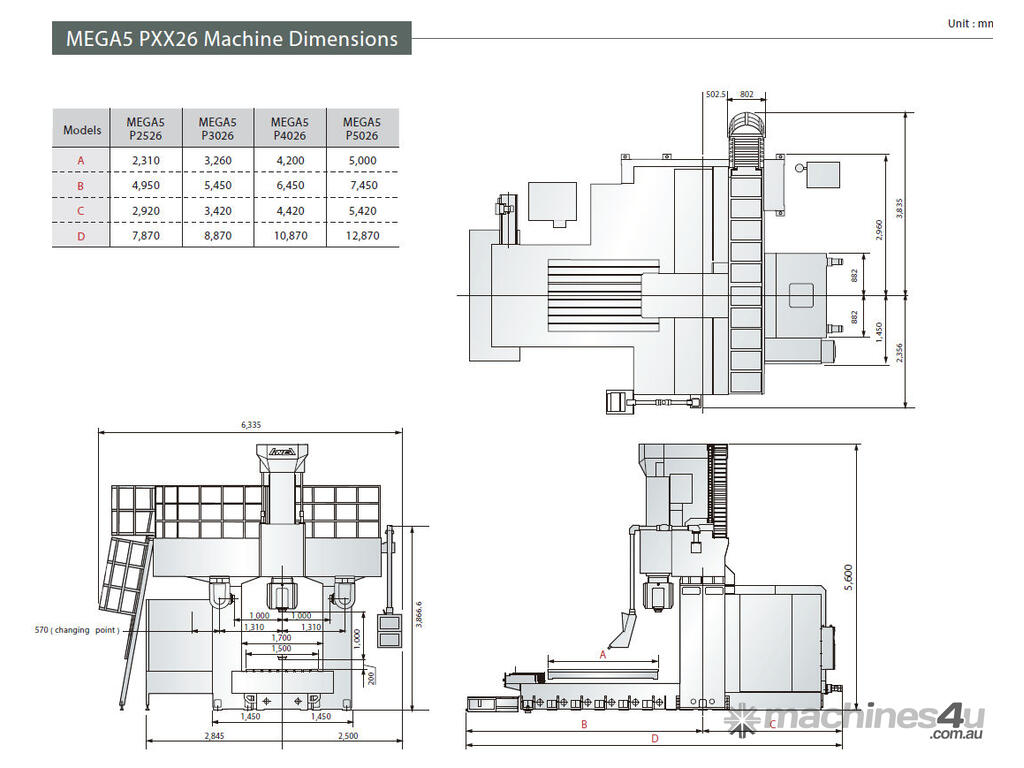

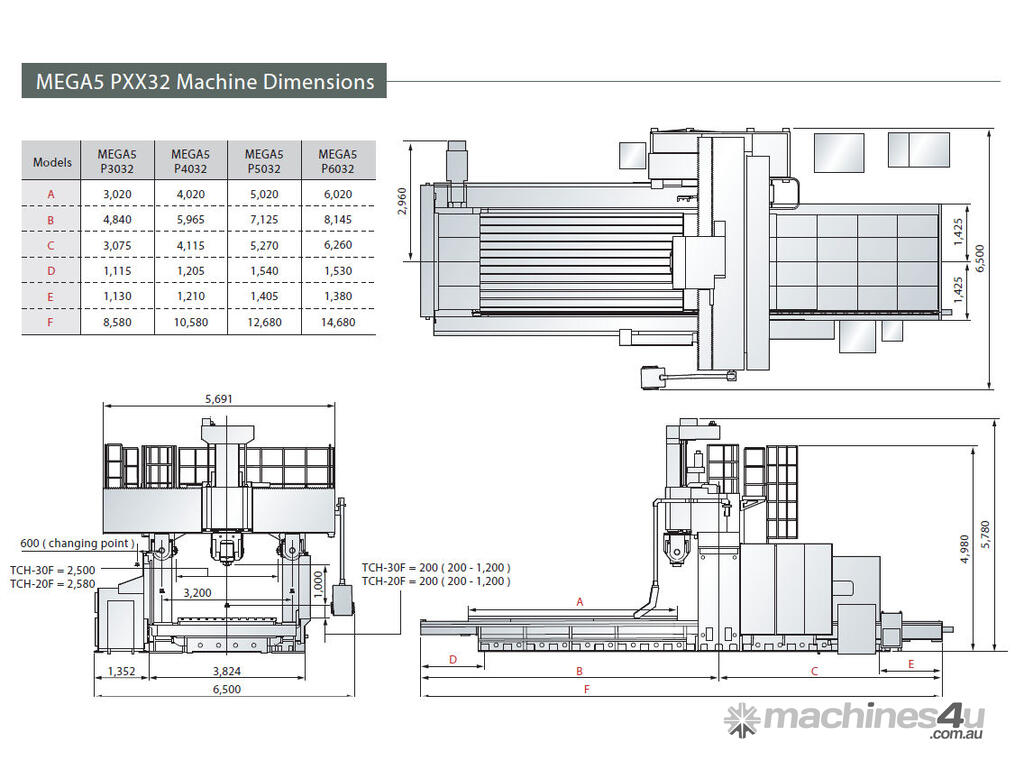

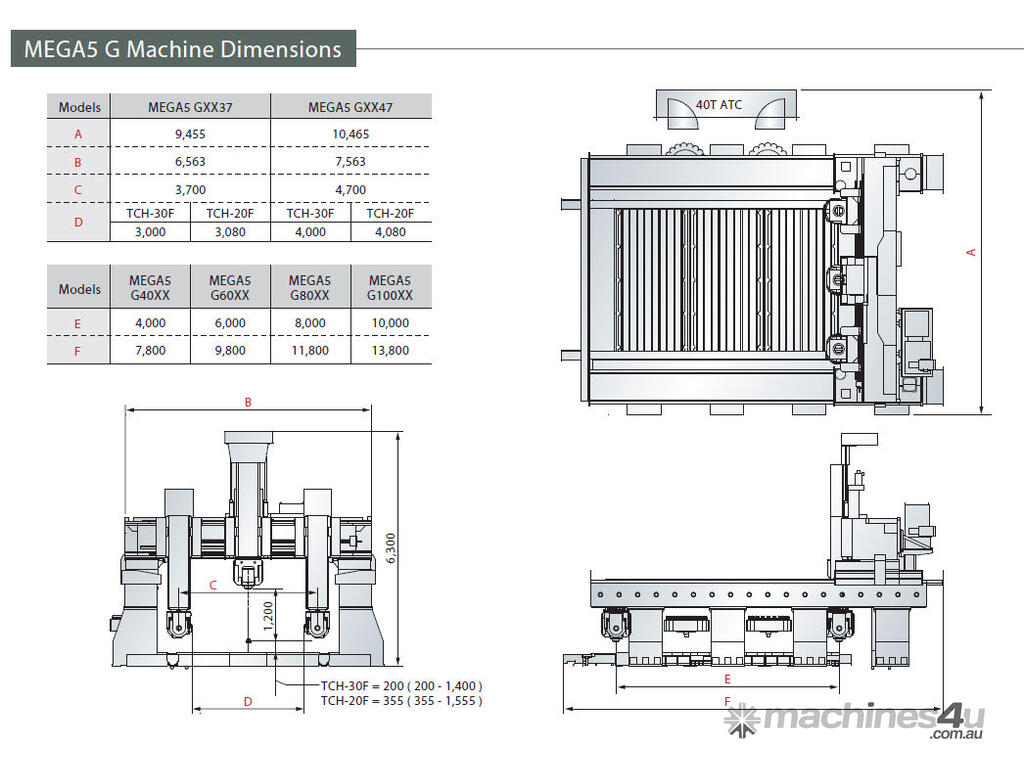

Table size (mm): 2,310 x 1,500 ~ 10,000 x 4,800
Travels X x Y (mm): 2,500 x 2,620 ~ 10,000 x 4,700
Travel Z (mm): 1,000 ~ 1,400
Spindle taper: HSK-A63 or HSK-A100

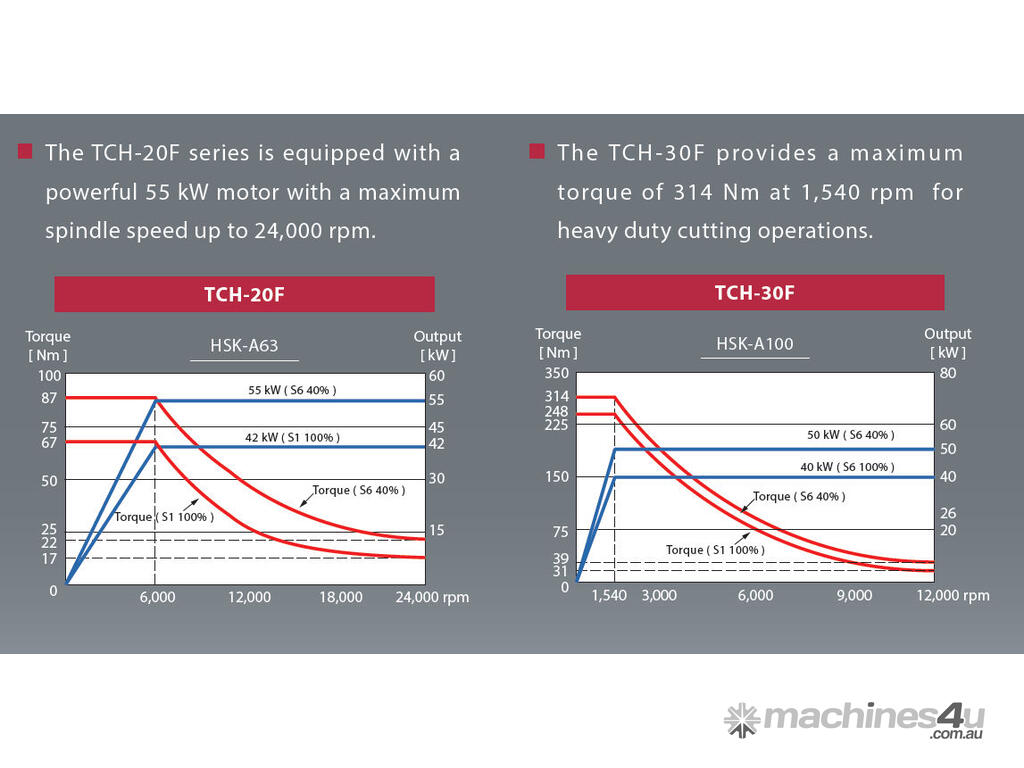

Spindle speed (rpm): 24,000 or 12,000
Spindle motor (kw): 42 / 55 or 40 / 50
Max spindle torque (nm): 87 or 314


For many years Awea Mechantronic have been regarded as the No 1 manufacturer of Double Column Machining Centres in Taiwan and we now offer full sales and support for their comprehensive CNC range including: Vertical Machining Centres, 5 Axis Machining Centres, Horizontal Machining Centres, CNC Horizontal and Floor Type Boring Machines, Double Column and Gantry Machining Centres. Awea are the sister company of Goodway and make a logical inclusion into our growing range of high quality CNC products.

Awea Mechantronic was established in 1986, is now one of Taiwan's largest professional CNC machine manufacturers. The machine travel range spans from 510 mm all the way to 20,000 mm. Product line includes 5-axis, five-sided, vertical, horizontal, and other types of CNC machines. Especially for the large-scale bridge type machines, they are widely recognized by the global market and enjoy the "Bridge Mill Family" reputation.

Mr. Edward Yang has been the chairman of the company since 2002. With the help of his professional background, and the business philosophy of "Innovation, development, and pursuing excellence", AWEA Mechantronic has grown nearly tenfold over the past 15 years, with excellent brand awareness across the United States, Germany, Italy, Turkey, Spain, South Korea, and China.

Through sustainable operation over the past two decades, Awea has established a comprehensive management system integrated with research, designing, manufacturing, assembling, testing, monitoring, sales and services. Globally, Awea is an extensively certified company passing ISO 9001, ISO 14001 and CE and so on. Domestically, Awea is not only a highly awarded company but also one of few machine tool companies listed on the Taiwan Stock Exchange.
