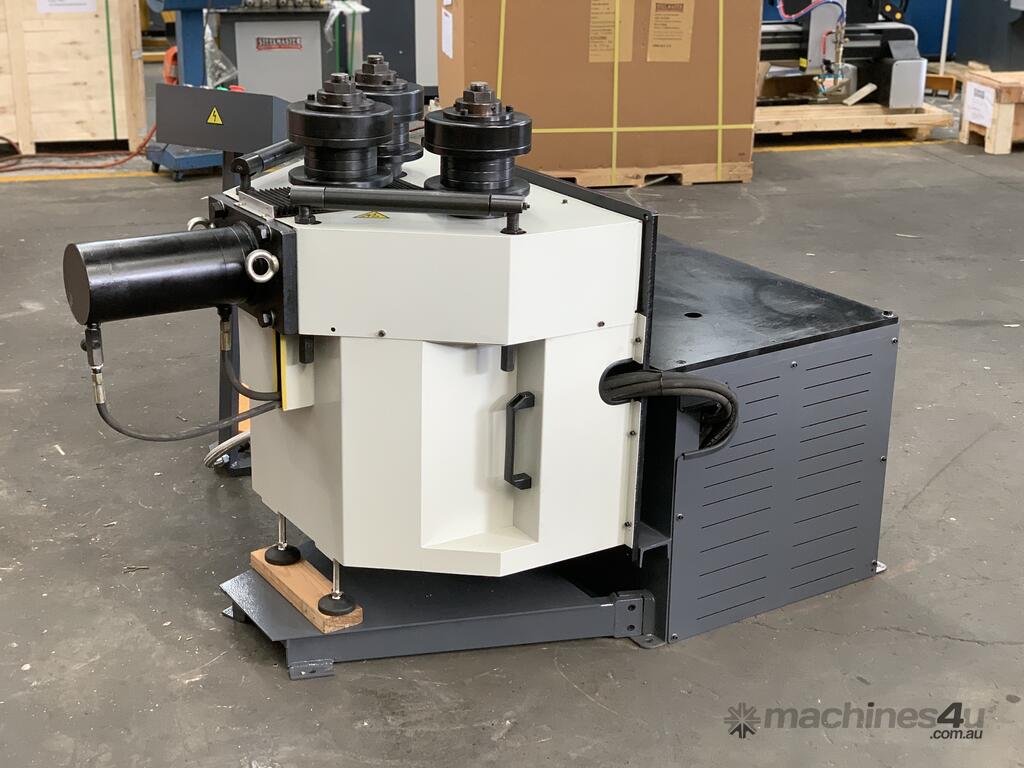

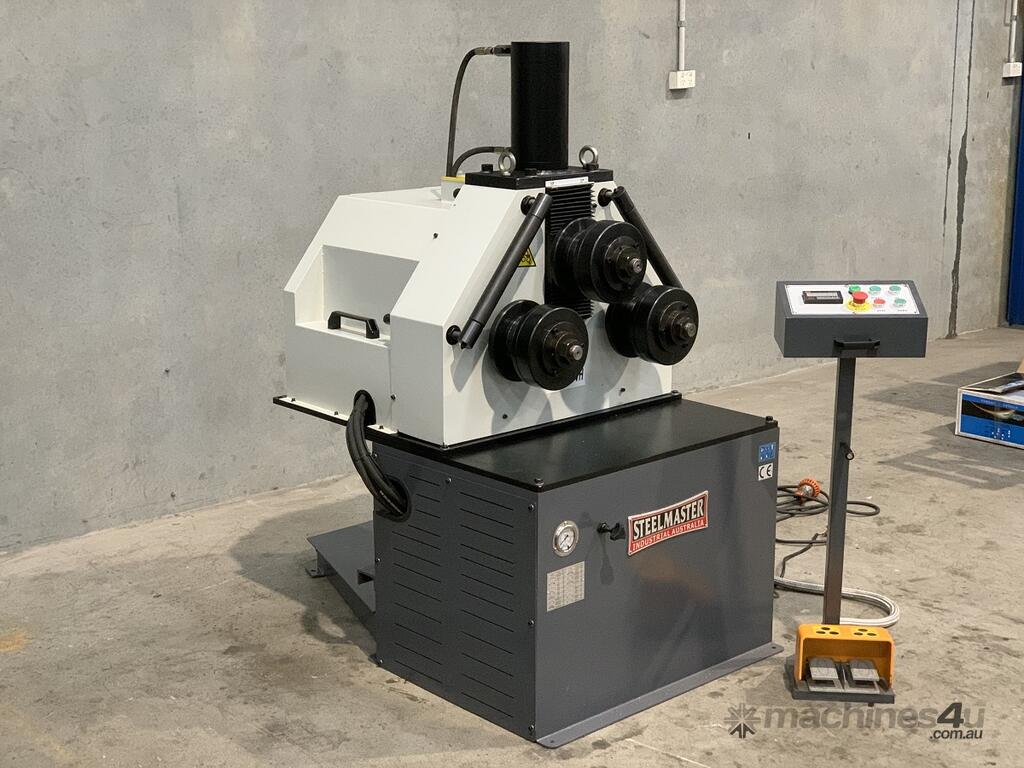

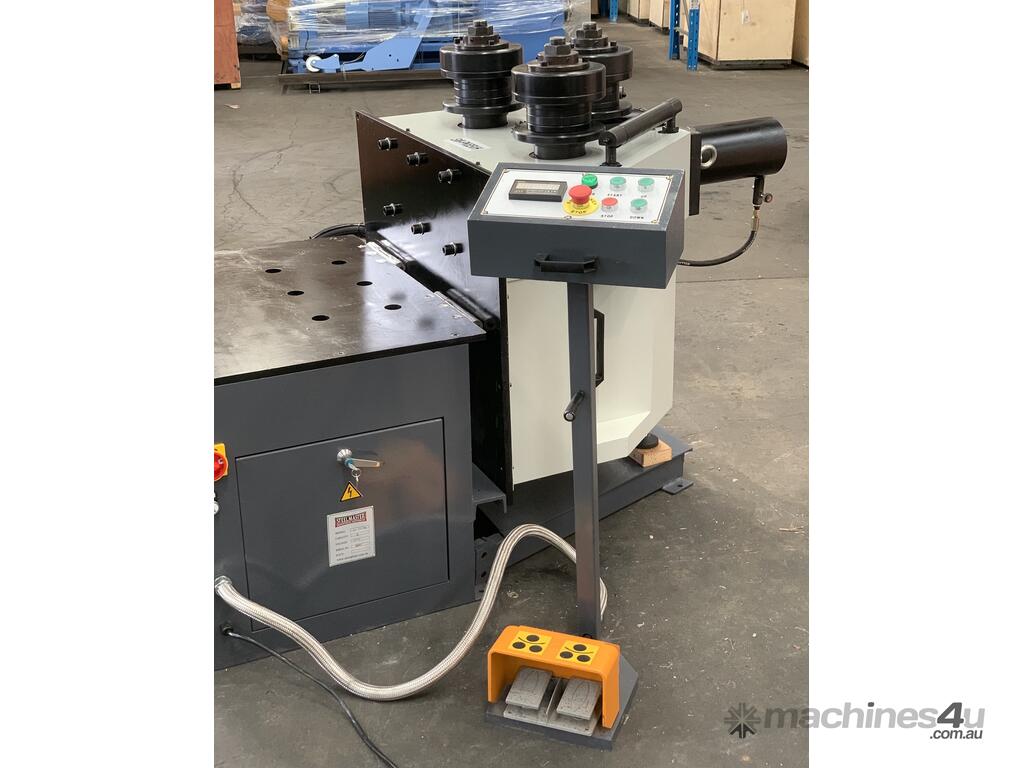

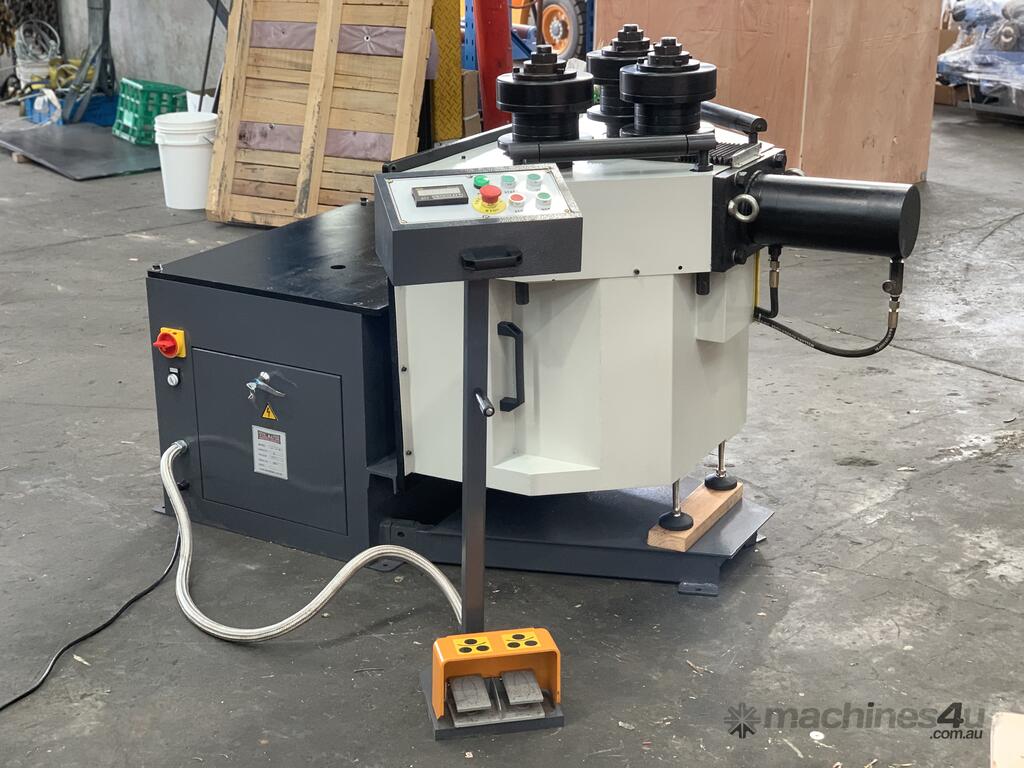

Large Capacity Section Roller - 3 x Powered Rolls - Hydraulic Positioning with Read Out

SM-PK65 Section& Pipe Roller. Steelmaster Heavy Duty Vertical Operation. Hydraulic Top Roll, Gui
Rolls, 65mm Shaft Dia. Hardened Universal Tooling, Foot Pedal Operation & E Stops, CE, 2.2Kw, V

Description
Our new European designed & engineered range of STEELMASTER PK series section rollers will cover your complete rolling requirements
Vertical and horizontal operation and powerful Volt drive.
All three rollers are driven for improved performance

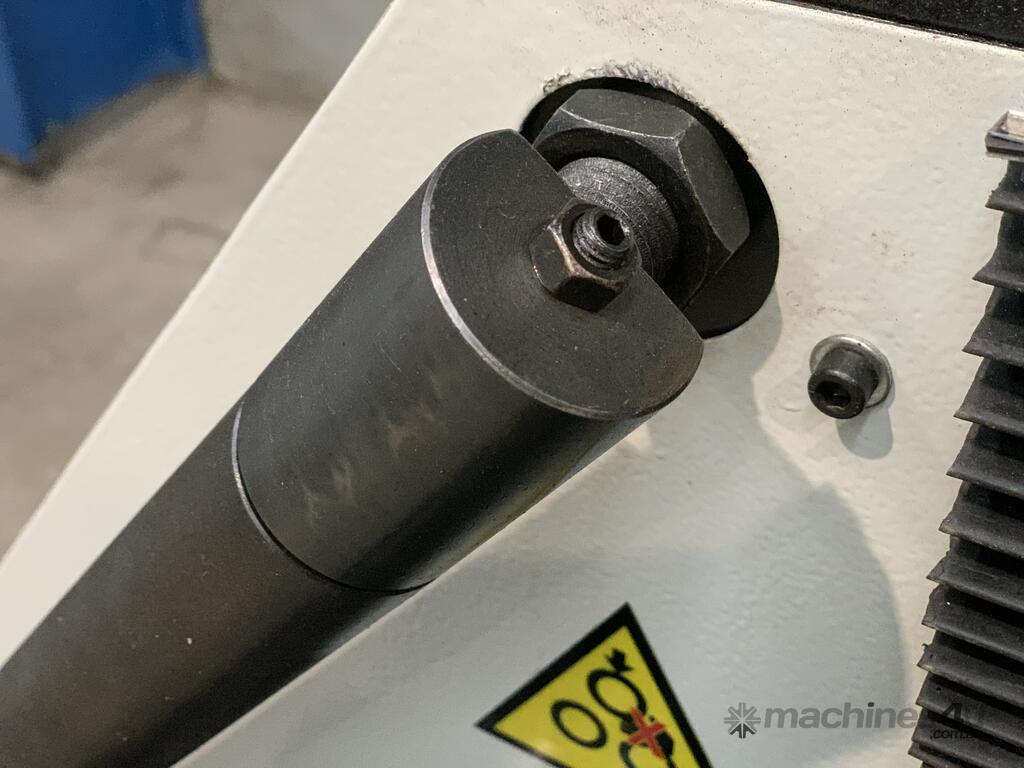

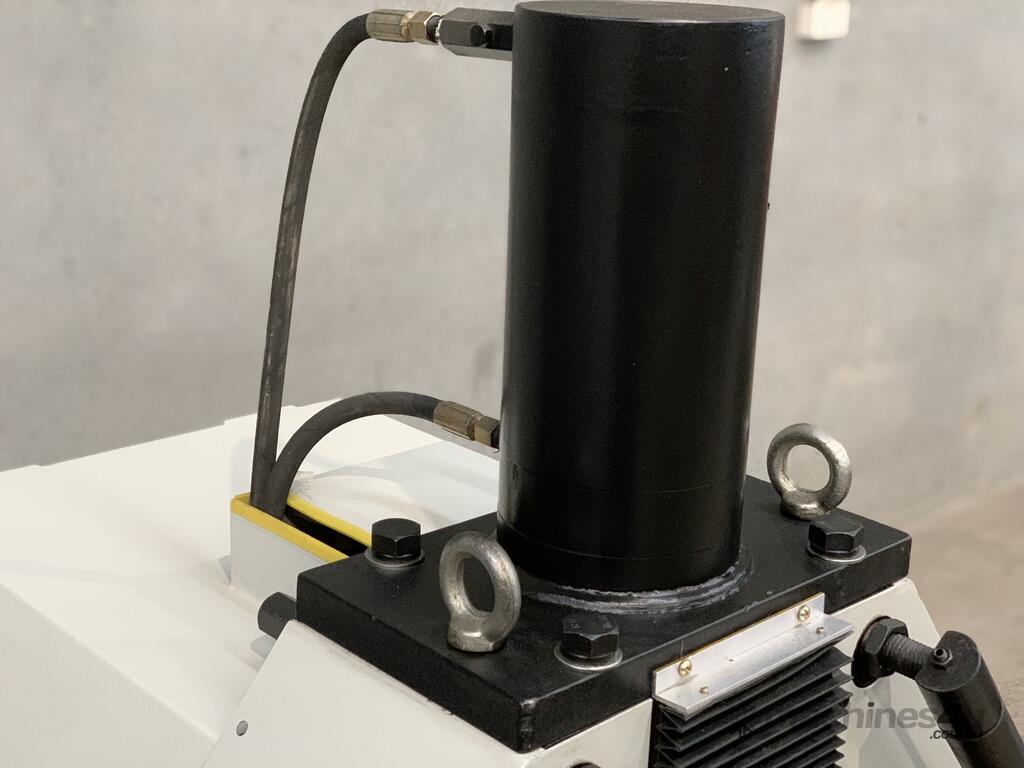

New hydraulic down feed adjustment on top roller.

Features
?vertical & horizontal operation

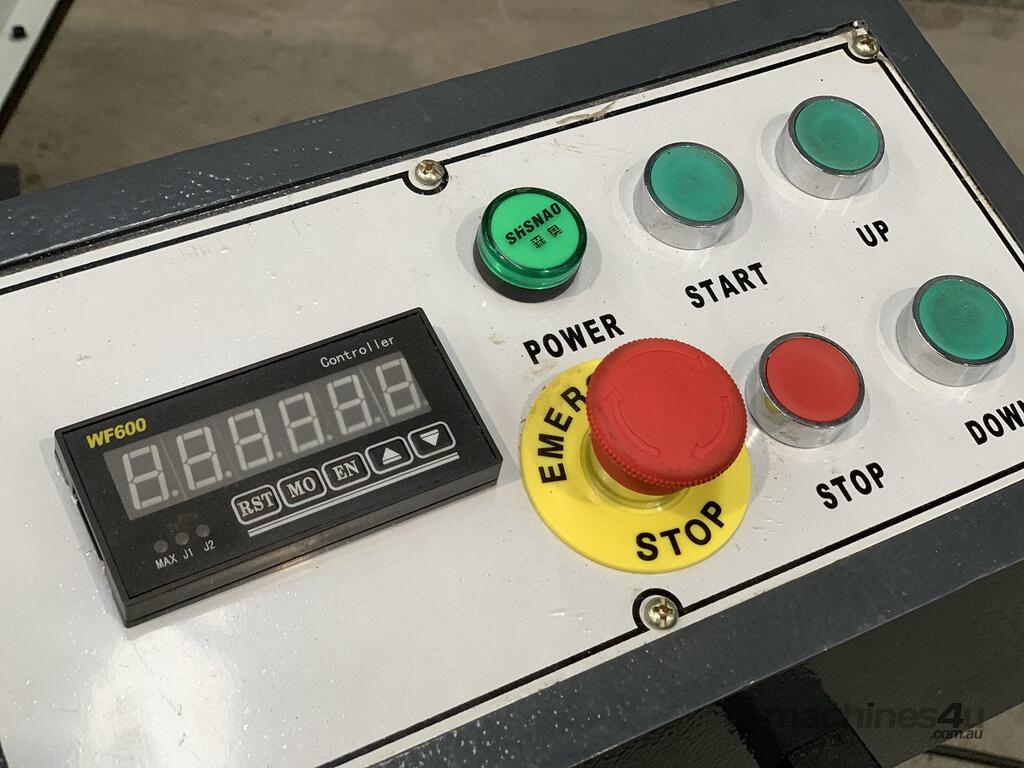

?hydraulic top roll operation with Digital Display
?heavy duty steel fabricated frame
?calibrated setting on top roller with measuring scale.

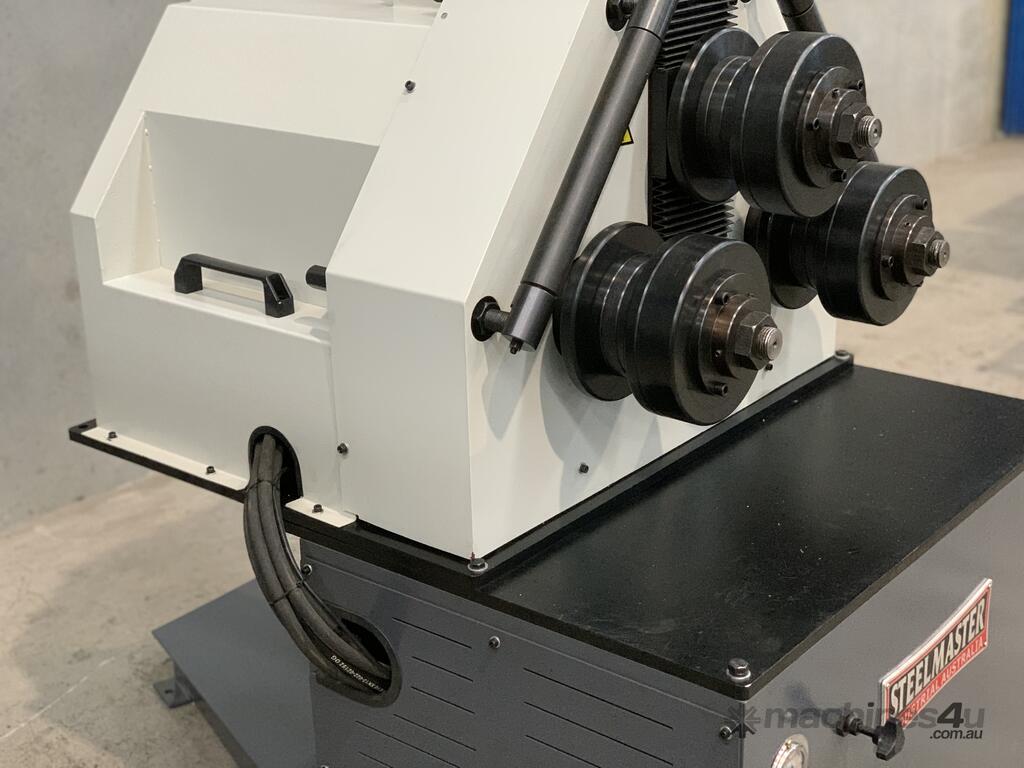

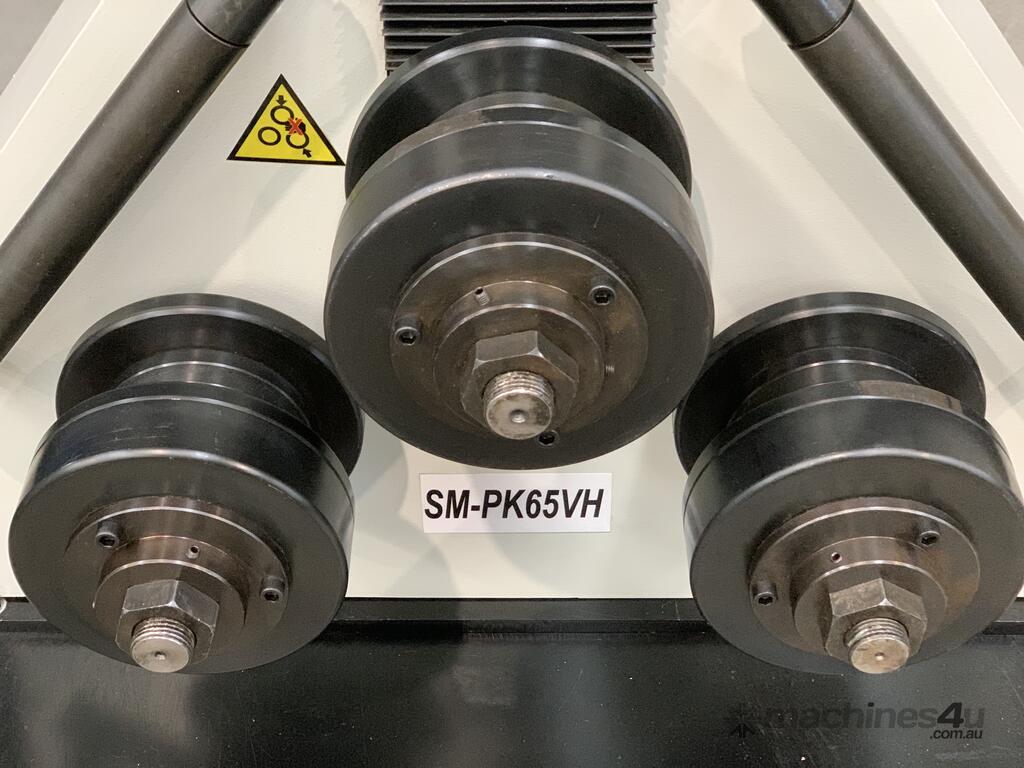

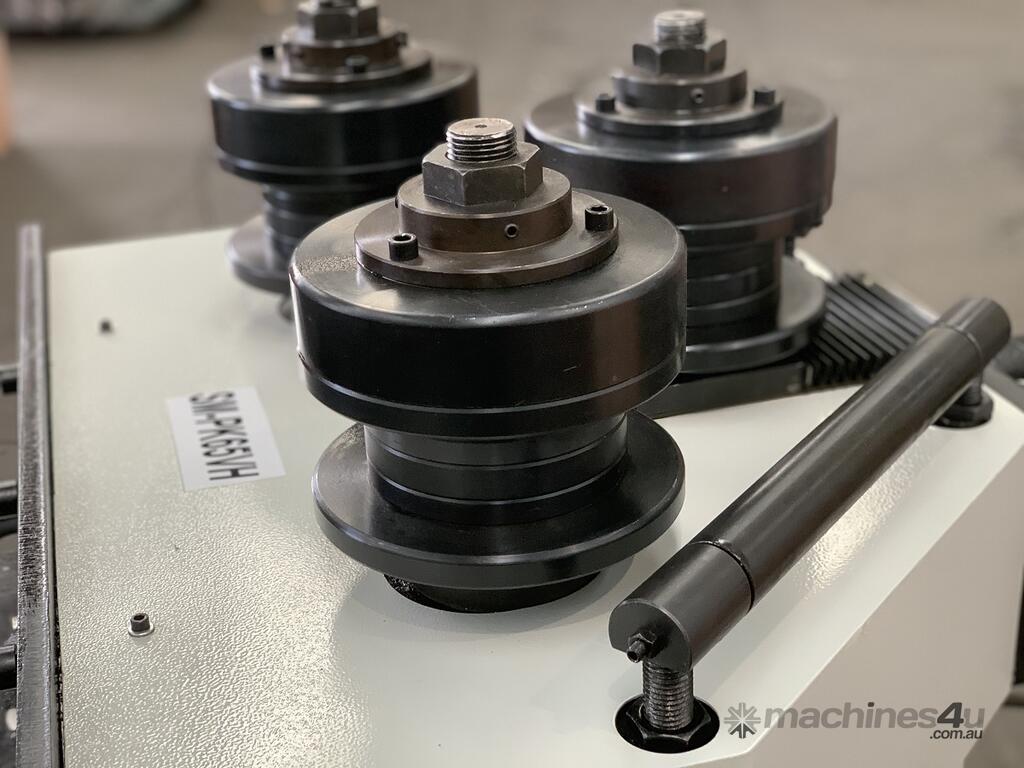

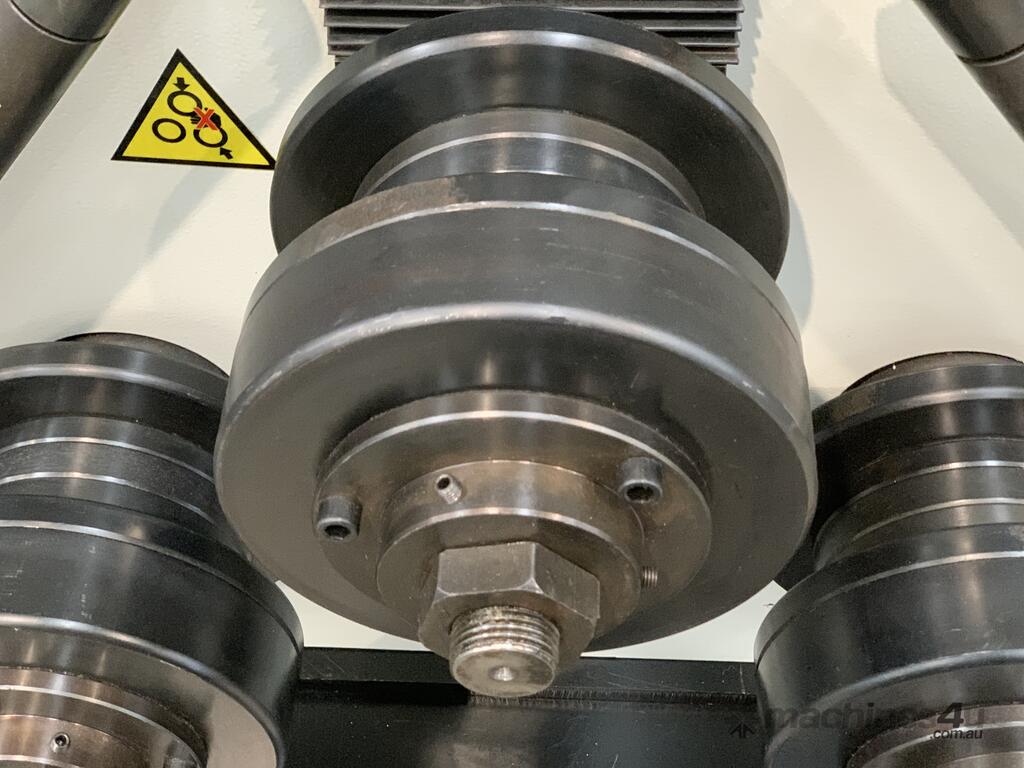

?3 x driven rollers, 1 x top, 2 x bottom

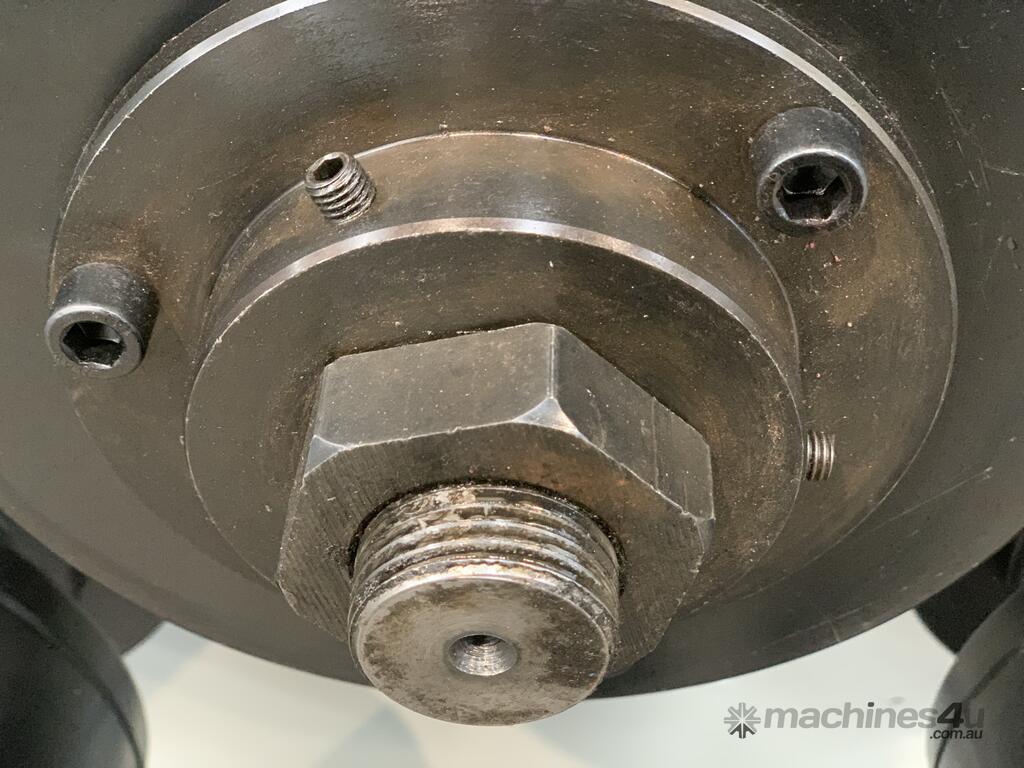

?hardened and ground drive shafts

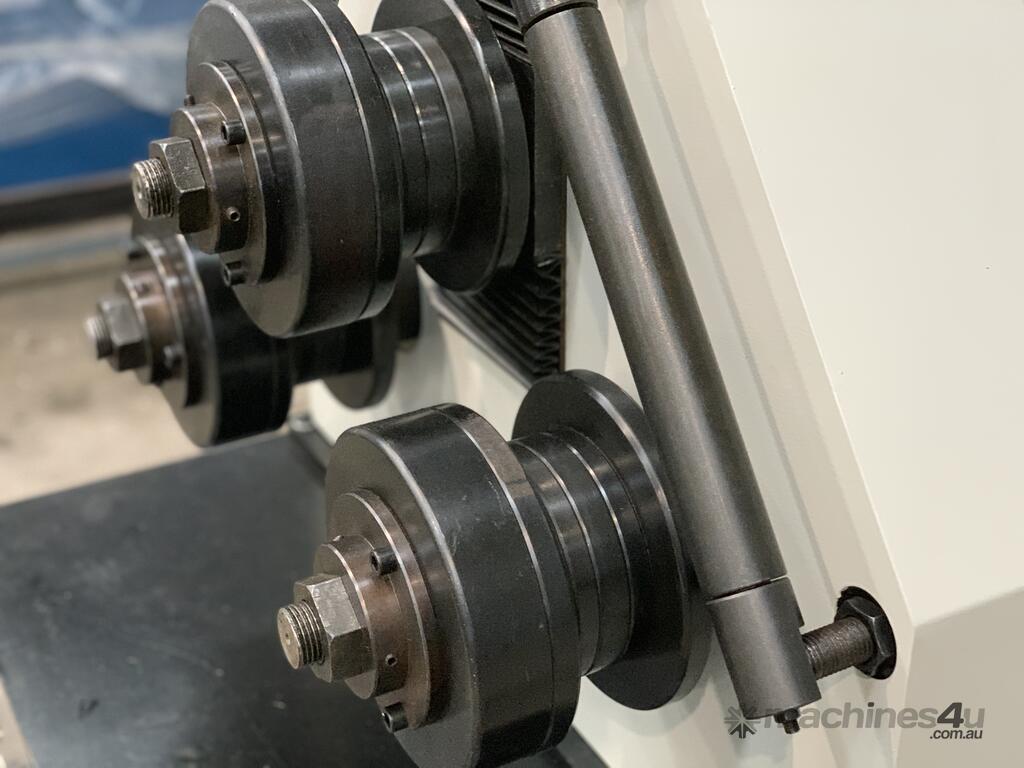

?adjustable side support guide rolls

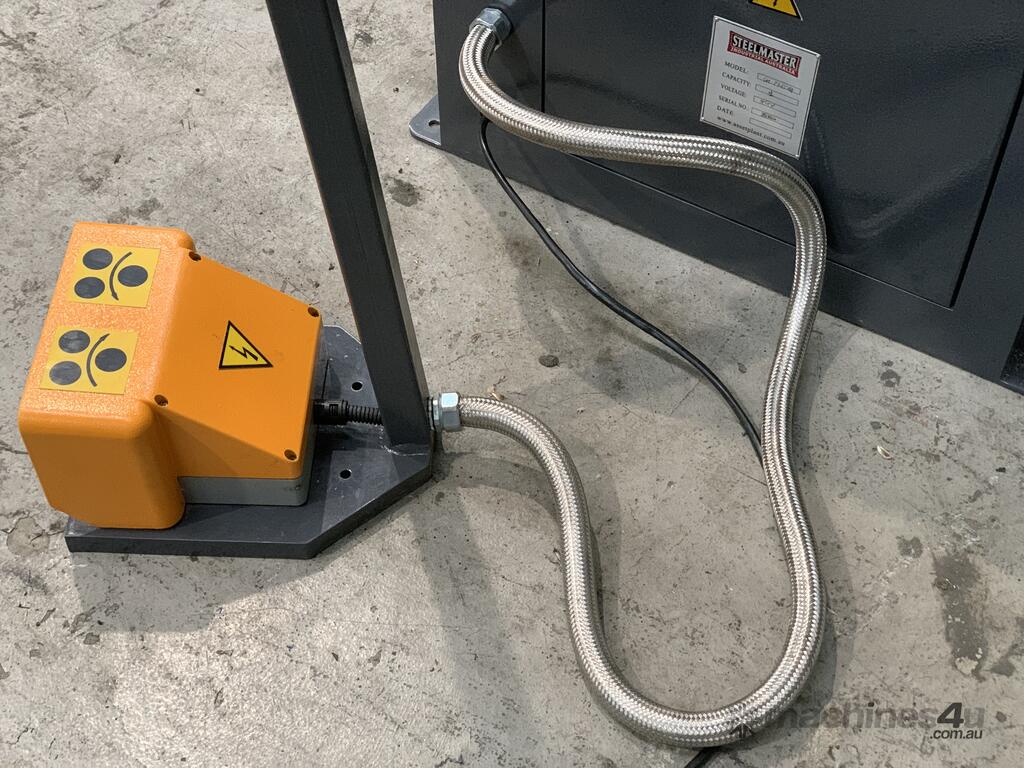

?roving foot pedal control with forward/reverse
?standard flat & angle rolls are included
?heavy 65mm drive shaft.
?CE compliant

Technical Snap Shot

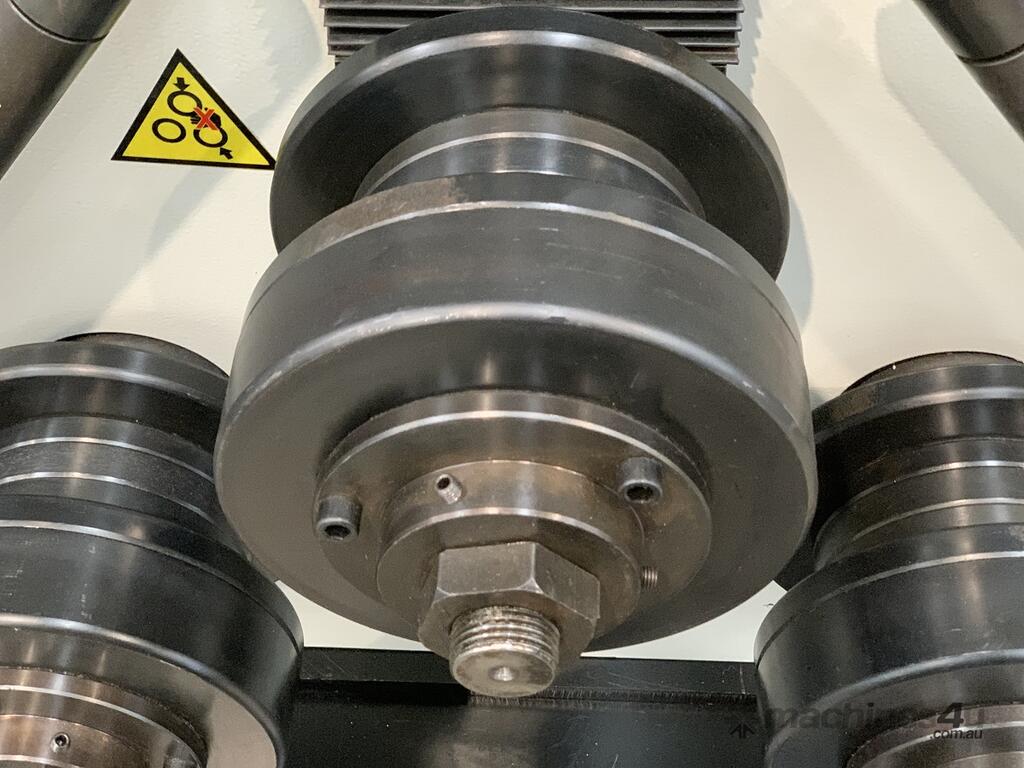

?top roll diameter - 210mm
?bottom roll diameter - 210mm
?bottom roller centre distance - 420mm
?centre distance bottom roller to top roller at max. height - 270
?Round Tube Capacity (Size / Min. Radius) 100 x 2mm / 1200mm (Optional Tooling Available)
?Round Tube Capacity (Size / Min. Radius) 60 x 2mm / 600mm (Optional Tooling Available)
?Flat Bar Capacity (Size / Min. Radius) 120 x 25mm / 1000mm (Additional spacer tooling required)
?Flat Bar Capacity (Size / Min. Radius) 50 x 10mm / 500mm (Additional spacer tooling required)
?Flat Bar on Edge Capacity (Size / Min. Radius) 50 x 10mm / 400mm (Additional spacer tooling required)
?Square & *Round Bar Solid Capacity (Size / Min. Radius) 50 x 50mm / 800mm (Optional Tooling Available)
?Square Tube Capacity (Size / Min. Radius) 70 x 70 x 3mm / 1200mm (Additional spacer tooling required)
?Square Tube Capacity (Size / Min. Radius) 80 x 40 x 3mm / 1200mm (Additional spacer tooling required)
?Angle Capacity (Size / Min. Radius) 70 x 70 x 6mm / 600mm (Optional Tooling Available)
?Angle Capacity (Size / Min. Radius) 50 x 50 x 6mm / 400mm
?Spindle Speed - 9.3 r/min
?Motor Power, 2.25kW / 3hp – V
?Weight (Nett) 850kg
?Packing Size: 1250mm x 1150mm x mm
Note: * = Requires Additional Tooling

Optional Round Tooling
?23+0047 – 32.6mm Round Set 3 Hardened Formers
?23+0036 – 38.1mm Round Set 3 Hardened Formers
?23+0026 – 40.2mm Round Set 3 Hardened Formers
?23+0042 – 42.3mm Round Set 3 Hardened Formers
?23+0041 – 48.3mm Round Set 3 Hardened Formers
?23+0027 – 51mm Round Set 3 Hardened Formers
?23+0037 – 60.3mm Round Set 3 Hardened Formers
?23+0038 – 63.5mm Round Set 3 Hardened Formers
?23+0039 – 76.3mm Round Set 3 Hardened Formers
?23+0040 – 102mm Round Set 3 Hardened Formers

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
