Large Indicator: LED: High Intensity - GS120

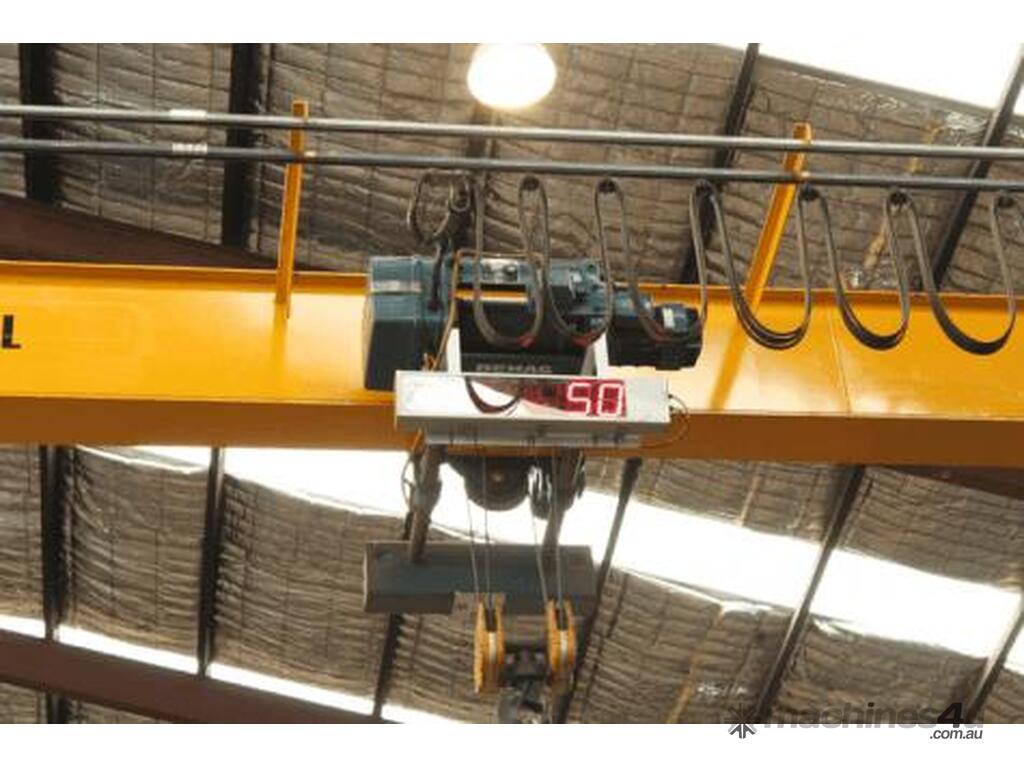

The GS120 is ideal for Overhead Cranes Systems, Weighbridges, Counting Applications, or any weighing application requiring large digital displays.

The GS120 LED Large Display with its extra-large 120mm LED display can be seen clearly up to a distance of 120 meters range and with a 120 degree viewing angle.

GS120 LED Large Display Key Features:

This high intensity LED indicator offers a flexible solution for a variety of high speed, high-accuracy weighing, batching and level measurement operations. It features two isolated auto-detecting serial ports, and accepts serial inputs from a wide range of devices. It comes with 3 x 5A relays for stop/go lights or centre of zero light.

The GS120 is an all-weather display with stable performance in extreme Low & High temperature conditions. It possesses high thermal stability without overheating. With an intuitive software that can automatically detect from another compatible pairing instrument, or allows itself to be manually set.

The GS120 Large Display is extremely durable to outlast any other competitor in the market today — Designed and built to last to provide long-term use for decades. Its versatility is in demand for weighing now and in the foreseeable future in Australia and across the globe.

A wide selection of accessories is available for our range of Indicators. Accessories render your application more cost effective while meeting your requirements for strength and durability.

Power consumption 40W (max)
Character format All standard ASCII characters
Display 4-digit, 5-digit, 6-digits LED Extra Large, 140mm by 78mm wide, each digit 68 hi-density,
wide angle LEDs arranged into dual rows for improved digit definition. Status annunciators
Motion, Centre of Zero and Net are available on some models.
Visibility Range upto 120 meters and viewing angle of 120 degree
Update Rate 10Hz
Operating Environment Temp -10°C to +65°C, humidity
