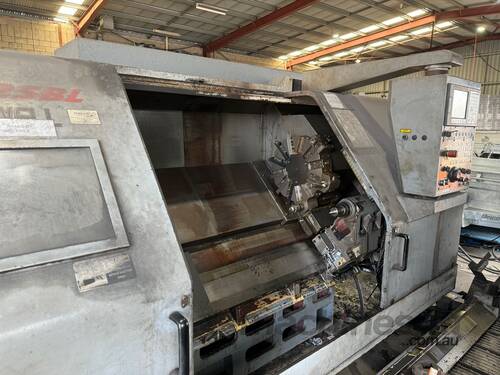

The Leadwell LTC-25BL is a robust CNC turning center designed for high-precision machining of larger workpieces. Below is an overview of its key features and specifications:
Key Features:
Rigid 45-Degree Slant Bed Design: Enhances stability and facilitates efficient chip removal during operations.
High-Powered Spindle: Equipped with a 300 mm (approximately 12 inches) chuck, the spindle operates at speeds up to 3,500 RPM, suitable for a variety of materials.
Generous Capacity:
Maximum Swing: 680 mm (26.8 inches)
Maximum Turning Diameter: 420 mm (16.5 inches)
Turning Length: 1,050 mm (41.3 inches)
Bar Capacity: 85 mm (3.3 inches)

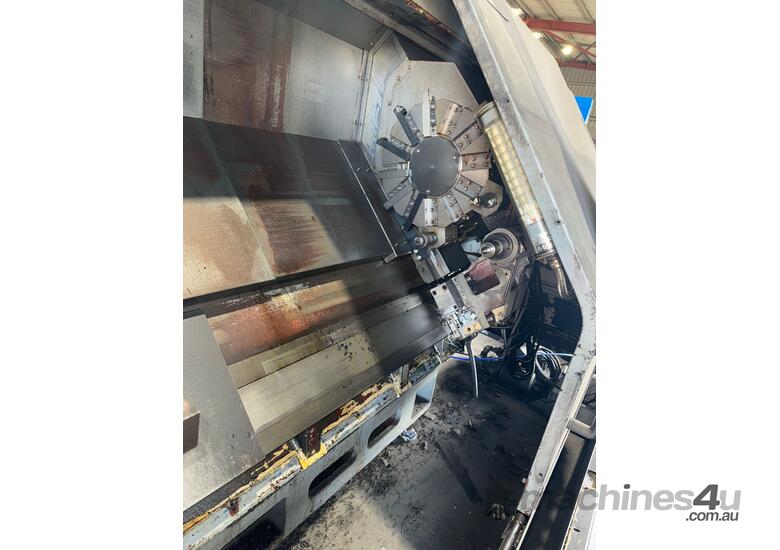

Precision Tooling: Features a 12-station turret accommodating square tools with a shank height of 25 mm and boring bars with a diameter of 40 mm, allowing for versatile machining operations.
Efficient Axis Travels:
X-Axis Travel: 210 mm + 20 mm (8.3 inches + 0.8 inches)
Z-Axis Travel: 1,090 mm (42.9 inches)
Rapid Traverse Rates:
X-Axis: 15,000 mm/min (590.6 inches/min)
Z-Axis: 20,000 mm/min (787.4 inches/min)
Tailstock Specifications:
Quill Diameter: 100 mm (3.9 inches)
Quill Inside Taper: MT#5 (Morse Taper #5)
