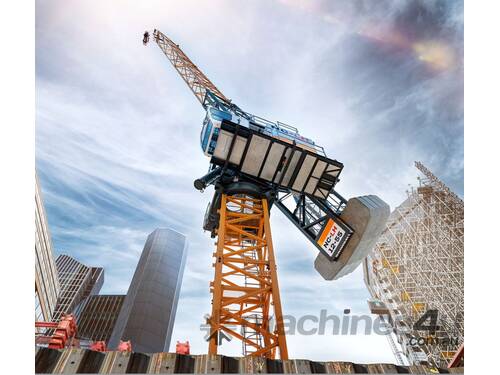

Liebherr 12T Hydraulic Luffing Tower Crane: NC-LH 12-55

Buy direct from Liebherr! Brand new cranes available to order now. The NC-LH 12-55 is especially suitable for inner-city construction sites with limited space. Slim tower system, large hook heights, high performance and climbable - this complete package makes the NC-LH 12-55 unique. In addition, the crane convinces with uncomplicated assembly and transport as well as a very small out-of-service position.

Technical data
Lifting capacity at max. radius 2,450 kg
Max. radius 55.00 m
Standard FEM
Lines 2/4
Max. lifting capacity 12,000 kg
Hoist gear 45 kW FU / 65 kW FU

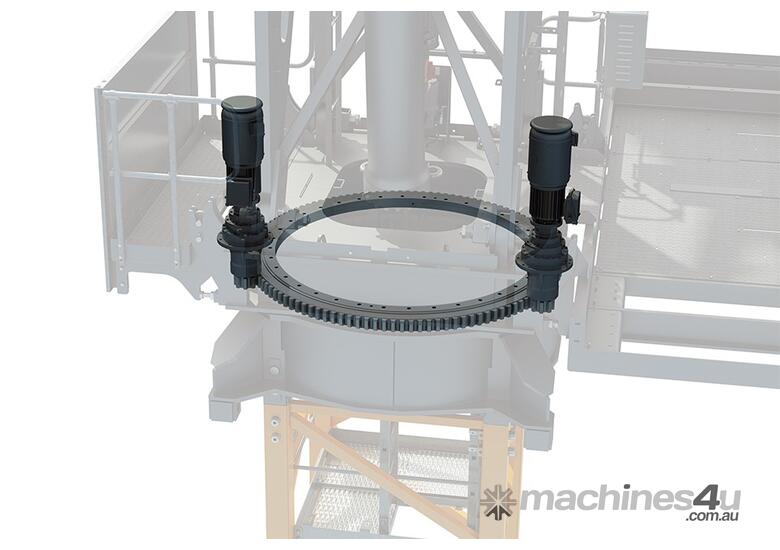

Slewing gear 2 x 5,0 kW FU

Transport
NC-LH assembly groups are adaptable to the size of the mobile crane. Trucks can be loaded as needed, depending on whether the central unit is to be lifted as a whole or in individual assembly steps. Pre-assemblies can be carried out at the storage location to save time or are no longer needed.

Hydraulic luffing system
The powerful hydraulic luffing system enables fast and precise luffing in under 90 seconds. Speed and precision ensure optimum safety throughout the entire construction process. An optimised 30 kW design makes it possible to reduce the connected load.

High-performance drives
The high-performance hoist gears, already familiar from the EC-B series, feature Liebherr’s own drives. Available as 45 kW and 65 kW models, and with an optional secondary brake, they offer high drum capacities and hook speeds. This simplifies servicing and the availability of spare parts and boosts productivity on site through high handling capacities.

Out-of-service position
You can reduce the out-of-service position to 10 m for jib lengths longer than 45 m. The crane can be securely locked in place if space is really tight. This makes optimal adaptation to site conditions possible.

PLC control system
Scaling is where the state-of-the-art Litronic control system delivers its biggest advantages. This is done via a wizard in just a few steps and with only one weight. The crane is put into operation much more effectively as a result and scaling is additionally verified through a logic check.

Comfortable working environment
A well thought-out, organised interior layout, an adjustable control stand and various features make the cabin feel like a second home. Alongside cabin size, field of vision is one of the most important features of a crane cabin. The LiCAB has been completely overhauled with a specific focus on visibility.
