LightWELD XR - Handheld Fiber Laser Welding with Cleaning Fuction

Want to see one in action.. book a hands on demo...

Made by IPG USA and fully supported here in Australia by Industrial Laser (regional service center for IPG Photonics)

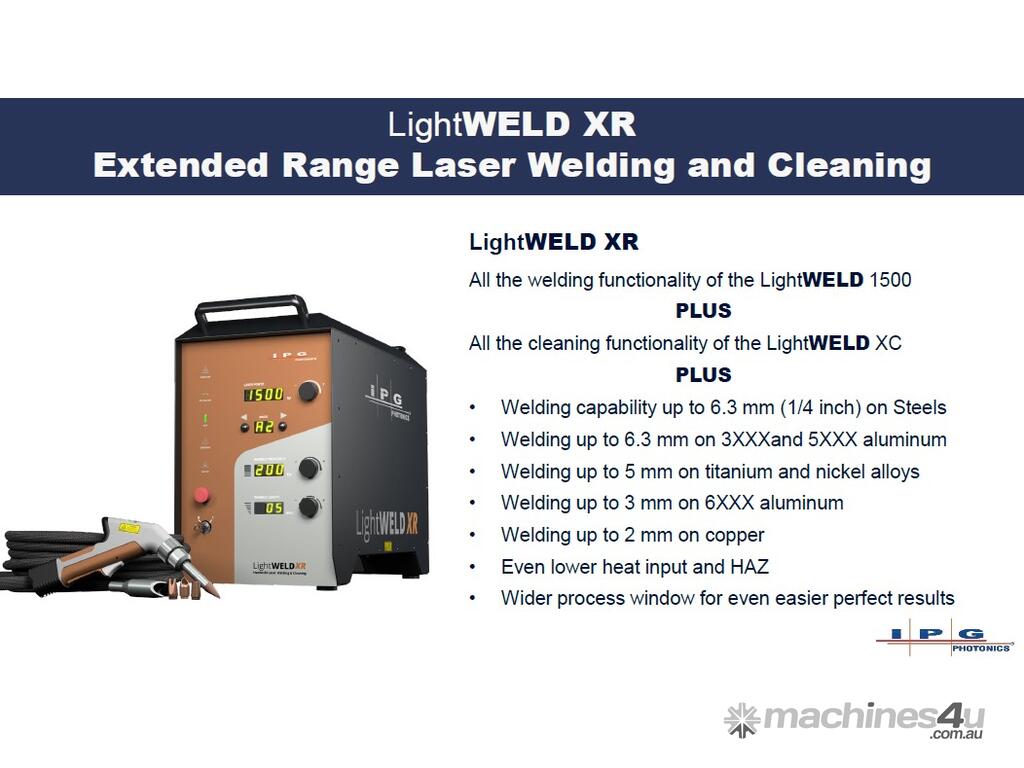

LightWELD XR
All the welding functionality of the LightWELD 1500
PLUS
All the cleaning functionality of the LightWELD XC
PLUS

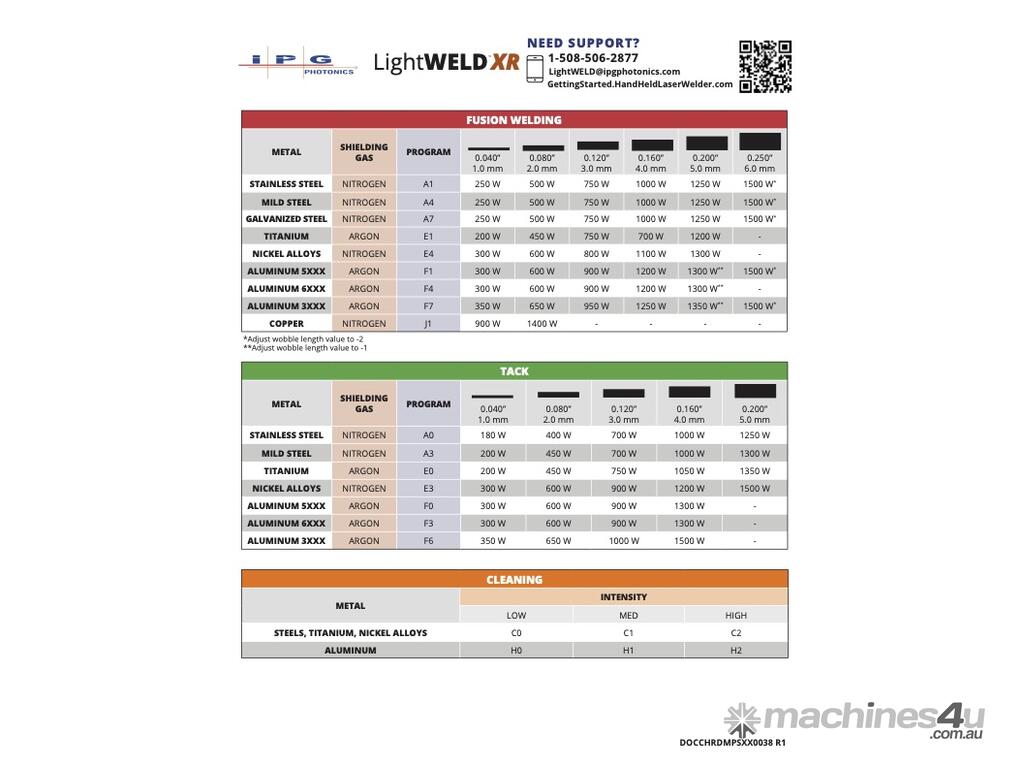

• Welding capability up to 6.3 mm (1/4 inch) on Steels
• Welding up to 6.3 mm on 3XXXand 5XXX aluminum
• Welding up to 5 mm on titanium and nickel alloys
• Welding up to 3 mm on 6XXX aluminum
• Welding up to 2 mm on copper
• Even lower heat input and HAZ
• Wider process window for even easier perfect results

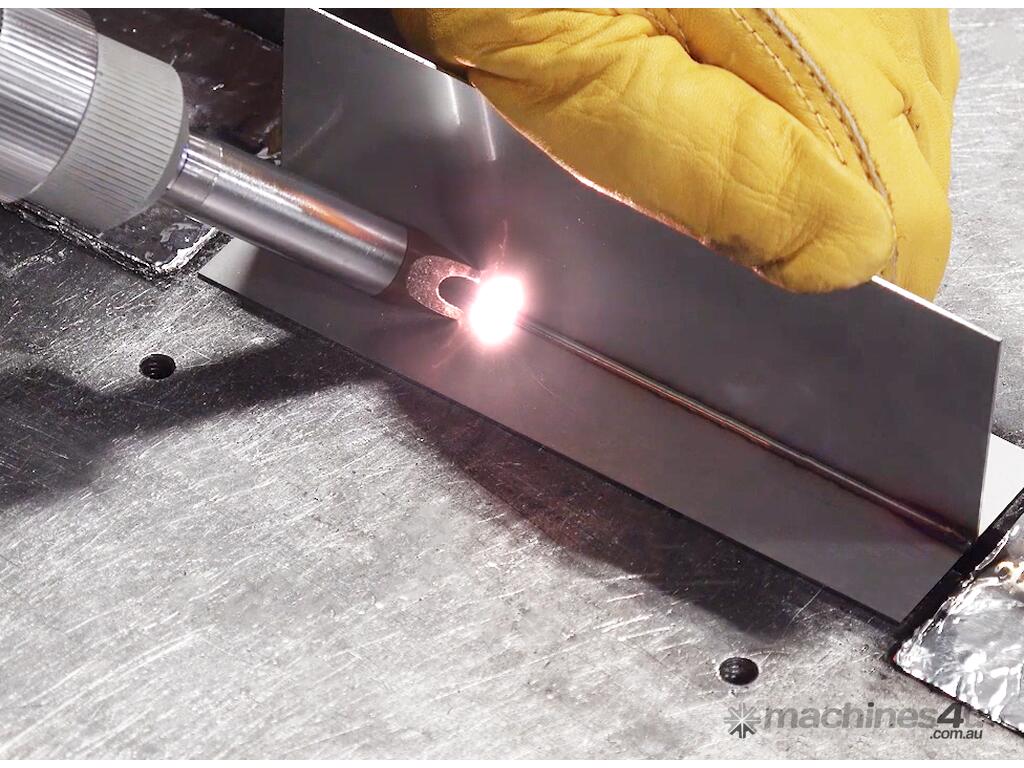

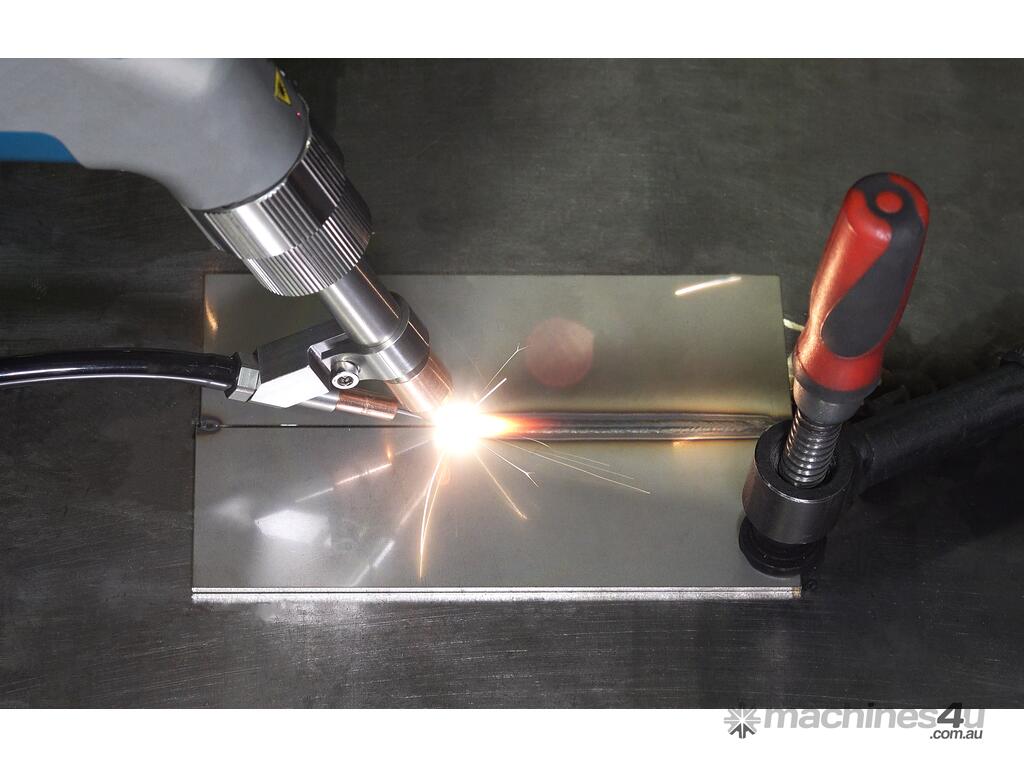

The FIRST Truly Portable Laser Welder LightWELD handheld laser welding and cleaning , its easy to learn, simple and fast to set up and provides consistent high-quality results across a wide range of materials and thicknesses LightWELD is FASTER and

Easier than Traditional MIG & TIG Welding.
Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of LightWELD:

Up to 4X faster than TIG
Easy to learn and operate with highest process consistency
High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through
Welding of dissimilar metal parts of different thicknesses
Dramatically low heat input and minimized heat affected zone
Minimal part setup and post-processing grinding or polishing
Increased productivity with no need for machining or straightening deformed parts

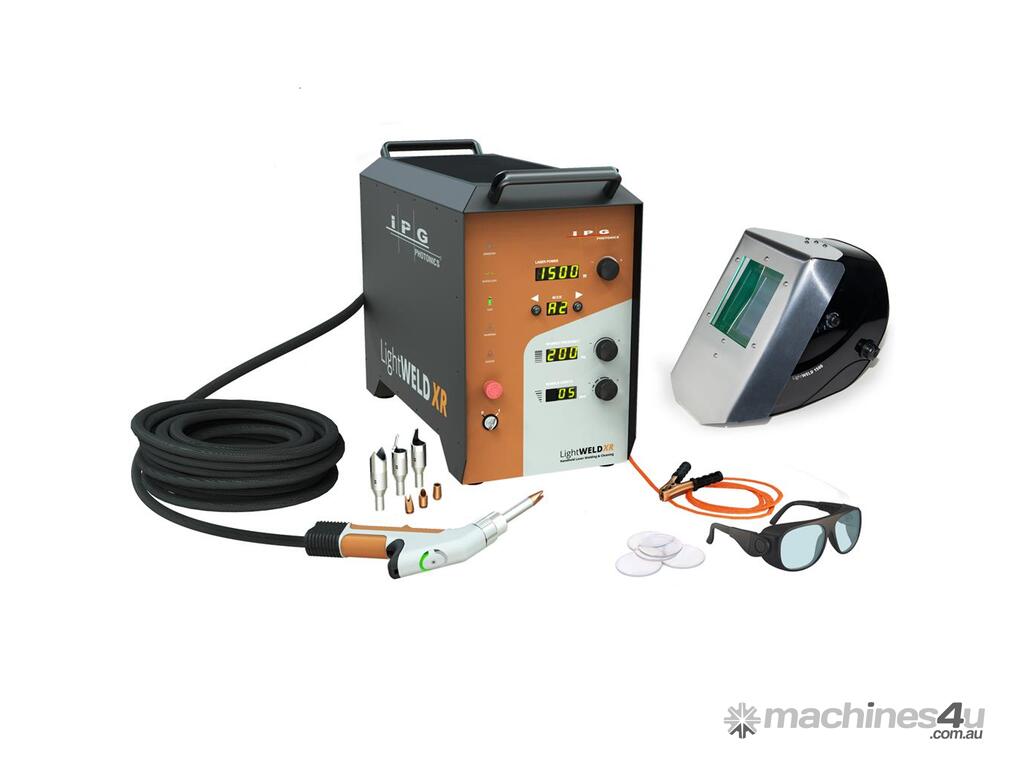

Included In the box:
5 or 10m IPG Laser Welding Gun
5 or 10m Workpiece Clamp
(4) Welding Nozzle Tips
(5) Cover Slides

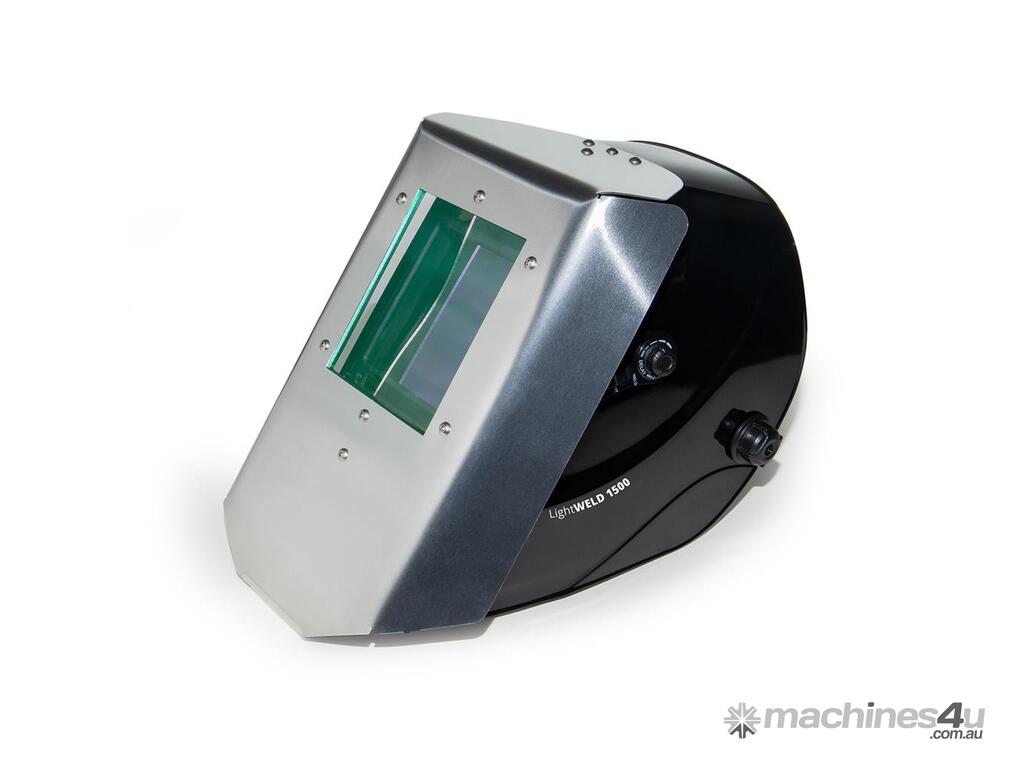

Welding helmet with IR shield
Laser safety glasses OD 6+
Getting Started Guide
High frequency pulsed laser mode, 2500 W pk power
Wide (15 mm) scan field for high-speed coverage
Weld head nozzle cleaning attachment with 3 tips
Pre-set cleaning mode software

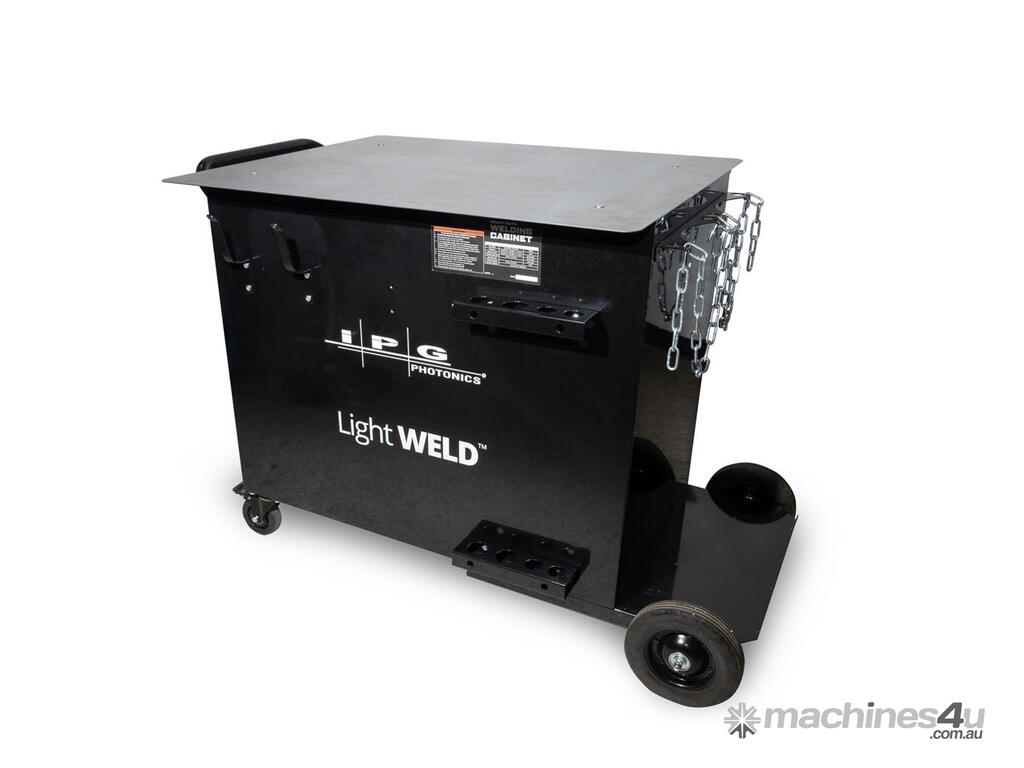

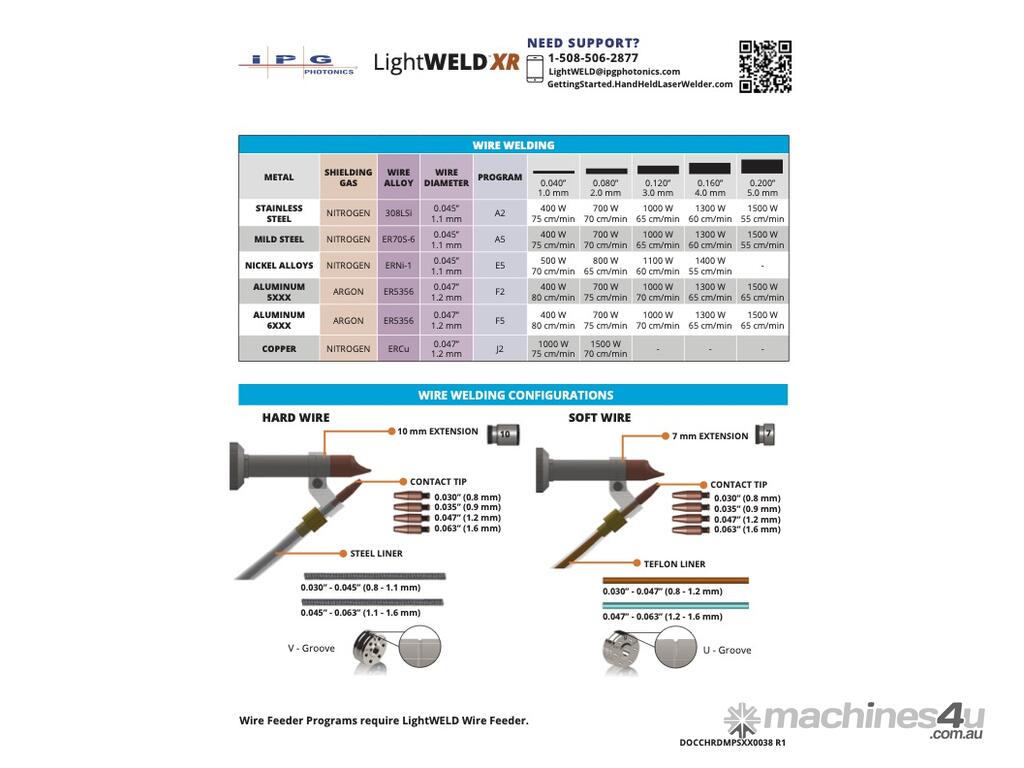

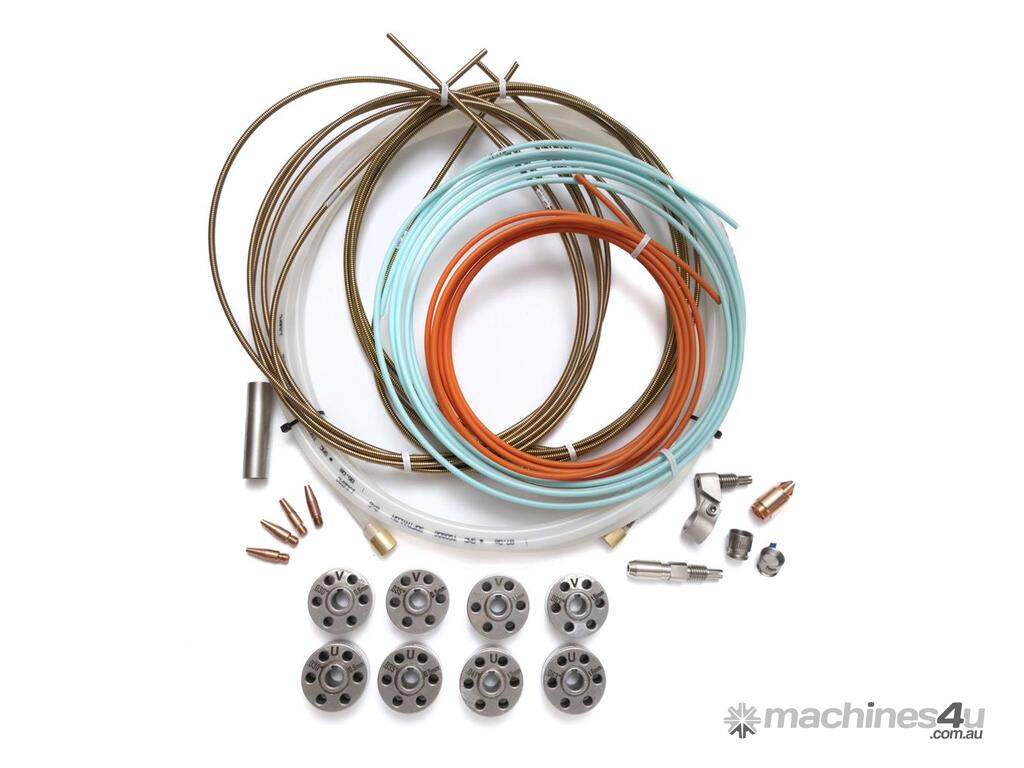

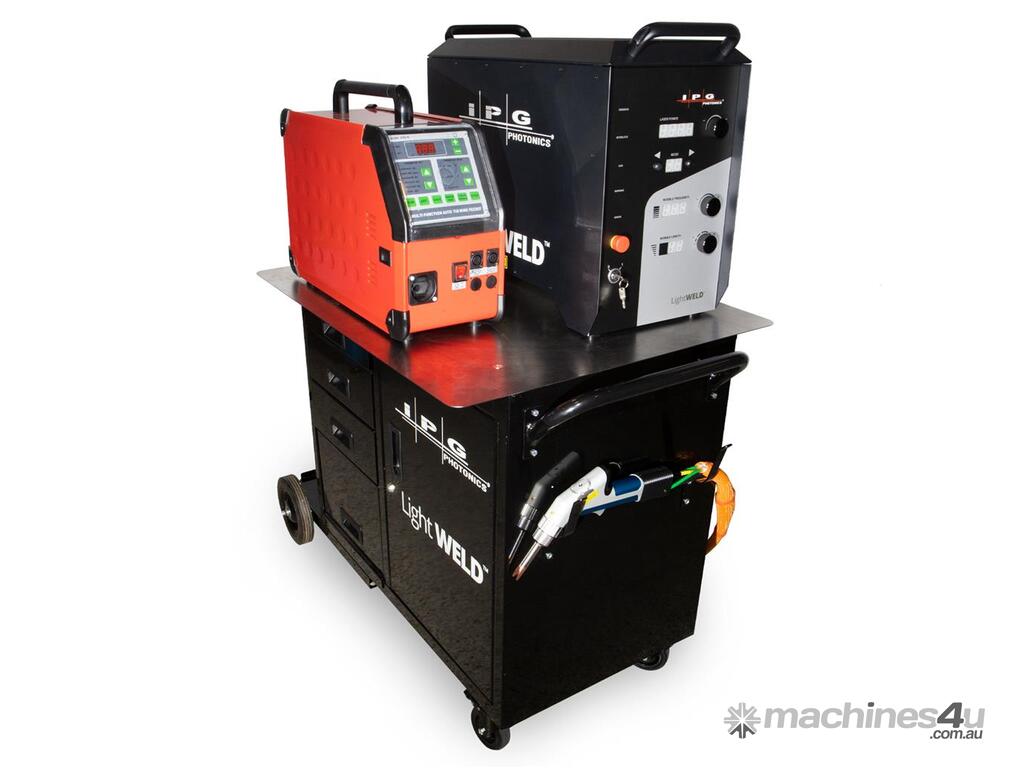

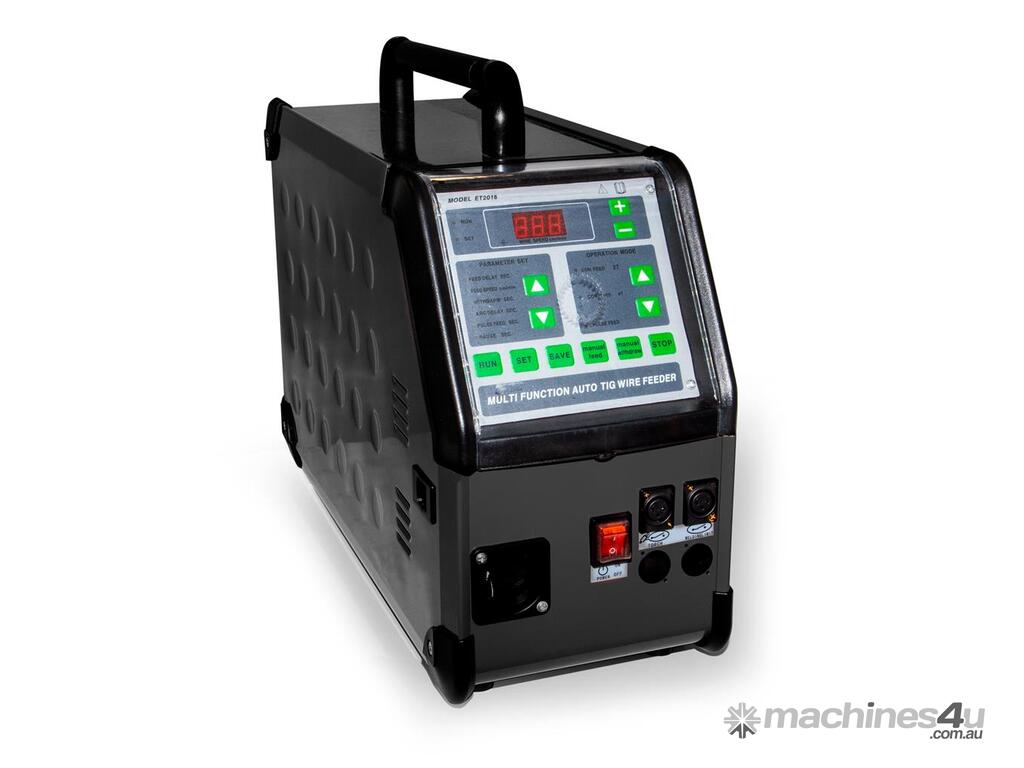

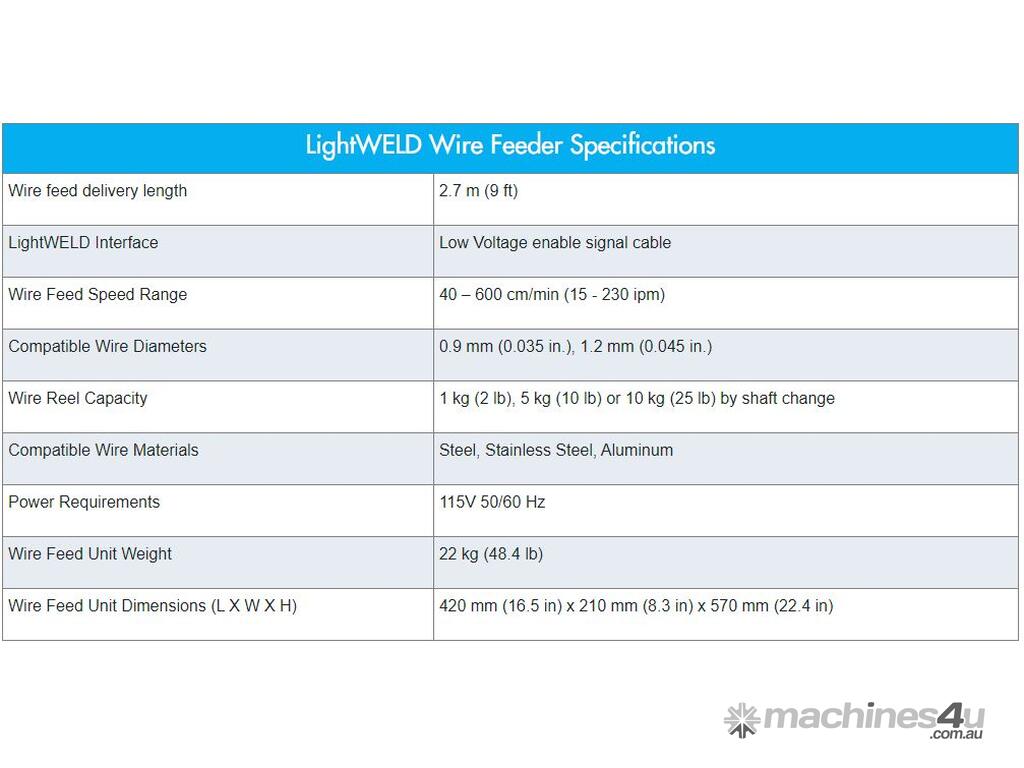

Options available are wire feeder, weld cart

Made in the USA/Europe by IPG Photonics, the Worlds leading laser manufacturer
Supported locally IPG trained staff at our dedicated Demonstration and IPG service support Centre in Melbourne

Feel free to book into our demonstration centre where we give you the opportunity to try this technology first hand.
