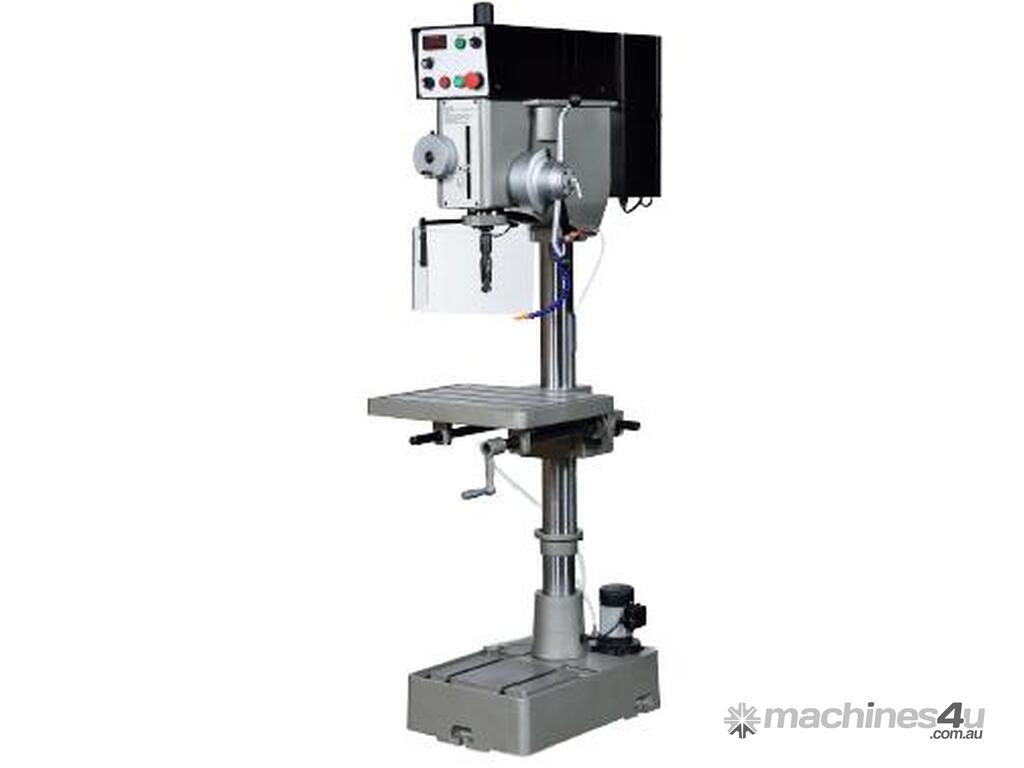

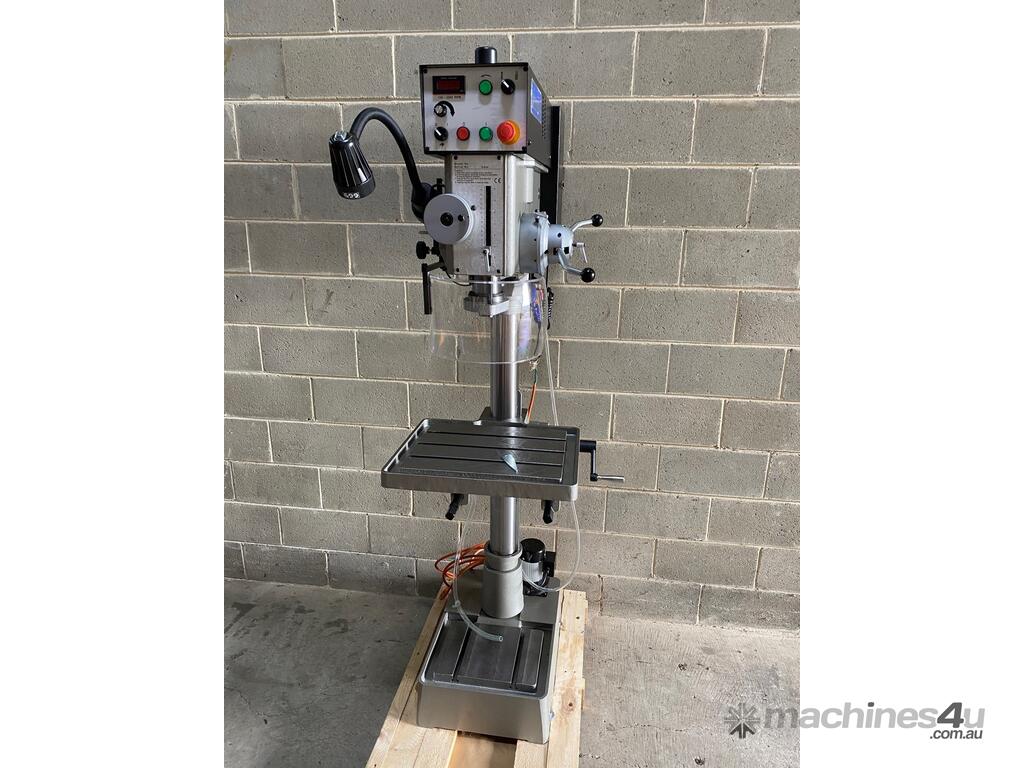

Linmac DP-918VAD Variable Speed Pedestal Drill

• 2 HP 3 Phase Motor.
• MT 3 Taper. 32 mm drilling steel capacity

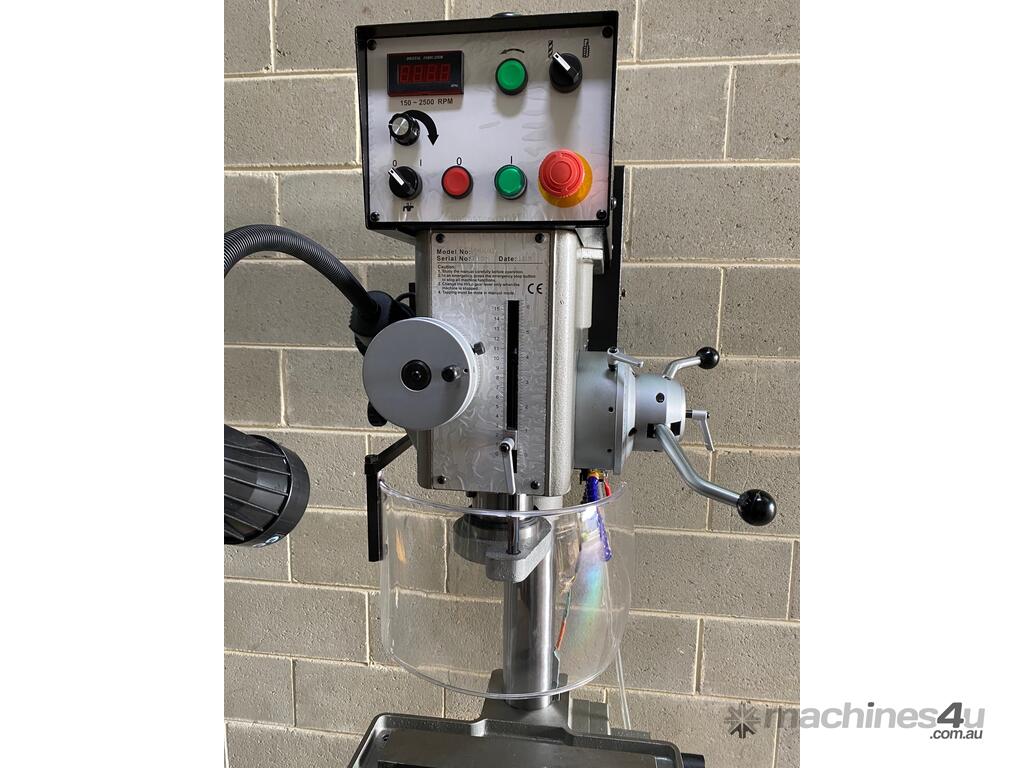

• RPM Digital Tachometer Display.
• Forward & Reverse Switch.
• CE Standards. (Interlocked Spindle Guard)
• Tapping System. 16 mm steel
• Inverter Variable Speed Control.
• Coolant System
• Power Auto Down Feed to Quill
• LED Light

Inverter Variable Speed Drilling Machines
Linmac inverter variable-speed drilling machines can accommodate demanding drilling and tapping applications. Unique features include a downfeed pressure limiter designed for safer operations, rear and front table locking and a digital spindle speed tachometer. Linmac drilling machines have proven reliability unmatched by others. So if you need a drill press that gets the job done every single time then the clear winner is the Linmac. It is undoubtedly one of the best variants when it comes to a pedestal drill press. The variable speed option allows it to be one of the easiest to use pedestrian drills for sale. This enables the Linmac to stand at the top of other pedestal drill variants in the market.

It is easy to see why the Linmac is considered one of the best pedestal drills for sale. This pedestal drill is capable of delivering a higher level of power to the spindle. Furthermore, the operation of this pedestal drill press is extremely easy and safe. Keeping precision in mind, the Linmac has been built to provide intensive drilling, enabling it to be one of the best options for a drill press in Australia.

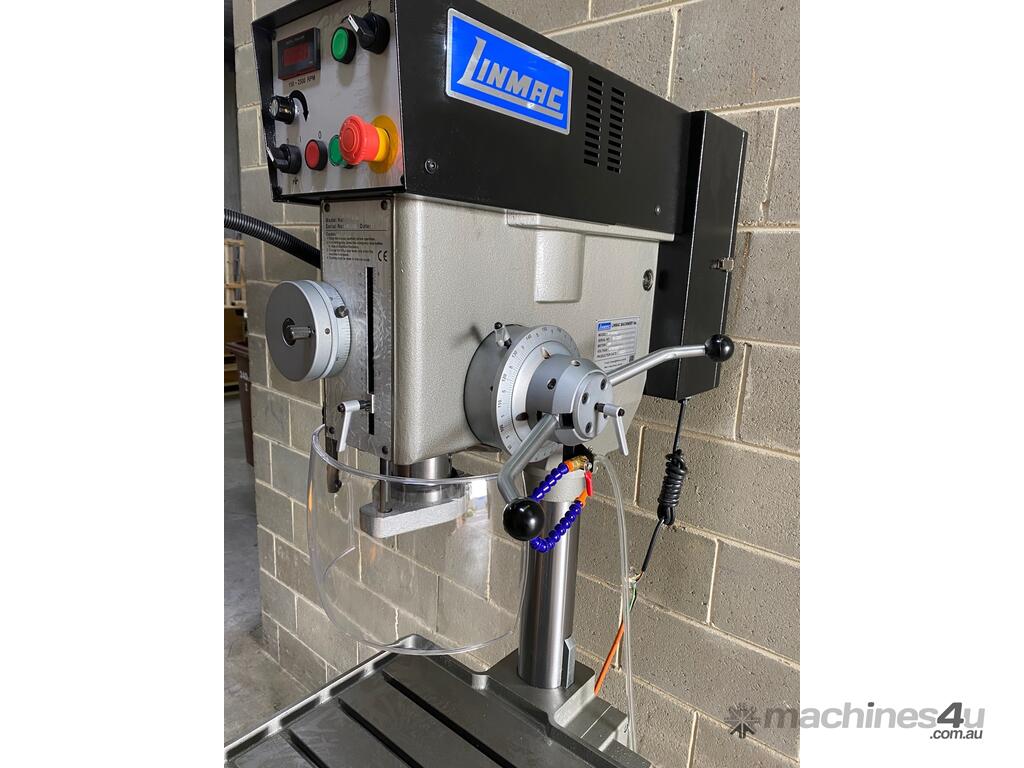

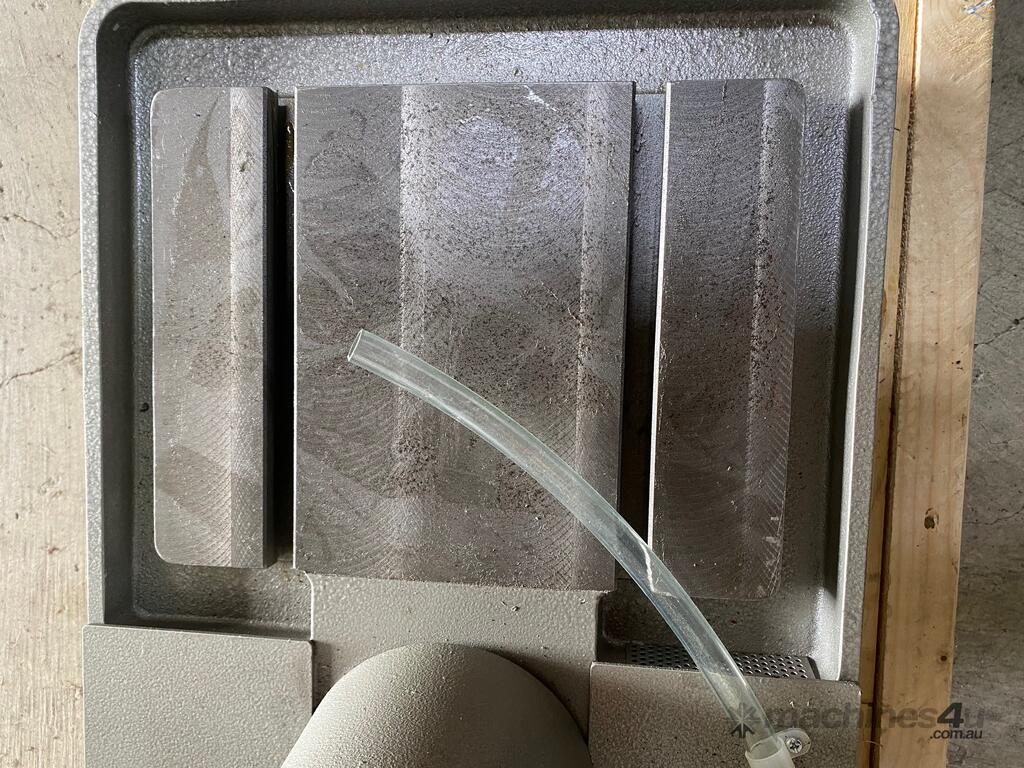

The DP-918VAD is an inverter belt driven variable speed drill press. We call it mini version of our DP-925. This premium drill press equips standard with MT#3 spindle taper, power feed and an auto reversing tap. Standard drilling capacity is up to 32mm (1-1/4”) for mild steel. The user friendly control interface comes with a speed potentiometer and digital read out for displaying actual quill RPM. The inverter variable speed allows users to drill and tap various steels at the proper speed, which extends tooling life and avoids unnecessary energy lost. When drilling at the exact speed, the tooling life can last for longer life than the regular pulley driven drills. The variable speed adjustments can be done freely within the range by a speed potentiometer knob. Wide casting column provides strong support to the entire machine and reduces flexing as full 1-1/4” capacity drilling. The rigid base has built in coolant pump that provides sufficient spray at the quill. Both the base and the work table are made of premium casting iron that enhances the stability when drilling full capacity; their surfaces have the wide T-slot which helps securing vices, tooling or workpieces. Standard DP-918VAD drill is also equipped with splash guarding and a work lamp.

Features:
32mm (1-1/4”) thru mild steel.
16mm (5/8”) tapping capacity.

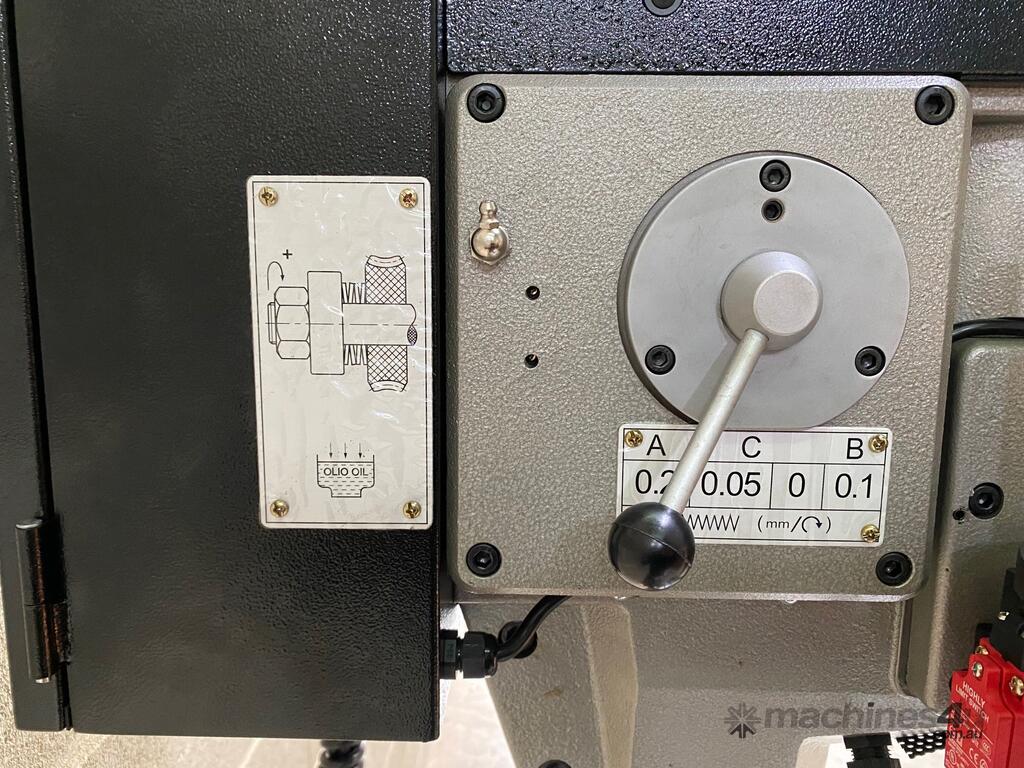

Auto down feed.
MT3 spindle taper.
Inverter variable speed belt driven.
Digital rpm readout.

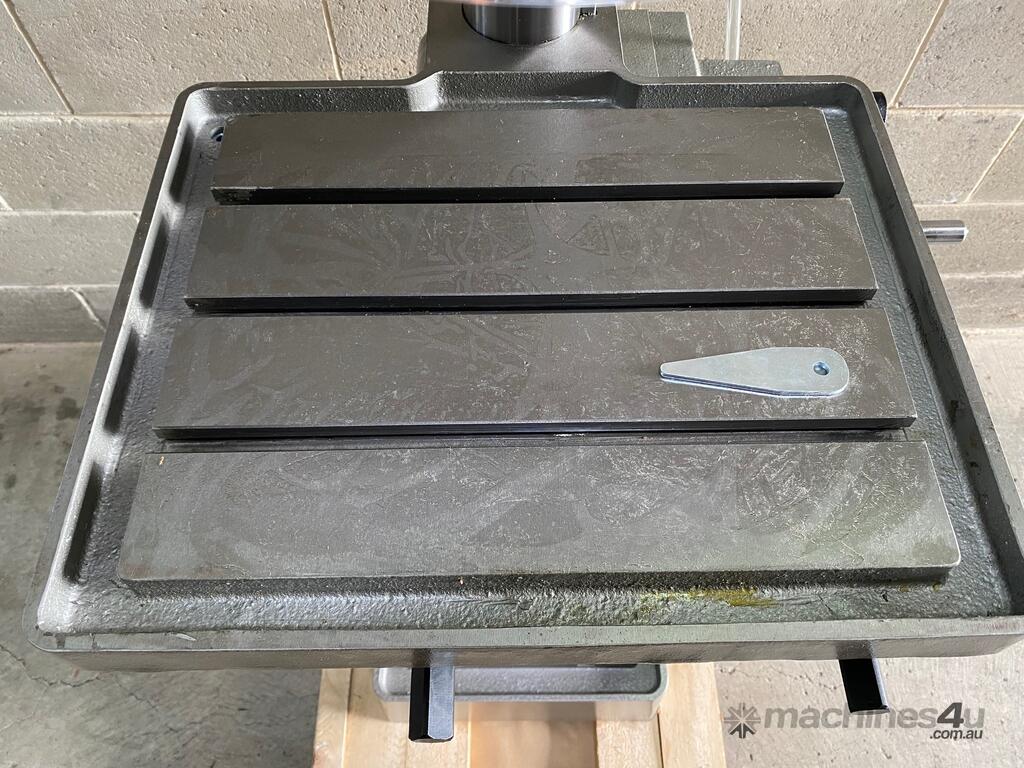

High precision T-slot worktable.

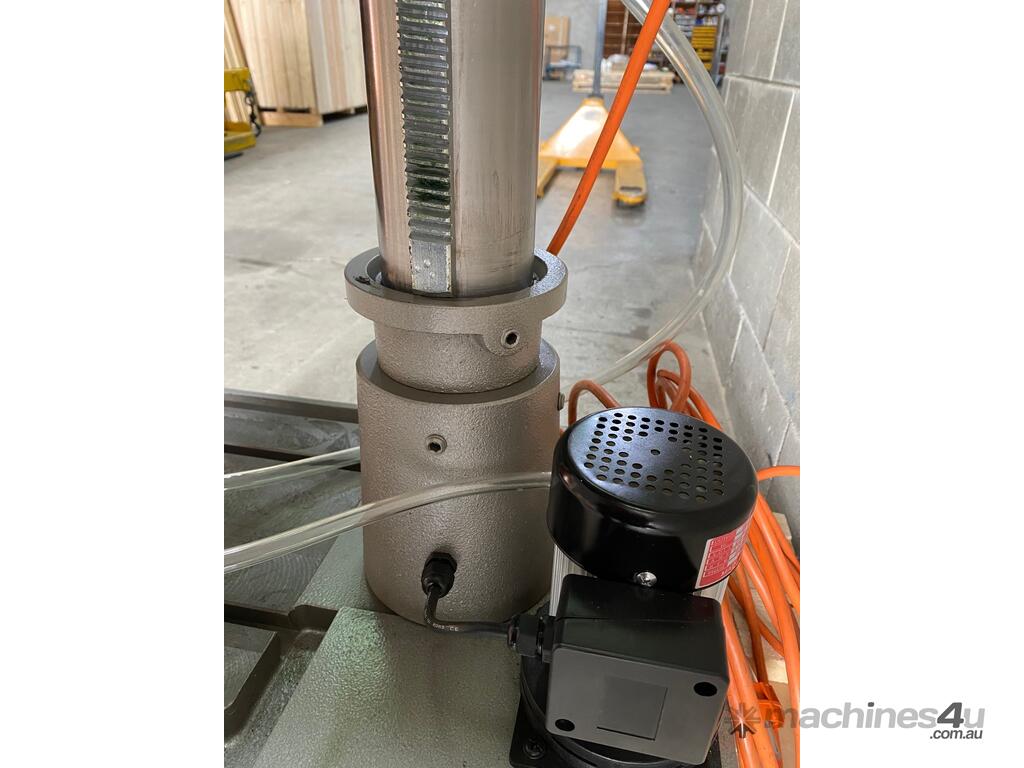

Integrated coolant system.
Single phase (240V) available.
