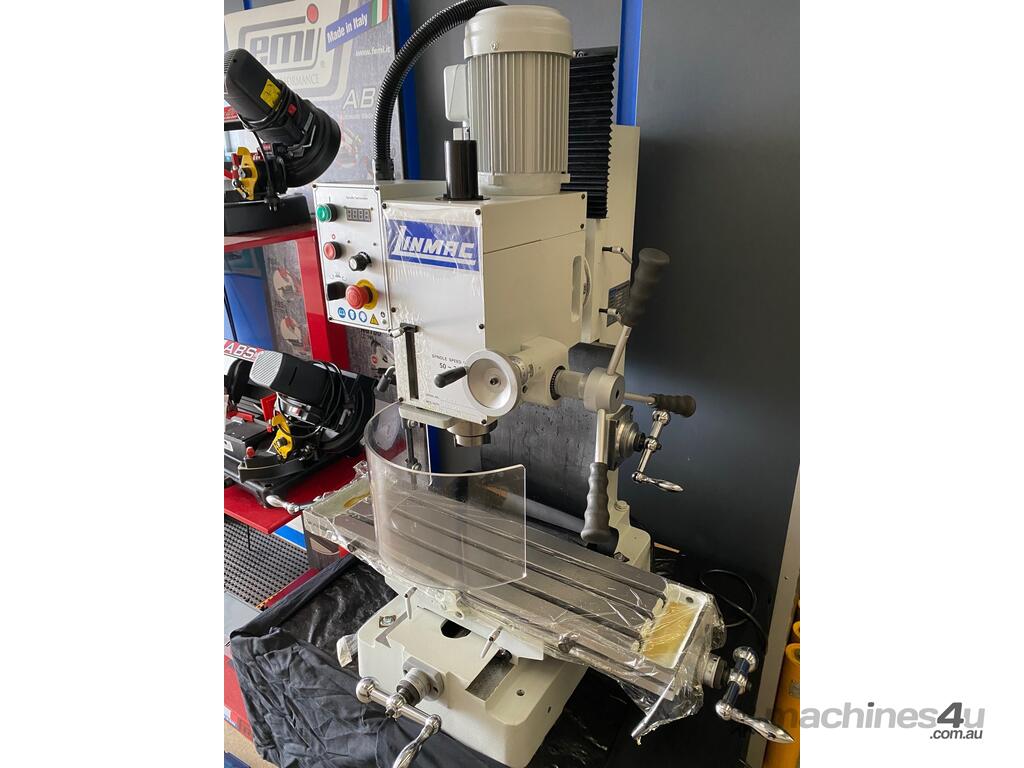

Linmac MD-50BV Variable Speed Mill Drill

• Belt Drive DRILL / MILL Combo Machine
• 1.5hp AC Inverter Motor + Inverter for Variable Speed
• Spindle Taper: MT 4 Spindle or NT#30 Spindle (your choice)
• Spindle Speed: 50~3200rpm
• Spindle guard & safety switch (CE Standards)
• Table Size: 210 x 840mm
• X/Y/Z Axes Travel: 550/280/490 (large table)
• Base: 660 x 410mm
• Dovetail Slide Column
• Head Swivel: R & L 90 Degree
• Chuck Arbor
• Draw Bar
• Tool Box
• Speed Gauge
• Forward / Reverse Switch
• Adjustment Switch.

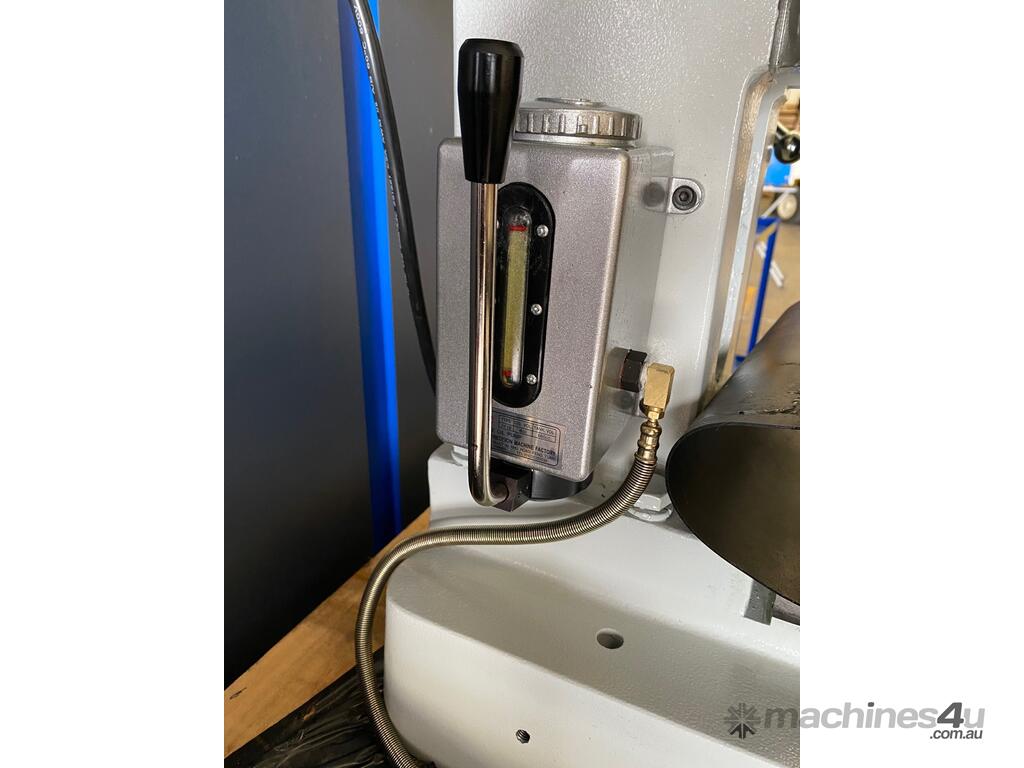

• Hand Oiler

Inverter Variable Speed Drilling Machines
Linmac inverter variable-speed drilling machines can accommodate demanding drilling and tapping applications. Unique features include a downfeed pressure limiter designed for safer operations, rear and front table locking and a digital spindle speed tachometer. Linmac drilling machines have proven reliability unmatched by others. So if you need a drill press that gets the job done every single time then the clear winner is the Linmac. It is undoubtedly one of the best variants when it comes to a pedestal drill press. The variable speed option allows it to be one of the easiest to use pedestrian drills for sale. This enables the Linmac to stand at the top of other pedestal drill variants in the market.

It is easy to see why the Linmac is considered one of the best pedestal drills for sale. This pedestal drill is capable of delivering a higher level of power to the spindle. Furthermore, the operation of this pedestal drill press is extremely easy and safe. Keeping precision in mind, the Linmac has been built to provide intensive drilling, enabling it to be one of the best options for a drill press in Australia.

When drilling at the exact speed, the tooling life can last for longer life than the regular pulley driven drills. The variable speed adjustments can be done freely within the range by a speed potentiometer knob. The MD-50BV has standard 2hp with 30mm (1-3/16) drilling capacity. The wide casting square column and base provides strong support to the entire machine and reduces flexing as full capacity drilling. The high precision work table is made of premium casting iron that enhances the stability when drilling full capacity; the surface has the wide T-slot which helps securing vices, tooling or workpieces.

The MD-50BV has other available optional accessories: adjustable handle, coolant system, guarding, sheet metal stand and LED working light.

Features:
25mm (1) thru mild steel.
Multiple functions: drilling, milling, tapping (opt.)
Boring and reaming.
MT3 or R8 spindle taper.
Inverter variable speed belt driven.

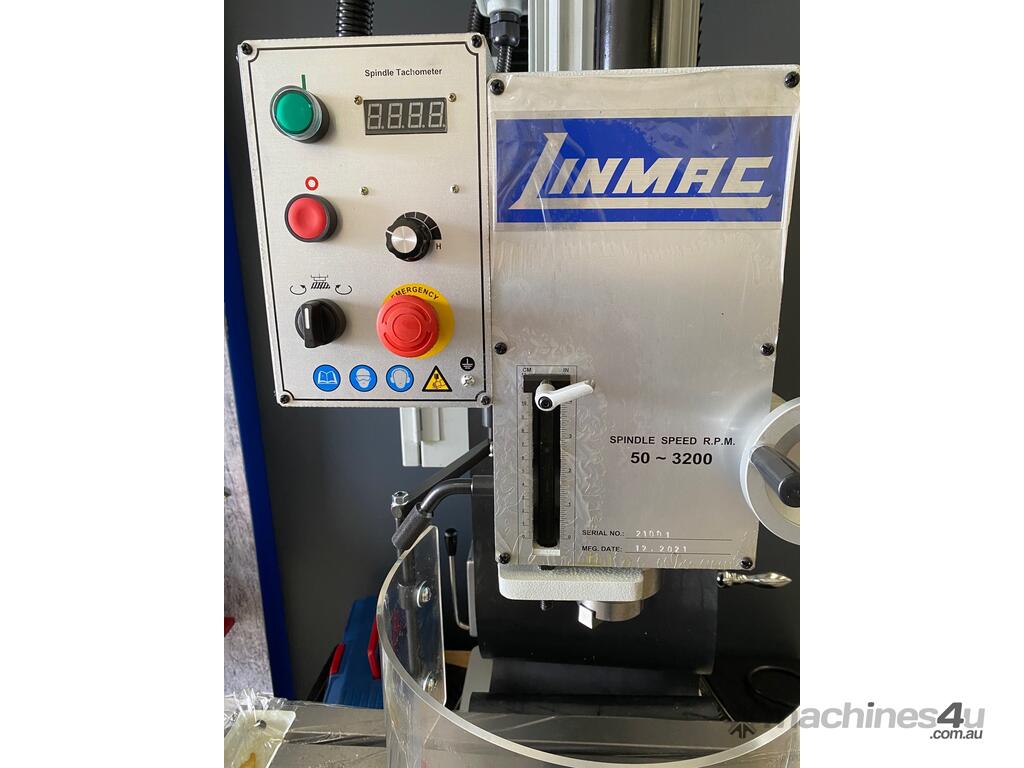

Digital rpm readout.
High precision T-slot worktable.
Hand Oil Lubricator.
Single phase (240V) available.

OPTIONS:
Tapping function.
Extend the working table to 840mm.
Z-axis travel extends 80mm.
Coolant system.
Stand with chip tray.
Three grains adjustable handle.
