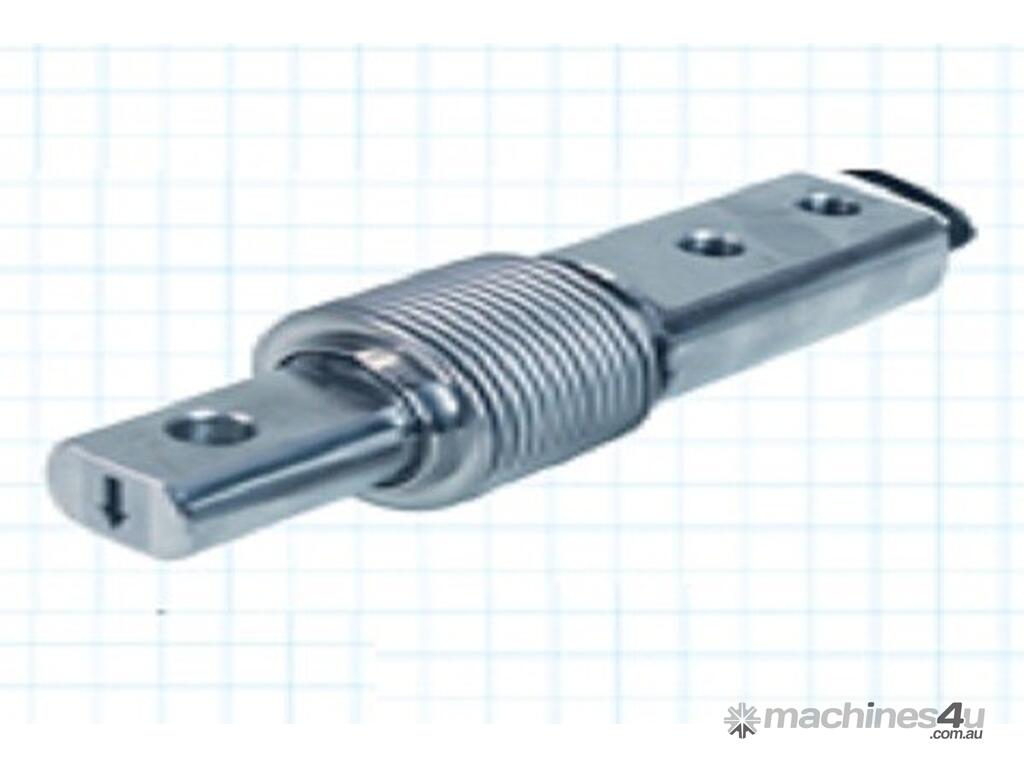

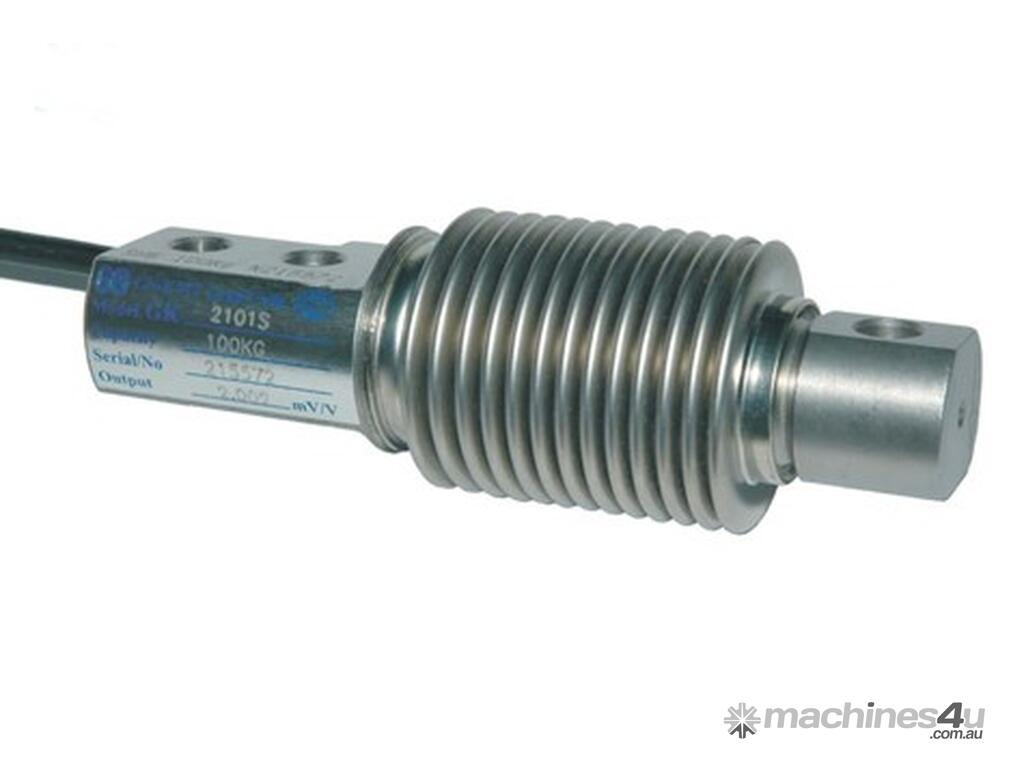

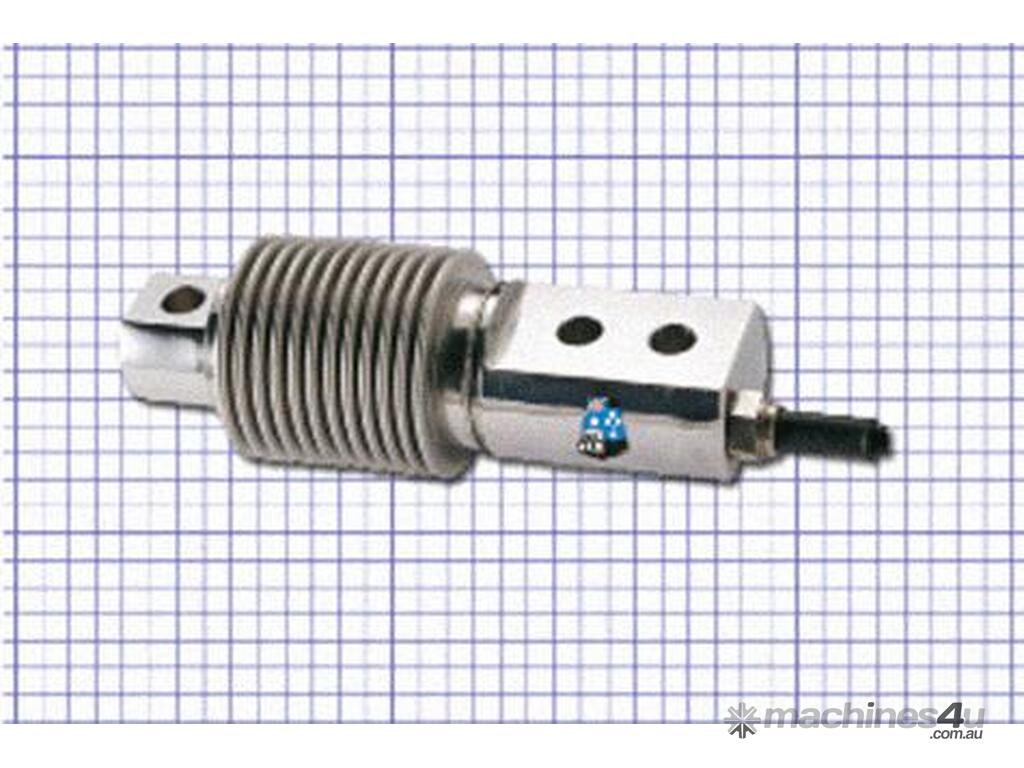

Load Cell: Bending Beam: Hopper filling - GS2101S

The GS2101S is perfect for hopper filling & level control.
Great for the food and chemical industry.

Here is a load cell that is not afraid of getting WET – The GS2101S is made of the finest Stainless Steel available for load cell construction – type 17-4PH – and is laser welded to achieve genuine IP68 sealing.

Its international dimensions make it practical to use in existing installations as a replacement, or in existing designs where mounting changes need not be made.

Team this cell with our ALL STAINLESS STEEL fully constrained MOUNT model GKMA3T2101 for a complete VERY HIGH QUALITY load cell and mount solution.

The GS2101S Bending Beam Load Cell is made of the finest Stainless Steel available for load cell construction – type 17-4PH – and is laser welded to achieve genuine IP68 sealing. It’s International Dimensions make it practical to use in existing installations as a replacement, or in existing designs where mounting changes need not be made.

Hermetically Sealed IP68 Rating
Laser Welded seal construction
High Grade 17-4PH Stainless Steel
High Accuracy 0.02% Combined Error
Matched outputs make corner adjustments un-necessary in most applications
International size & mountings
International size & mountings
Wide range of “purpose designed” Stainless Steel feet, fittings and mounts
Large Capacity Range – 5kg to 500kg
Load Cells 100% tested to guarantee load & thermal specifications met or exceeded

All Floor Scales – especially Washdown and Marine Environments.
Batch weighing in Hostile Environments.
Hopper filling and level control.
Food and Chemical Industry.
Bagging and Filling Machines.
Inventory Control – by weight.
Shipping Scales.
Non-Trade Scale Conversions.


Capacity 5kg - 500kg
Safe Service Load 100% Capacity
Safe Overload 150% Capacity
Ultimate Load 300% Capacity
Safe Side Load 100% Capacity
Full Load Output. 2mV/V 0.10%
Combined Error
