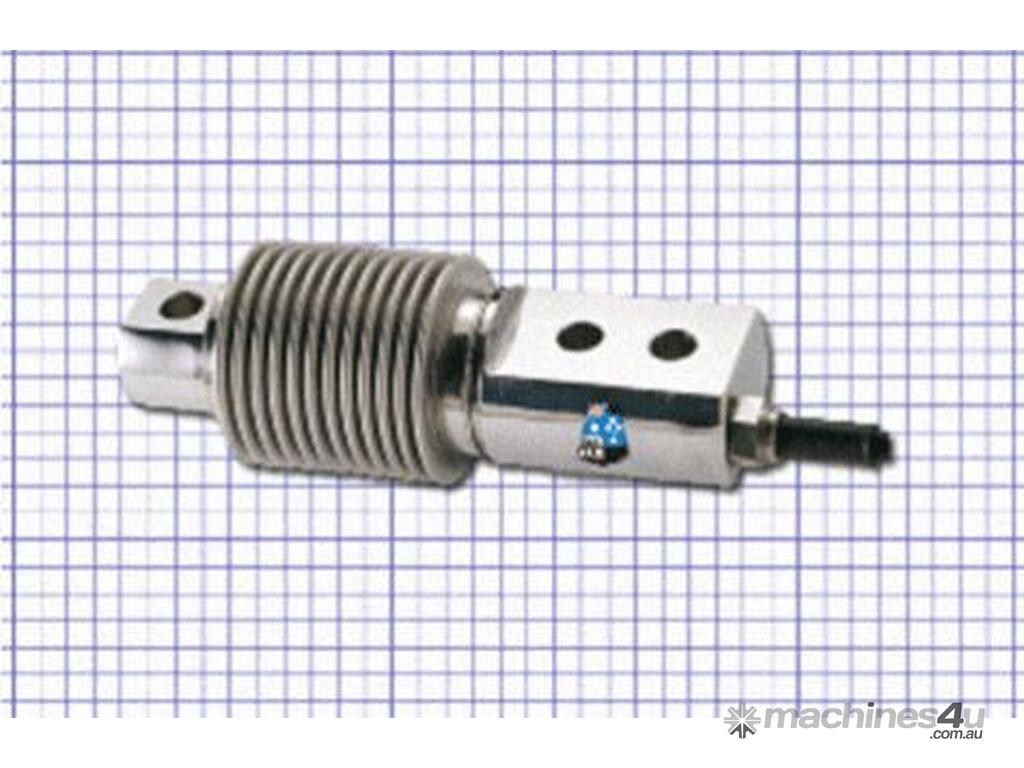

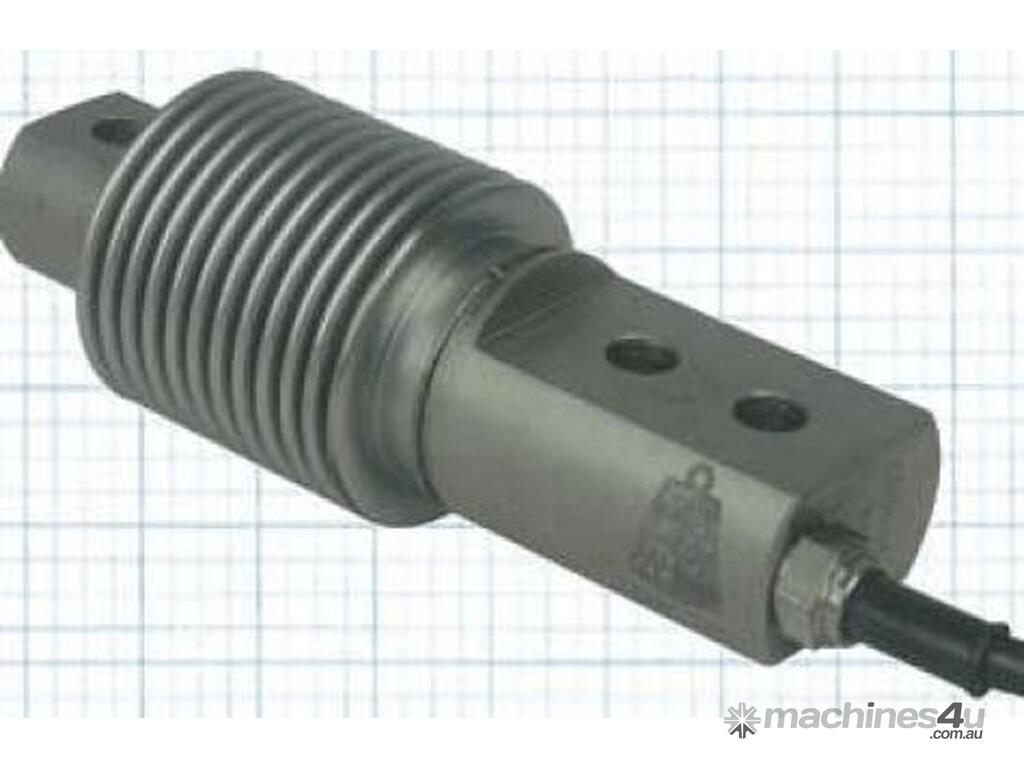

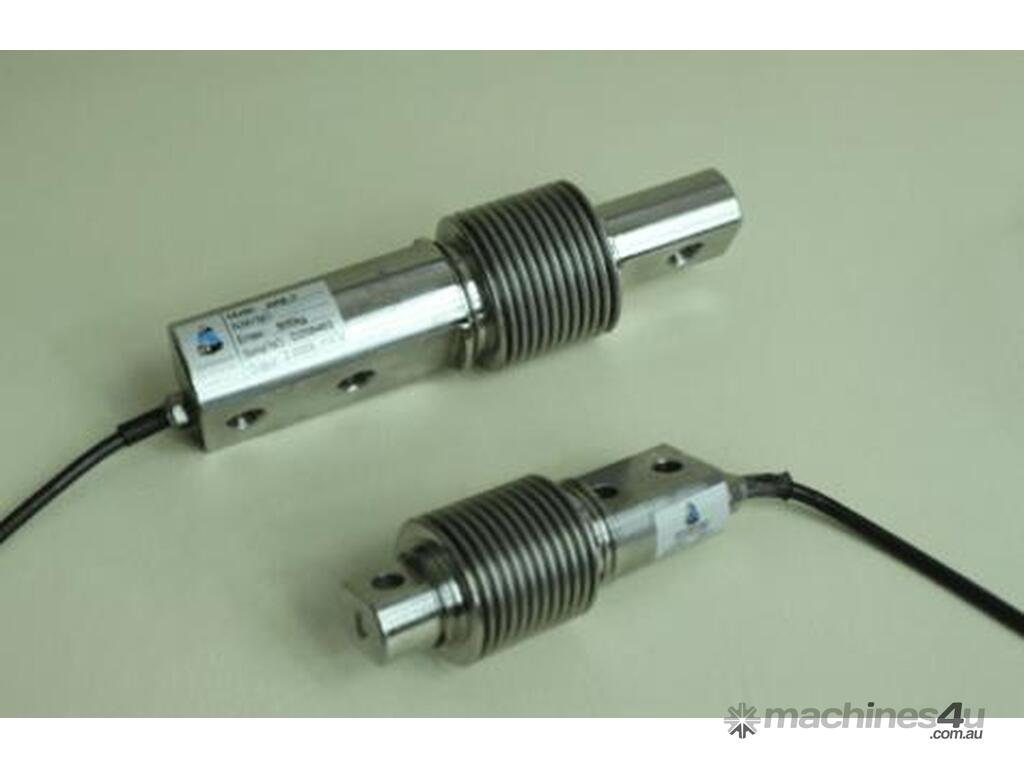

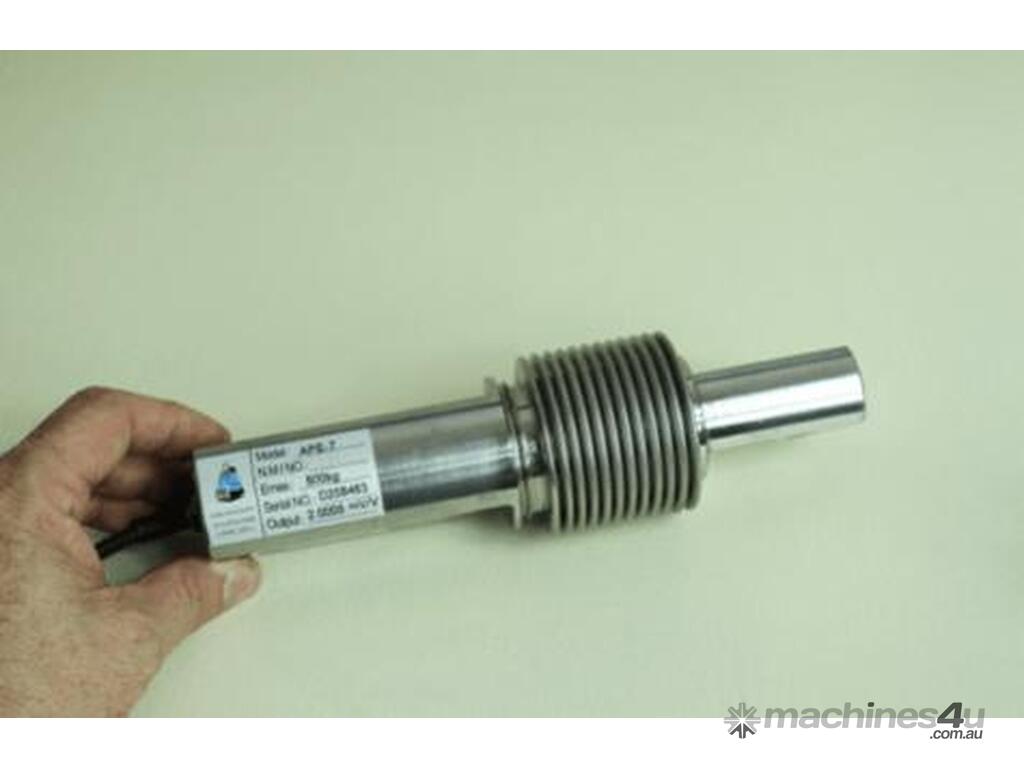

Load Cell: Bending Beam:Up to 1000KG + IP68 -APE 7

The APE-7 Stainless Steel IP68 Bending Beam load cell has been designed for long-term performance in harsh environments. Part of a wide range of high quality IP68 load cell environment rating, the AWE APE-7 Bending Beam is ruggedly built from the finest stainless steel used for load cell construction.

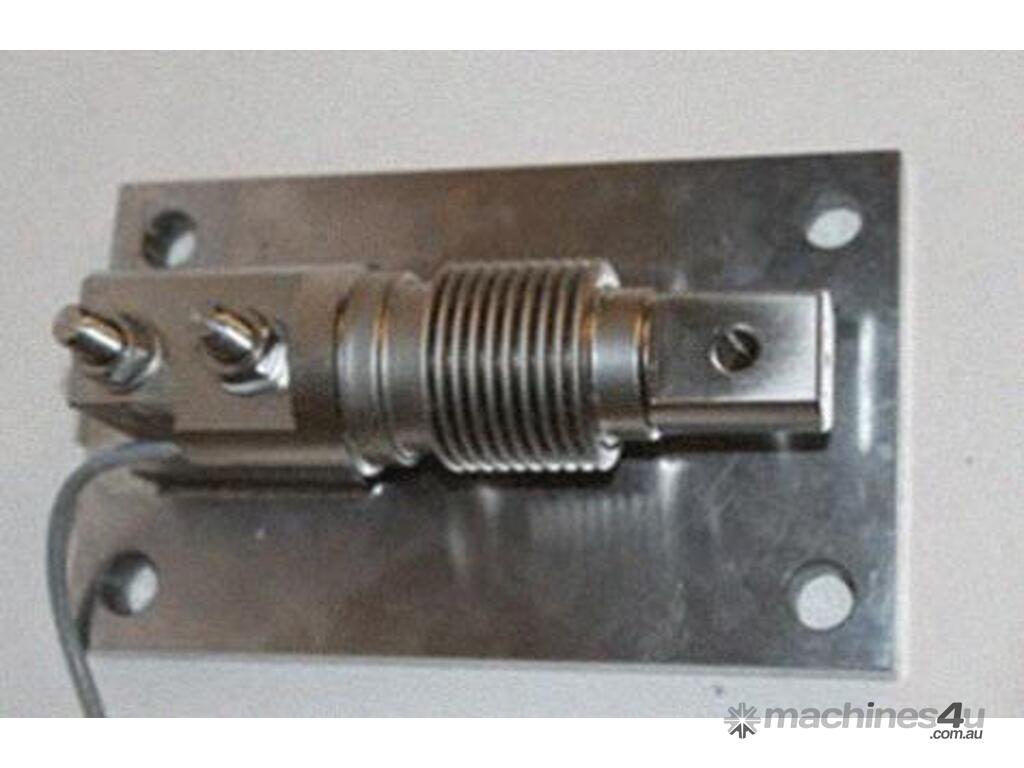

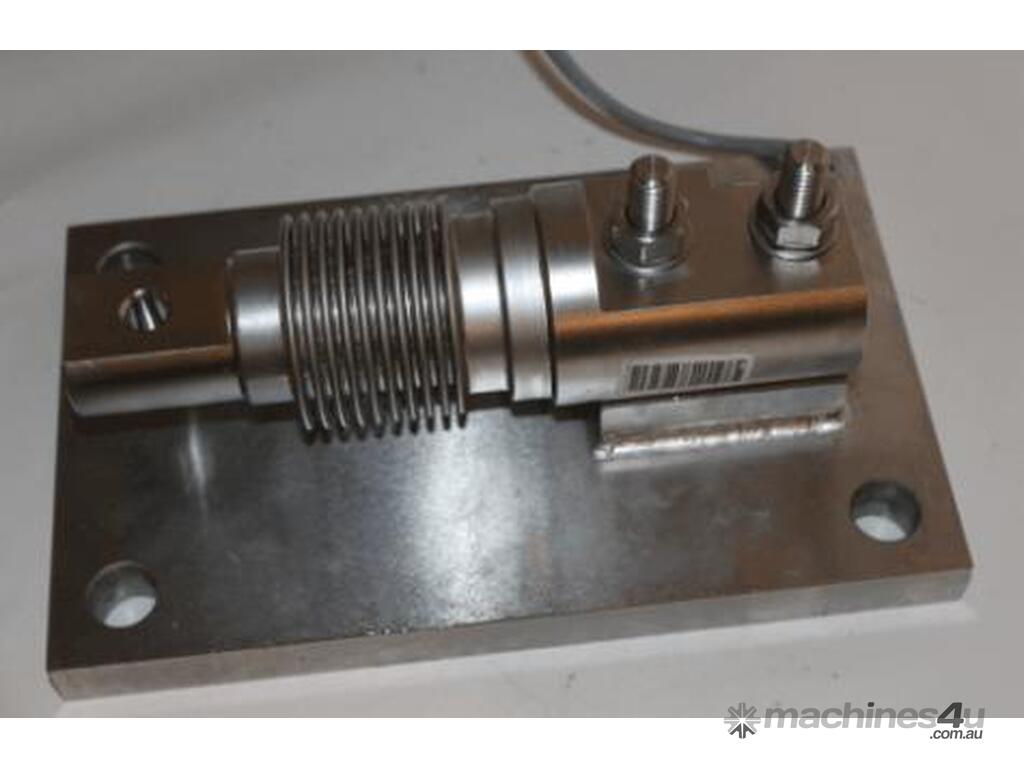

The APE-7 can be used with strong fastening bolts and ruggedly built attachments for secured mounts with
its generously sized attachments and finely-bored through holes.

Compliant with Australian & International Standards of measurement, the APE-7 dimensions and
mountings enable the easy replacement of other brands in most cases direct hole centres and
outputs. Its laser-welded stainless steel construction provides an armor and shield to internal
parts ensuring a hermetically sealed unit. It carries an IP68 environment protection rating with its
welded seal construct.

The APE-7 load cell is adapted for long-term use and extremely durable to outlast any other
competitor in the market today. Its versatility is in demand for weighing now and in the
foreseeable future in Australia and across the globe.

A wide selection of accessories is available for our range of load cells. Accessories render your
application more cost effective while meeting your requirements for strength and durability.

Any Indoor or Outdoor application requiring a Strong Fully Constrained all Stainless Steel, Galvanised or Nickel Plated Load Cell Mounts.

Use in Chemical, Food, Beverage & Pharmaceutical Industries where industrial Construction is essential Hopper, Tank and Silo Weighing in Hostile Environments. Use in applications requiring the Ultimate in Accuracy from a Constrained Mount.

All Floor Scales, especially Washdown and Marine Environments
Batch weighing in Hostile Environments
Hopper Filling and Level Control
Food and Chemical Industry
Bagging and Filling Machines
Inventory Control, by weight
Shipping Scales
Non-Trade Scale Conversions


Capacity 10Kg-1000Kg
Safe Service Overload 100% Capacity
Safe Overload 150% Capacity
Ultimate Load 300% Capacity
Safe Side Load 150% Capacity
Full Load Output 2m V/V ±0.10%
Combined Error
