Good seal structure load cell with high security and stability. Customized sizes available. Suitable for traveling crane and lifting structure.
These load sensing load pins or bolts are unique strain gauge transducers. These load pins are often used where pins would be carrying the load. Typical applications include replacement for shackle pins, clevis pins and pulley shafts available in any size customized to your specific requirements.
ALP Load Pin Load Cell Key Features:
Good seal structure Load cell with High security and stability.
Customized sizes available.
Suitable for traveling crane and lifting structure

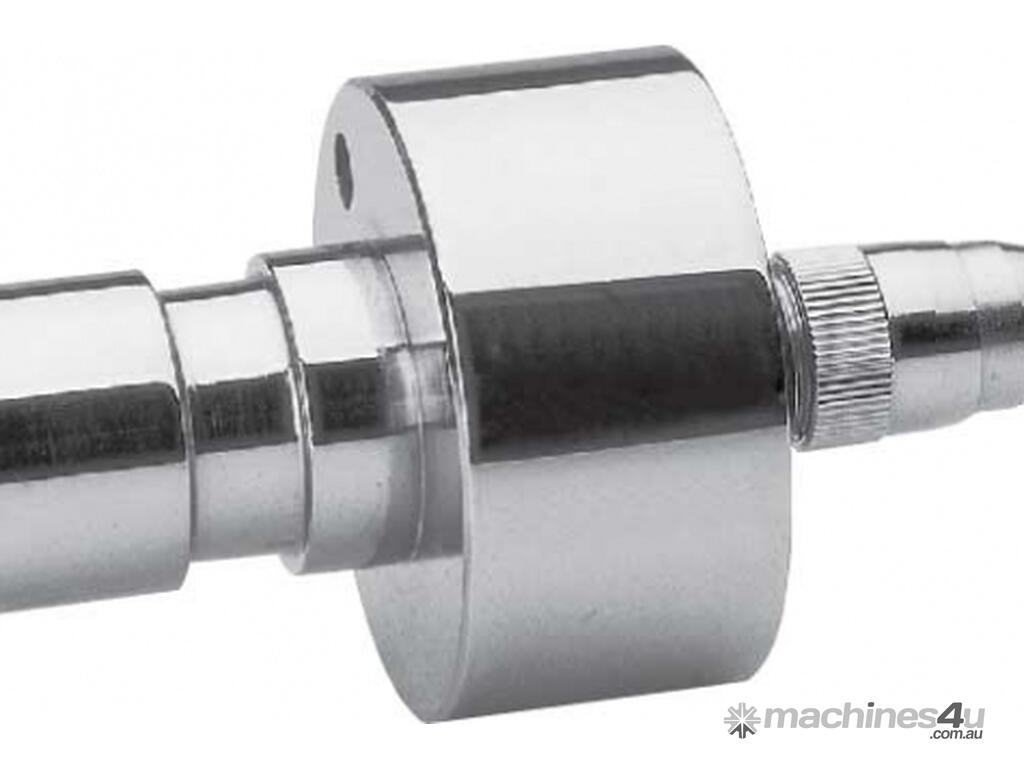

ALP Loadpin Load Cell
Rated Output (mV/m) 1.5 ± 0.01
Nonlinearity ± 0.05%FS
Hysteresis ± 0.05%FS
Reapeatably ± 0.03%FS
Creep(30minutes) ± 0.05%FS
Zero Balance ± 1.00%FS
Temperature Effect on Zero 0.10
Temperature Effect on Output 0.10
Input Resistance (?) 385 ± 10
Output Resistance (?) 350 ± 3
Insulation Resistance ? 5000M ?
Exciting Voltage 10V(DC/AC)
Compensated Temperature Range -10°C to +50°C
Operating Temperature Range -20°C to +60°C
Safe Overload 120%FS
Cable ?5x3m
Cable Colour Code Input: Red (+) Black (-)Output:
Green (+) White (-)
