Load Cell: Up to 50,000 kg - Titan

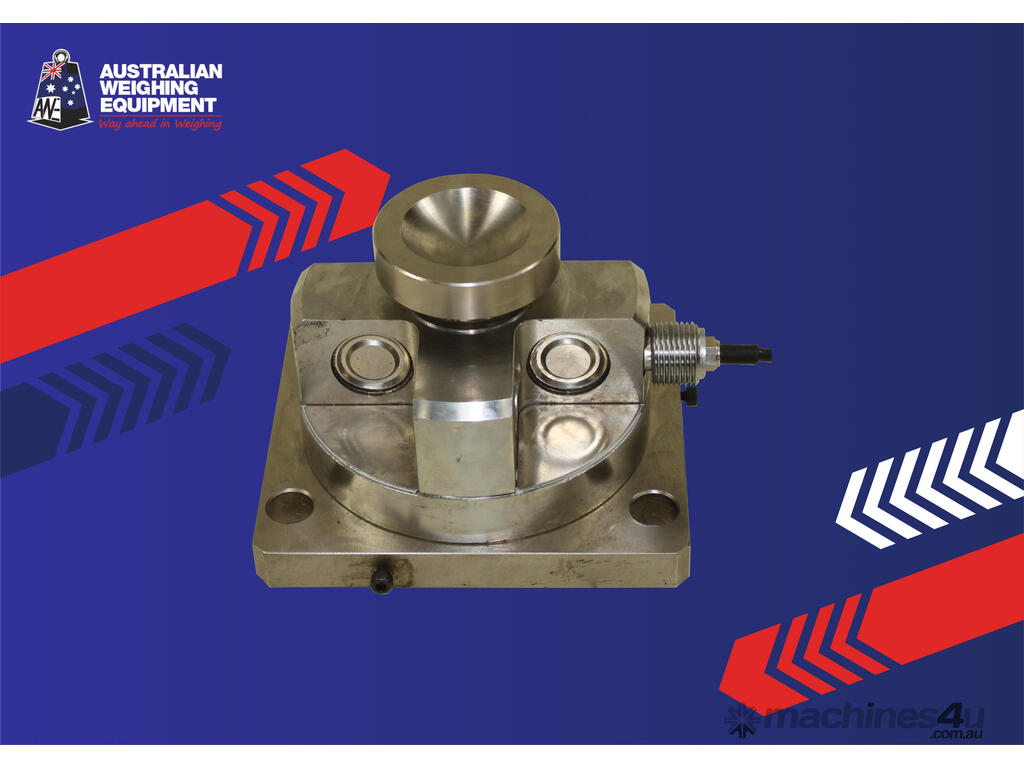

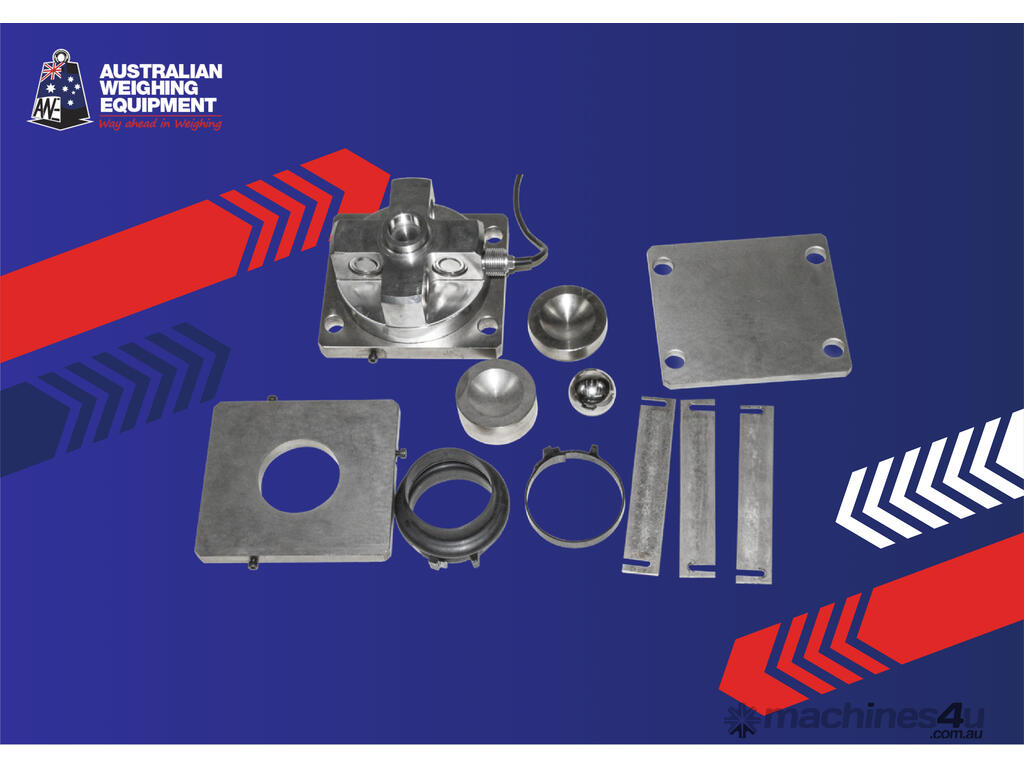

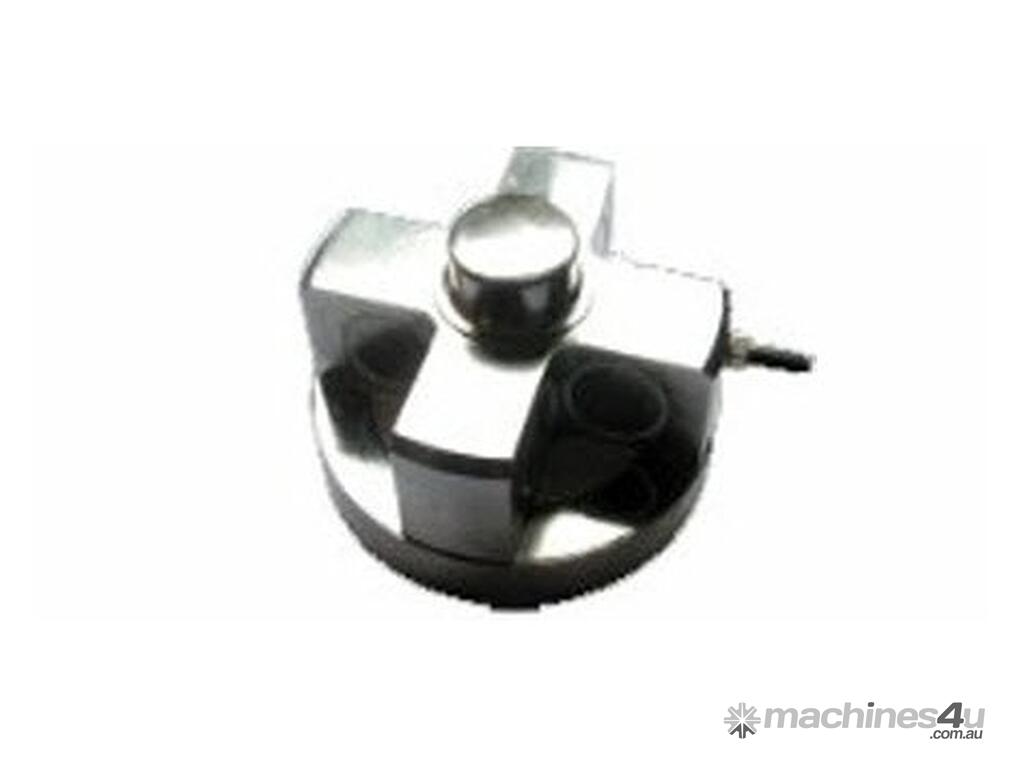

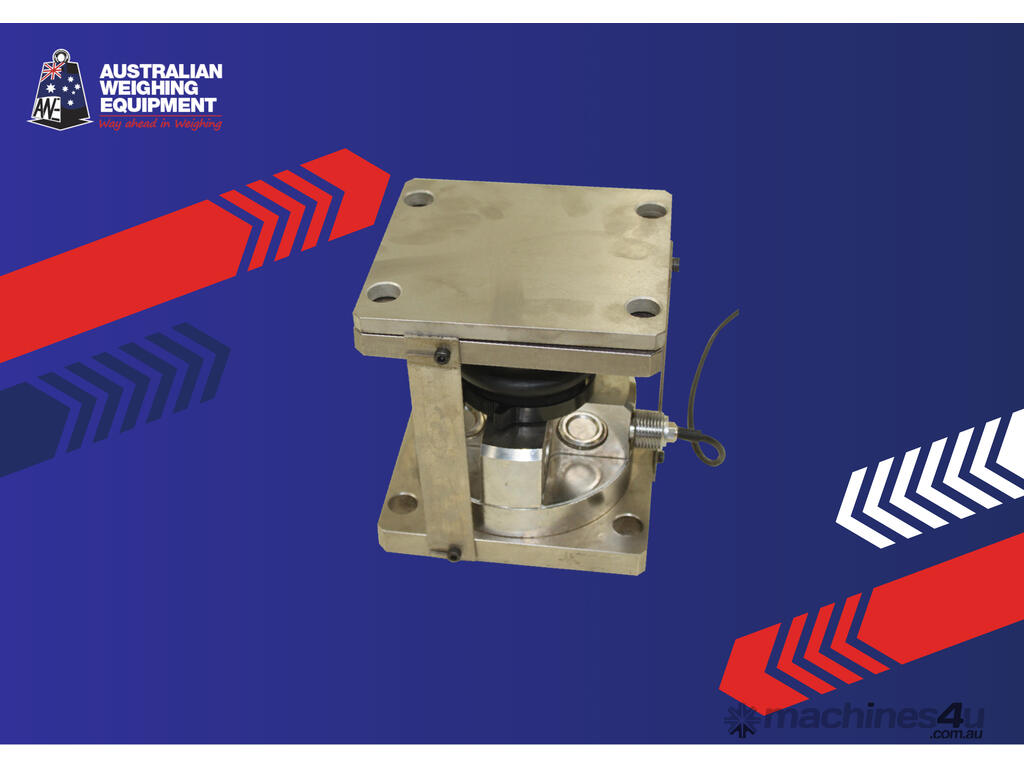

Titan Load Cell. For Heavy Duty Applications.

Titan Load Cell Gives The Strongest 4 Directional Side Force Resistance & Overload Protection Capacity.

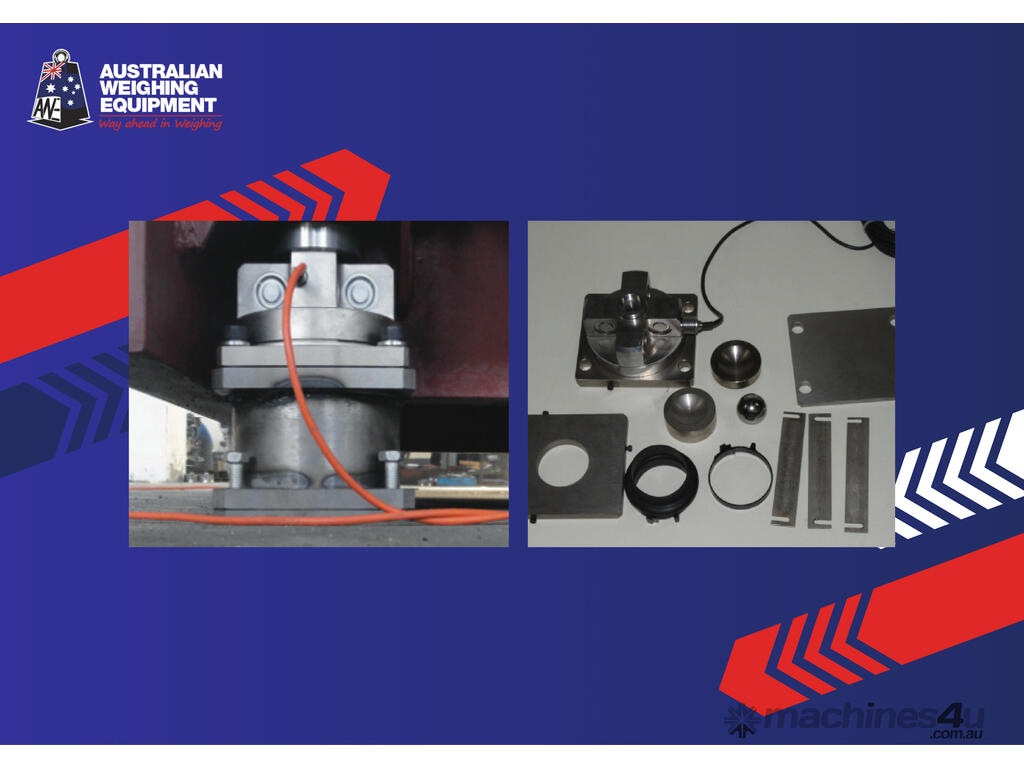

Ideal For Hoppers, Silos, & Weighbridges.

Titan Load Cell Technical Specifications
Rated Capacity 30,000kg, 50,000kg (Other standard sizes available)
Certification NMI Trade Approved - NMI S563
Output 2mV/V
Nonlinearity < ± 0.02% of Full Scale
Hysteresis < ± 0.02% of Full Scale
Repeatability < ± 0.01% of Full Scale
Creep (1 Hour) < ± 0.02% of Full Scale
Zero Balance < 1.0% of Full Scale
Temperature Effect on Zero < 20 PPM/ºC of Applied Load
Temperature Effect on Output < 20 PPM/ºC of Applied Load
Input Resistance (?) 760 ± 10 Ohms
Output Resistance (?) 700 ± 5 Ohms
Insulation Resistance ? 5000 MOhms
Compensated Temperature Range -10ºC to +50ºC
Operating Temperature Range -20ºC to +60ºC
Safe Overload 120% of Capacity
Recommended Excitation 10 VDC/AC
Maximum Excitation 20 VDC/AC
Cable Ø5.4mm x 15m
Cable Colour Codes Input/Excitation: Red (+) Black (-)
Output/Signal: Green (+) White (-)
Screen/Shield: Yellow
