Load cell controller: Rail Mount - AWE100R

World’s most user-friendly & versatile load cell controller: Rail Mounted

The AWE100R rail mounted is the ideal controller for high-speed, high-accuracy weighing, batching and level measurement operations.

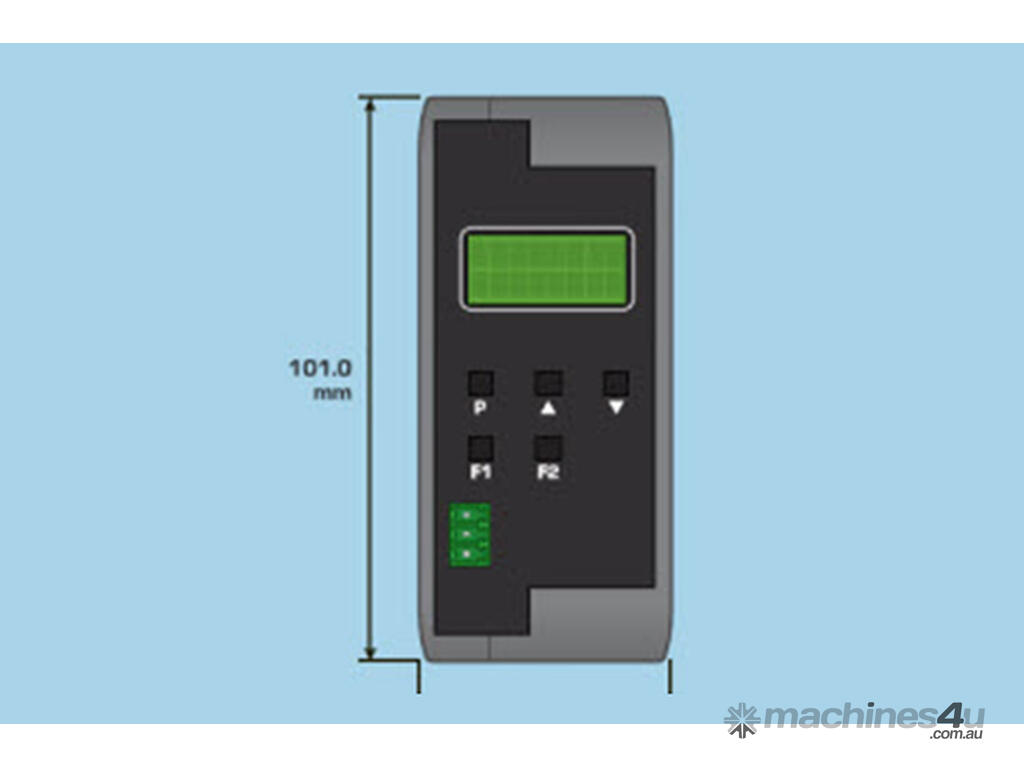

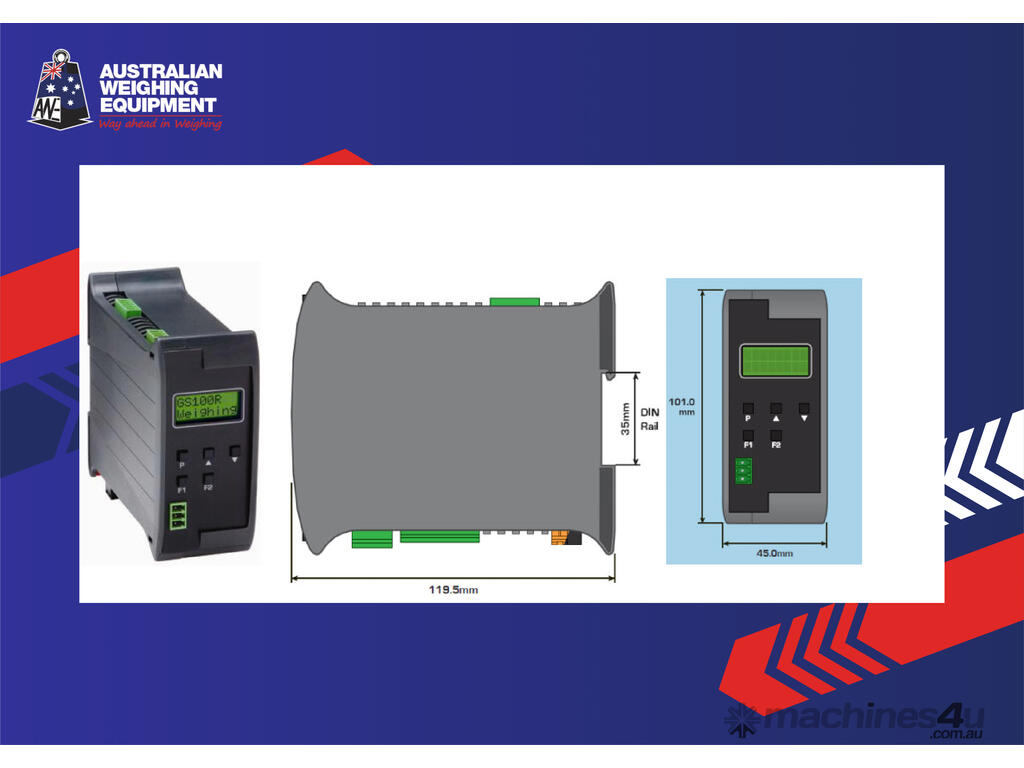

The AWE100R is compact, allowing instruments to be close coupled on a standard 35mm DIN rail.

The offset and span trim calibration functions make this controller ideally suited for tank and silo applications. Relay and analog output options make it valuable for stand-alone control or as an interface for PLC applications. Intuitive scrolling text menus guide you step by step through the effortless setup and calibration process, making the GS100R the world’s most user-friendly and versatile load-cell controller.

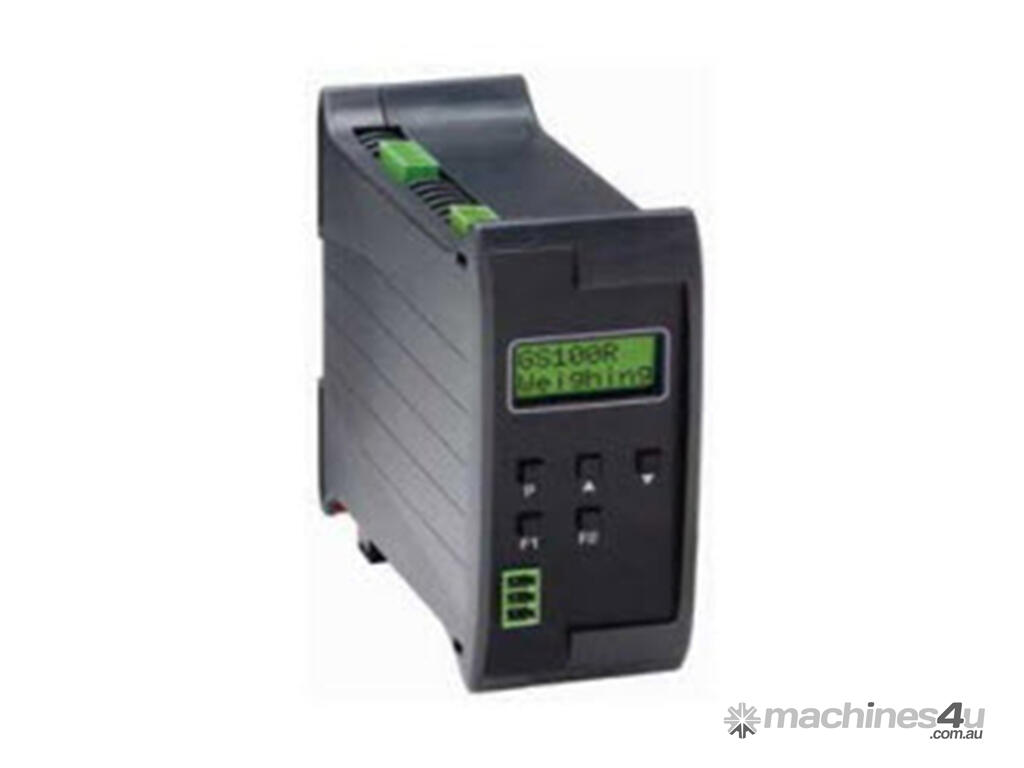

AWE100R Load Cell Controller
Input 4/6-wire strain gauge 1-5mV/V
Power supply HV – 85-265V AC/95-370V DC OR LV – 15-48V AC/10-72V DC
Relay outputs 2 programmable form A relays with hysteresis and delay on make
Analog output (Optional) Isolated 16-bit 4-20mA/0-10V output (fully scaleable). Window
programmable over any range within the full-scale range of the controller.
Serial port (Optional) Isolated option 2 or option 4 serial port » Modes: ASCII, Modbus RTU slave,
Ranger A output » Data ranges: 300-38400. Odd, even or no parity
Excitation 5V DC excitation supplied (powers up to 8 x 350? load-cells).
Sampling rate Up to 50Hz
Resolution 18-bit
Accuracy 0.005% of reading
Temperature drift Typically 3ppm/°C
Calibration Pre-calibrated for 0-10,000 counts (2mV/V sensor gain at full scale). Can be
recalibrated using the auto (key-in) or mV/V method. Adjustable zero offset and span.
Easy setup Intuitive text prompts facilitate easy setup
Security Calibration and setpoint functions have independent security code access. Direct
access to setpoint activation values is independently configurable.
