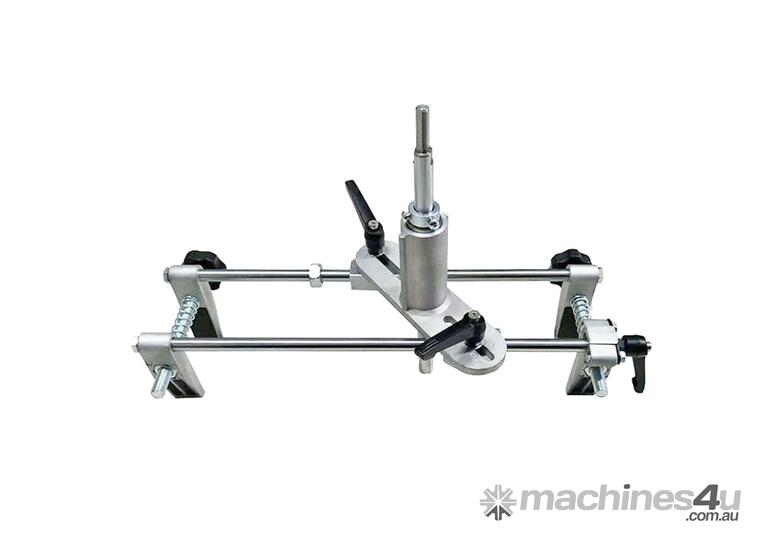

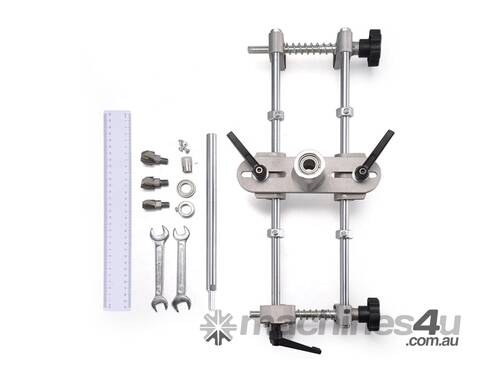

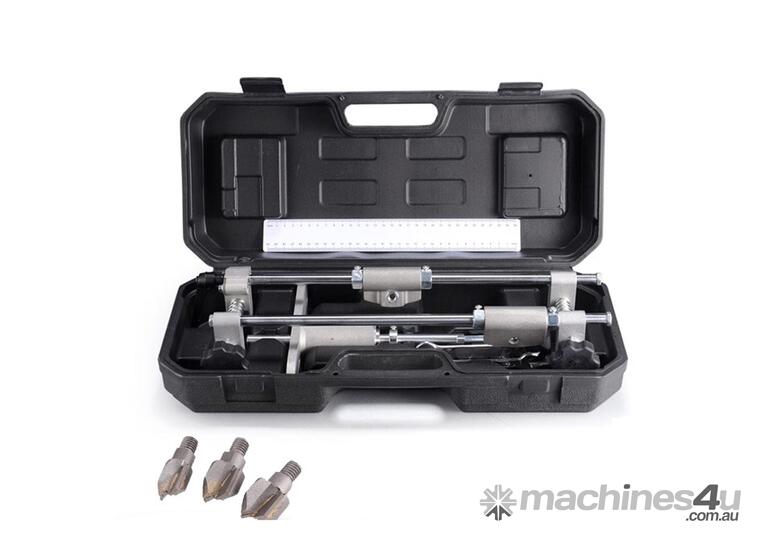

Lock Mortise Jig Kit OT-LMJ by Oltre

This Mortise Jig Kit from Oltre is perfect for DIY enthusiasts or professionals looking to save time. Compatible with both electric drills and routers, it is quick to install and simple to operate. Precision cuts up to 100mm deep are made easy, ensuring a perfect fit for door locks and faceplates.


Features


Fast and accurate for doors from 25mm-100mm thick


Easy Set Up and Alignment


Clamp the jig to your door and align it to ensure the mortise cut is in the centre of the door


Clamp can also be used to cut out the lock's faceplate - the jig is supplied with a protective cap to allow this to be done without marking the door





Robust jig increases accuracy and speed of mortise cutting


Horizontal Vertical Depth Stops


Easily lock the length and depth of cut to ensure there is no damage to the door





Suitable For Most Door Materials


Use on wood / timber , plank and solid wood doors, hotel doors, security doors, fire doors and modifying door locks etc.





Bearing base slide adjustment


High Speed Steel Carbide Tipped Cutters


Supplied with 18mm, 22mm and 24mm cutters to accomodate the most widely used lock widths


Other sizes available as Optional Accessories





Compatible with Most Power Drills


Use with a 13mm chuck at a speed of between 2,000 and 3,000RPM





Clamping jaws are equipped with rubber faces to protect the doors


Constructed from Steel and Aluminium


Specification


Bit Thread: M10 x 1.5mm per thread
