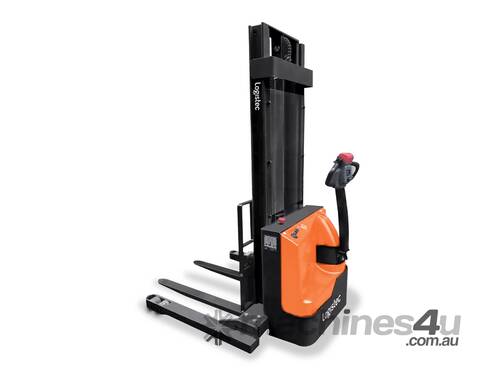

Logistec Electric Straddle Stacker | 1500kg | 3600mm Lift Height

The Logistec Straddle Stacker is made to high standards with a focus on reliability. Parts and service backup is provided by Sitecraft. It features innovations such as an efficient regenerative braking system and electric power steering. Some standard features include adjustable forged fork tines. Safety features include explosion-proof mast hydraulics and an anti-rollback system to prevent rollback on ramps or slopes.

Load Capacity: 1500kg SWL
Load Centre: 600mm
Lift Height: 3600mm
Height - Mast Lowered: 2128mm
Overall Length: 1650m
Fork Length: 1070m
Distance between Fork Arms: 200-780mm
Battery: 24V / 125Ah

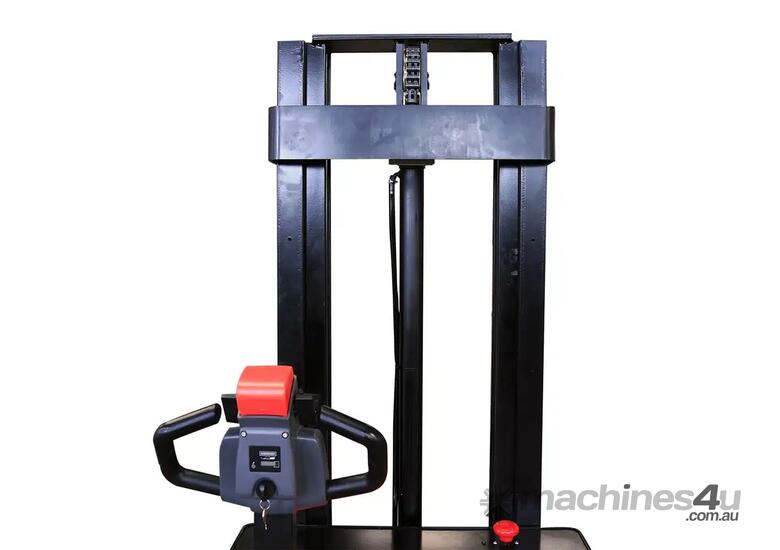

Duplex Mast Option for 3600mm Lift Height.

Specifications
Product Code: 3381370
Product Name: Logistec 1500/3600 Electric Straddle Stacker
Fork Length (mm):1070
Length (mm): 1650
Load Capacity (kg): 1500
Load Centre Distance (mm): 600
Mast Height (mm): 2128
Max Lift Height (mm): 3600
