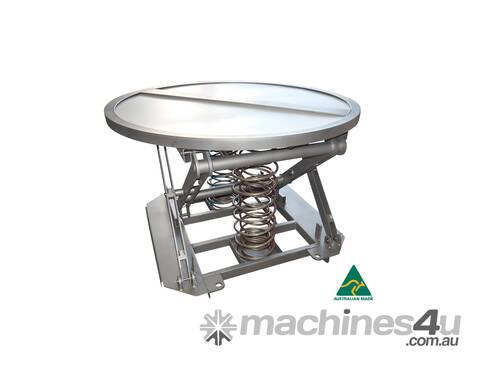

Logistec Spring Pallet Positioner | Stainless Steel | 1100 Diameter | 2000kg Load Capacity

The Stainless Steel Logistec Pallet Positioner is a spring loaded pallet elevating and lowering device designed to eliminate the bending required when loading or unloading palletised goods. It also features a rotating top so personnel can rotate the pallet, saving them from walking around the pallet. The Stainless Steel Pallet Lift Table is a simple, robust mechanism consisting of a scissor mechanism with lifting force generated by coil springs. A selection of springs are available to suit a wide range of loads up to two tonnes. Shock absorbers dampen the vertical movement of the load. Constructed from 304 grade stainless steel. These versatile material handling devices are widely used in both food and pharmaceutical manufacturing environments.

Spring Pallet Positioner Features

304 Grade Stainless Steel Construction
Non-stainless shock absorber
Mild Steel Springs
Suit Pallets From 190kg to 2000kg
Compressed Height: 230mm
Raised Height: 700mm
Table Diameter: 1100mm
Unit Weight: 158kg

Specifications
Capacity (kg): 2000
Diameter (mm): 1100
Max Lift Height (mm): 700
