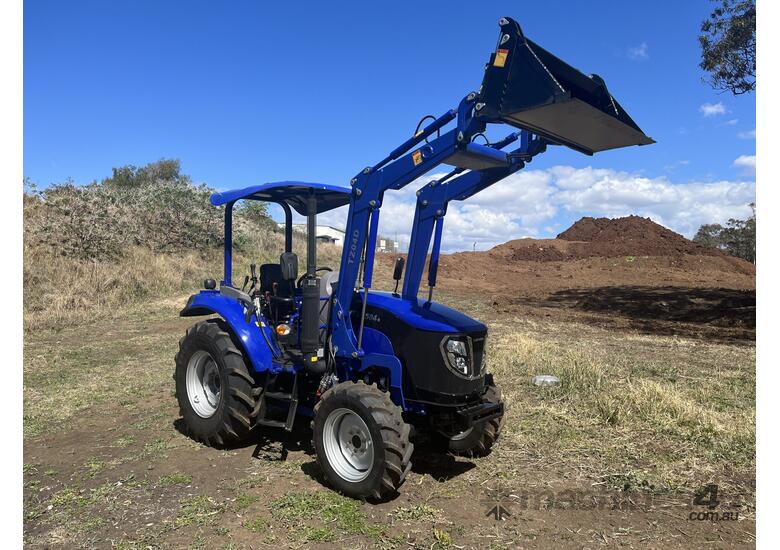

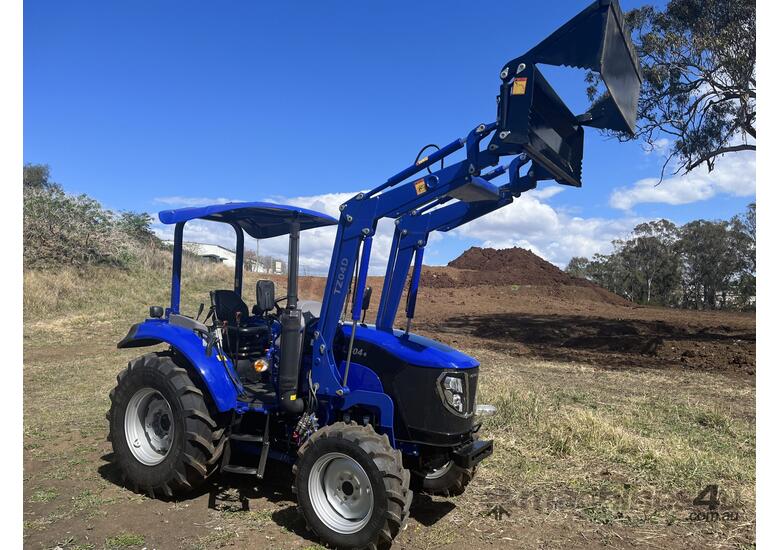

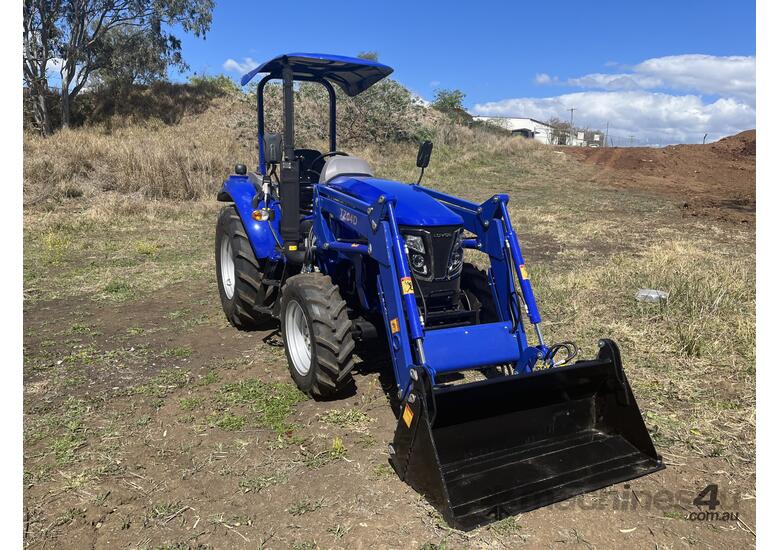

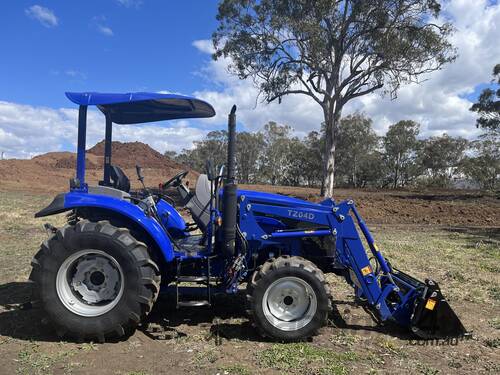

Lovol TB504 ROPS Tractor
Model: TB504 (Rops)
Types: 4×4
Comes with:
Front-end loader
Versatile pallet forks
4 in 1 bucket featuring a convenient Euro mount quick-release system
Robust 4-cylinder 50hp Diesel engine paired with an 8+8-speed gearbox boasting SYNCRO Shuttle Shift technology
Max. Traction: 14 kN
PTO Power: 31.2 kW
Overall Dimensions: Length (including rear suspension) 4136 mm, Width 1670 mm, Heigh 2568 mm
Wheel Base:1990 mm
Track: Front wheels 1250 mm, Rear wheel 1200-1500 mm
Min. Ground Clearance: 310 mm
Tuning Radius: with side braking 3.8+0.3 m, without side braking 4.3+0.3 m
Structural mass: 2320 kg
Minimum mass in use: 2490 kg
Transmission system: Clutch – dry, double action, Gearbox: 12+12
Tyre: Front 280/70R20, Rear 380/85R24
Working Device: Suspension point – Cat.II, Max Lifting Power: 9.1 kN
PTO Rotate Speed: 540/760 r/min
ENGINE
Brand / Model: Xinchai / A498BT
Number of Cylinders: 4
Cylinder diameter x stroke: 98 x 105
Nominal Power: 36.8 kW
Max. Torque / Rotate Speed: >180/1700+100 Nm/rpm
The Lovol TB504 offers a host of premium features:
Full Syncro Shuttle Shift for seamless gear transitions
Dual Hydraulic pumps for increased efficiency
Rear Remotes for enhanced versatility
Effortless Power Steering for easy maneuverability
Radial Tyres for superior traction and stability
Improved Floor Design, minimizing obstacles for a comfortable ride
Low Seat Height for operator comfort during long hours
Premium Grammar Seat ensuring a comfortable and ergonomic ride
