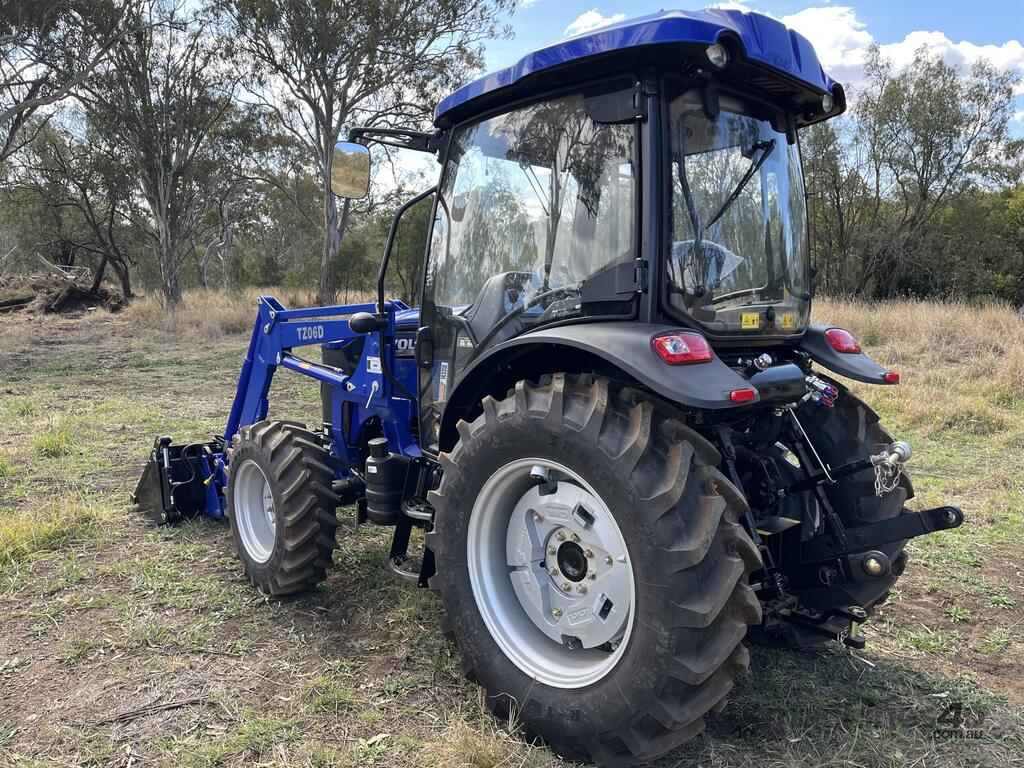

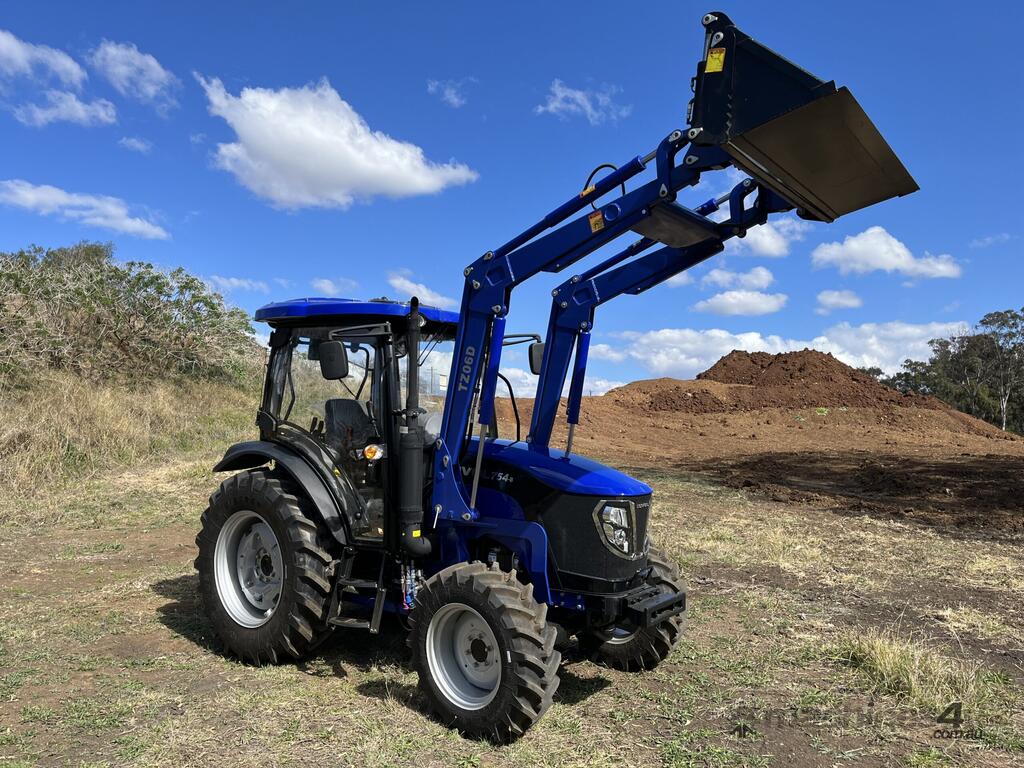

Lovol TB754 CAB Tractor
Model: TB754 CAB
Comes with:

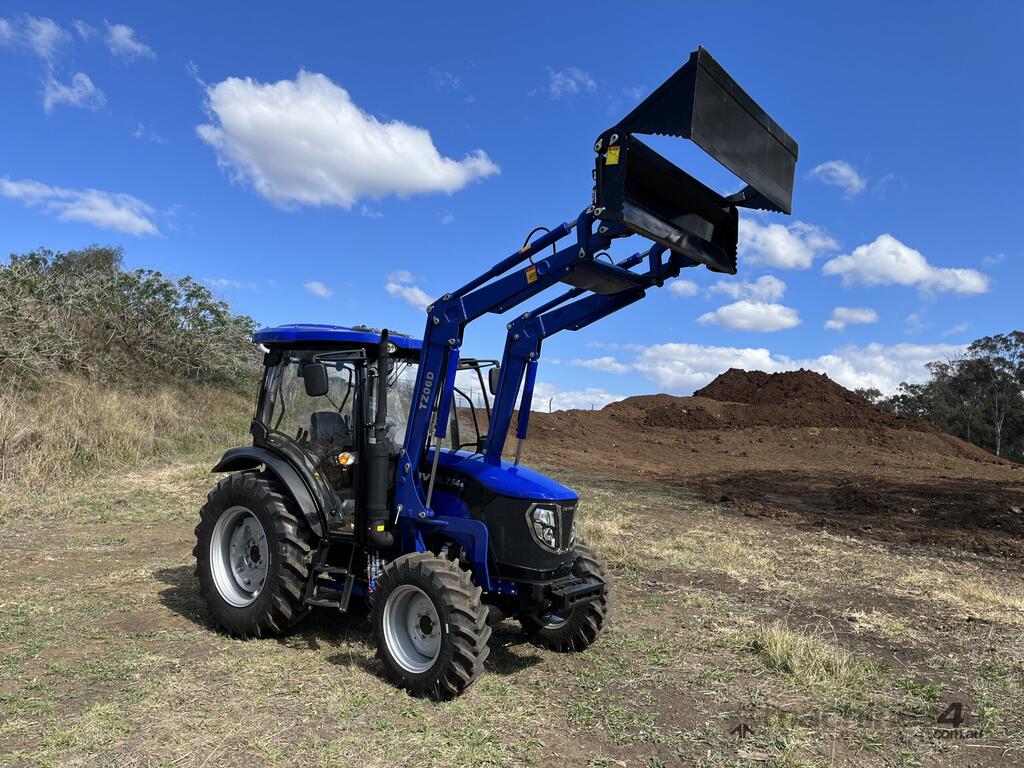

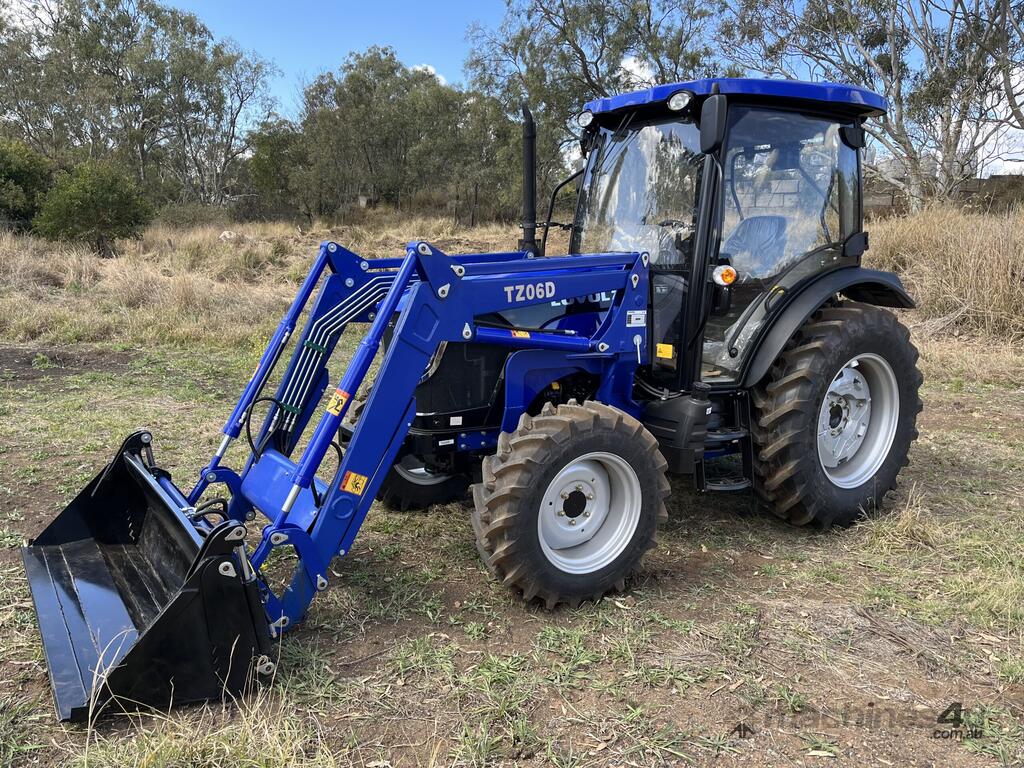

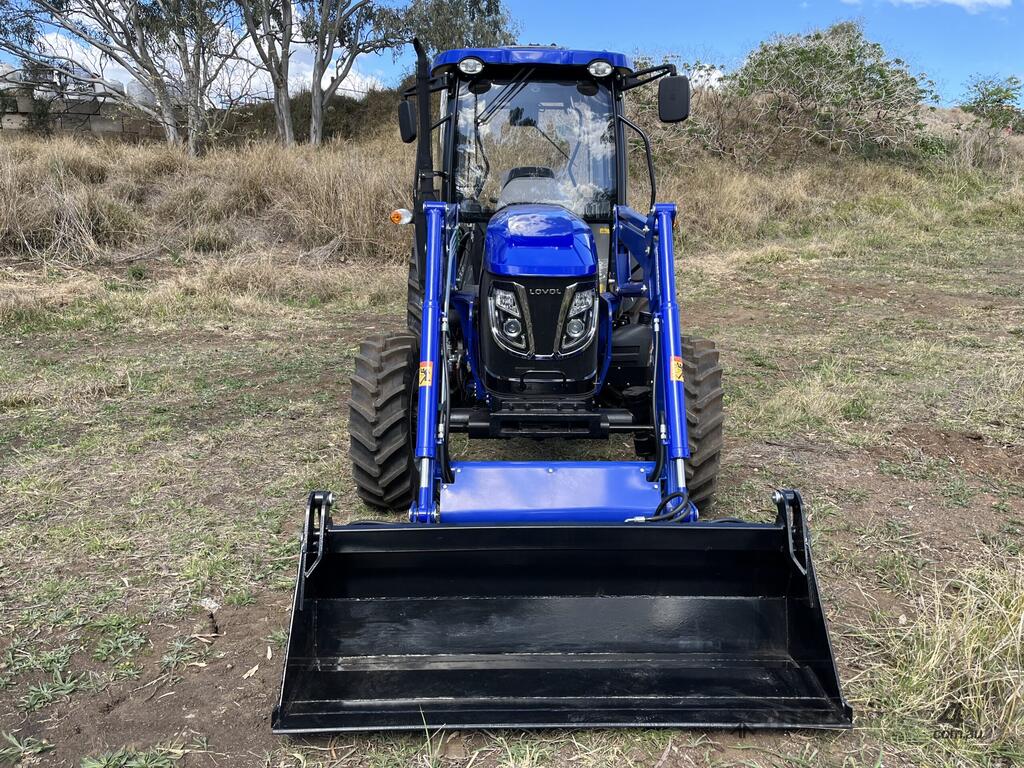

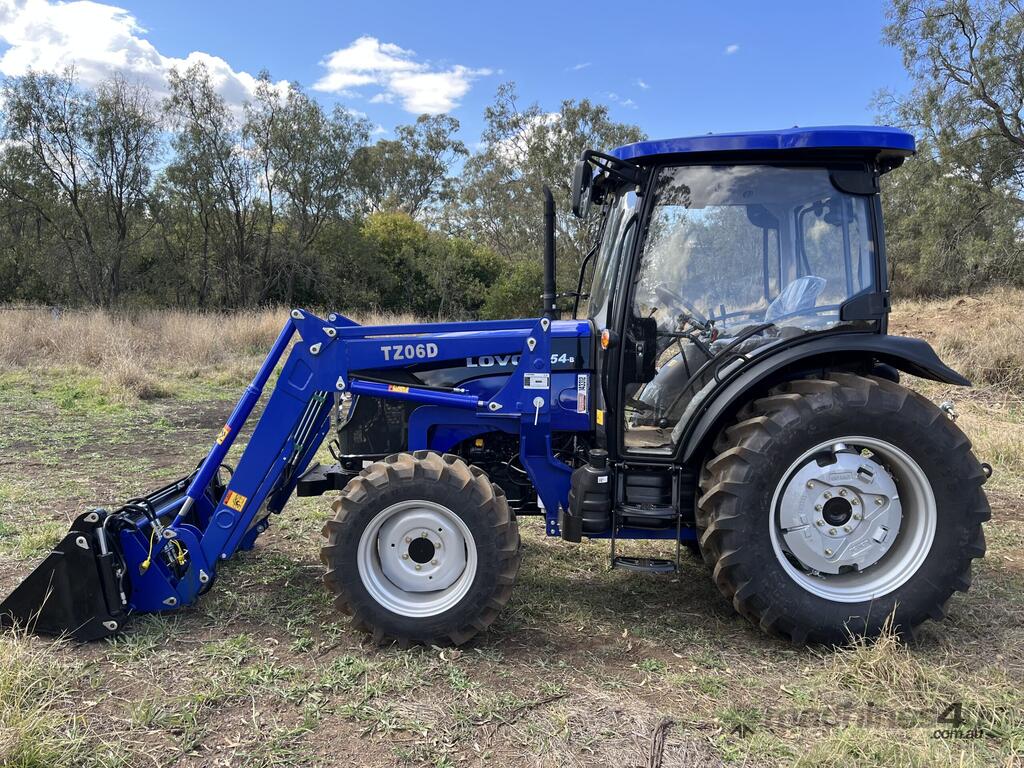

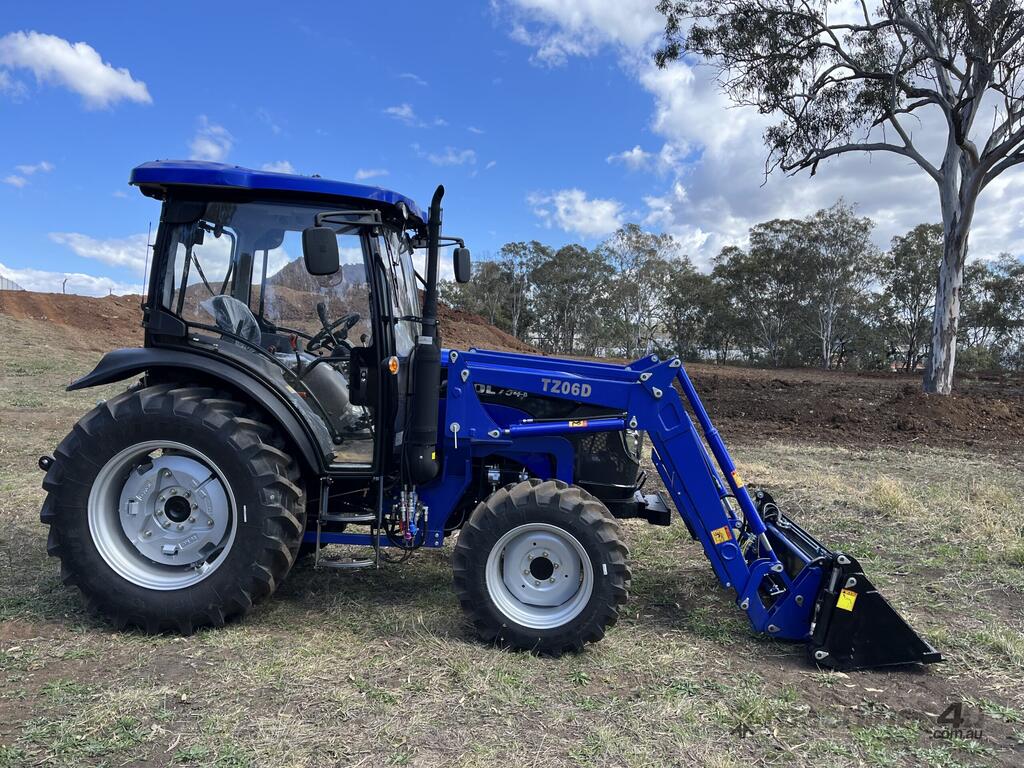

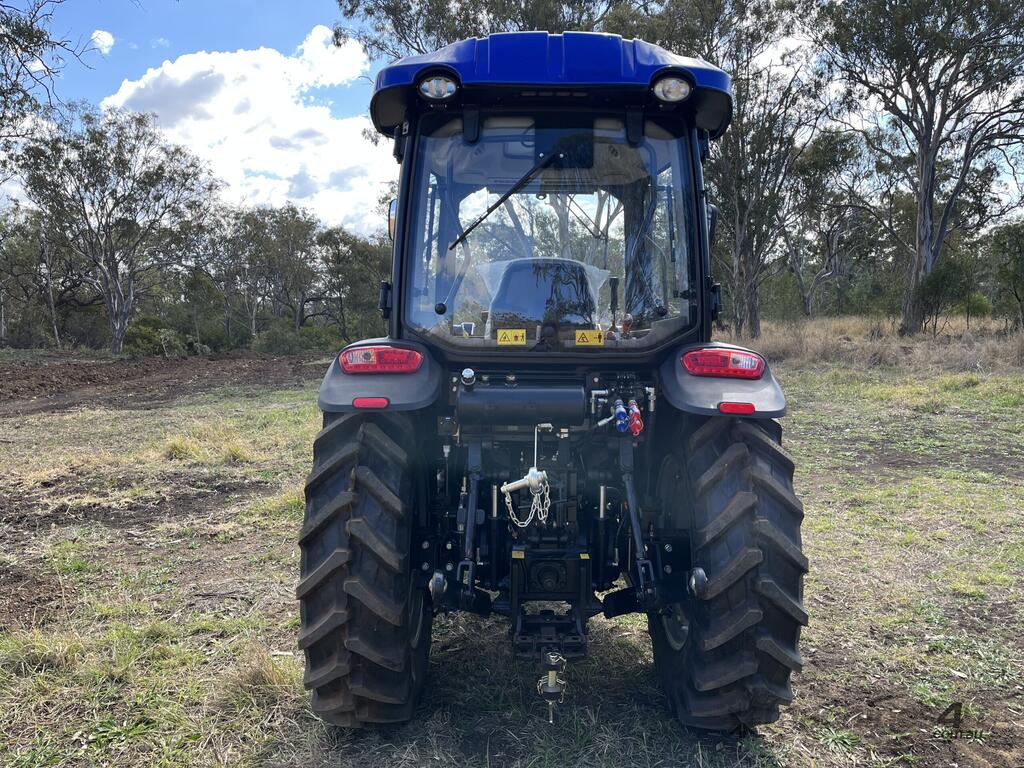

a 75HP CAB Tractor that comes equipped with a front-end loader
4 in 1 bucket featuring a convenient Euro mount quick-release system
Versatile Pallet Forks

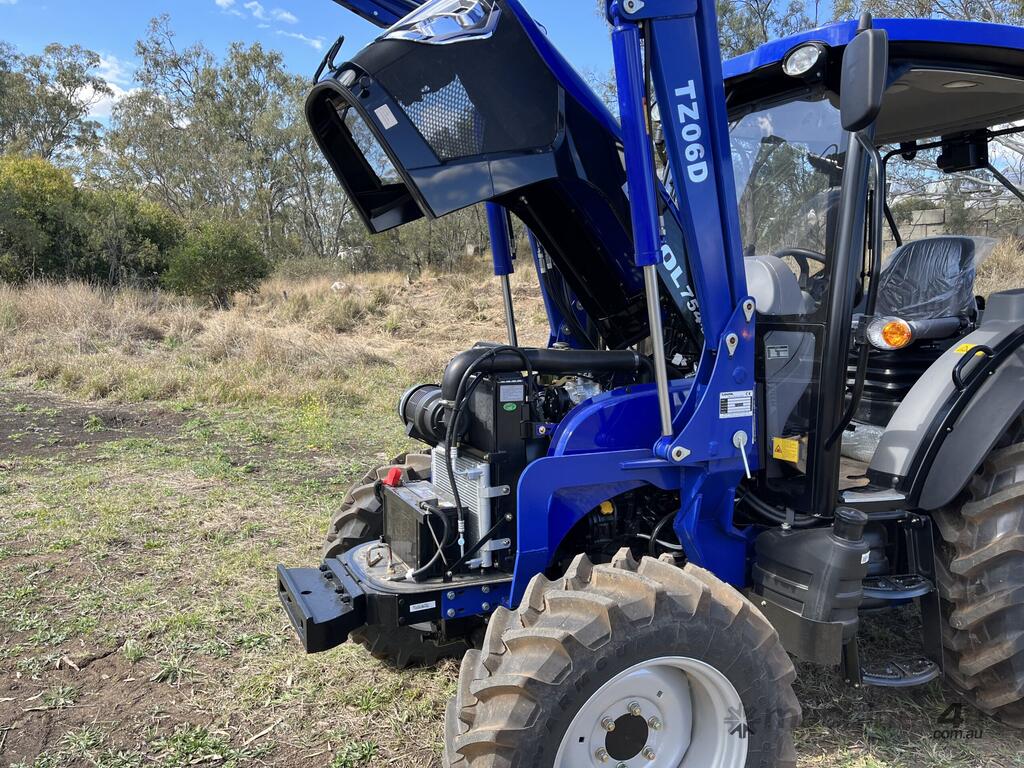

Robust 4-cylinder 75hp Diesel engine paired with an 12+12-speed gearbox boasting SYNCRO Shuttle Shift technology
PTO Power: 47.1 kW
Type: 4×4
Max. Traction: 17 kN
Overall Dimensions: Length (including rear suspension) 4256 mm, Width 1756 mm, Height 2638 mm
Track: Front wheels 2070 mm, Rear wheel 1312-1496 mm
Min. ground clearance: 325 mm
Tuning radius: with side braking 3.2+0.3 m, without side braking 4.3+0.3 m
Structural mass: 2855 kg
Minimum mass in use: 3025 kg
Transmission System: Clutch – Dry, double action, Gearbox – 12+12
Tyre: Front 300/70R20, Rear – 380/85R30

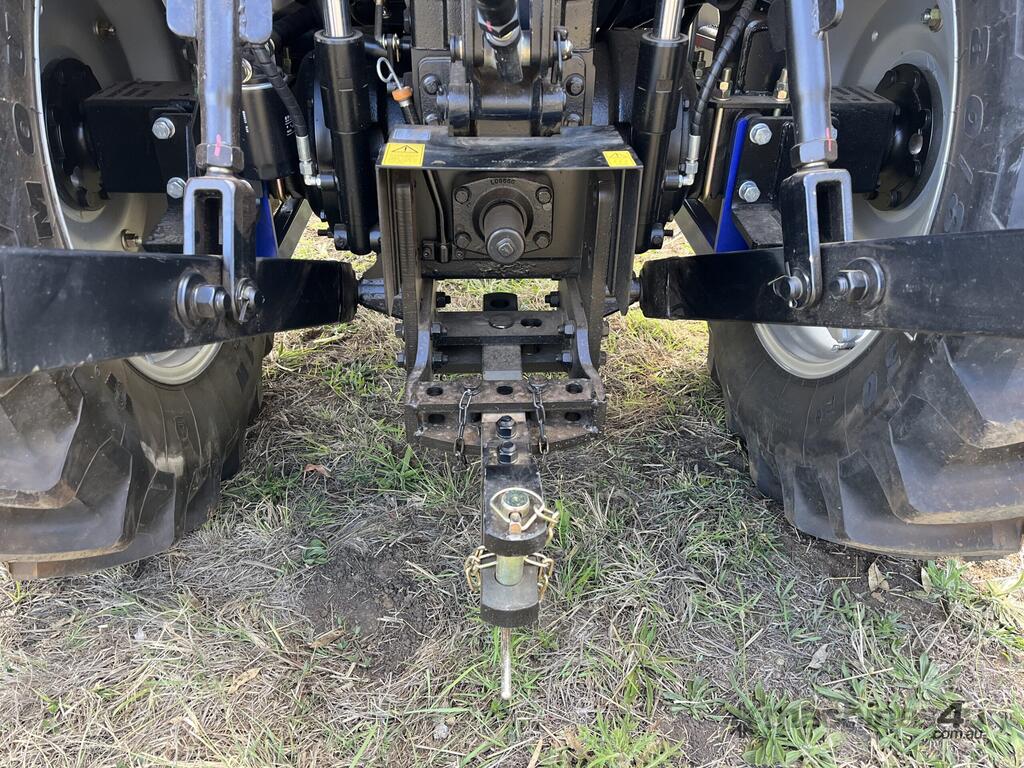

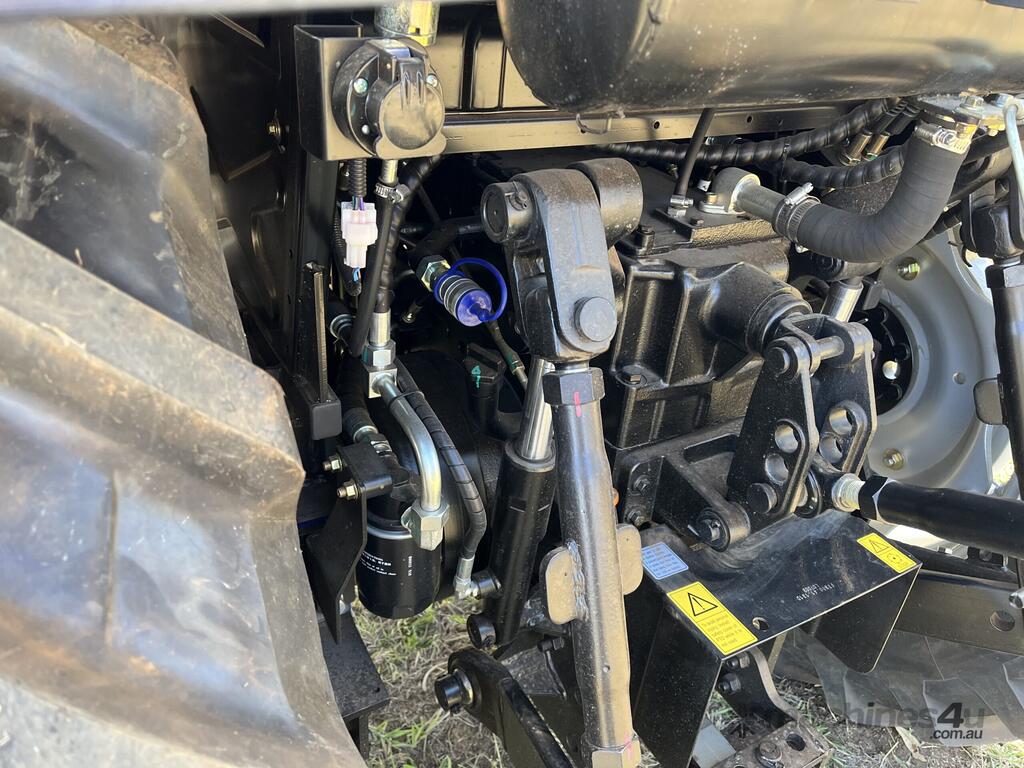

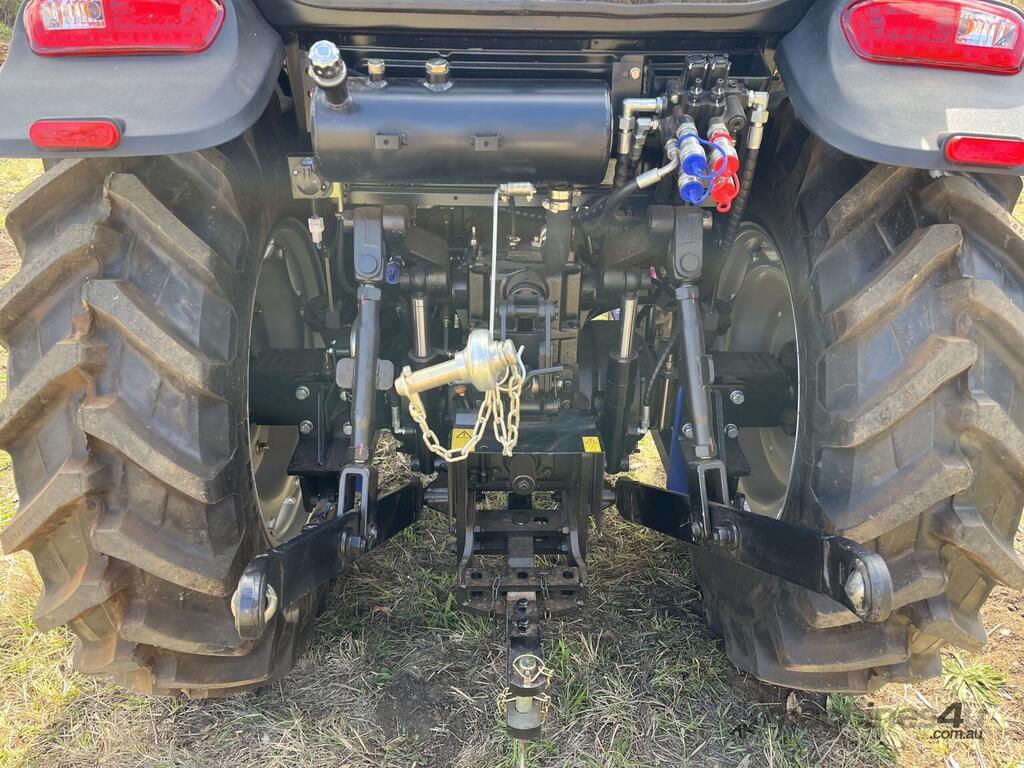

Working Device: Suspension Point – Cat.II,
Max. Lifting Power (610 mm): 11.5 kN
PTO Rotate Speed: 540/760 r/min

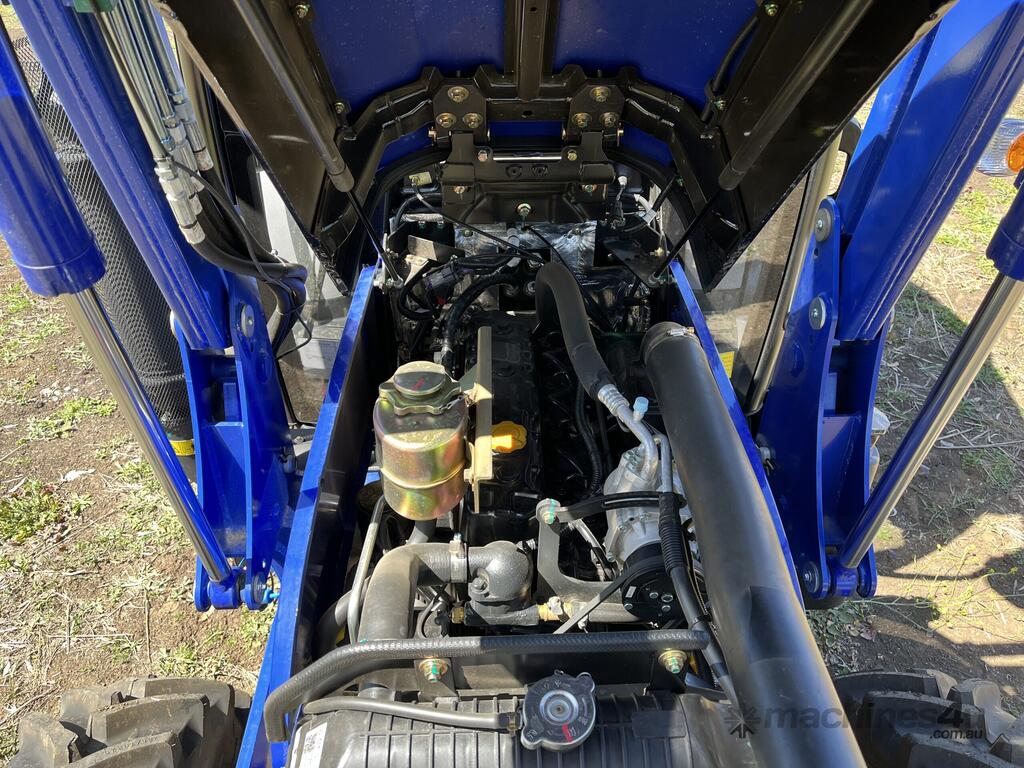

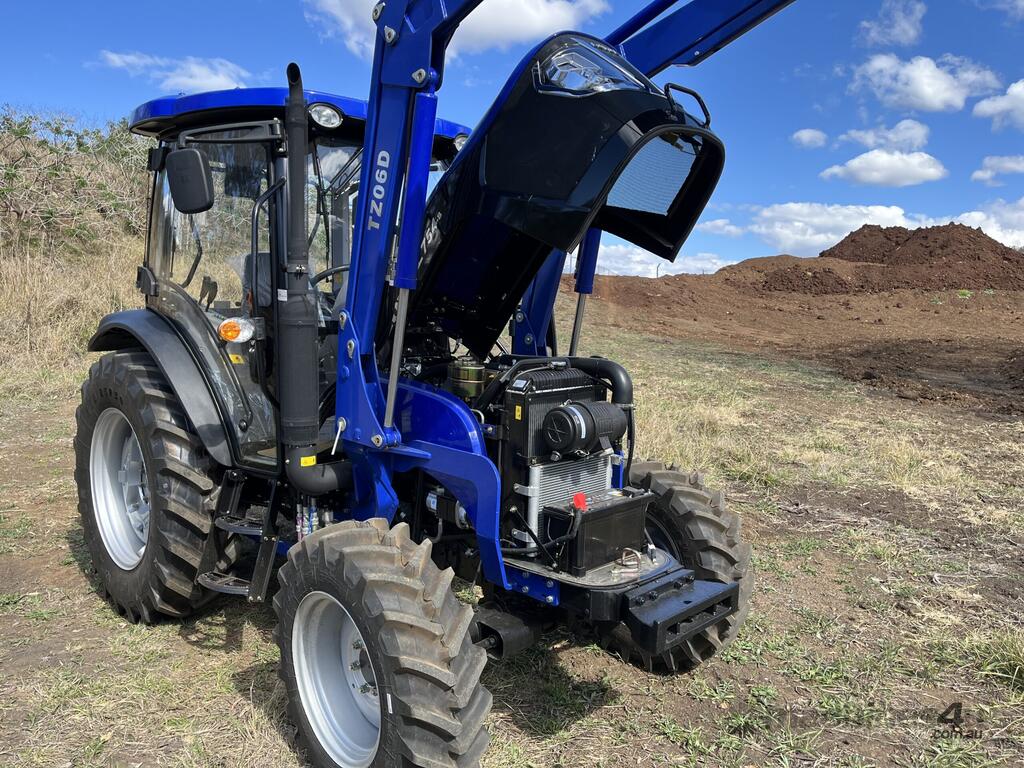

ENGINE
Brand/model: Xinchai/A4K43T75
Number of Cylinders: 4
Cylinder Diameter x Stroke: 108 x 118
Nominal Power: 55.5 kW
Max. Torque / rotate speed: >260/1700+100
The Lovol TB754 offers a host of premium features:
Full Syncro Shuttle Shift for seamless gear transitions
Dual Hydraulic pumps for increased efficiency

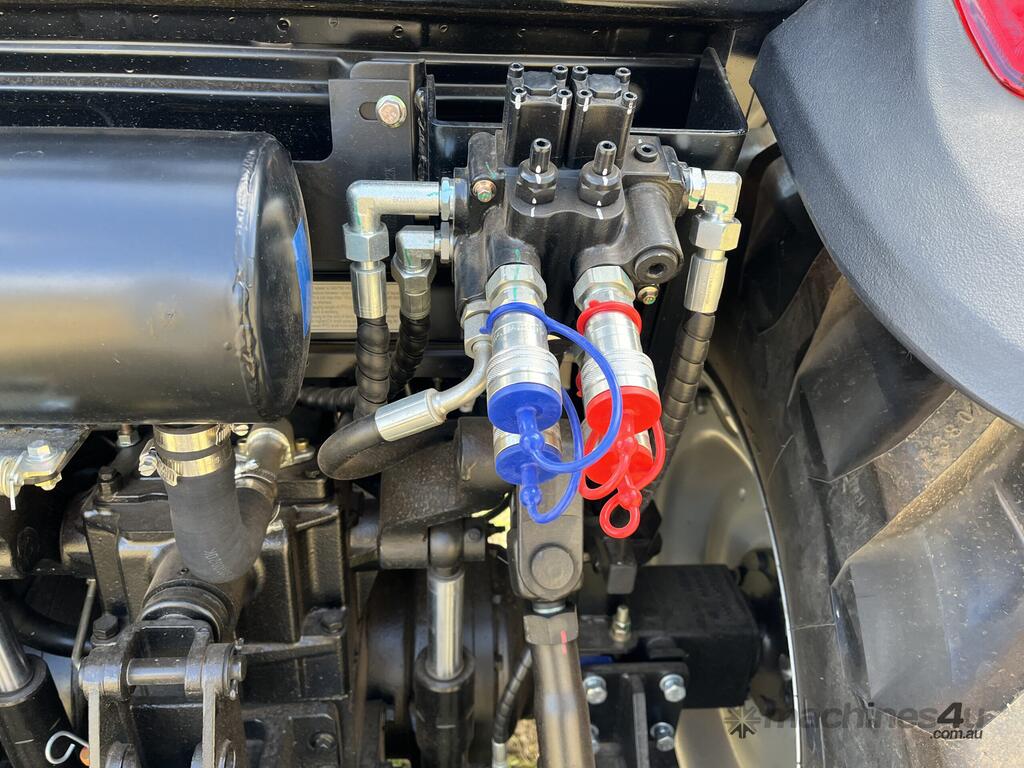

Rear Remotes for enhanced versatility
Effortless Power Steering for easy maneuverability
Radial Tyres for superior traction and stability
Improved Floor Design, minimizing obstacles for a comfortable ride

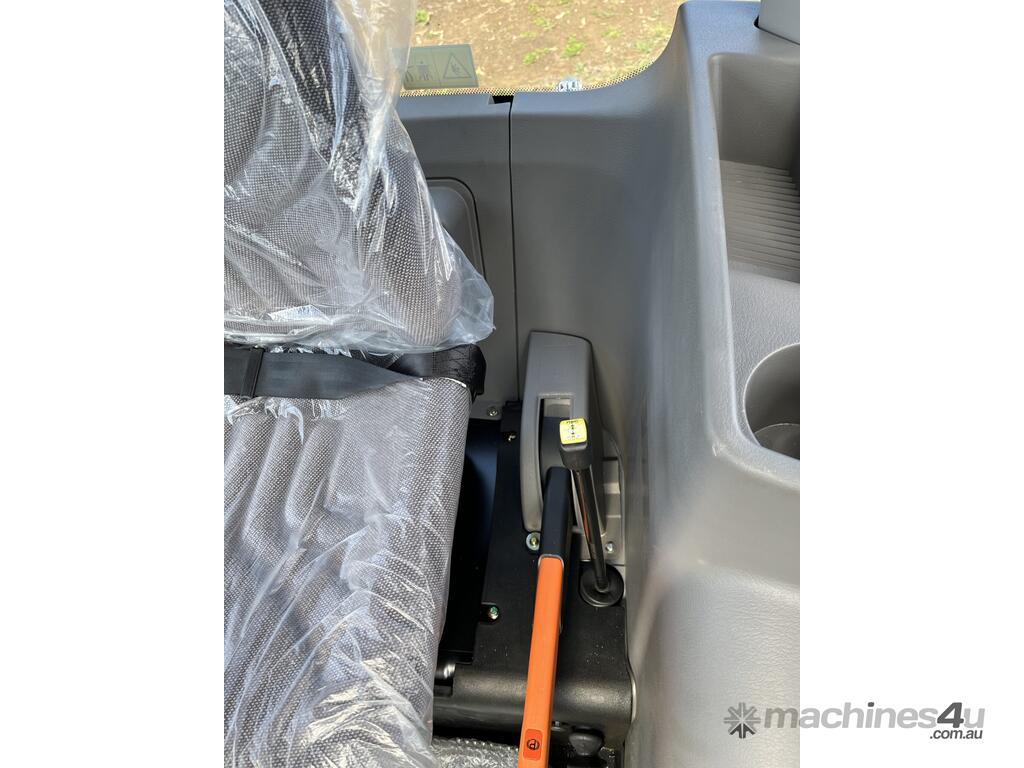

Low Seat Height for operator comfort during long hours
Premium Grammar Seat ensuring a comfortable and ergonomic ride
