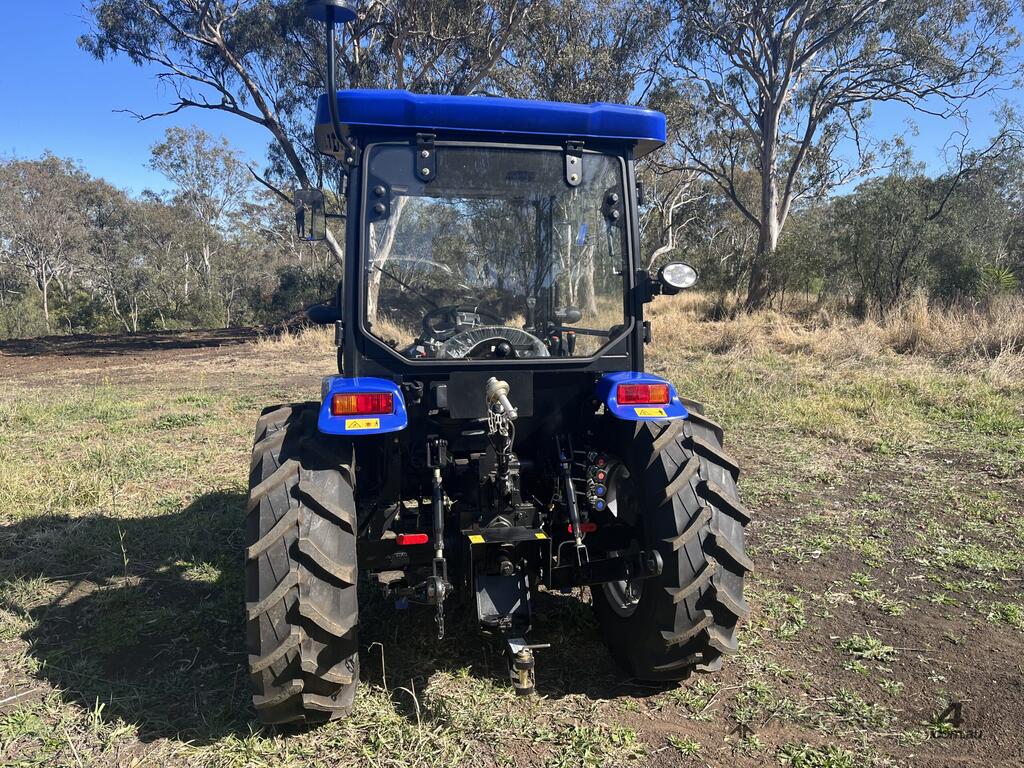

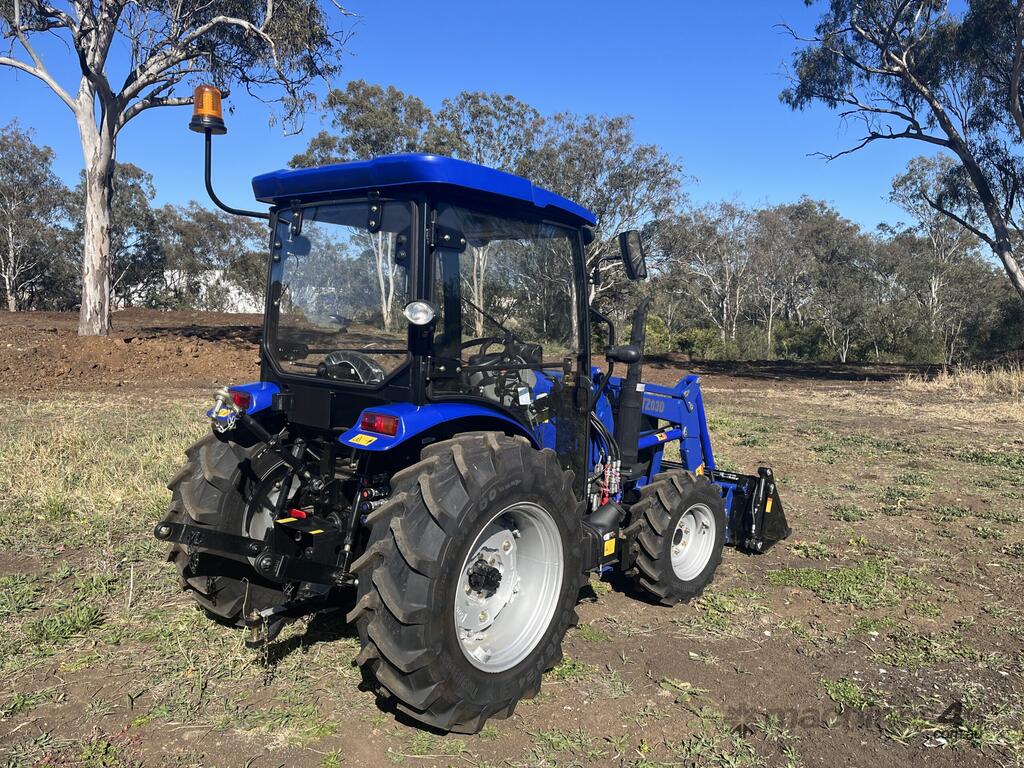

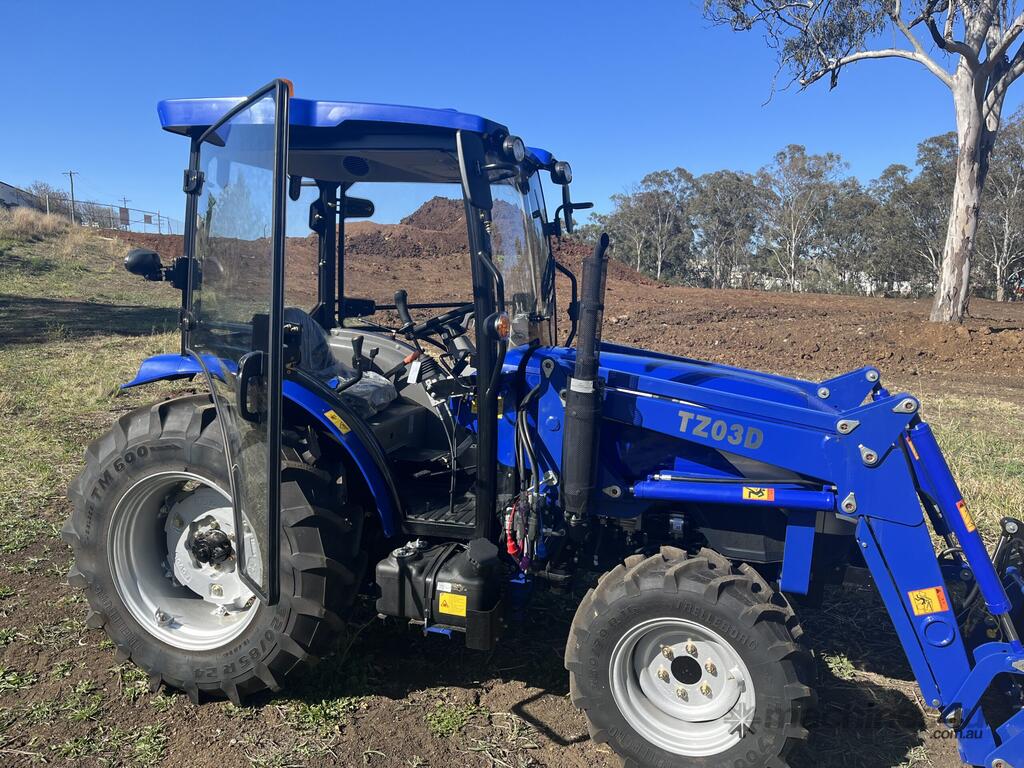

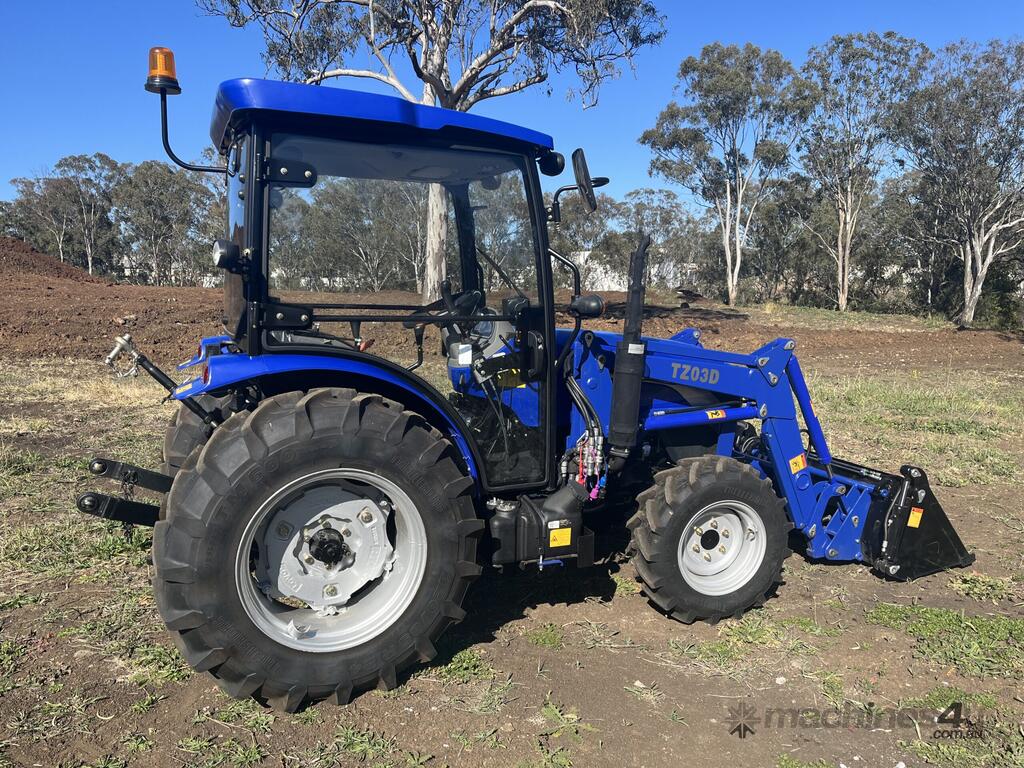

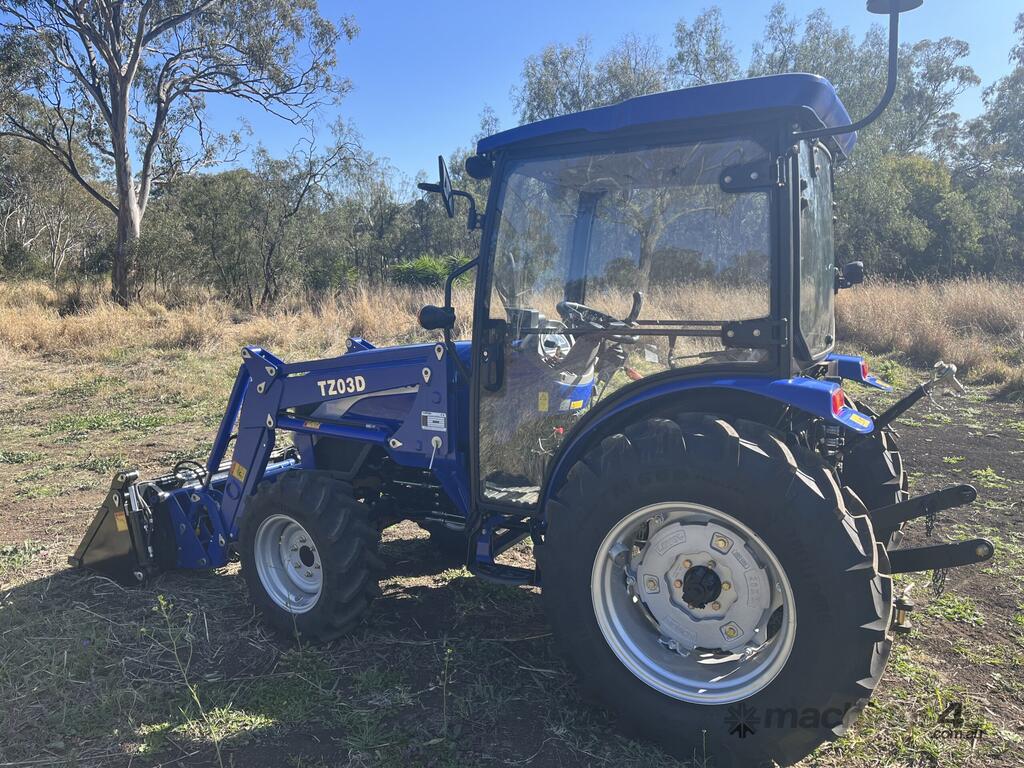

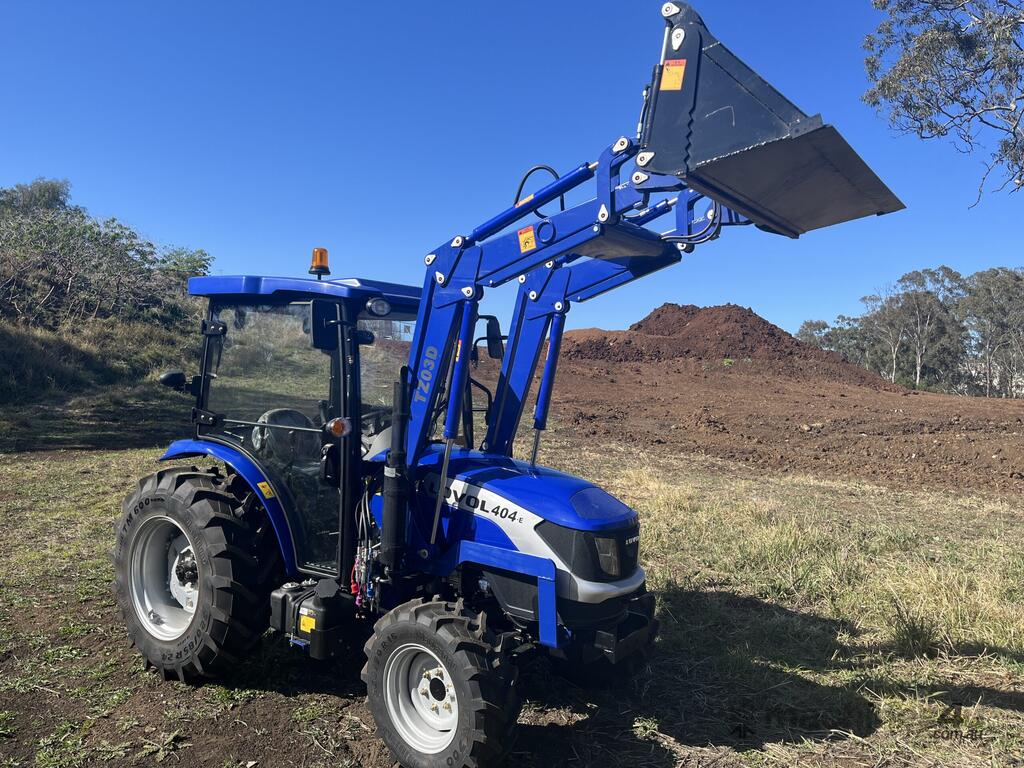

Lovol TE404 CAB Tractor
Model: LOVOL TE404 CAB
Comes with:

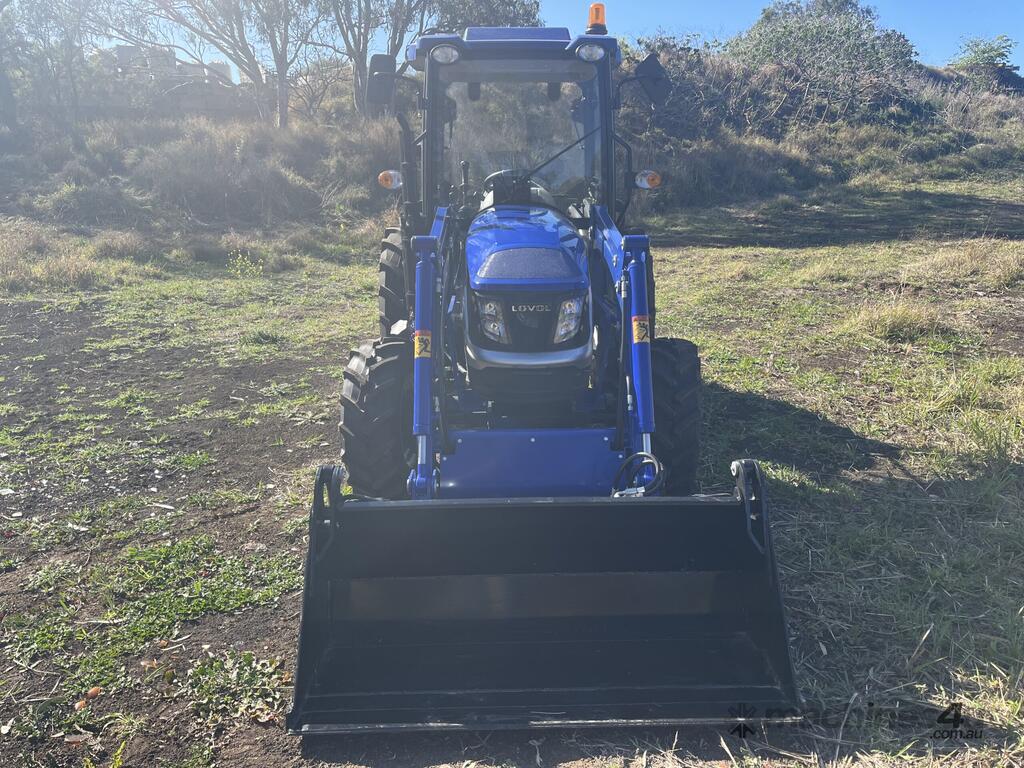

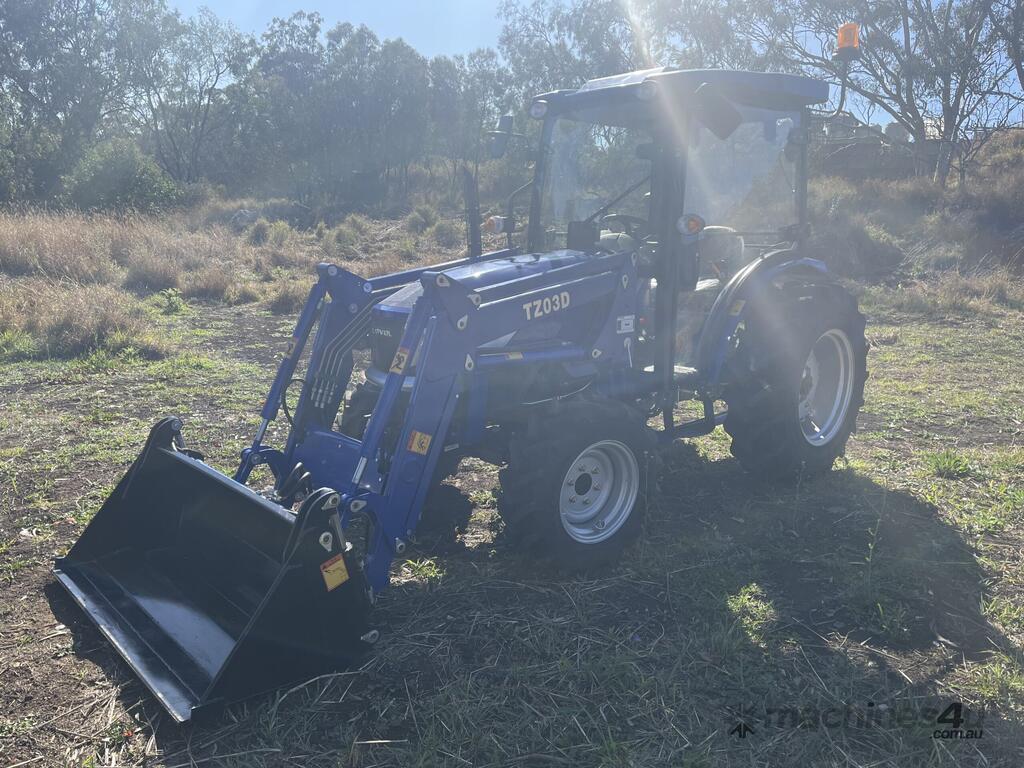

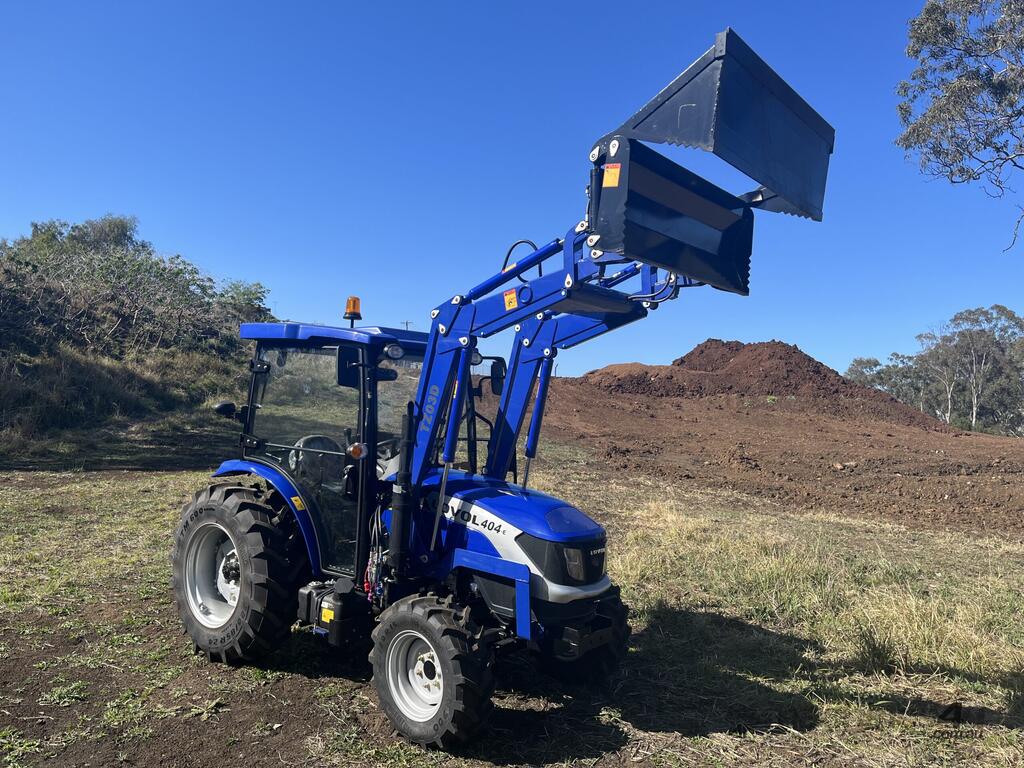

a 40HP CAB Tractor that comes equipped with a front-end loader
Versatile pallet forks
4 in 1 bucket featuring a convenient Euro mount quick-release system
4-cylinder 40hp Diesel engine paired with an 8-speed gearbox boasting SYNCRO Shuttle Shift technology,
Types: 4×4
Max. Traction:10 kN
PTO Power:25 kW
Overall Dimensions: Length (including rear suspension): 3558 mm, Width: 1550mm, High: 2450mm
Wheel Base: 1805mm
Track: Front Wheels:1243mm, Rear Wheels:1200-1400mm
Min. Ground clearance: 328mm
Tuning Radius: with side braking 2.7+0.3, without side braking 3.0+0.3
Structural mass: 1454kg
Minimum Mass in use : 1754kg
Transmission System: Clutch – Dry, Double action, Gearbox – 8+8
Tyre: Front – 260/70R16, Rear – 320/85R24

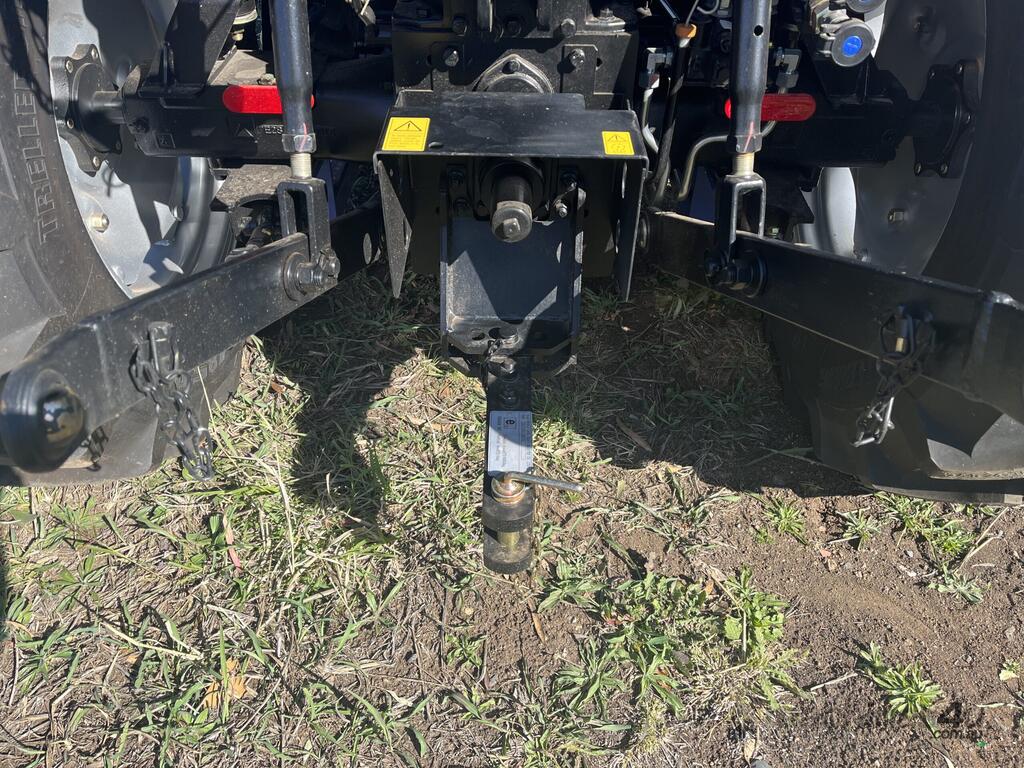

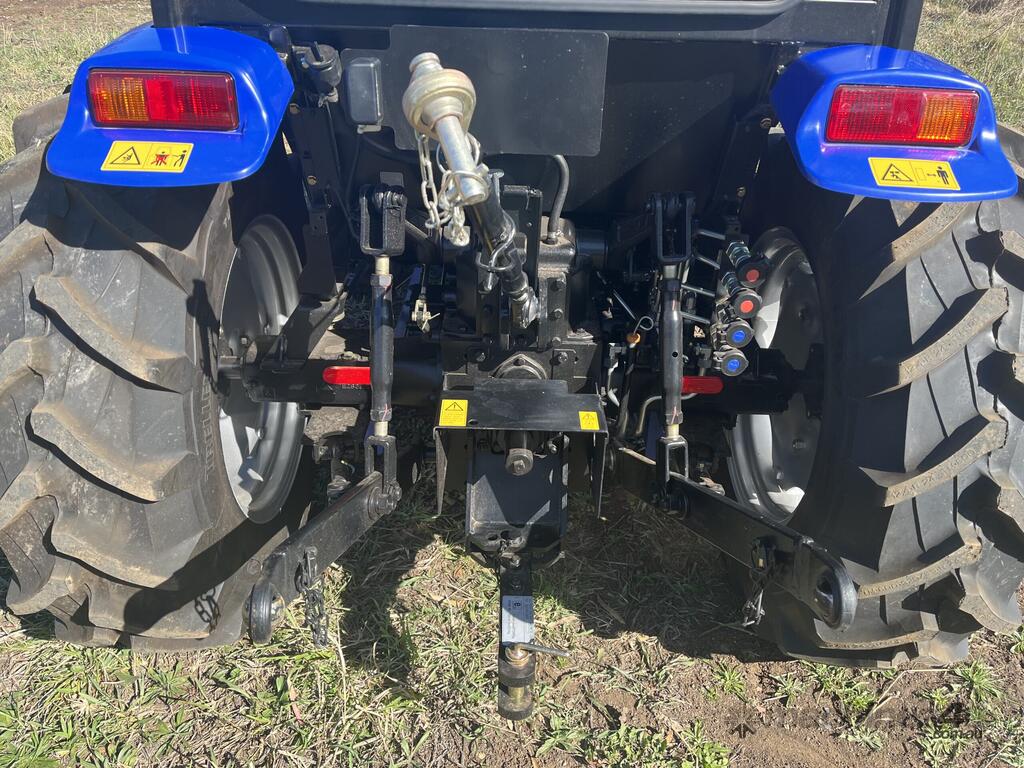

Working Device: Suspension Point: Cat.I, Max. Lifting power (610mm): 6 kN
PTO Rotate Speed:540/1000 r/min

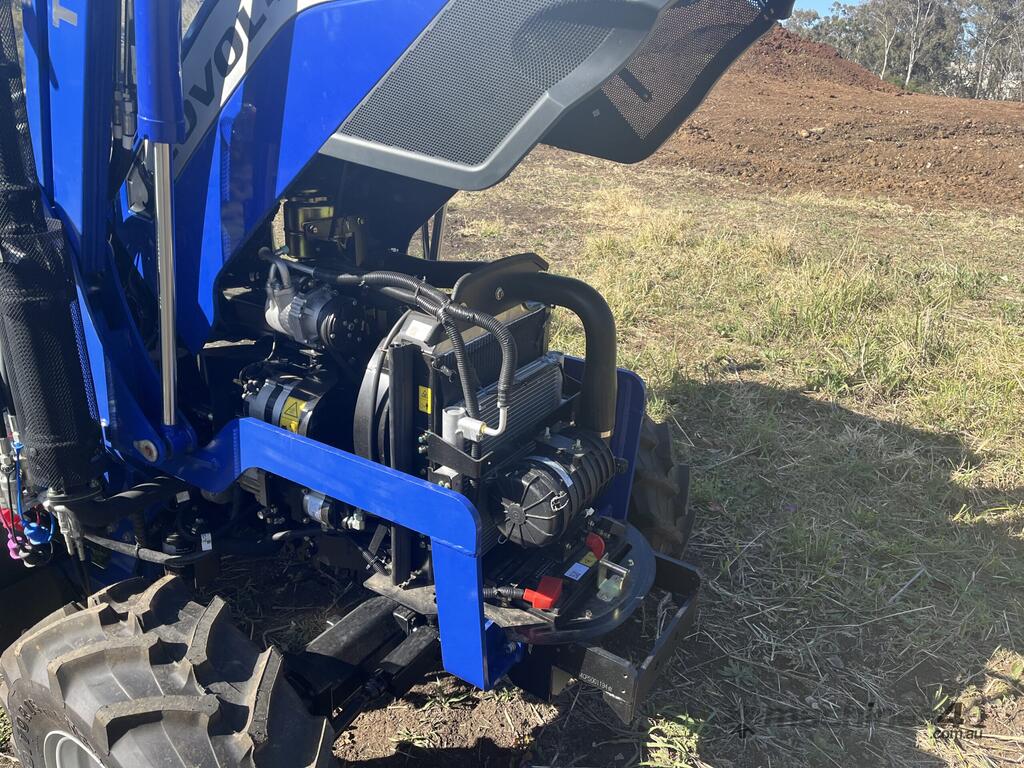

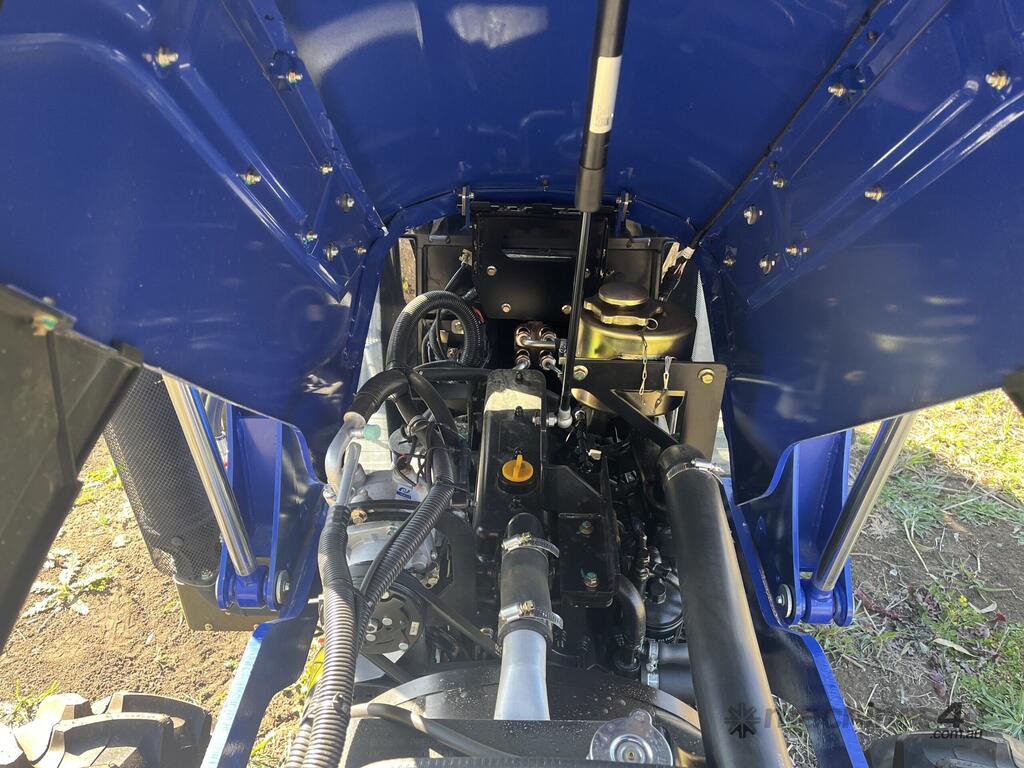

ENGINE
Brand/Model: Laidong/4L23BT
Number of Cylinders: 4
Cylinder diameter x Stroke: 88 x 95 mm
Nominal Power: 29.4 kW
Max. Torque / Rotate Speed: >130/1700+100
The Lovol TE404 offers a host of premium features:

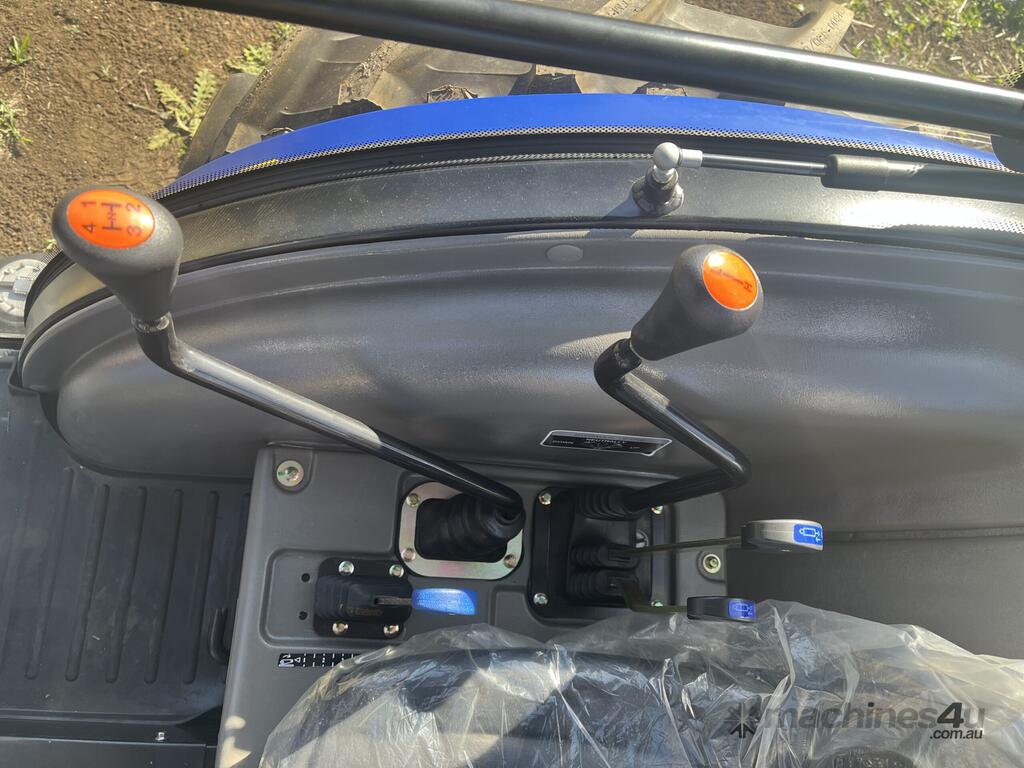

Full Syncro Shuttle Shift for seamless gear transitions
Dual Hydraulic pumps for increased efficiency

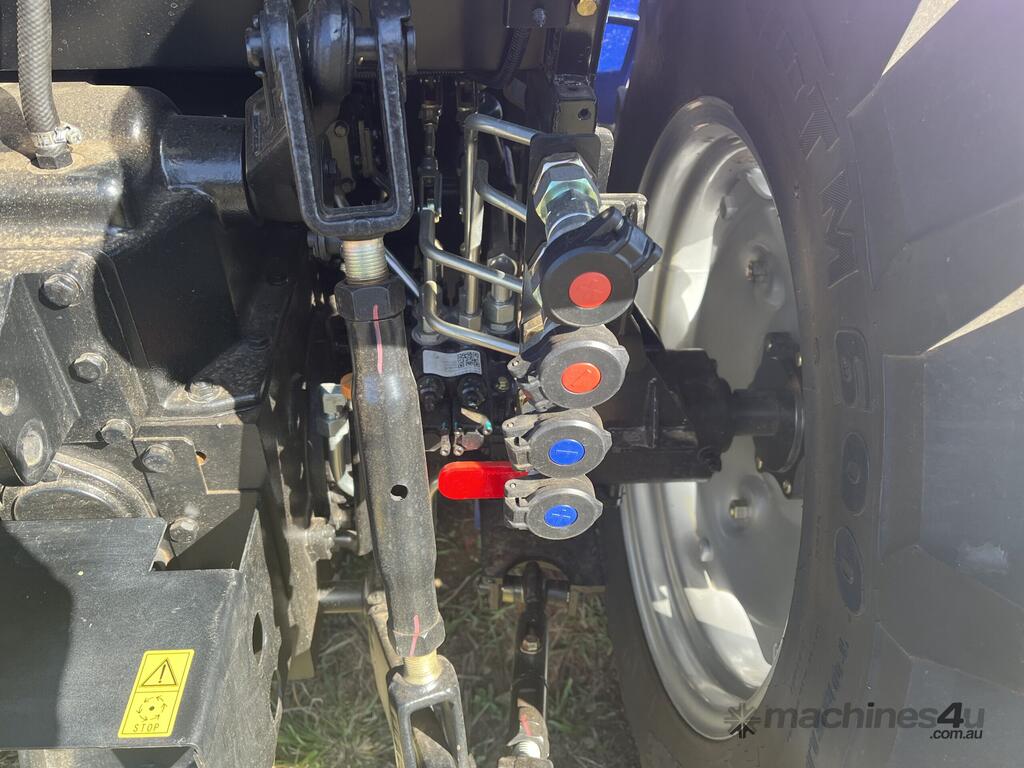

Rear Remotes for enhanced versatility

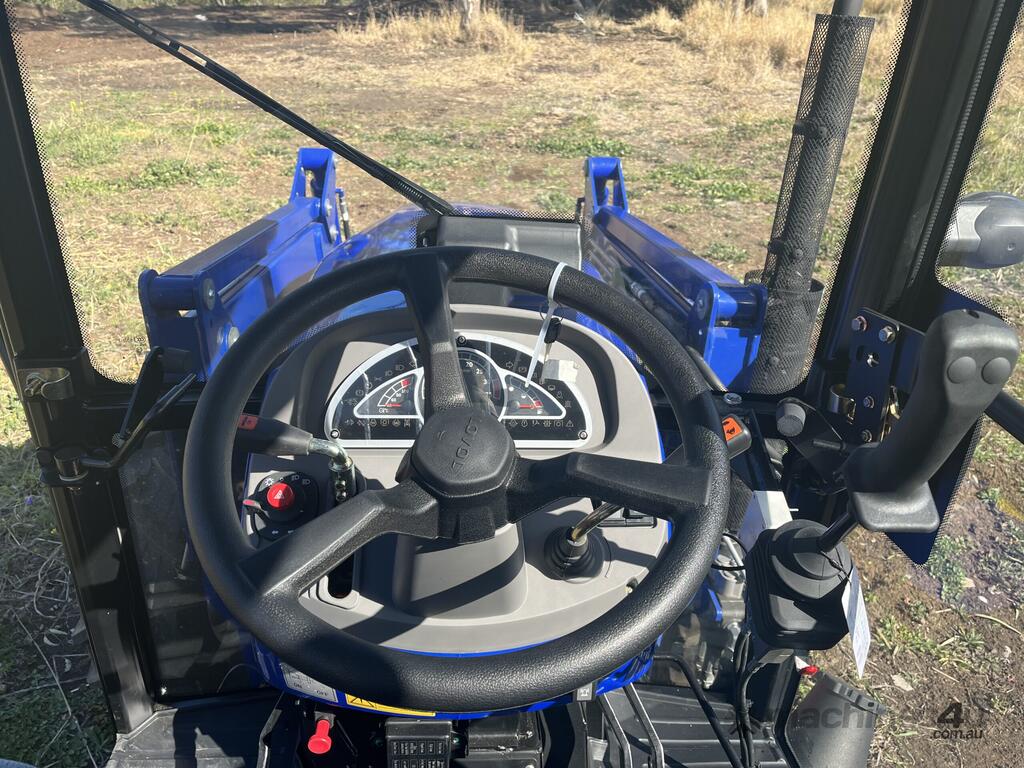

Effortless Power Steering for easy maneuverability
Radial Tyres for superior traction and stability
Improved Floor Design, minimizing obstacles for a comfortable ride
Low Seat Height for operator comfort during long hours
Premium Grammar Seat ensuring a comfortable and ergonomic ride
