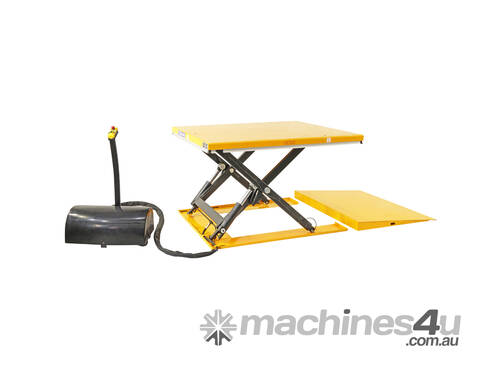

Low Profile Lift Table (including ramp) 1000kg

Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity. Supplied with entry ramp to allow pallet truck entry Can be supplied with optional rotator ring Tables are specially made for handling pallets, no need for a pit or load ramps Upper platform fitted with safety perimeter to prevent descent on contact with obstructions 24v control box with UP and DOWN buttons and emergency stop External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed Power Supply: 240v (3 phase 415v available if required) Hose burst safety valve to stop the lift table lowering in case of hose breakage Removable lifting eyes to facilitate handling and installation of the lift table Oil-less bushings on pivot points Lifting Time: 25 Unit Weight: 234 Code Load Capacity Platform Size Lifitng Range V2100 1000kg 1140x1420mm 85-880 V2101 2000kg 1180x1600mm 105-880
