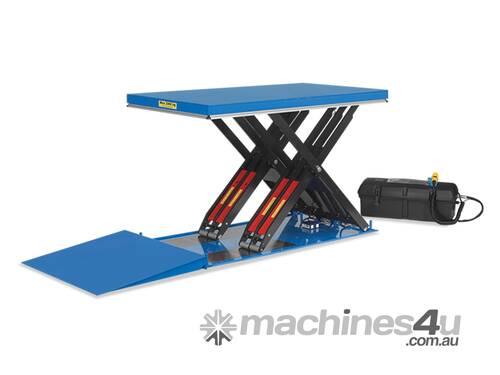

Low Profile Scissor Lift Table

The Low Profile Scissor Lift Tables have a lift mechanism which allows a very low closed height , eliminating the need for pit installation. The optional access ramp makes it possible to load a pallet or stillage straight onto the table with a hand pallet truck. A wide variety of table sizes are available including a U-Type which is suitable for skips. These lift tables can be built to customer specifications which provides for varying capacities, lifting heights, table sizes etc. Lifting capacities of up to 3000kg. These lift tables are also available in Stainless Steel on request. Speak to our experienced sales team for more information.

Product Features
-A compact hydraulic power unit. The unit is IP65 with the motor IP55,
-Cylinders fitted with a hose burst valve to ensure immediate stop in
-Box beam scissor arms give superior lateral stability.
-Aluminum safety trip bar minimizes risk of injury
-Upper travel limit switch with easy adjustment of stroke.
-Safety props for service and maintenance work.
-Electric components with protection class IP55
-24V control voltage unit with 4m cable
-Constant pressure push button controls
-CE marked

Product Code: 1941009
Product Name: Low Profile Scissor Lift Table
Capacity (kg): 500
Max Platform Height (mm): 710
Min Platform Height (mm): 80
Platform Size (mm): 950 x 600

Product Code: 1941004
Product Name: Low Profile Scissor Lift Table
Capacity (kg): 1500
Max Platform Height (mm): 880
Min Platform Height (mm): 80
Platform Size (mm): 1500 x 1200

Product Code: 1941086
Product Name: Low Profile Scissor Lift Table
Capacity (kg): 1500
Max Platform Height (mm): 950
Min Platform Height (mm): 100
Platform Size (mm): 1200 x 1200
