M-25 Chisel Morticer 160mm timber width capacity

HAFCO-WOODMASTER M-25 Chisel Morticer 160mm timber width capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W345

Manufactured in Taiwan

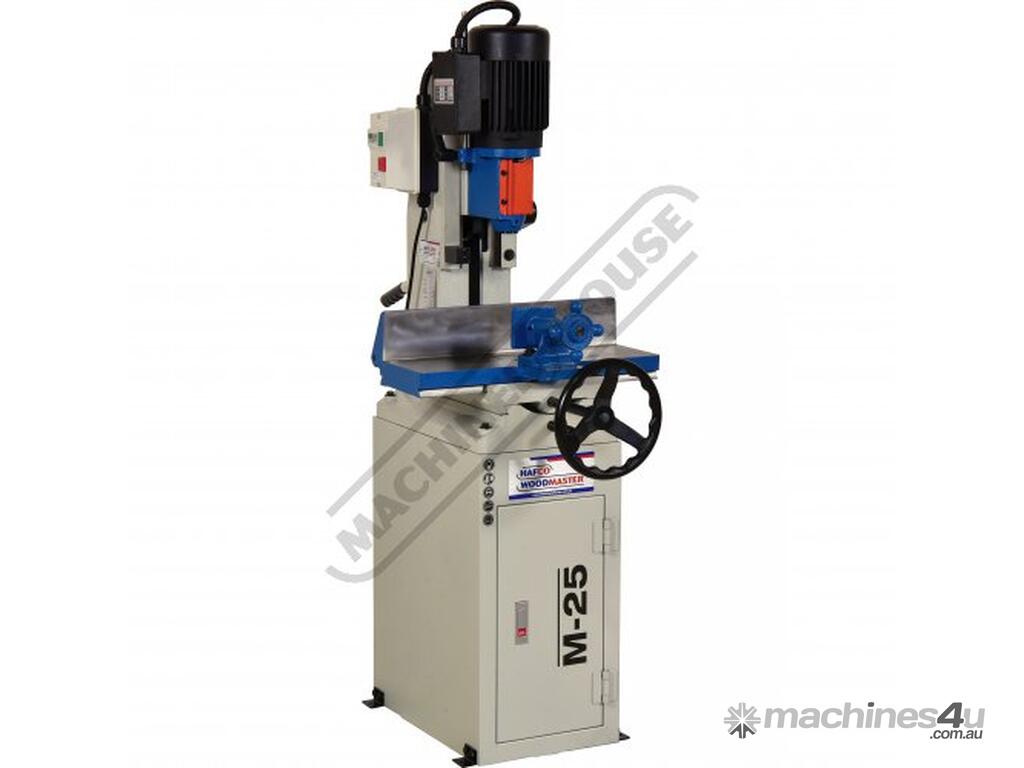

A heavy duty chisel morticer with a capacity of 25mm in soft wood, cast iron frame construction with a fabricated steel stand. A single handwheel controls both longitudinal and lateral table movement. This system prevents the table from "skewing", a common problem with other morticers. The material clamp accommodates different work piece widths, whilst a multi-position down-feed hand lever provides the correct leverage for comfortable use.

To make ths morticer even better the gas strut thats mounted in the rear column helps provide a smooth downward travel of the headstock, which also allows headstock "parking" in any position. A large cast iron table with a tall rear fence, plus an easily set depth stop for repeat accuracy is fitted. This machine is well suited to the busy workshop and will provide years of accurate and trouble-free use.

Features:
Morticer capacity: 25mm chisel in softwood & 19mm chisel in hardwood
160mm timber width capacity
125mm head stroke
Heavy cast iron construction

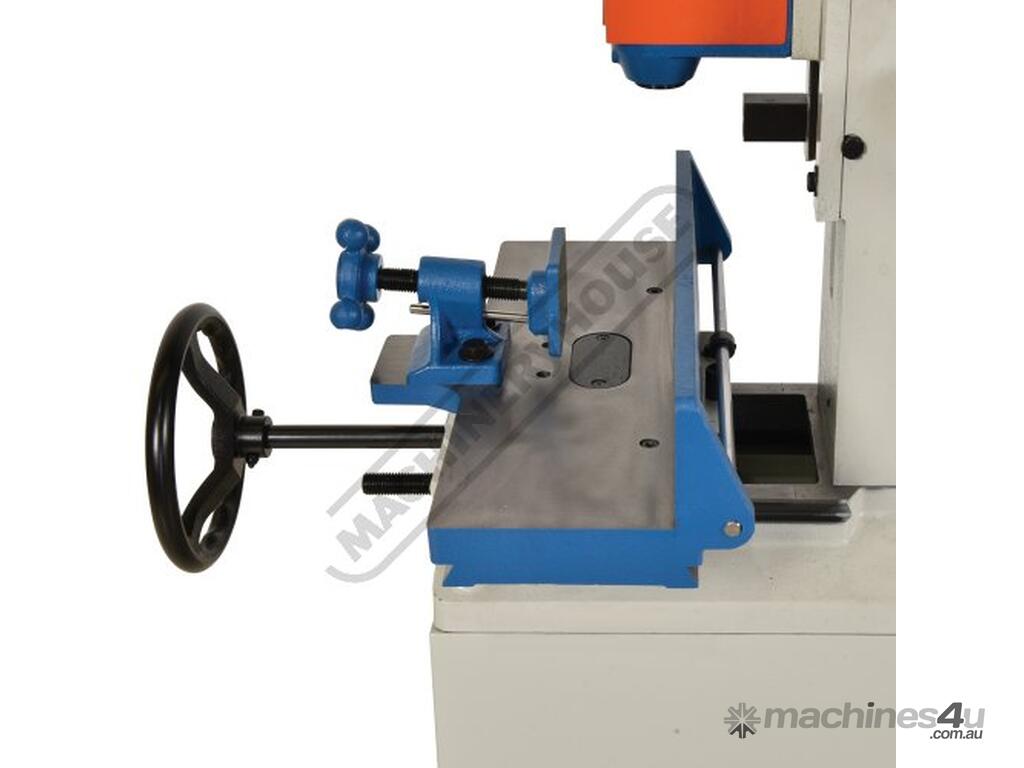

3-position job clamp & depth stop

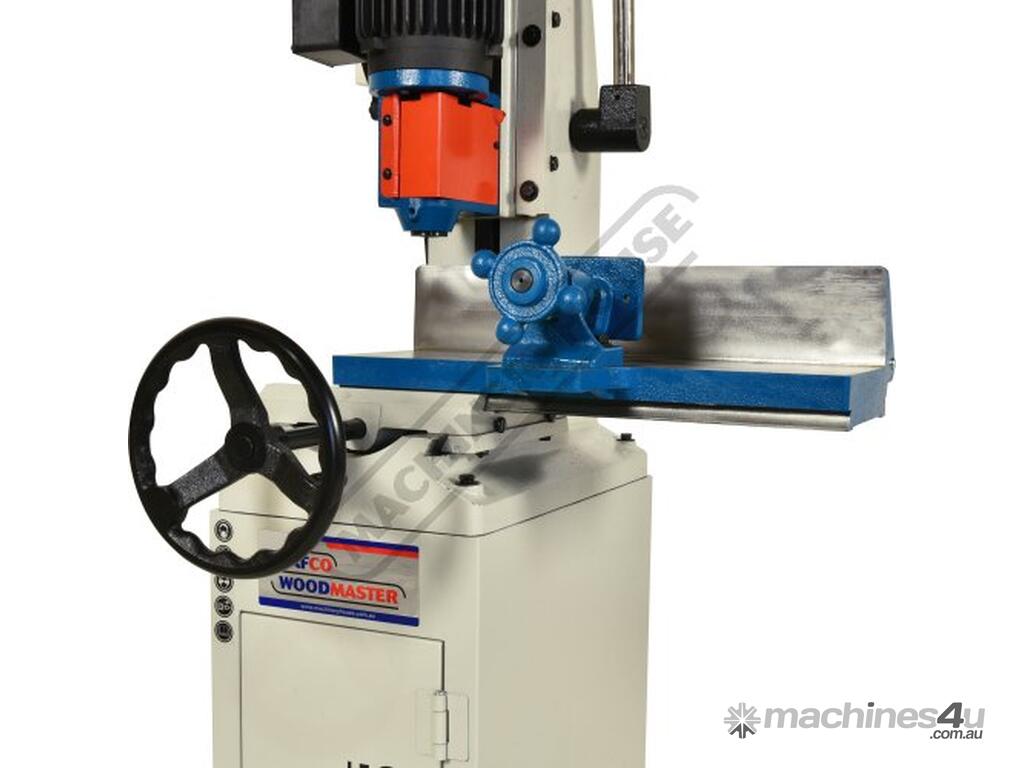

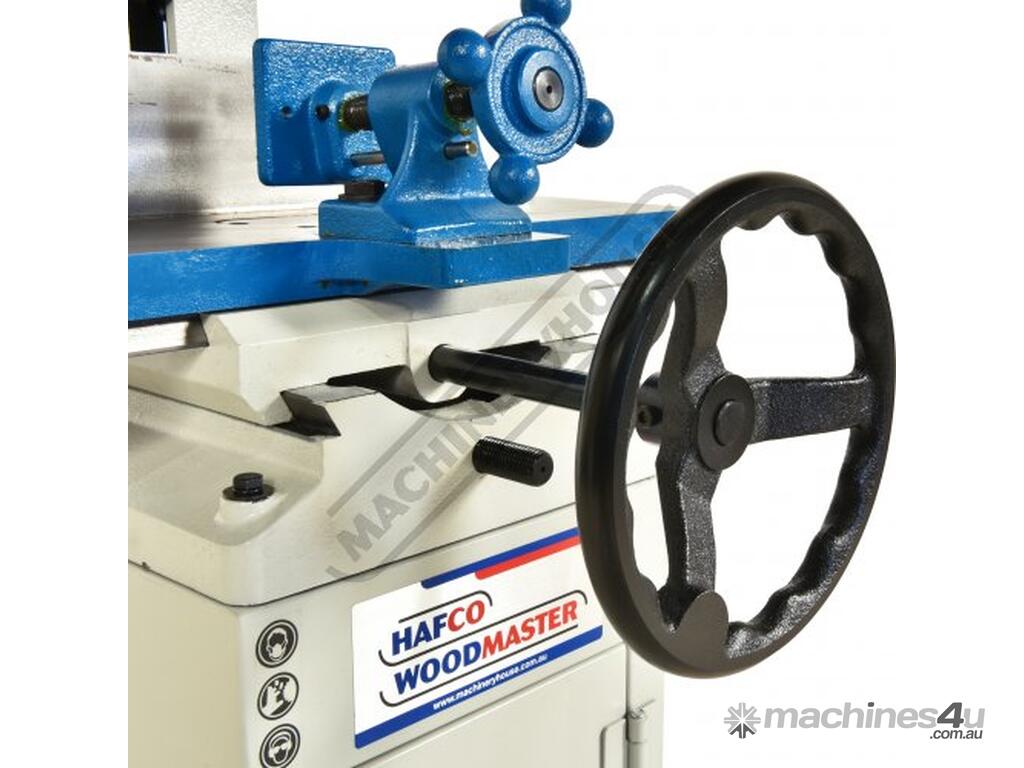

Long and cross hand wheel movement
Gast strut supports head for smooth movement

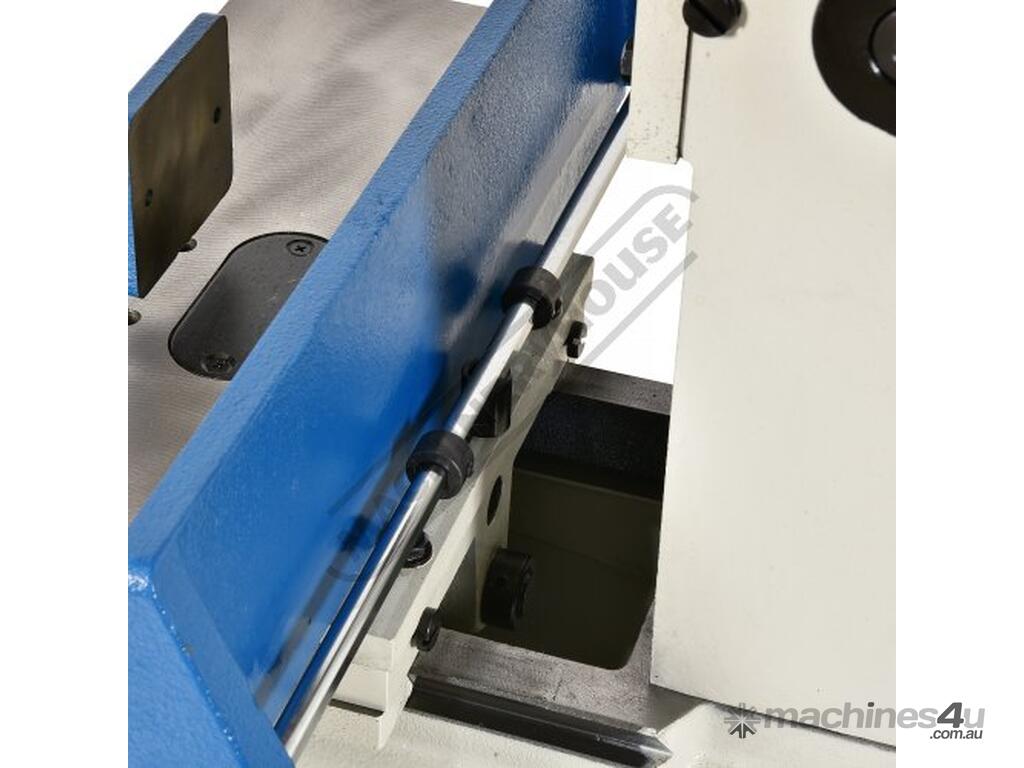

Adjustable table length stop mounted to rear of table
255 x 180mm table movement

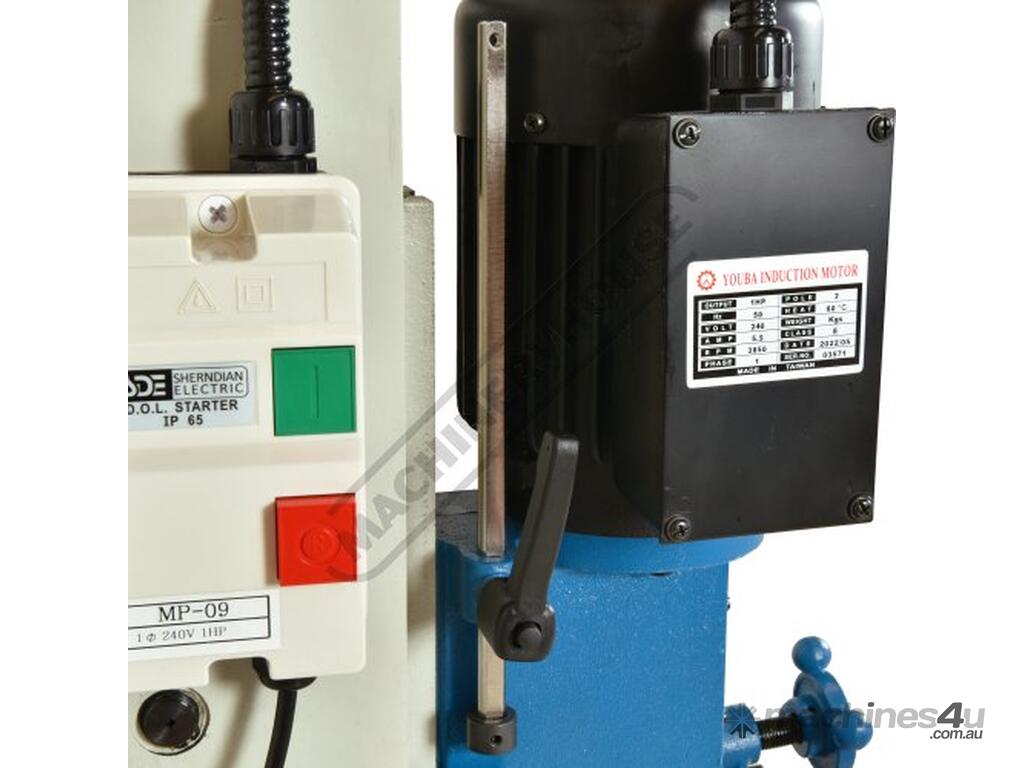

Magnetic safety switch
Overall height 1700mm
0.75kW / 1hp 240V motor
Quality Taiwanese Manufacturer

Includes:
- 1 x collar reducing bushes: Ø28.5 - Ø19mm (OD -I D)
- 1 x collar reducing bushes: Ø30.2 - Ø15.9mm (OD - ID)
- Stand with storage cabinet



Specifications:
ORDER CODE: W345
MODEL: M-25
Timber Capacity (mm): 160
Table Movement (mm): 255 x 180
Vertical Head Stroke (mm): 125
Collar Reducing Bush (ID) (mm): Ø19 & Ø15.9
Motor Power (kW / hp): 0.75 / 1
Voltage (V): 240
Floor Space (W x D x H) (mm): 940 x 750 x 1720
Nett Weight (kg): 160
