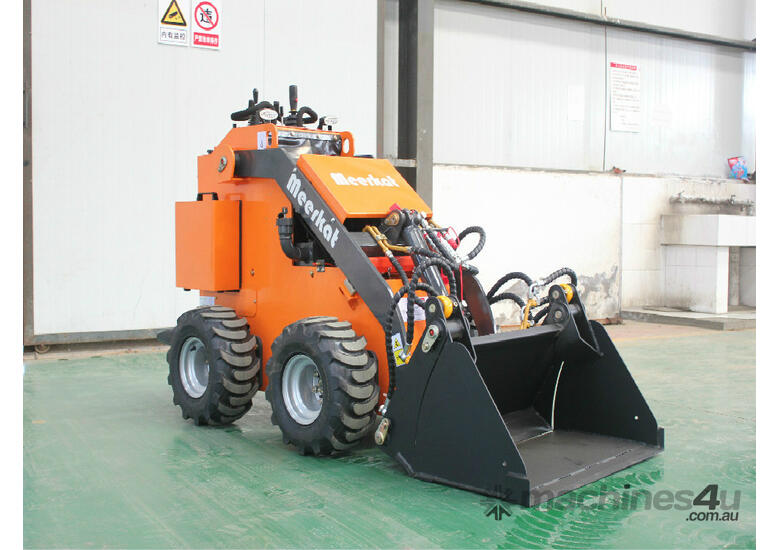

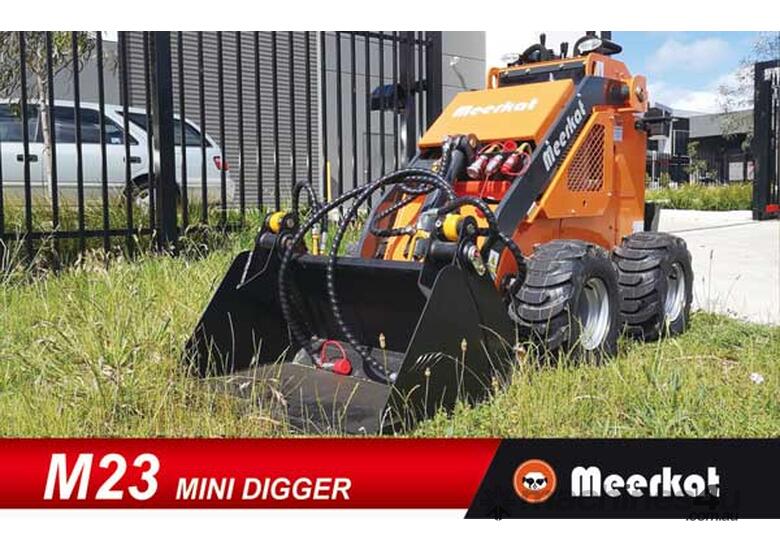

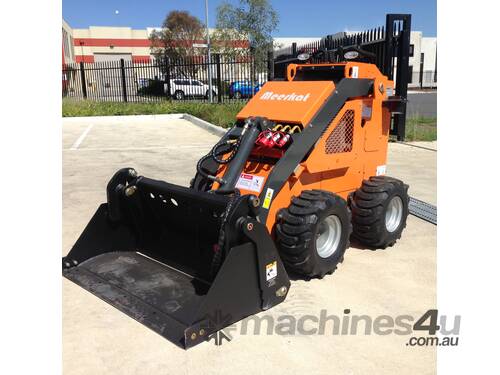

M23 Mini Loader (Wheel + Triple Pump + Drive Motor x4) 960mm Wide

Landscapers dream machine
The M23 is our most compact mini digger and depending on tyres sizes chosen can be as little as only 835mm wide. With standard Chevron tyres offering more grip in wet conditions it is still only 987mm in width.

With 23HP it has all the muscle you need to get the job done increasing your work output and decreasing the time it takes to do it all, meaning more time for you! Popular with landscapers, fencing contractors, builders & DIY. Buy with confidence - Australia’s best value compact loader.


Product features
· Full 4 way joystick left-hand,allowing a separate right-hand control for the bucket, allowing lift & tilt on the run.

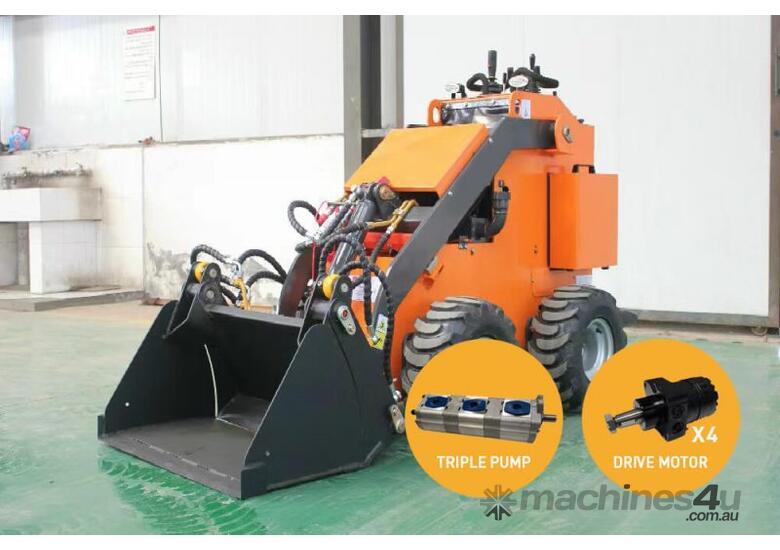

· 4 hydraulic motors are used to drive each wheel independently. 4 motors made in USA.
· 23HP U.S BRIGGS & STRATTON petrol engine. Made in Japan.
· Italian brand valve
· Operating weight: 807KG
· Dimension(mm)(no bucket)(L*W*H): 1778mm*987mm *1304mm. Change of tires types, width can be as little as 851mm, machine can enter into narrower space to work.
· Machines feature an ergonomic hand grip layout
· It is the same powerful machine as our bigger machine yet in a more compact design allowing it to enter narrower and confined spaces.


Facts about M23
Specially designed motor support sleeve
When compared with conventional two-motor drive machines, the M23 adopts a four hydraulic motor direct drive system that drives the wheels . This reduces transmission components such as sprockets, chains, sprocket shafts, bearings, etc., and avoids the hidden problems that those components could cause.

Common to mini diggers on the market now with a four hydraulic motor design is that the motor is mounted on the side plate of the rack, with the motor output shaft cantilever mounts over the tyres. The motor output shaft is then unsupported and operational forces could reduce the service life of the motor. Also motor maintenance and disassembly must be done from the inside of the rack and it is a complex task.

However, the Meerkat mini digger's four-motor-driving system is connected to the frame through a specially designed motor support sleeve and the forces transmitted to the motor output shaft have been reduced by more than 50%, significantly improving the service life of the motor. At the same time, the motor can be easily removed by loosening the bolts of the externally mounted motor support sleeve, reducing maintenance downtime and labour costs if required.

Mini diggers designed to work in narrow spaces for the professional & DIY
When the M23 is fitted with either track or narrow tyre, the width of the whole machine is only 835mm, so it can be easily driven into the backyard or through narrow gates. The maximum working height of the M23 mini digger's hinge pin is 1798mm significantly more than some others on the market, whose maximum working height can be only 1670mm.


Warranty
Hysoon Australia covers all the machines and attachments with a full 12-month warranty on all parts and labor.
