MACFARLANE - 200kW Crestchic Resistive Loadbank

Crestchic 200kW load bank is a transportable, customisable and reliable load bank.

Transportability: Supplied with heavy duty swivel castors for ease of transport or without castors for fixed installations. Optional forklift base.

Weather Protected: Designed for outdoor use, weather protected rigid IP55 construction.

Load Switching: 1kW switching resolution.

Longevity: Stainless steel enclosed elements consisting of 80/20 nickel chrome resistance wire for long service life.

Reliability: 12 months warranty.

Comprehensive Support: Full range of accessories (i.e. cables, cable guards etc.).

Specifications:

Capacity: 240/415V, 50 Hz, 1.0 PF.

Design Voltage: 415 volts, 50 Hz. Other voltages and frequencies available on request

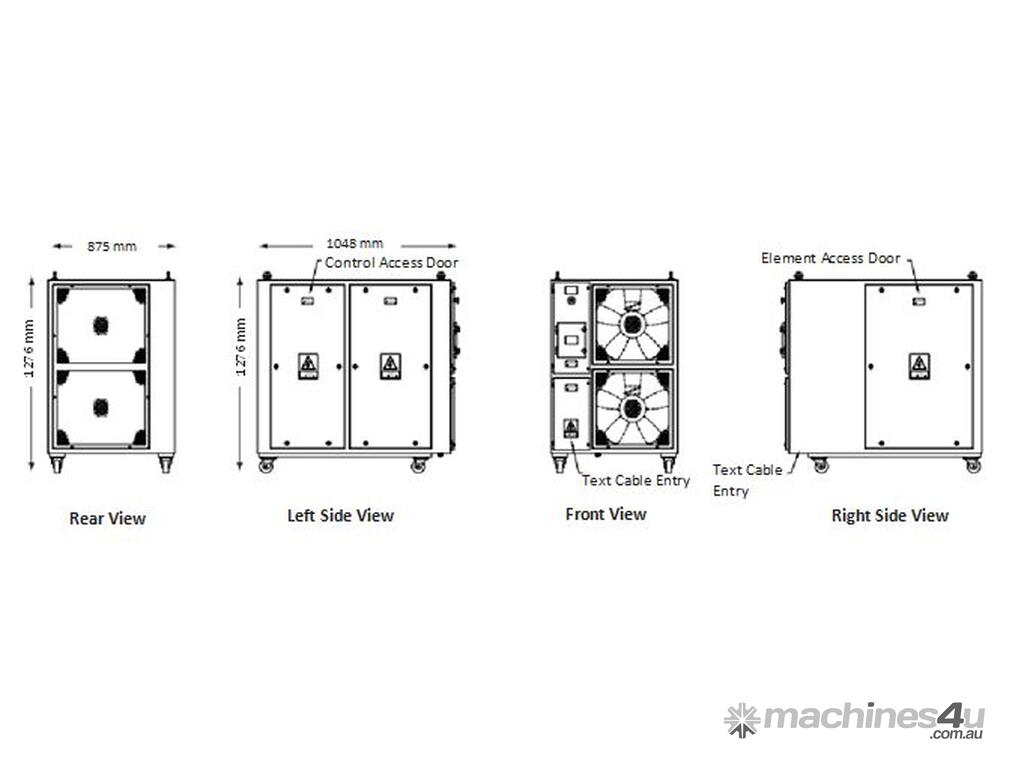

Dimensions: 1276mm (h) X 1048mm (l) X 875mm (w), 230 KG

Cooling: Two fans, forced air cooling. Comes with electrical interlocking system and thermal sensors for safe operations.

Air Flow: 6,000 CFM, designed for the outdoors.

Parameters: Maintains maximum capacity in ambient conditions up to 50° C and 100% humidity.

Load Switching: The KCS control system allows loads to be switched to any value between zero and the maximum capacity of the load bank with a 1kW switching resolution.

Resistors: Load is provided by groups of totally enclosed resistor elements consisting of 80/20 nickel chrome resistance wire centred in a finned stainless steel tube filled with compressed magnesium oxide to ensure rapid heat transfer.
