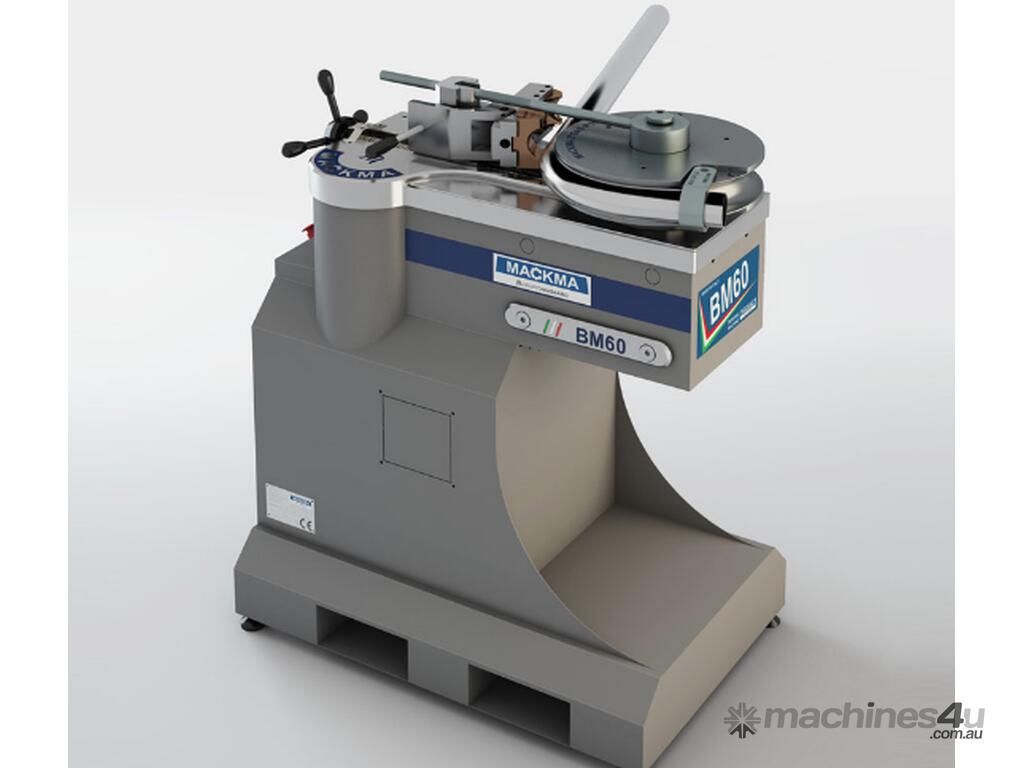

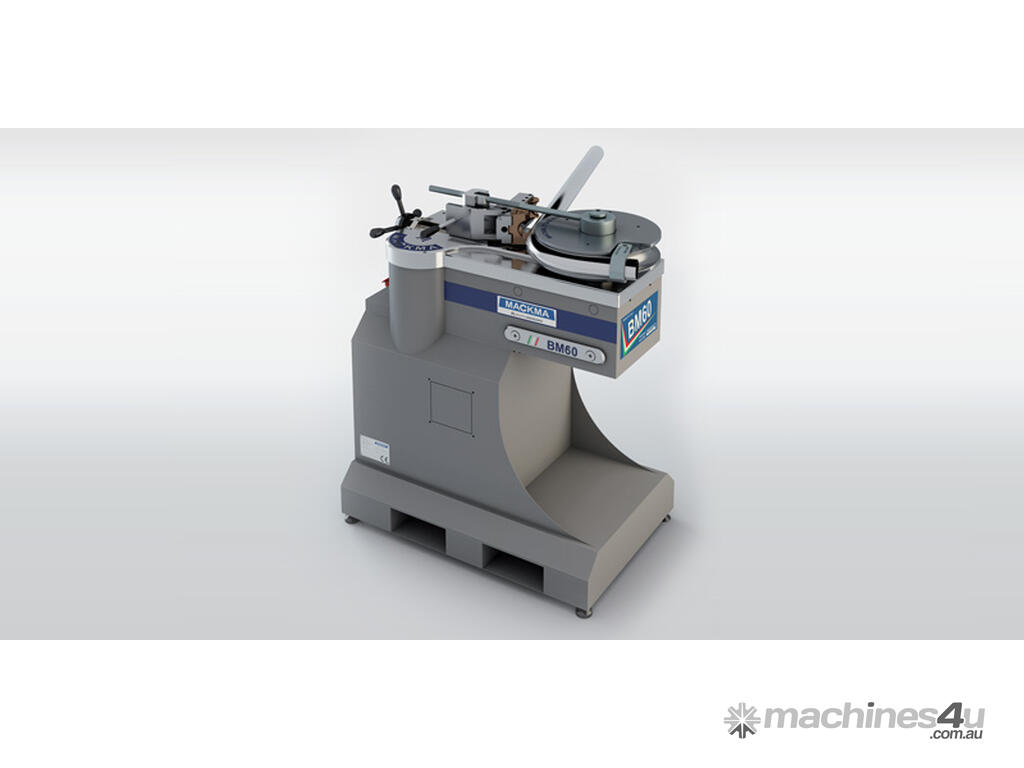

MACKMA BM60 Tube and Pipe Bending Machine [In stock - ready to deliver]

INTRODUCING THE WORLDS MOST VERSITILE ELECTRIC TUBE BENDER
Model BM60

November Special Price:

Now $22,000+GST.
Plus includes free delivery to metropolitan areas
Was $24,000+GST

*All-Electric with Inverter for Energy Savings
Capacity -60mm Dia x 4mm Wall
*Left/Right Bend Direction with Standard Tooling
*Cantilevered Head for Under-head Bending (Model BM42 to BM76)
*Minimal Distance between Bends

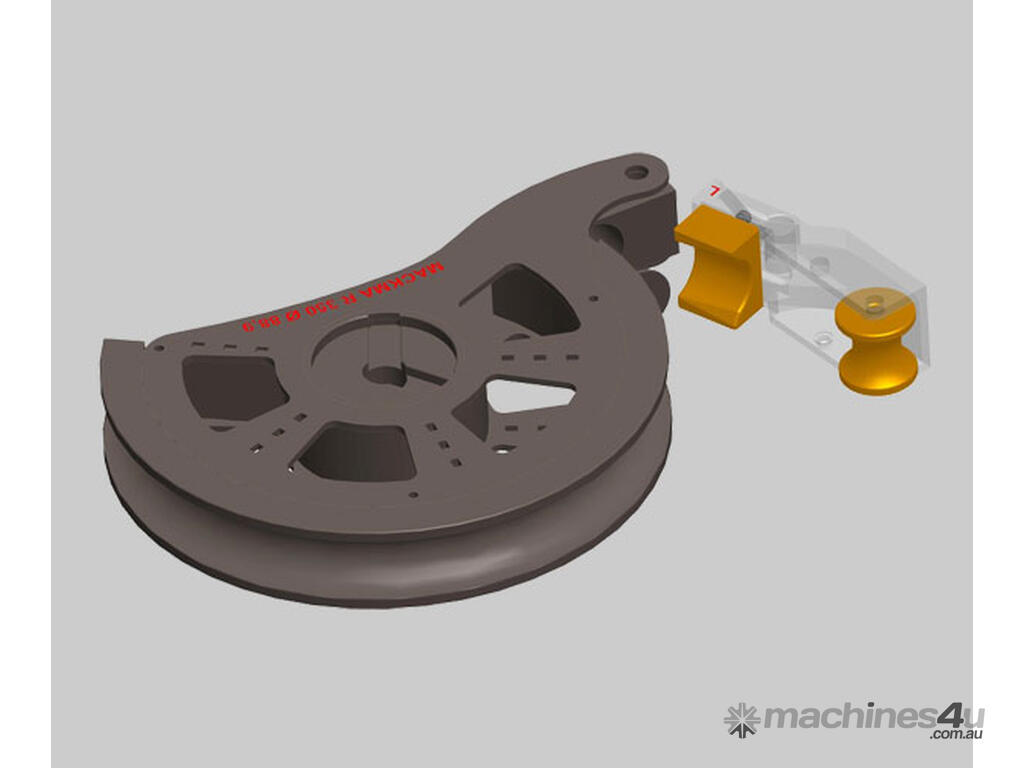

*Adaptation to accept other manufacturer’s bend dies

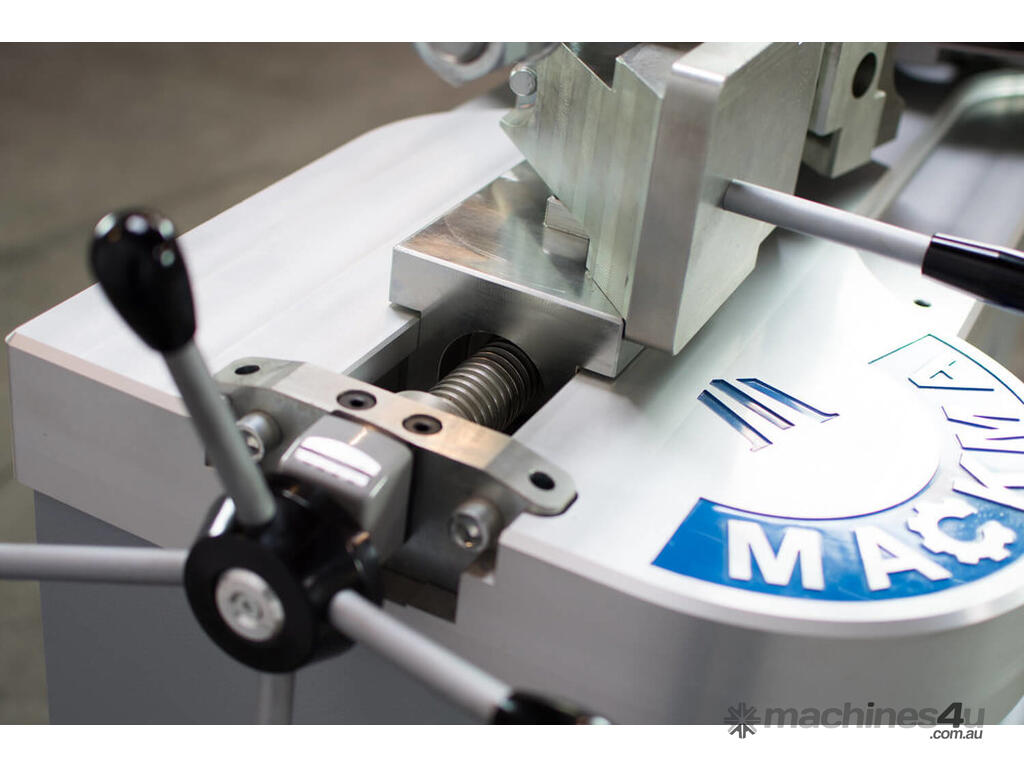

*Quick release return clamp design minimizing tube marking

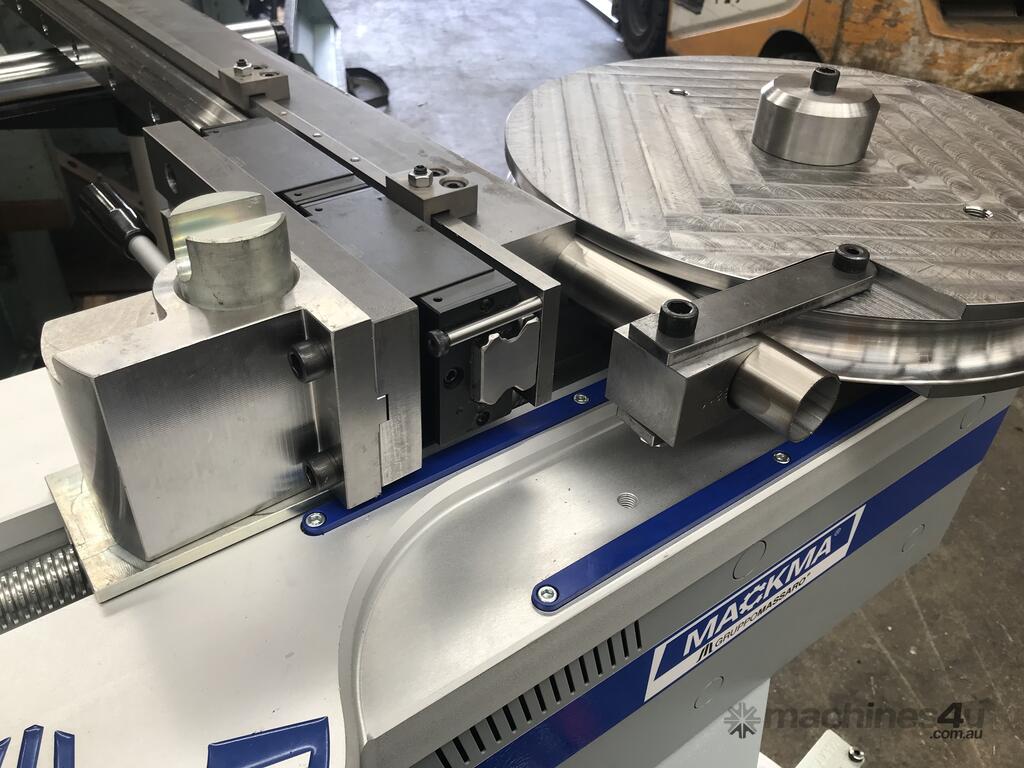

*Follower Slide option available as per video

The BM60 pipe bender is the only non-mandrel pipe bender that allows for both left and right bending with particular tools we manufacture.

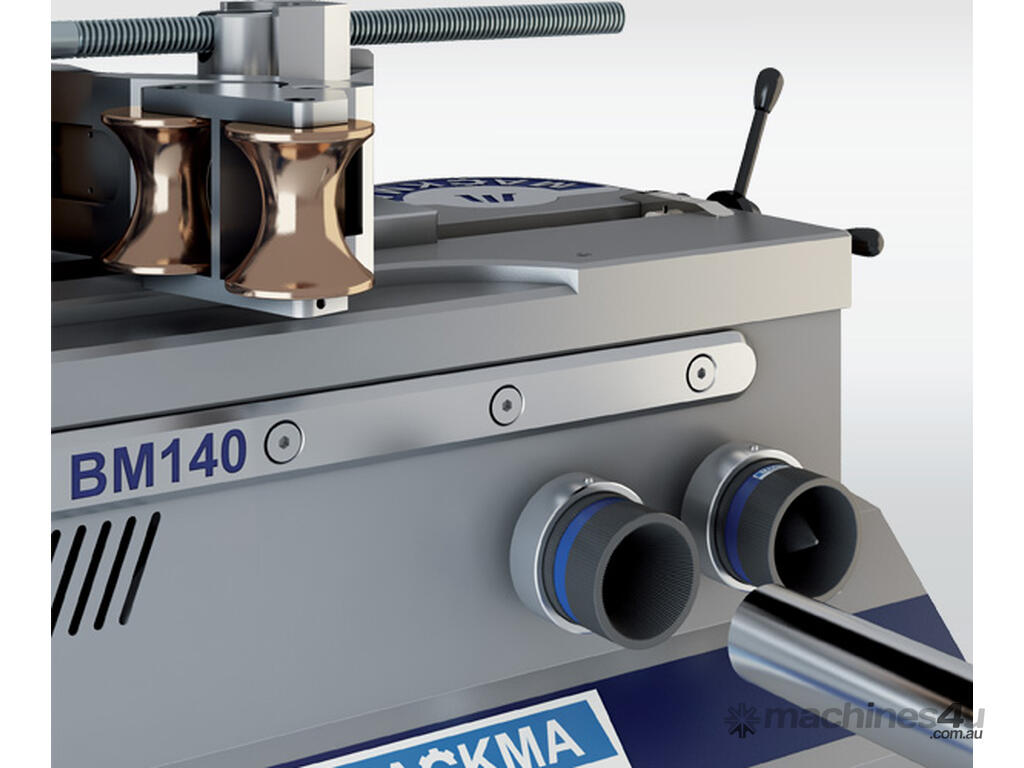

Another feature that makes the BM60 pipe bender unique is the connection that allows coupling the tapered internal/external pipe deburring tool.

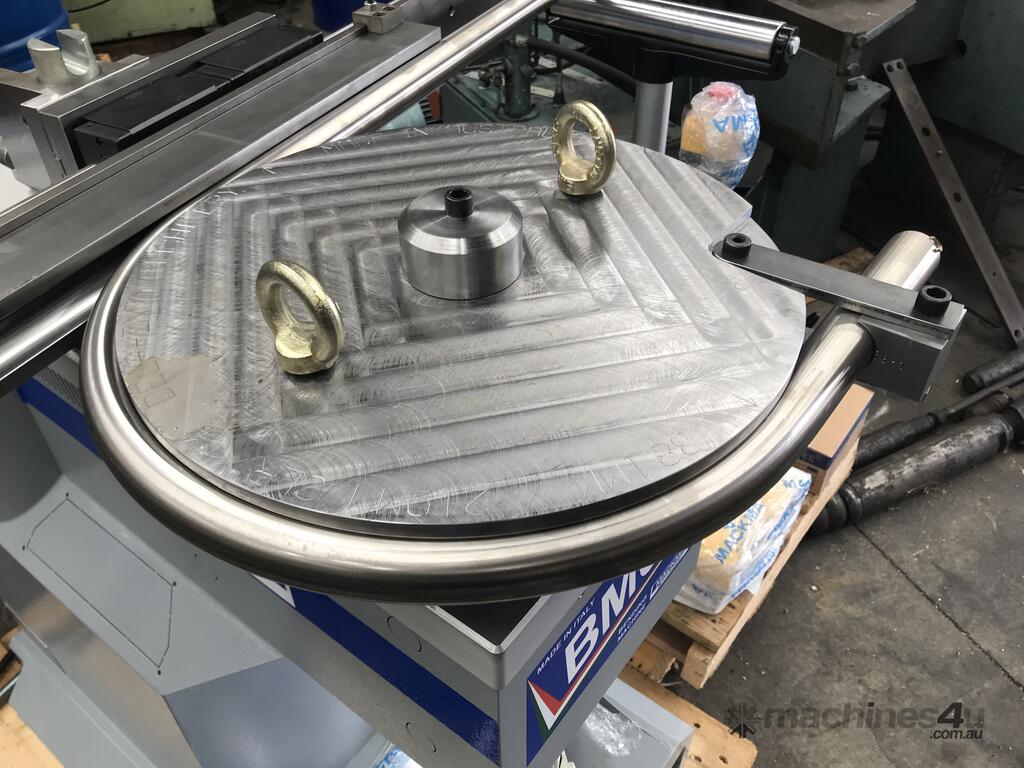

Its innovative design allows you to bend pipes with a diameter up to 60 mm for a 4 mm thickness with a 3xOD minimum radius and a 370 mm maximum radius. All this ensures high repeatability for even the most demanding markets.

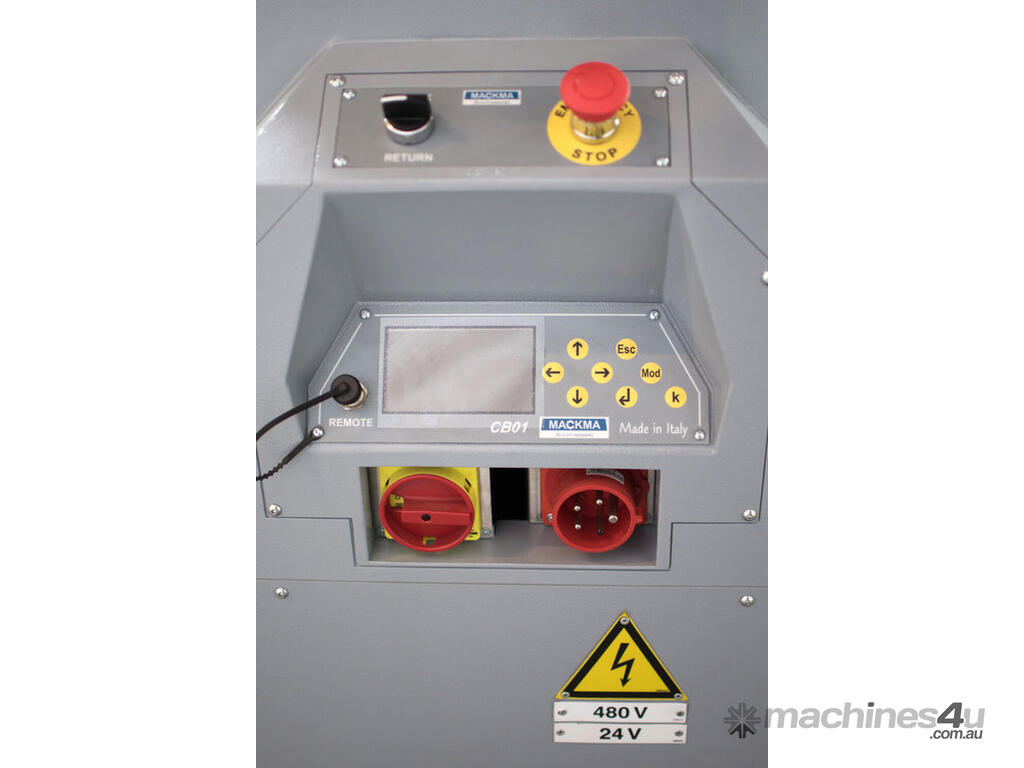

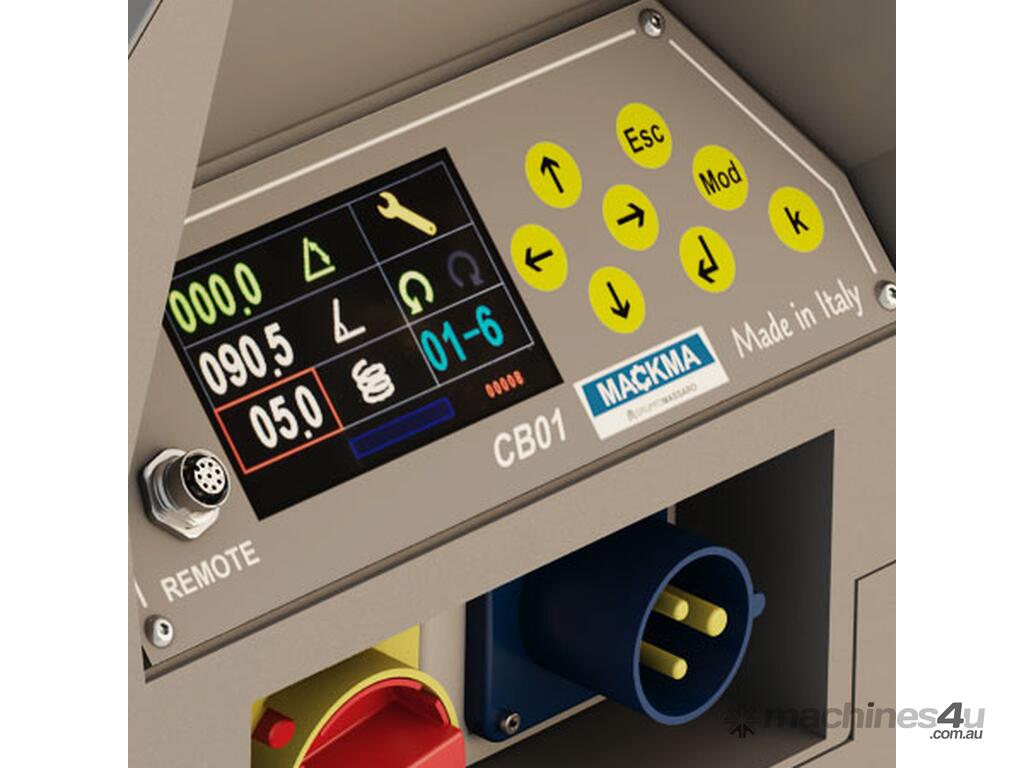

The bending axis is inverter controlled; therefore, the rotational speed ranges between 1.0 revs/min and 2.0 revs/min. This is also possible thanks to the potentiometer installed, which allows the operator to choose the rotational speed that best suits the pipe to be bent.

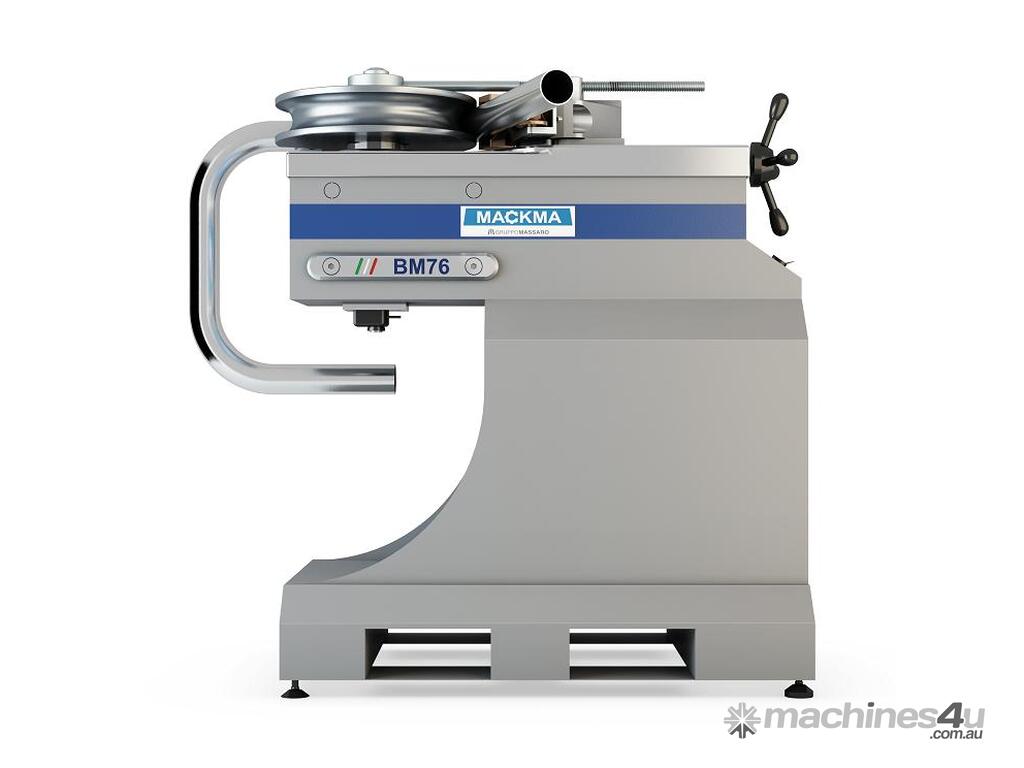

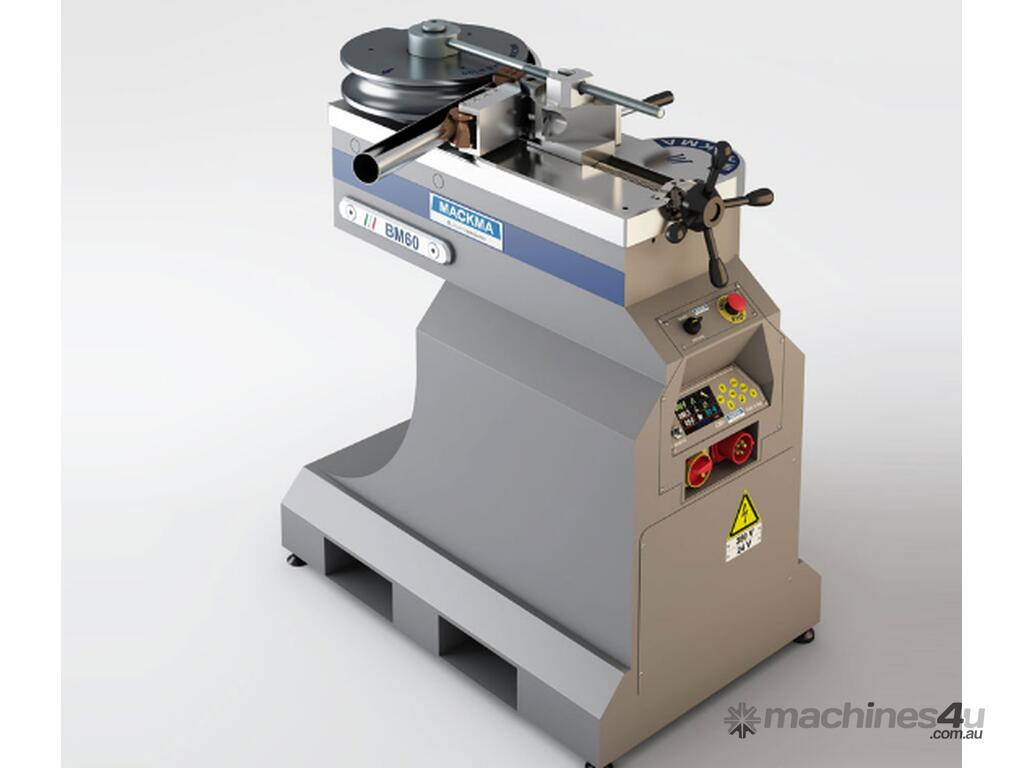

The cantilever head allows the creation of complex figures, which require the pipe to pass under the head.

The special shaft system allows the machine to be interfaced with the tools of competition machinery currently available on the market. The inverter-controlled motor minimises power consumption.
