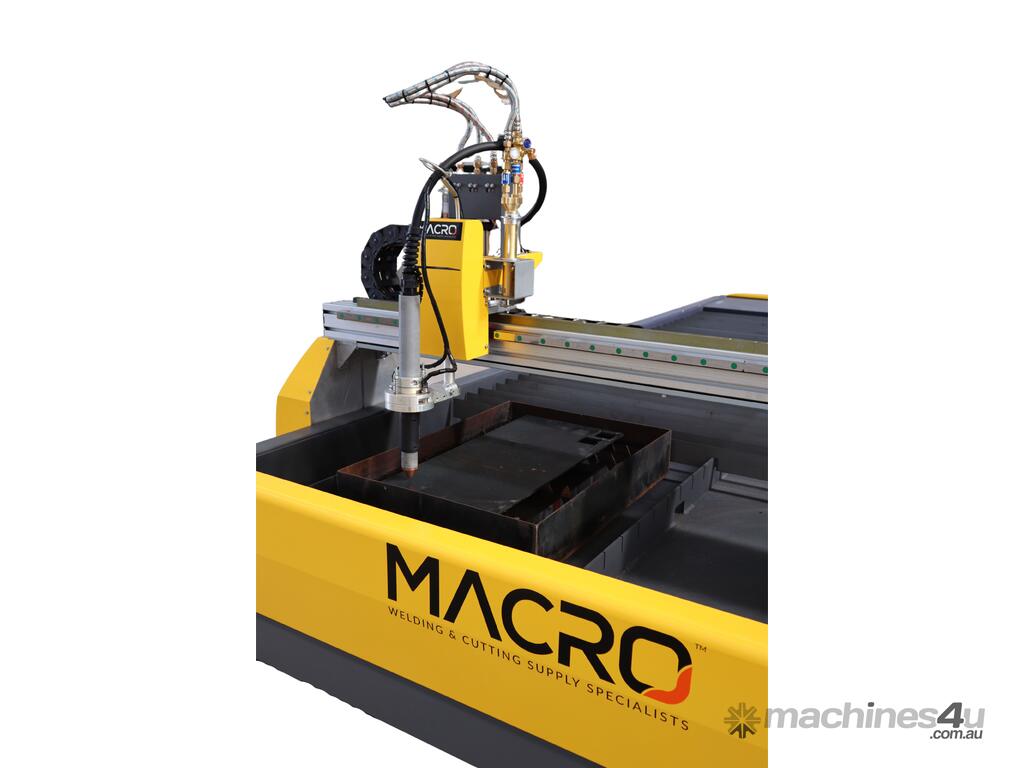

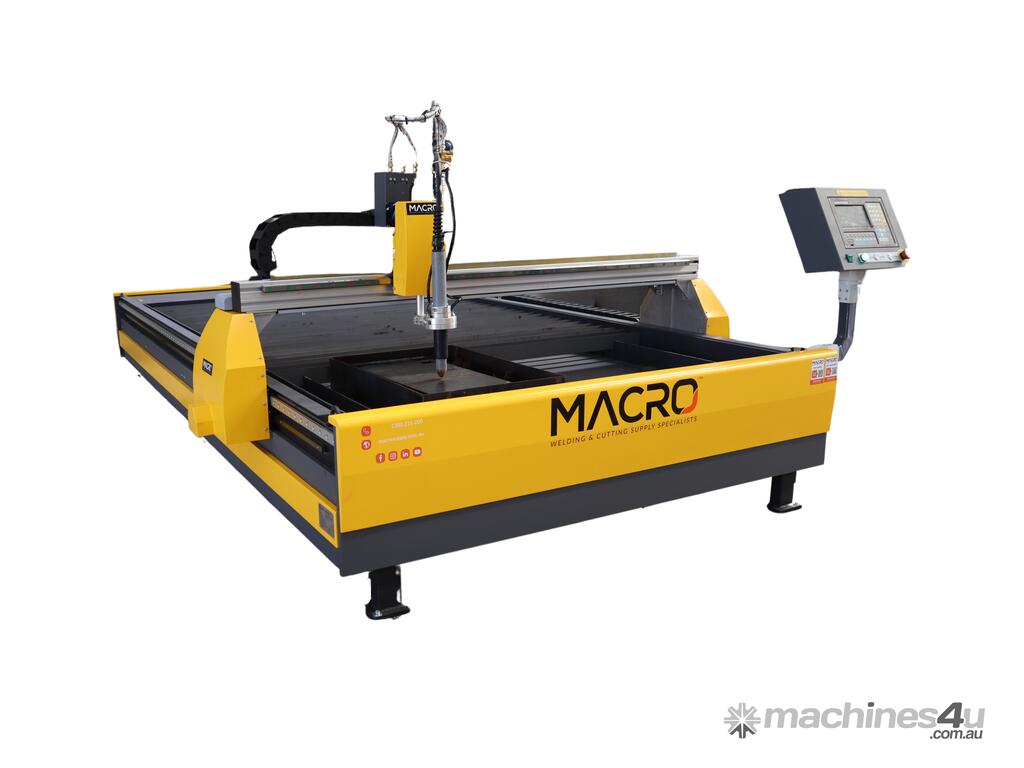

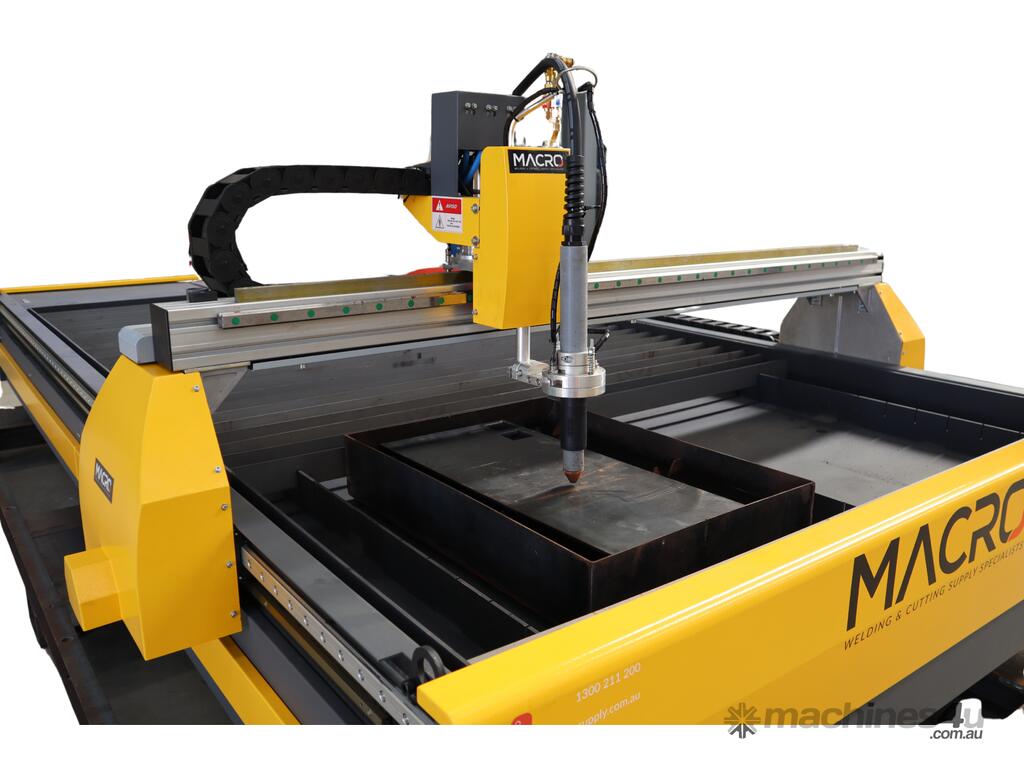

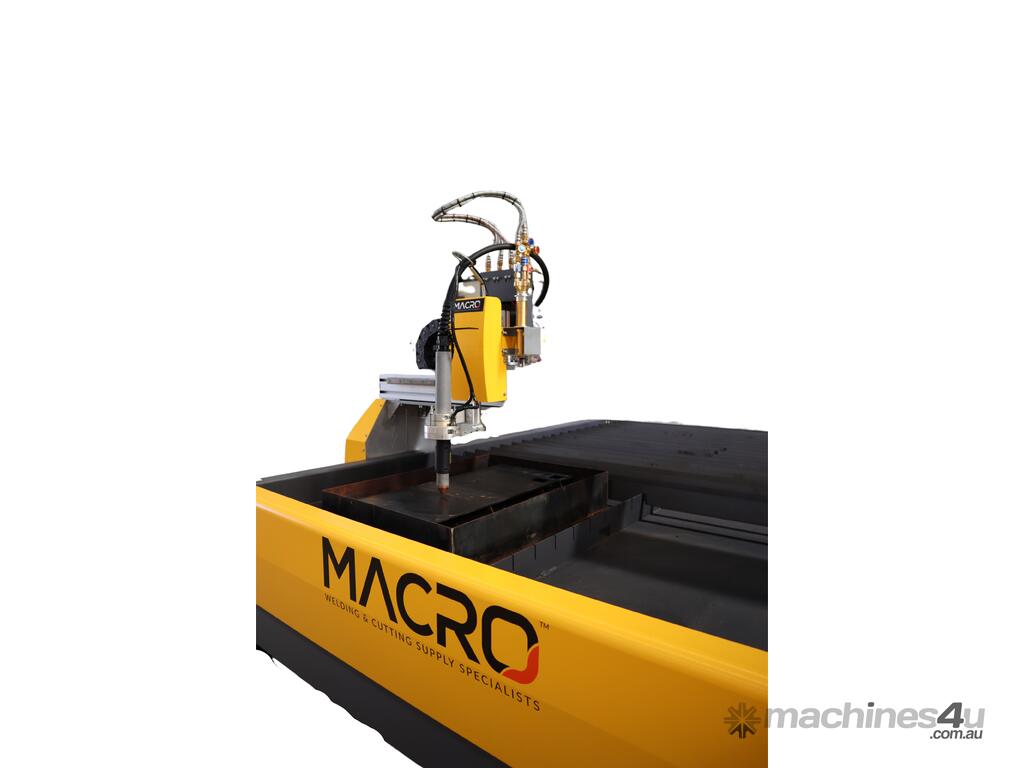

MACRO™ QUANTUM CNC Plasma

DESCRIPTION

The MACRO QUANTUM is an all in one cutting solution. Packed with features and tools to make your cutting and fabrication process a breeze.

Featuring a stand-alone controller giving you more freedom of movement around the machine and the ability to use and access the controls while the machine is in operation.

Its low line bed makes it the perfect solution for lifting heavier materials on and off the cutting bed, it also provides a clearer line of sight across the entire cutting area.

Best suited to start-up engineering and fabrication shops, the MACRO QUANTUM is the perfect commercial-grade entry system to get you up and running and increasing your production efficiencies.

We have customers from all industries cutting with the power and precision that the MACRO QUANTUM has to offer... just to mention a few areas of application from our current customers, metal fabricators, TAFE's and Uni's, artists, craftspeople, shed manufacturers, machine engineering and production... and much more!

Delivering premium cut quality, the MACRO QUANTUM can pierce up to 25mm thick at a speed of up to 9,000mm per minute!  (depending on the plasma source selected).

Capable of cutting a variety of materials - including, but not limited to; mild steel, stainless steel, aluminium, copper, brass, zinc + much more!


It can even cut corrugated metals and mesh!


Not sure if this is the right solution for you?
You can call, or message our team to have a chat about your business and what type of solution would best suit your application, and also help you out with trade pricing.

Features + Benefits (Cutting Bed + Controller):


Lifetime Aussie Tech + Technical Support
High quality + heavy duty structure
FastCam Software - Australian owned operated & supported
Fume controlled via waterbed
Built-in controller
Gas cutting ready
Safe auto ignition
User-friendly USB port for input & output of programs
Plug + Play - Quick & easy installation
Flexible Functionality - Can use either compressed air or gas
Large program memory

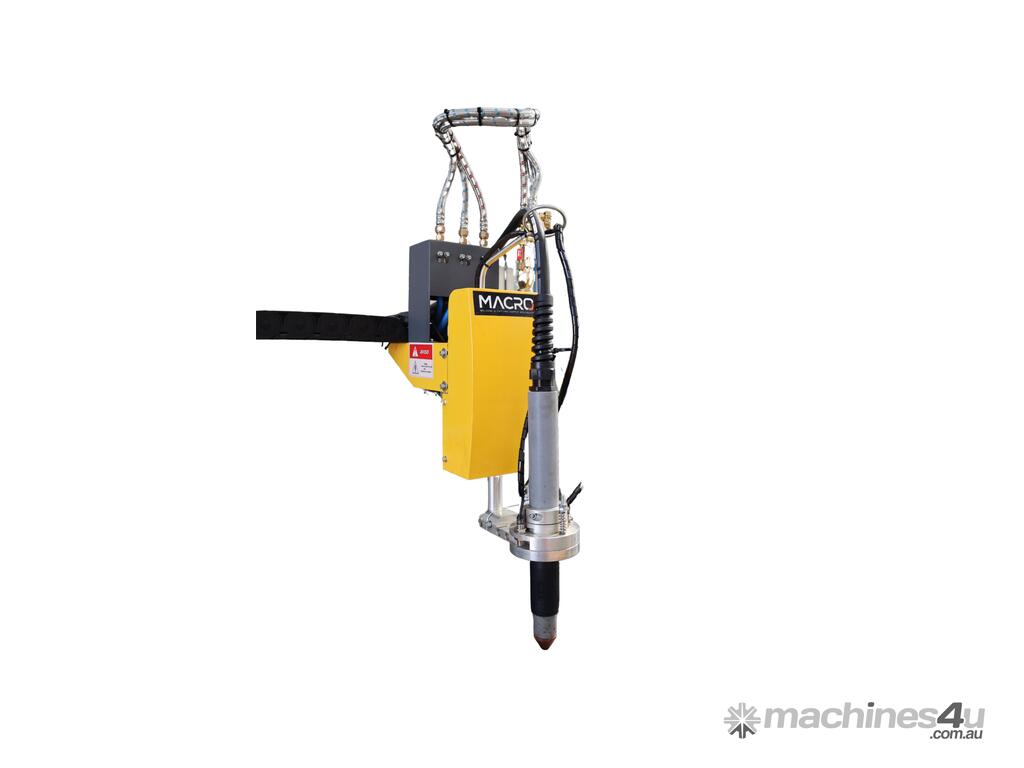

Auto-torch height control
Economical - Low operation cost
Multi-function - cut, pierce, bevel
Shape Library - 50 Standard Shapes
Cut up to 9,000mm per minute
Oxy cutting for thicker materials



SOFTWARE

FastCam - Aussie Owned + Supported

Features + Benefits:

The MACRO QUANTUM comes with a suite of supporting FastCam software. The FastCam software suite, is a simple yet powerful package, to get your design from concept to cut. This suite is comprised of 3 major components and is detailed below.

FastCAM

2D Drawing Editor with CAD Tools
Import DXF, DWG, StruCAD, DSTV/NC1, IGES files.
Convert vector-based PDFs to CAM.
Multi-torch & hi-def plasma support
Secondary process support (drilling, marking etc)
Integrated postprocessors with ESSI, EIA machine language support
Interpret/clean/compress CAD files
Edit and Output NC code
CAD part extraction and cut list
Output (Fast)CAM, DXF, IGES & NC code.
Kerf compensation (offset)
Reverse engineer NC files
Convert holes to points (for drilling)
Line & drill point marking
Tabbing & ability to move pierce points
Manual tool pathing
Automatic tool pathing
Multi torch cutting
Multi torch variable cutting
Bulk processing of files
Marking
FastCAM Text Marking -for part ID (with scribe)

FastNEST


Automatic nesting from the cut list

Automatic nest analysis & collision check

Full Shape Nesting - DXF, DWG, NC, CAM, DSTV

Triangular (odd shape) Nesting

Manual Array Nesting

Automatic Array Nest (matches similar size parts)

Remnant Nesting (nest into the cut plate)

Manual Nesting (add parts one at a time)

Interactive Nesting (jostle, move, rotate parts)

Automatic Nesting (nest multiple parts based on your settings)

Common Cut Nesting

[Simple] Bridging (manually connect parts)

Bridge Nesting (various automatic options)

Chain cutting & Stitch cutting

Single plate nesting

Nesting over multiple plates

Cut Nest by Process OR Part

Part Marking in Nesting (visual ID)

Movement Thermal Analysis

Gas Axe (skeleton breakup) Automatic

Gas Axe (skeleton breakup) Manual

FastPLOT

Verify NC Code

Estimating data (cut time, distance, material etc)

Simulate cut paths generated in FastCAM or FastNEST

Cost analysis on designs

Generate quotes on designs for clients

SPECIFICATIONS

Table and Controller specifications.
For plasma machine specifications please see the individual machine links in the 'Cut Data' tab.

Bed Size 1.5m x 3m
Fume Control Waterbed
Software FastCam
# Cutting Heads 1
OXY Head (1 x OPTIONAL - NOT STANDARD)
Scriber NONE
Input Voltage 240V - Single Phase
Dimensions (L x W x H - mm) 3880 x 2130 x 1350
Weight (kg) 1,600
Warranty  3 Years on Table



CUT DATA

See below some quick specs, for more information please click on the Plasma Machine name to be taken to its dedicated product page:

MACRO IGNITE 75

Current Range: 25-70 Amps
MAX Pierce Depth: 15mm

MACRO IGNITE 105

Current Range: 20-100 Amps
MAX Pierce Depth: 20mm

MACRO IGNITE 125

Current Range: 25-120 Amps
MAX Pierce Depth: 25mm

Hypertherm Powermax 45

Current Range: 10-45 Amps
MAX Pierce Depth: 12mm

Hypertherm SYNC 65

Current Range: 20-65 Amps
MAX Pierce Depth: 16mm

Hypertherm SYNC 85

Current Range: 25-85 Amps
MAX Pierce Depth: 16mm

Hypertherm SYNC 105

Current Range: 30-105 Amps
MAX Pierce Depth: 22mm
