DESCRIPTION

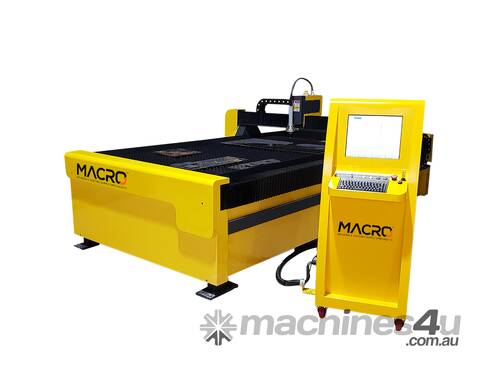

The MACRO X-TREME is designed with strength and consistency in mind, making it the perfect option for continuous and high volume use.
The dual gantry system, paired with high-quality stepper motors and gears, gives every cut a smooth and consistent finish 24/7!
It is also the first model in the MACRO CNC range to offer the option of fume control systems. Choose between a Waterbed or Fume Extraction System; which depending on your planned usage can increase your production efficiencies even further.
The freestanding controller also gives you greater ease of use while your machine is in operation, and greater workshop flexibility, as you are able to roll the controller around the table.
Best suited to businesses who are planning on doing large amounts of cutting and looking for a commercial-grade machine that provides smooth and consistent cuts every time.
We have customers from all industries cutting with the power and precision that the MACRO X-TREME has to offer... just to mention a few areas of application from our current customers, metal fabricators, TAFE's and Uni's, artists, craftspeople, shed manufacturers, machine engineering and production... and much more!
Delivering premium cut quality, the MACRO X-TREME can pierce up to 25mm thick at a speed of up to 10,000mm per minute! (depending on the plasma source selected).
Capable of cutting a variety of materials - including, but not limited to; mild steel, stainless steel, aluminium, copper, brass, zinc + much more!
It can even cut corrugated metals and mesh!
Not sure if this is the right solution for you?
You can call, or message our team to have a chat about your business and what type of solution would best suit your application, and also help you out with trade pricing.
Features + Benefits (Cutting Bed + Controller):
Lifetime Aussie Tech + Technical Support
High quality + heavy duty structure
FastCam Software - Australian owned operated & supported
Fume controlled via waterbed
Built-in controller
Gas cutting ready
Safe auto ignition
User-friendly USB port for input & output of programs
Plug + Play - Quick & easy installation
Flexible Functionality - Can use either compressed air or gas
Large program memory
Auto-torch height control
Economical - Low operation cost
Multi-function - cut, pierce, bevel
Shape Library - 50 Standard Shapes
Cut up to 10,000mm per minute
Oxy cutting for thicker materials
SOFTWARE
The MACRO X-TREME comes with a suite of supporting FastCam software. The FastCam software suite, is a simple yet powerful package, to get your design from concept to cut. This suite is comprised of 3 major components and is detailed below.
FastCAM
2D Drawing Editor with CAD Tools
Import DXF, DWG, StruCAD, DSTV/NC1, IGES files.
Convert vector-based PDFs to CAM.
Multi-torch & hi-def plasma support
Secondary process support (drilling, marking etc)
Integrated postprocessors with ESSI, EIA machine language support
Interpret/clean/compress CAD files
Edit and Output NC code
CAD part extraction and cut list
Output (Fast)CAM, DXF, IGES & NC code.
Kerf compensation (offset)
Reverse engineer NC files
Convert holes to points (for drilling)
Line & drill point marking
Tabbing & ability to move pierce points
Manual tool pathing
Automatic tool pathing
Multi torch cutting
Multi torch variable cutting
Bulk processing of files
Marking
FastCAM Text Marking -for part ID (with scribe)
FastNEST
Automatic nesting from the cut list
Automatic nest analysis & collision check
Full Shape Nesting - DXF, DWG, NC, CAM, DSTV
Triangular (odd shape) Nesting
Manual Array Nesting
Automatic Array Nest (matches similar size parts)
Remnant Nesting (nest into the cut plate)
Manual Nesting (add parts one at a time)
Interactive Nesting (jostle, move, rotate parts)
Automatic Nesting (nest multiple parts based on your settings)
Common Cut Nesting
[Simple] Bridging (manually connect parts)
Bridge Nesting (various automatic options)
Chain cutting & Stitch cutting
Single plate nesting
Nesting over multiple plates
Cut Nest by Process OR Part
Part Marking in Nesting (visual ID)
Movement Thermal Analysis
Gas Axe (skeleton breakup) Automatic
Gas Axe (skeleton breakup) Manual
FastPLOT
Verify NC Code
Estimating data (cut time, distance, material etc)
Simulate cut paths generated in FastCAM or FastNEST
Cost analysis on designs
Generate quotes on designs for clients
SPECIFICATIONS
Table and Controller specifications.
For plasma machine specifications please see the individual machine links in the 'Cut Data' tab.
Bed Size 1.5m x 3m
Fume Control Waterbed
Software FastCam
# Cutting Heads 1
OXY Head (1 x OPTIONAL - NOT STANDARD)
Scriber NONE
Input Voltage 240V - Single Phase
Dimensions (L x W x H - mm) 3880 x 2130 x 1350
Weight (kg) 1,600
Warranty 3 Years on Table
CUT DATA
See below some quick specs, for more information please click on the Plasma Machine name to be taken to its dedicated product page:
MACRO IGNITE 75
Current Range: 25-70 Amps
MAX Pierce Depth: 15mm
MACRO IGNITE 105
Current Range: 20-100 Amps
MAX Pierce Depth: 20mm
MACRO IGNITE 125
Current Range: 25-120 Amps
MAX Pierce Depth: 25mm
Hypertherm Powermax 45
Current Range: 10-45 Amps
MAX Pierce Depth: 12mm
Hypertherm SYNC 65
Current Range: 20-65 Amps
MAX Pierce Depth: 16mm
Hypertherm SYNC 85
Current Range: 25-85 Amps
MAX Pierce Depth: 16mm
Hypertherm SYNC 105
Current Range: 30-105 Amps
MAX Pierce Depth: 22mm
