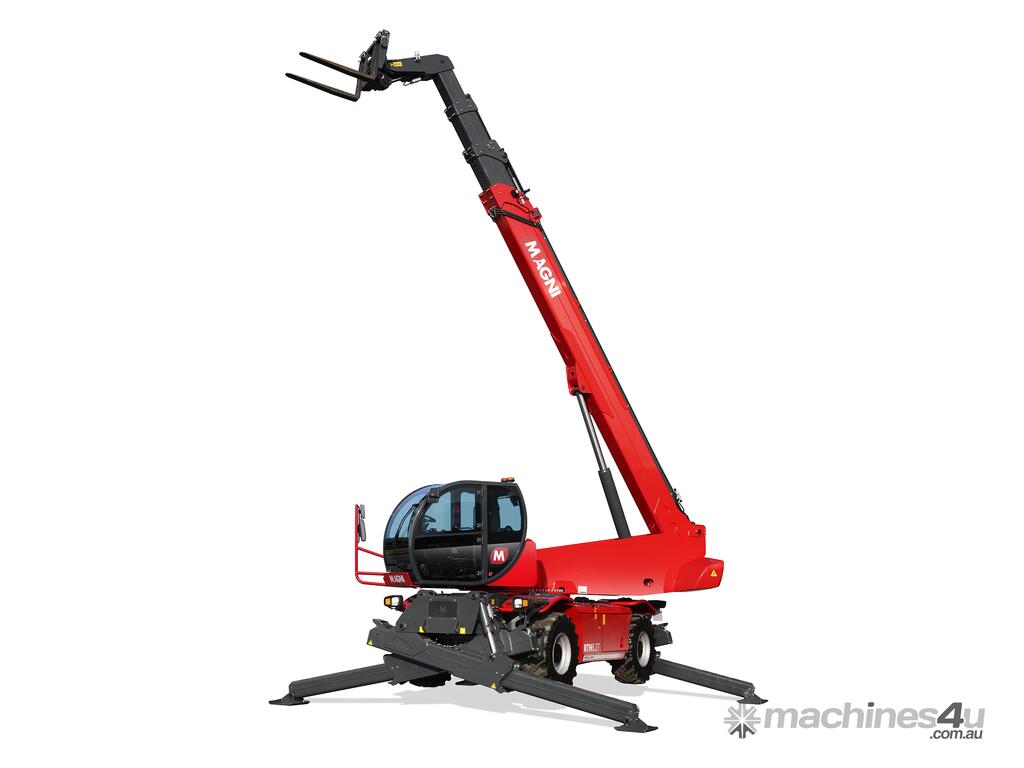

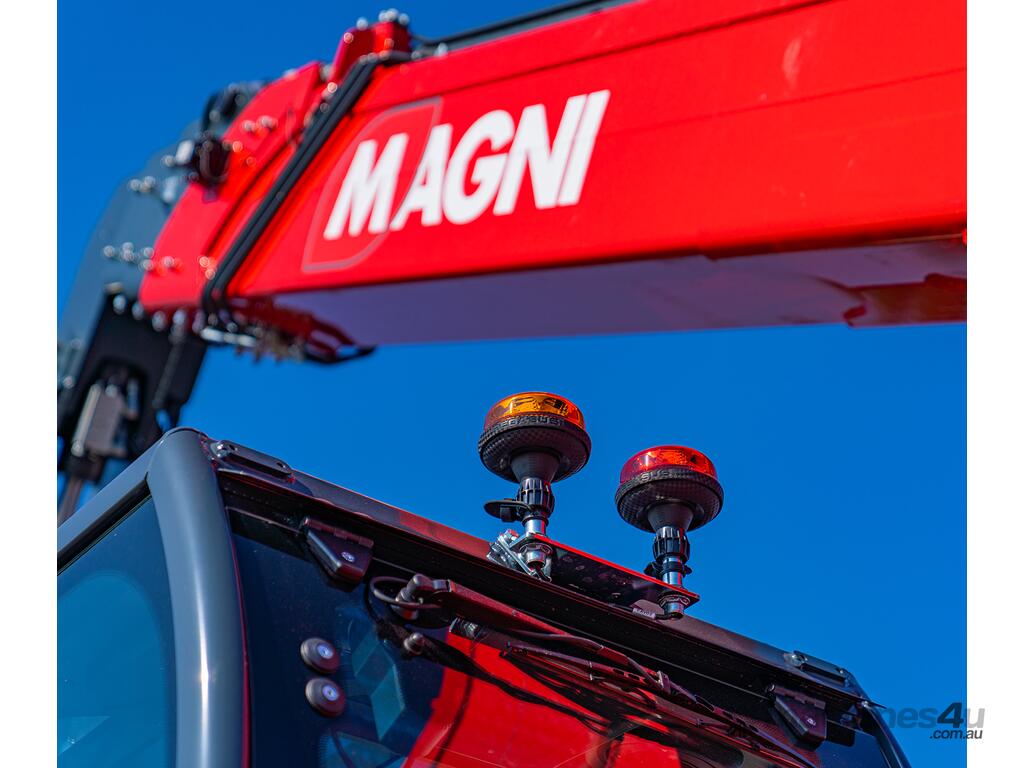

The RTH 8.27 is a rotary telescopic lift with a large lifting capacity. In fact, it has a maximum capacity of 8 tons which is extraordinarily effective on construction sites or industrial sites that require high load capacities. For operator safety, the tilt corrector and scissor stabilizers with large support pads offer excellent stability in all circumstances, guaranteeing perfect grip on all types of terrain. Scissor stabilizers are optimal even in small spaces, even if partially stabilized, the machine is programmed to guarantee the best possible load diagram on each side.
On the other hand, when the stabilizers are fully extended, they guarantee optimal machine performance on all 360 °, being able to work on a much wider stabilization basis. Compatible with a wide range of accessories, thanks also to the RFID system that allows the automatic recognition of the accessories and the consequent creation of the relative load diagrams, this lift is able to respond to countless applications in the construction and industry sectors heavy.
TECHNICAL FEATURES
Stabilizers : scissor
Lifting capacity : 8000 kg
Capacity at maximum height : 5300 kg
Lifting height : 24.90 m
Outreach : 21.10 m
Engine : Volvo TAD 583 VE - Stage 3, 4 or 5
Nominal power : 175 kW (238 hp) at 2,300 rpm
Number of gears : 2/2
Hydraulic system : Load sensing 350 bar
Length : 7.95 m
Width : 2.54 m
Ground clearance : 300mm
Empty weight : 24,000 kg
Travel speed : 25 km / h
Rotation : 360 ° (continuous)
Standard air conditioning : Yes
Automatic accessory recognition : Yes
