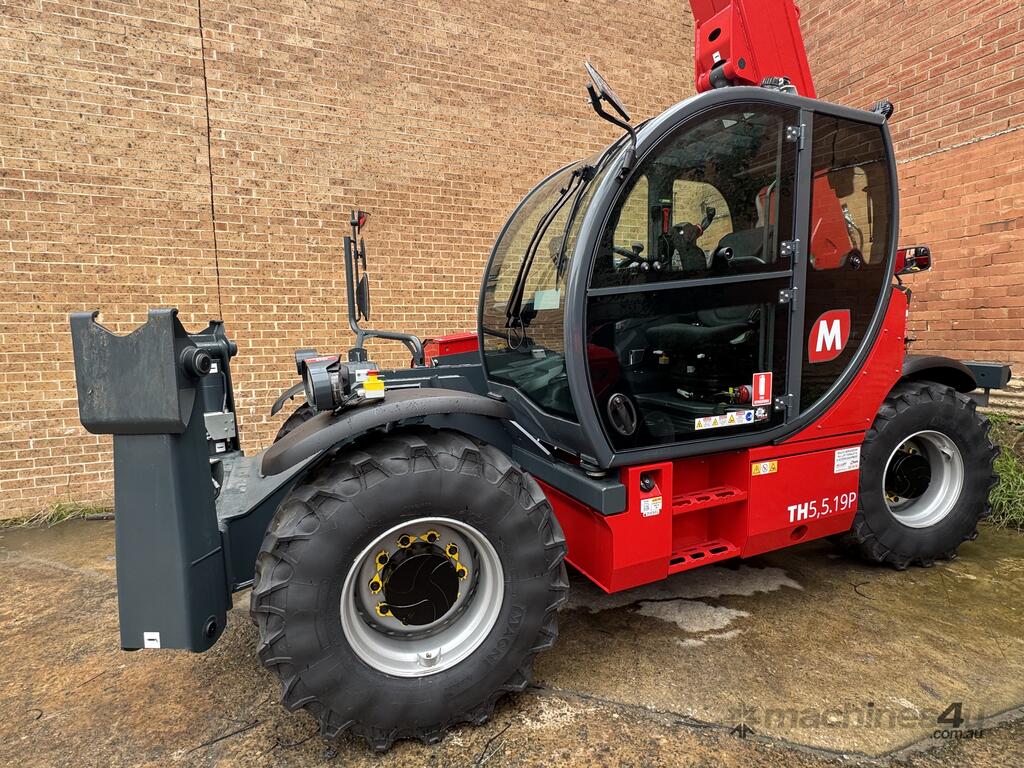

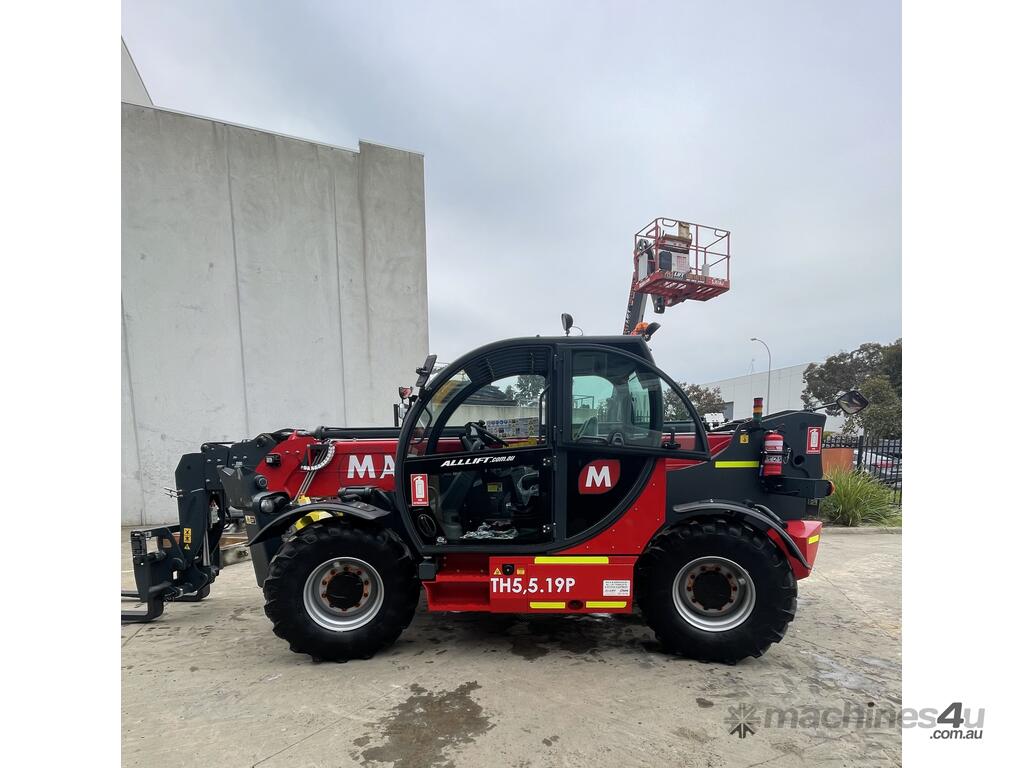

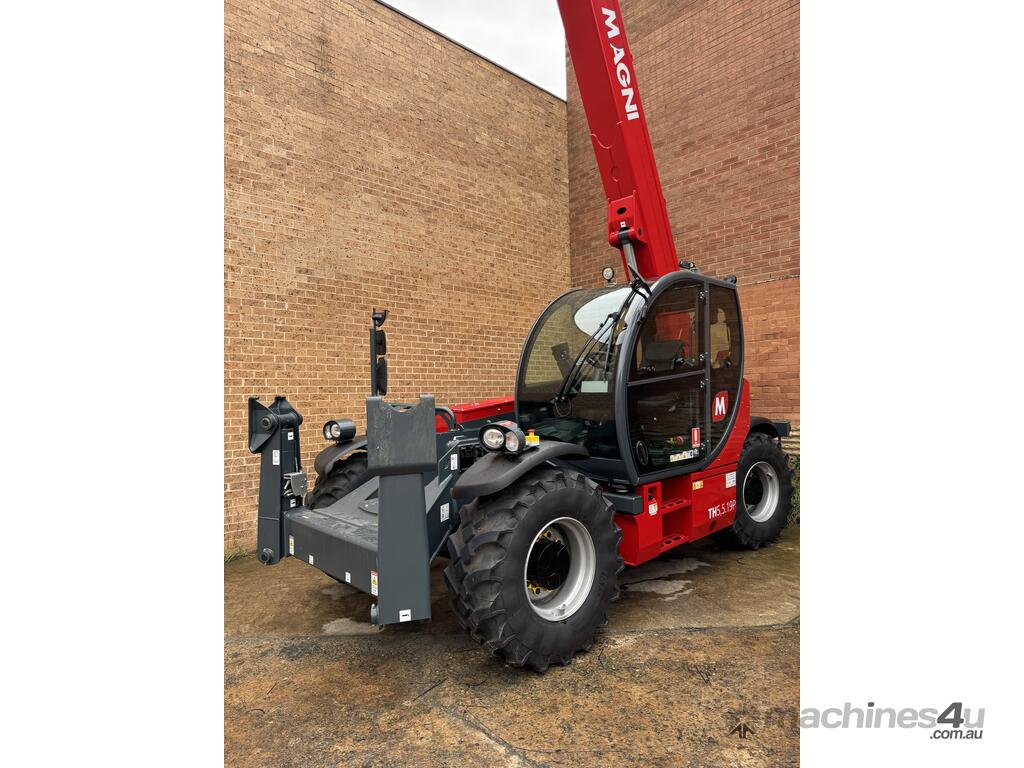

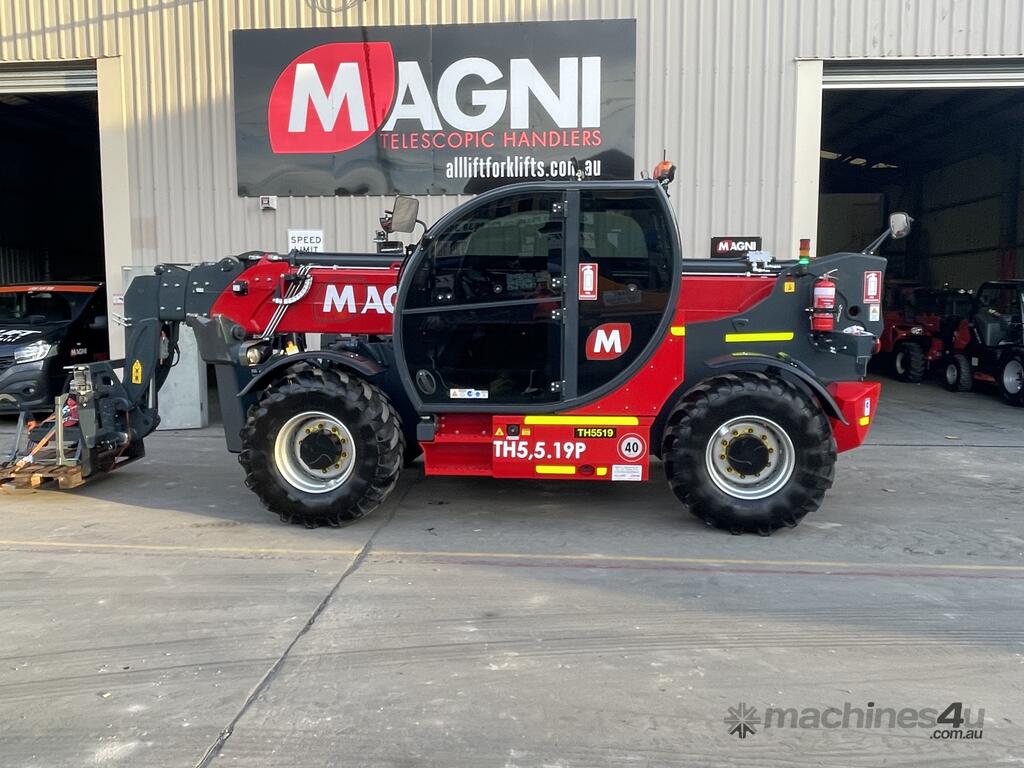

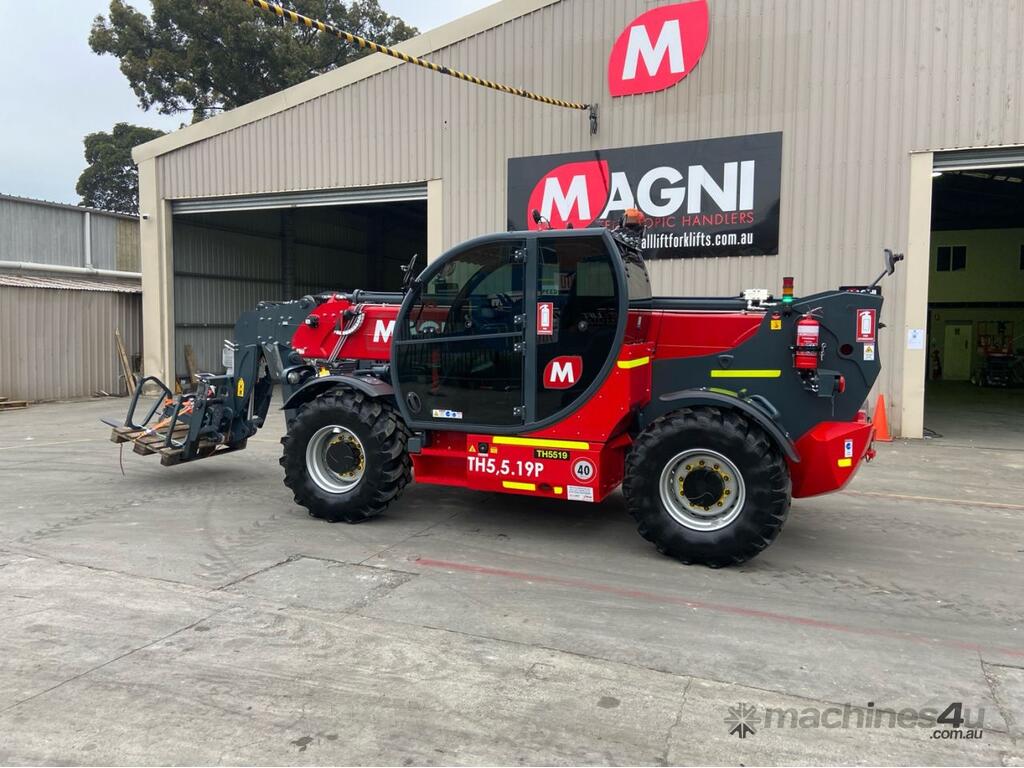

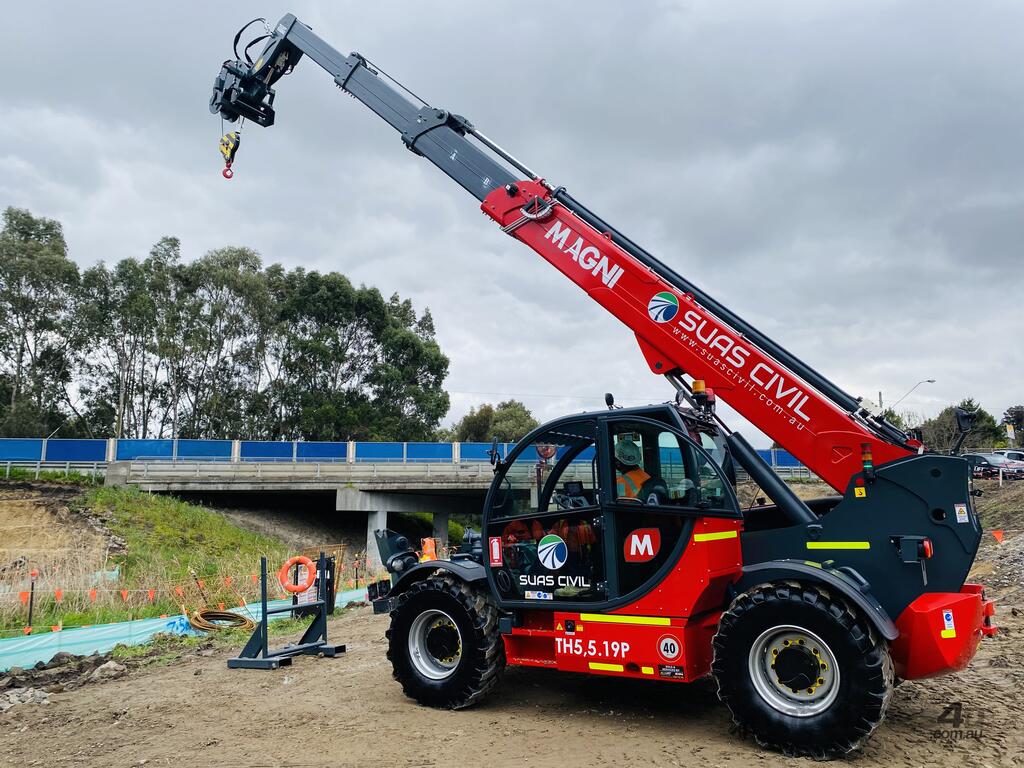

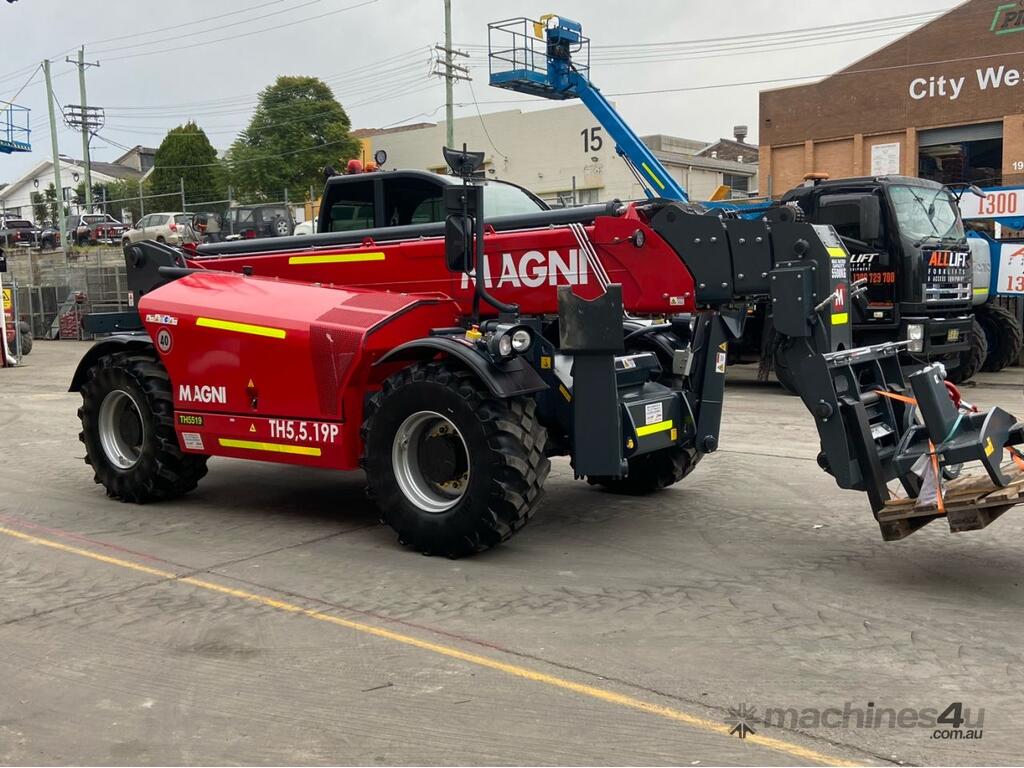

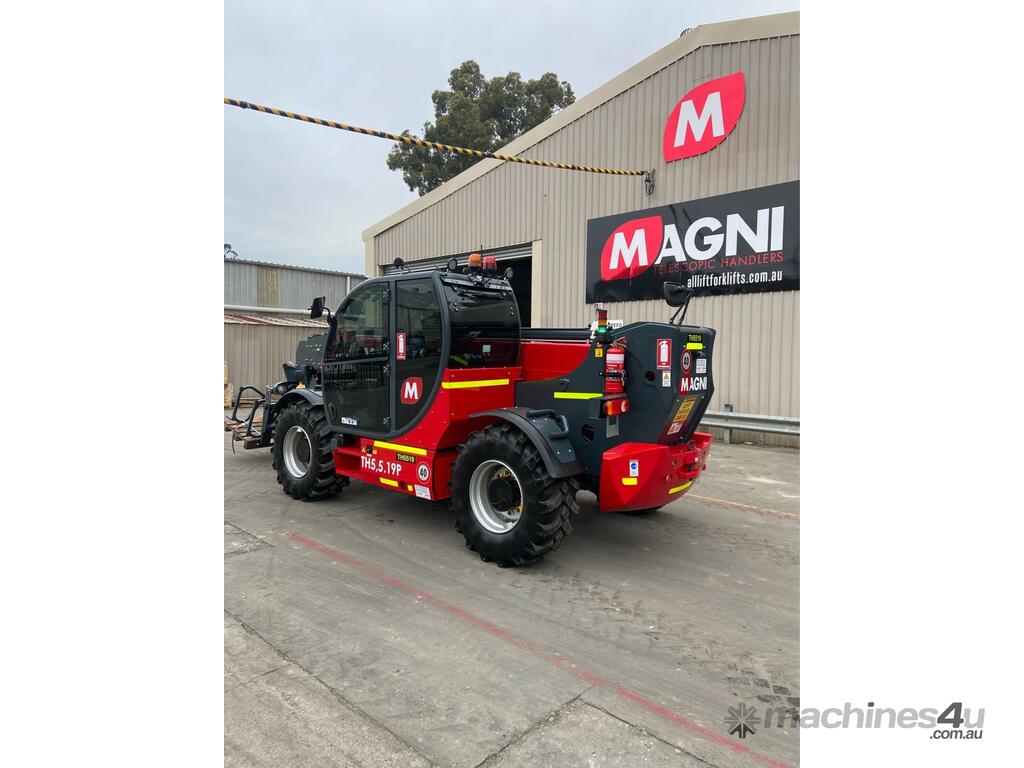

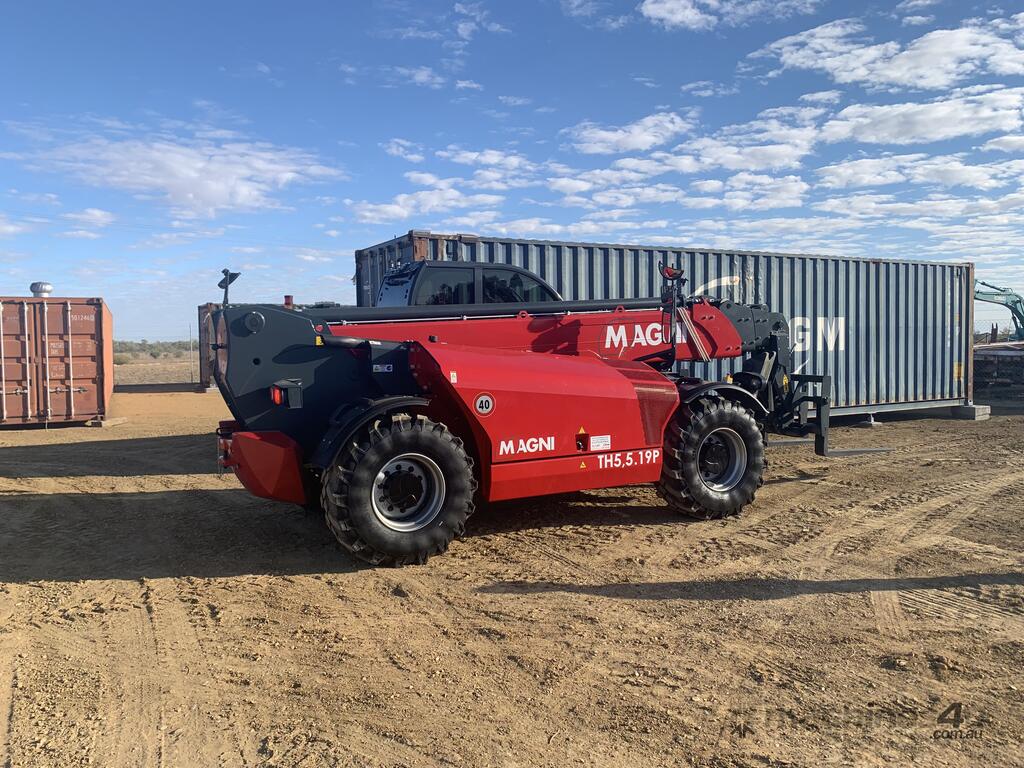

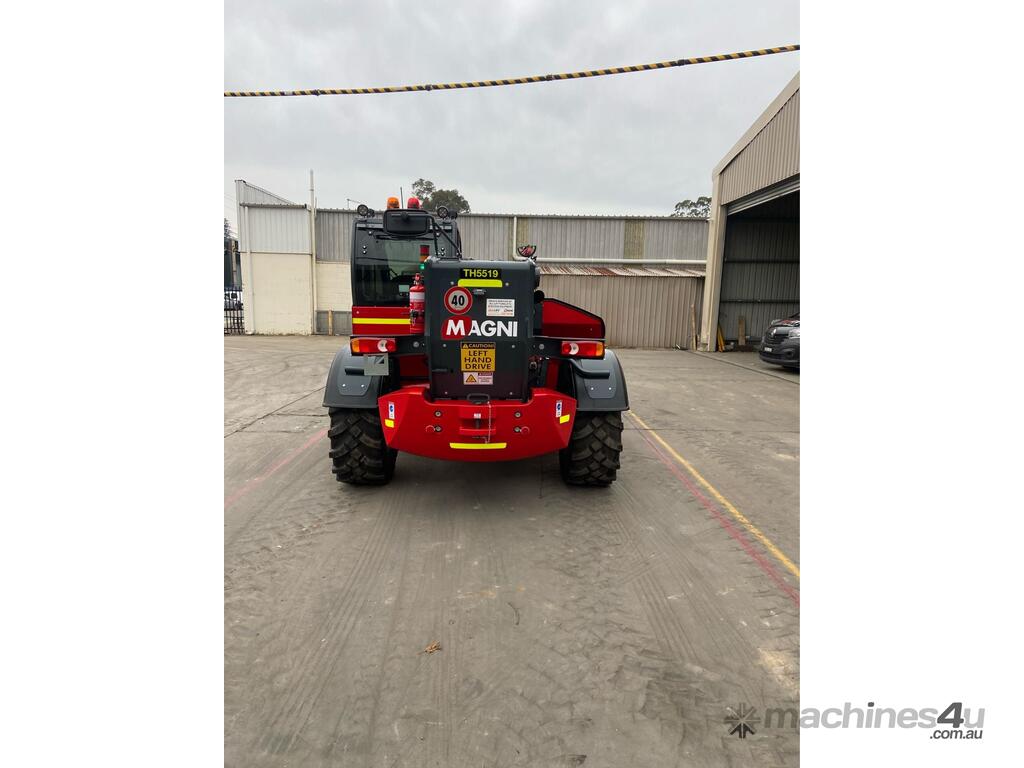

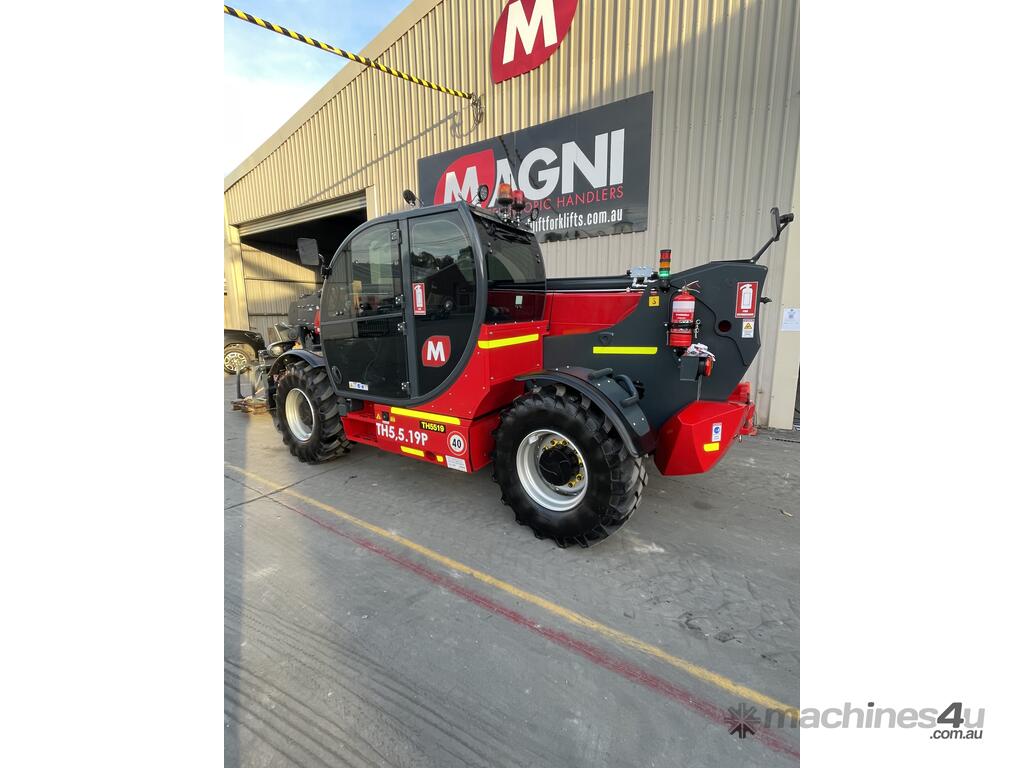

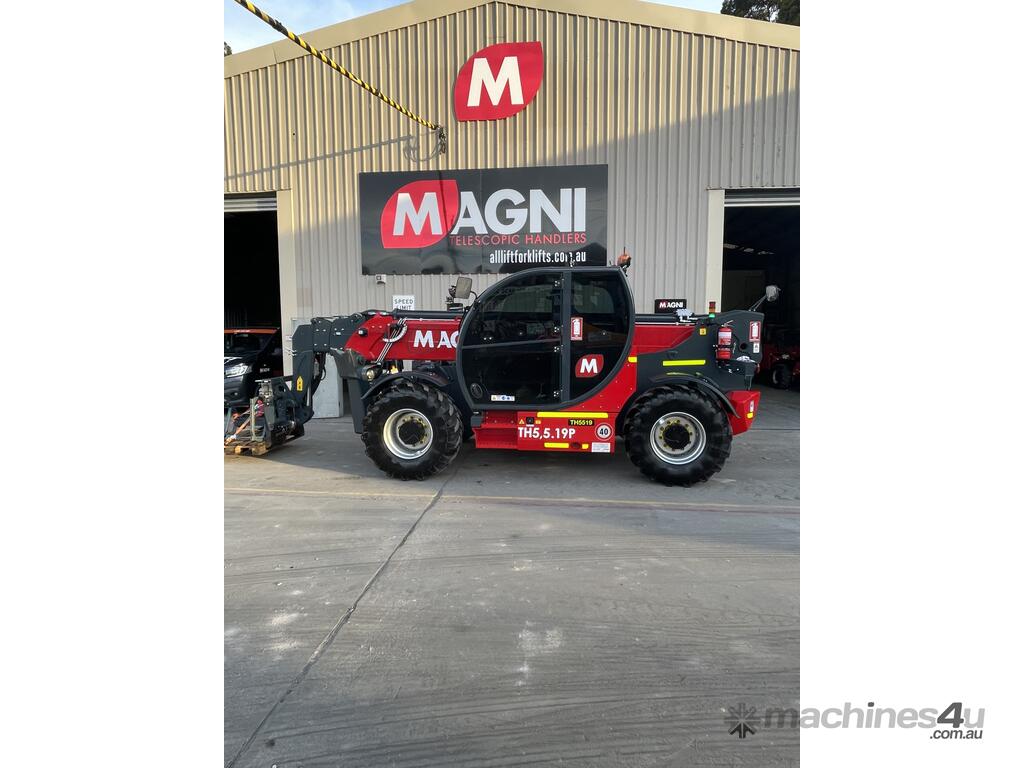

MAGNI TH5.5-19P TELEHANDLER

The TH5.5-19P is a stationary telescopic handler specifically designed for demanding light industrial environments. It is propelled by a Deutz engine with 75 kW of power, enabling safe operation at a remarkable height of 18.80 meters on challenging terrain. This capability is made possible by its 4-wheel drive system and an automated levelling mechanism that adjusts both the wheels and stabilizers to ensure stability even on rugged ground.

The hydrostatic transmission system provides precise control and exceptional manoeuvrability, enhancing its overall performance. This versatile machine is compatible with a diverse array of attachments, and it is equipped with the advanced R.F.ID system, which facilitates the automatic recognition of attachments and the generation of corresponding load charts.

Additionally, this model features a tire-based levelling system, giving the operator the ability to fine-tune the machine's inclination. This valuable feature ensures access to the complete load diagram for all types of operations, even when the natural slope of the terrain might impact lifting performance under typical conditions."

Technical Features

o Lowered design for great stability
o Available in 75 kW Engine Tier III
o Standard pivoting stabilisers for optimised lifting capacities up to 5.5T
o 350 bar L/S hydraulic system
o 4WD Three Steering System
o Dynamic LMI System (compliance to all crane regulations)

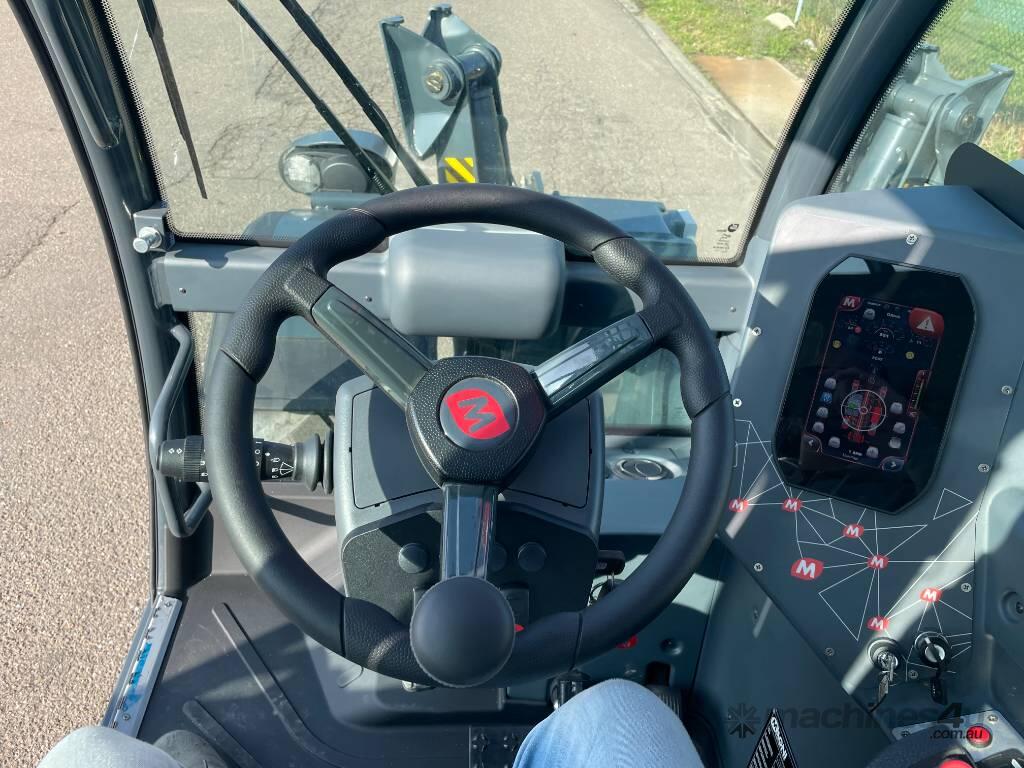

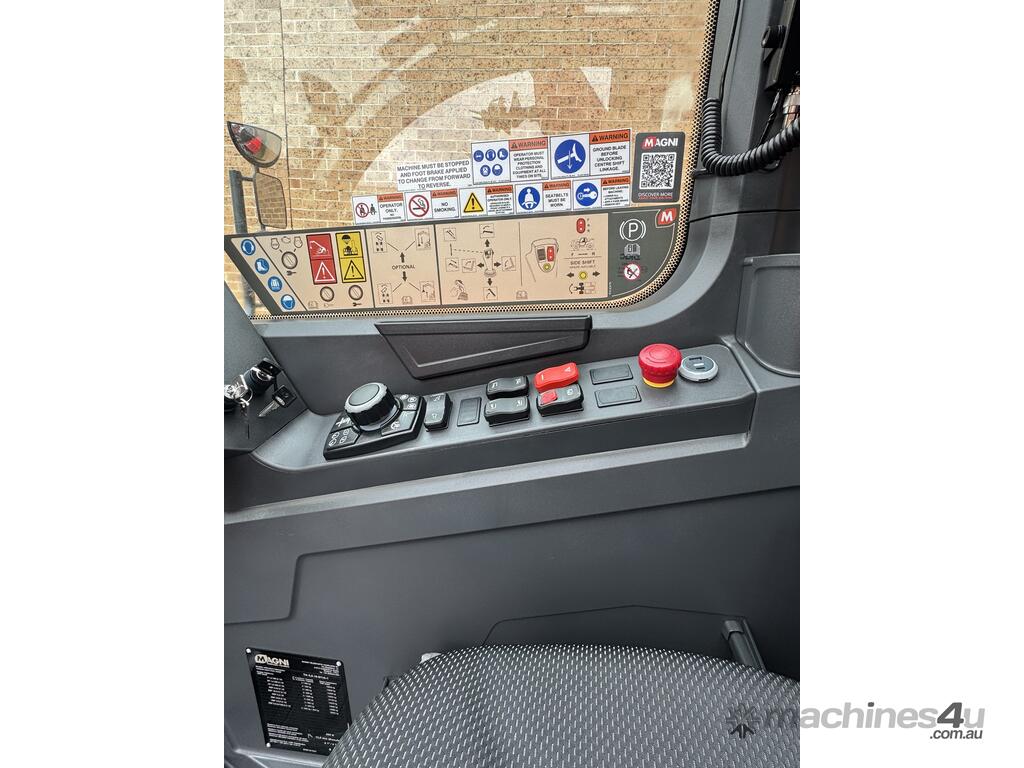

o Pressurised cabin 100% Air Filtrated
o ROPS II & FOPS

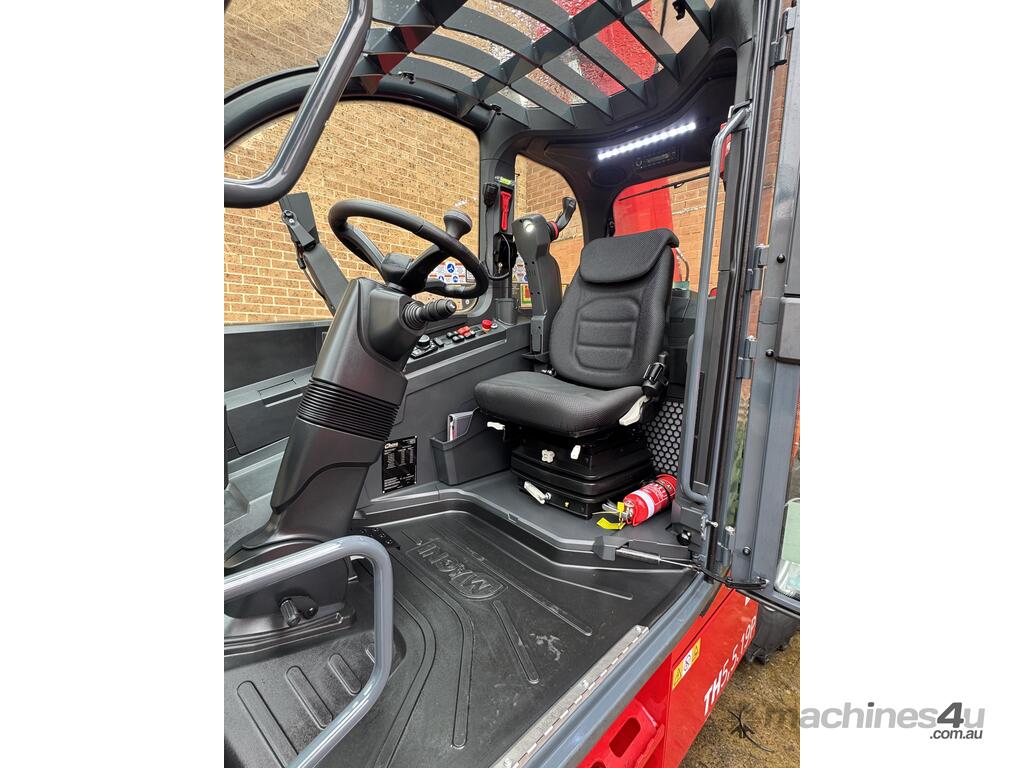

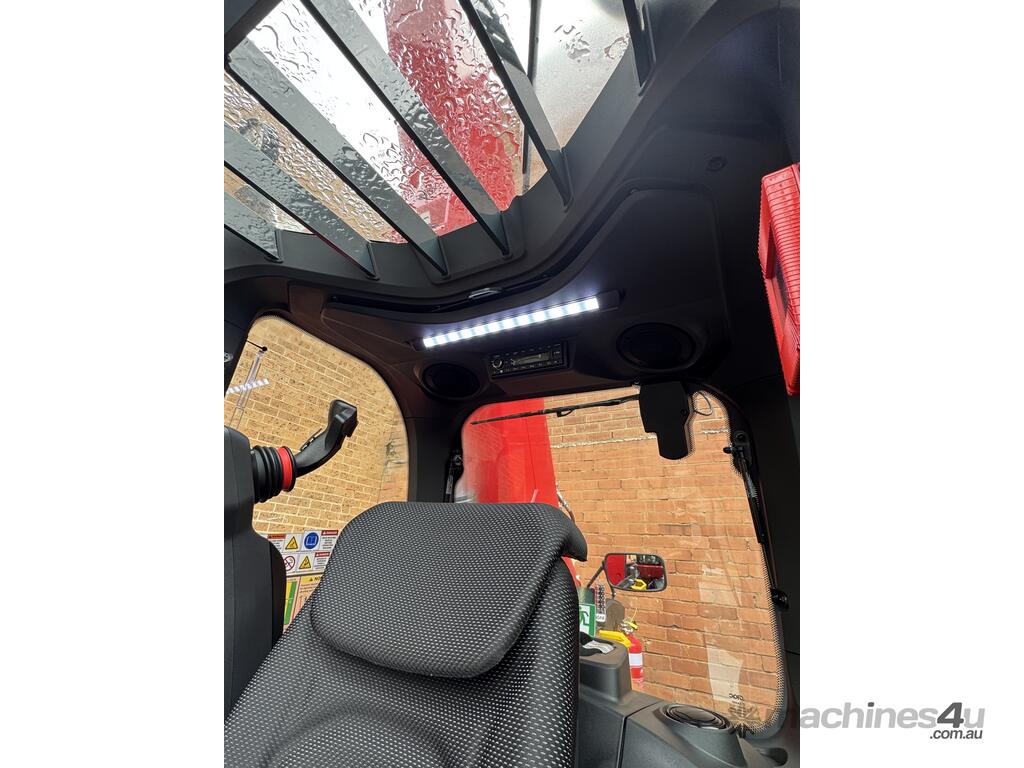

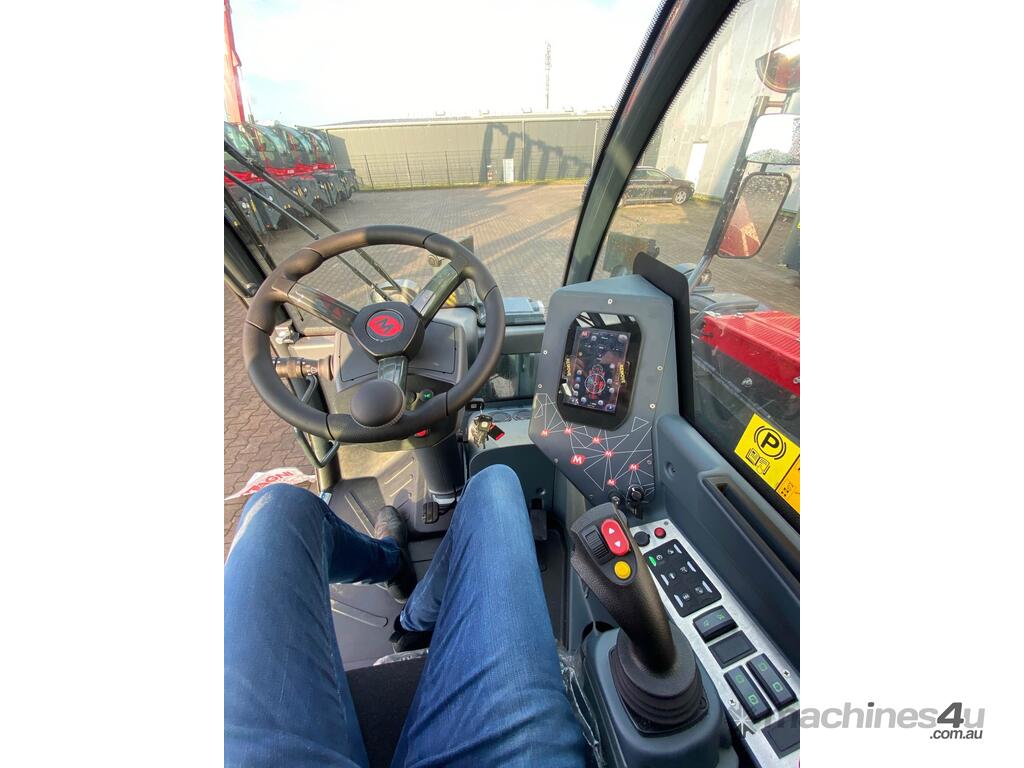

o Full visibility cabin
o Levelling on all tyres
o Telemetrics as standard
o Auto levelling outriggers
o Stabilisers: Pivoting
o Lifting capacity: 5.500 kg
o Capacity at maximum height: 3.500 kg
o Lifting height: 14,80 m
o Reach: 10,40 m
o Engine: Deutz TCD 3,6 L4 Stage III
o Rated power: 74,40 kW (101,20 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6,39 m
o Width: 2.00 m
o Ground clearance: 410 mm
o Unladen weight: 13.500 kg
o Travel speed: 35 km/h
o Climate control as standard: Yes
o Automatic accessory recognition: Yes
