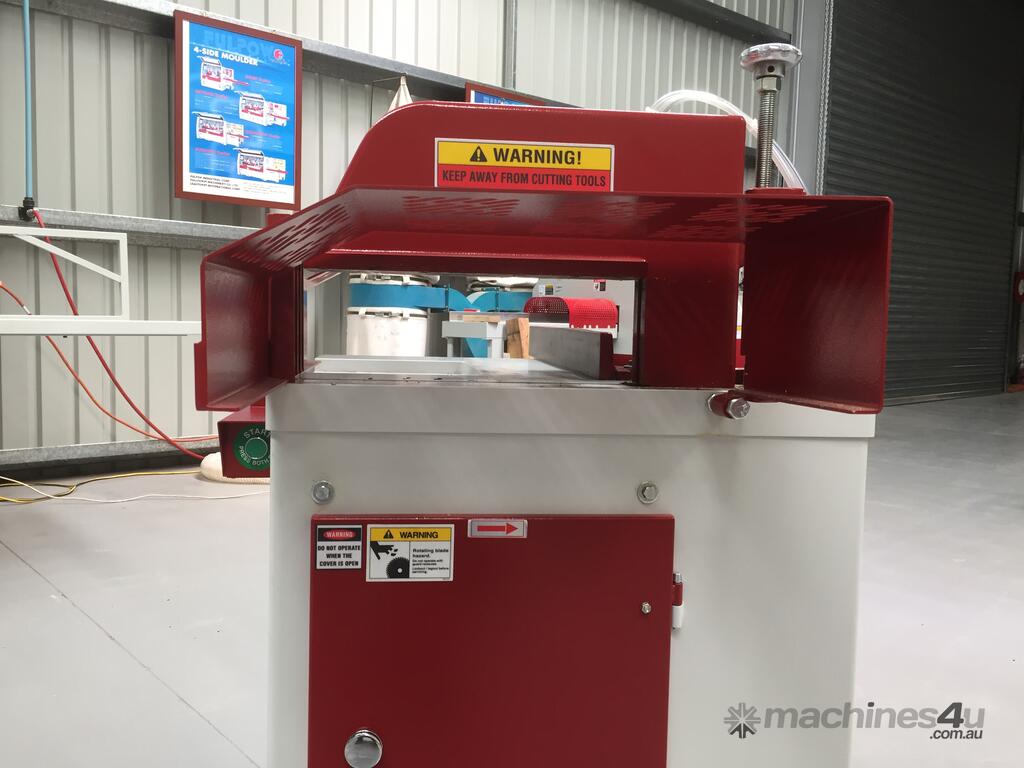

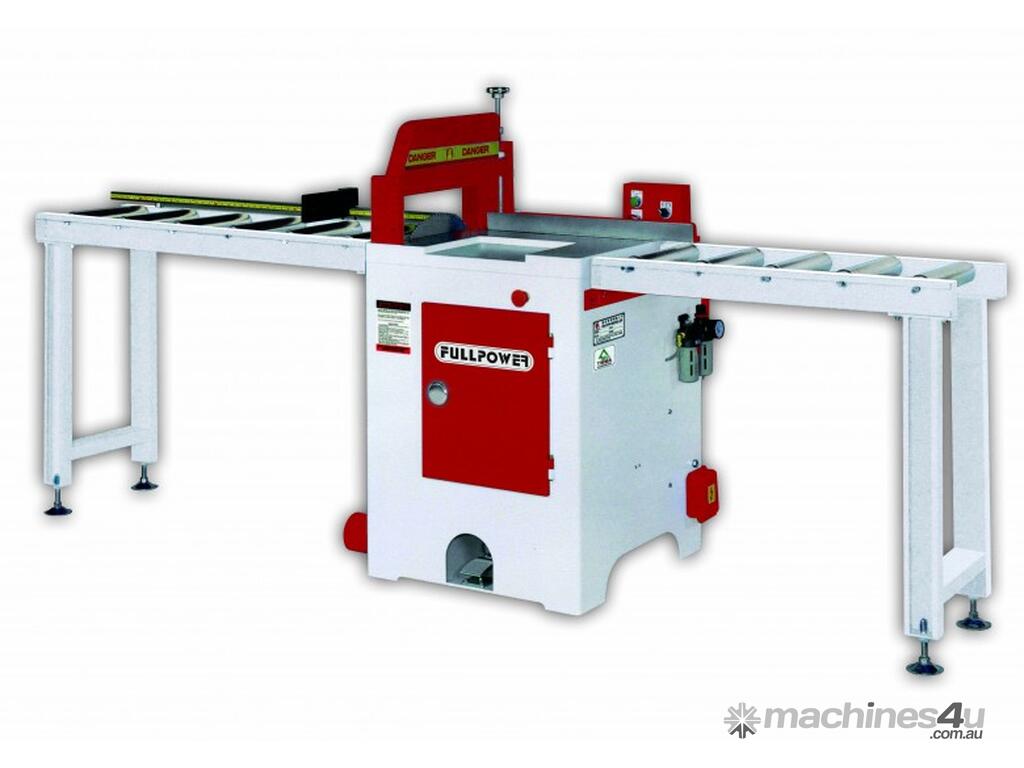

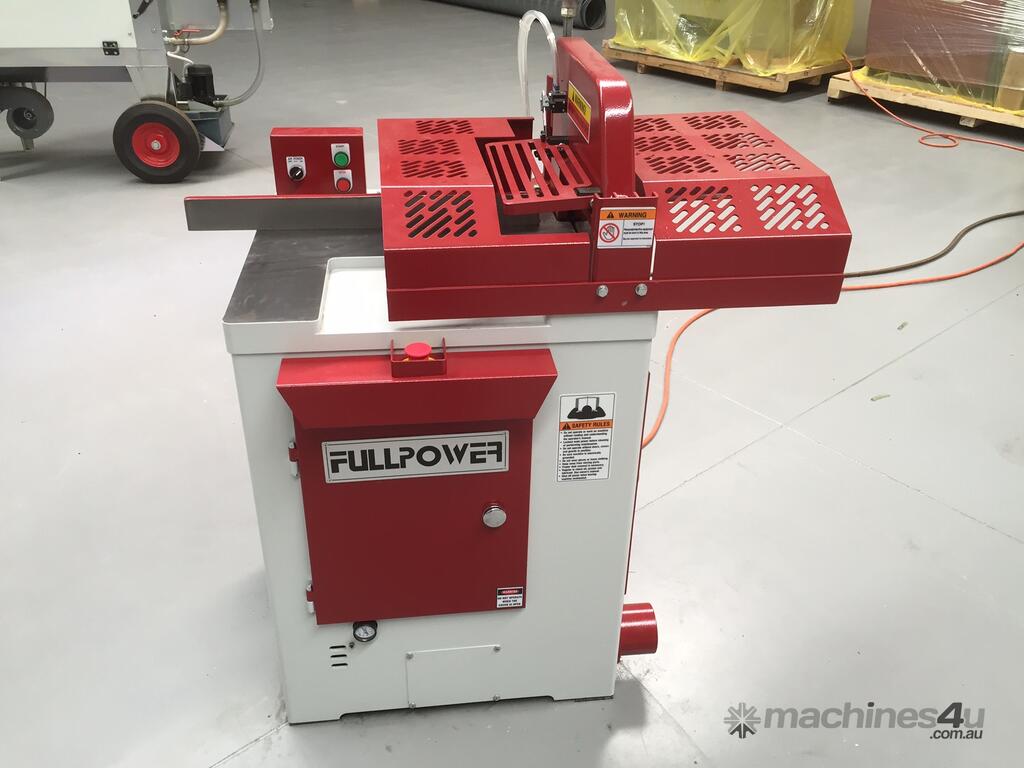

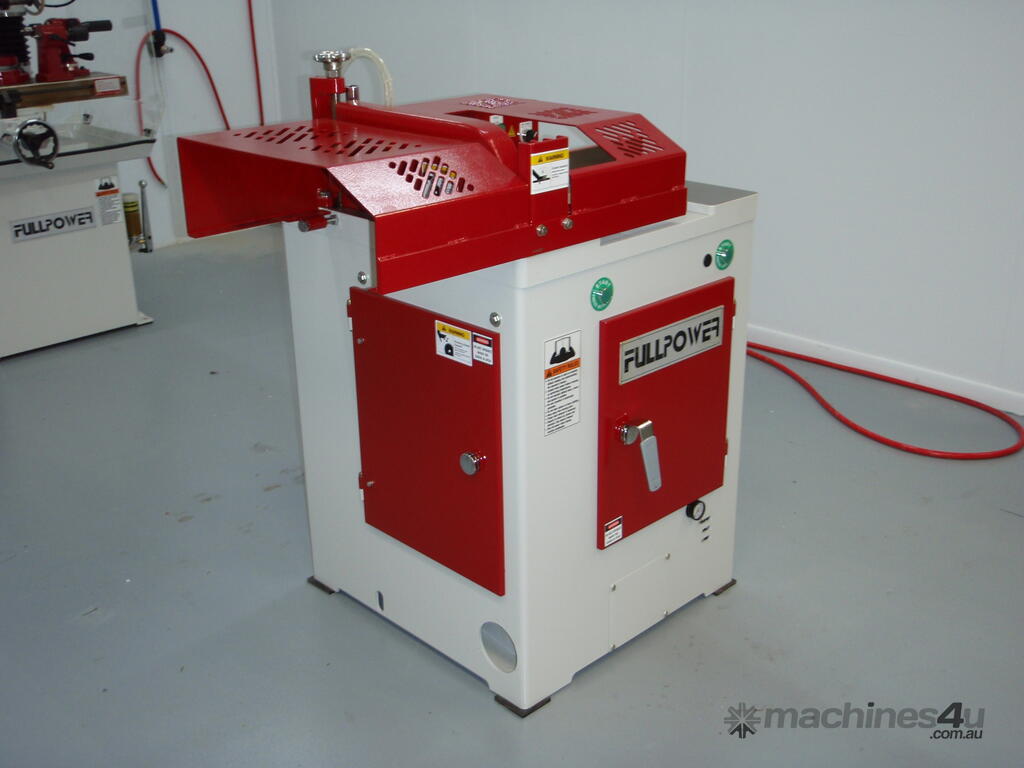

The FCS-18S is a solid 18” pneumatically operated docking saw suitable for most square docking applications. With twin button control & extended safety guards this machine is a safe alternative for all square docking applications.
SPECIFICATIONS:-
Max. width of timber 320mm
Max. thickness of timber 100mm
Saw diameter 450mm
Saw speed 3050rpm
Cutting cycle 40 - 50 cuts per minute (approx.)

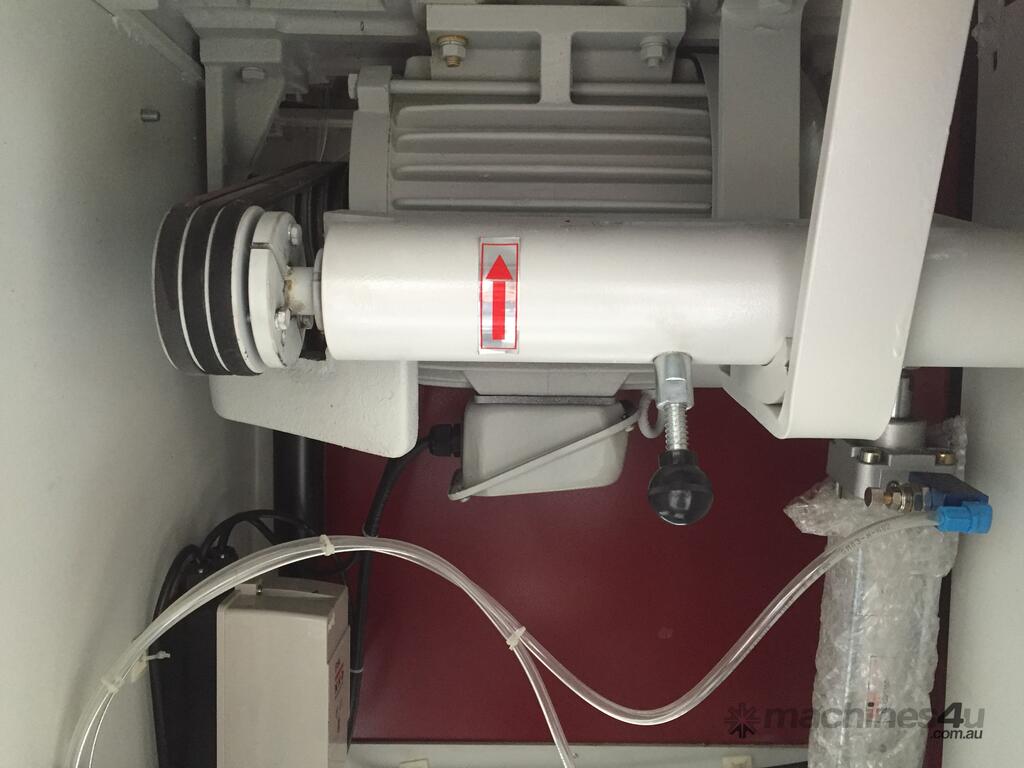

Saw motor 5.5kw
Table height 840mm
Table size 660mm x 700mm
Net weight 350kg
Working pressure 4-5kg/cm2
STANDARD EQUIPMENT INCLUDED WITH MACHINE:-
Pneumatic safety switch
300mm Extension guards

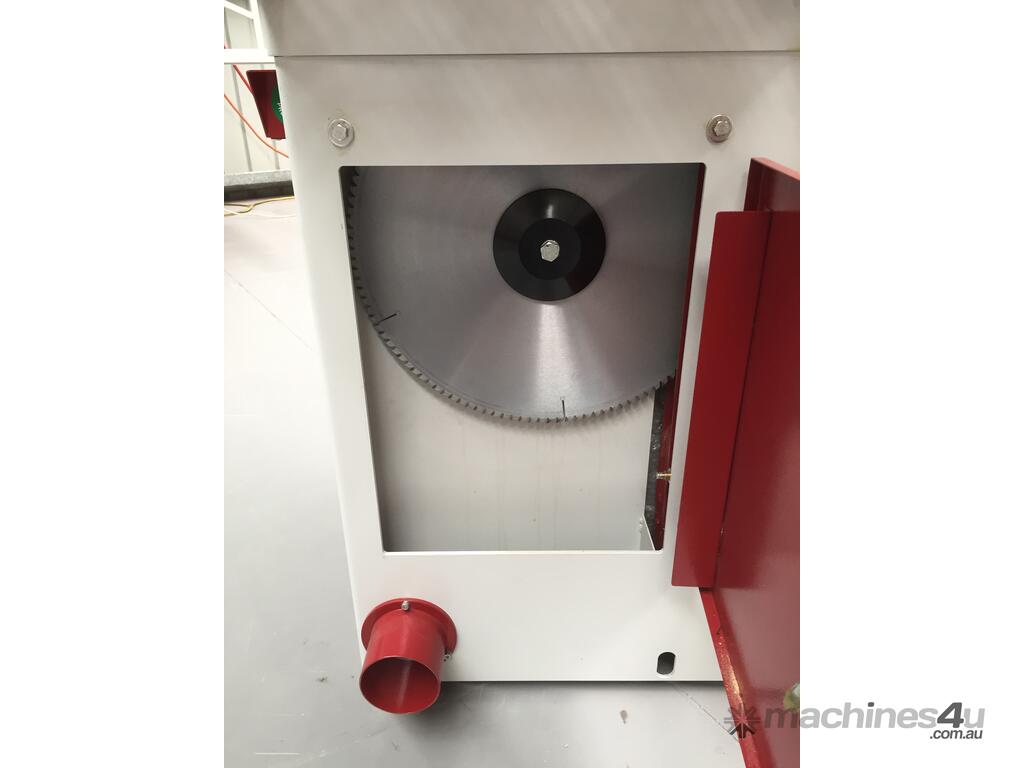

450mm TCT Saw blade
Operating tools
Operators manual
*Disclaimer*
Note: All photos and pricing are indicative only and have been prepared in good faith and with due care. Photos provided may include some optional features. Please contact us for an accurate quotation.
