MARTIN T12 Spindle moulder

The T12 is our compact spindle moulder with all MARTIN premium features. On the one hand its highly functional, but still simple to operate control. On the other hand its uniquely precise and robust engineering. This forms a perfect price/performance ratio. The T12 is the ideal machine for any operation – whether as a cheaper entry point into the MARTIN world of spindle moulders or as an effective supplement for production options in handicrafts and industry. Through its individual adaptation options it is the perfect spindle moulder for the most diverse of application areas. Let yourself by impressed by the compact T12 spindle moulder. Our in coming stock machine will be complete with the following options.

• Machine base: Modern composite frame • Weight: 950 - 1300 kg
• Table size: 1050 x 750 x 95 mm, made of heavily ribbed cast iron
• Table height: 900 mm

• Table openings: 255 / 205 / 161 / 106 / 74 mm Ø

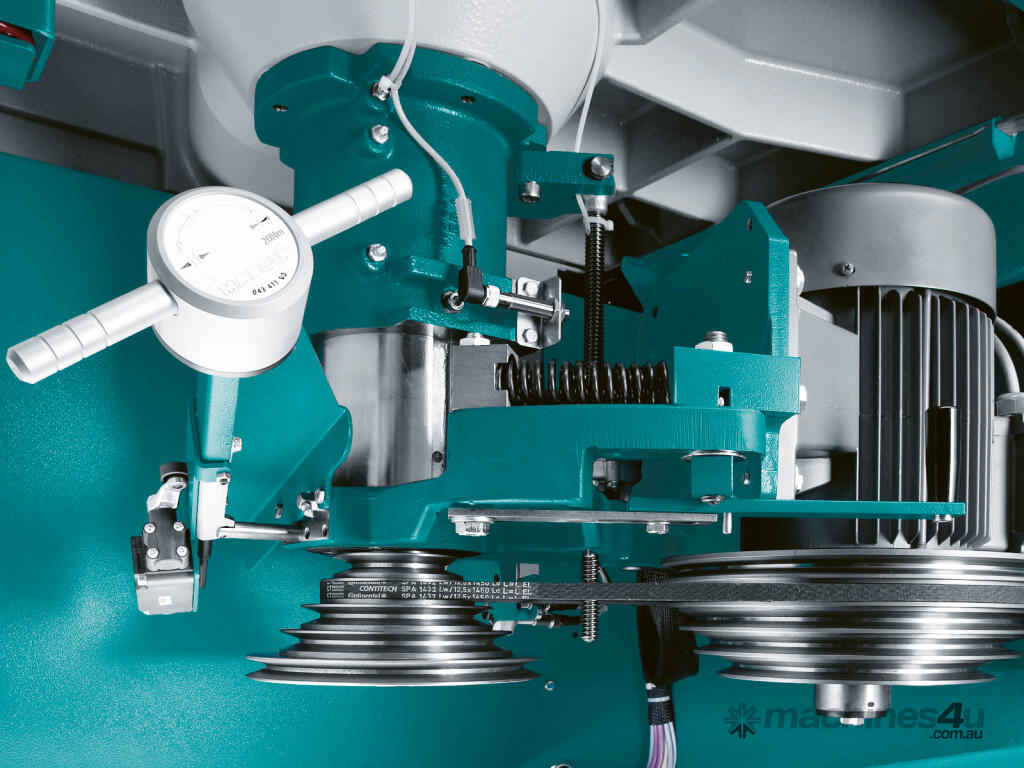

• Rotational speeds: 3,000 / 4,500 / 6,000 / 8,000 / 10,000 rpm
Rotational speed change by shifting the belt/with belt quick-tensioning device"

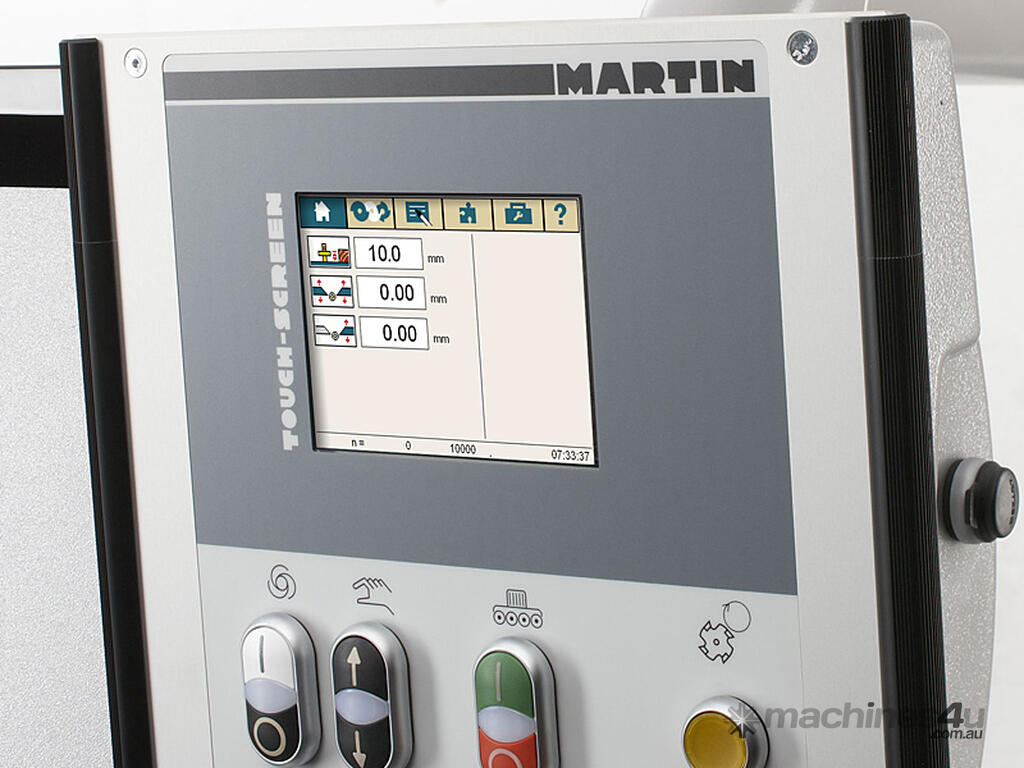

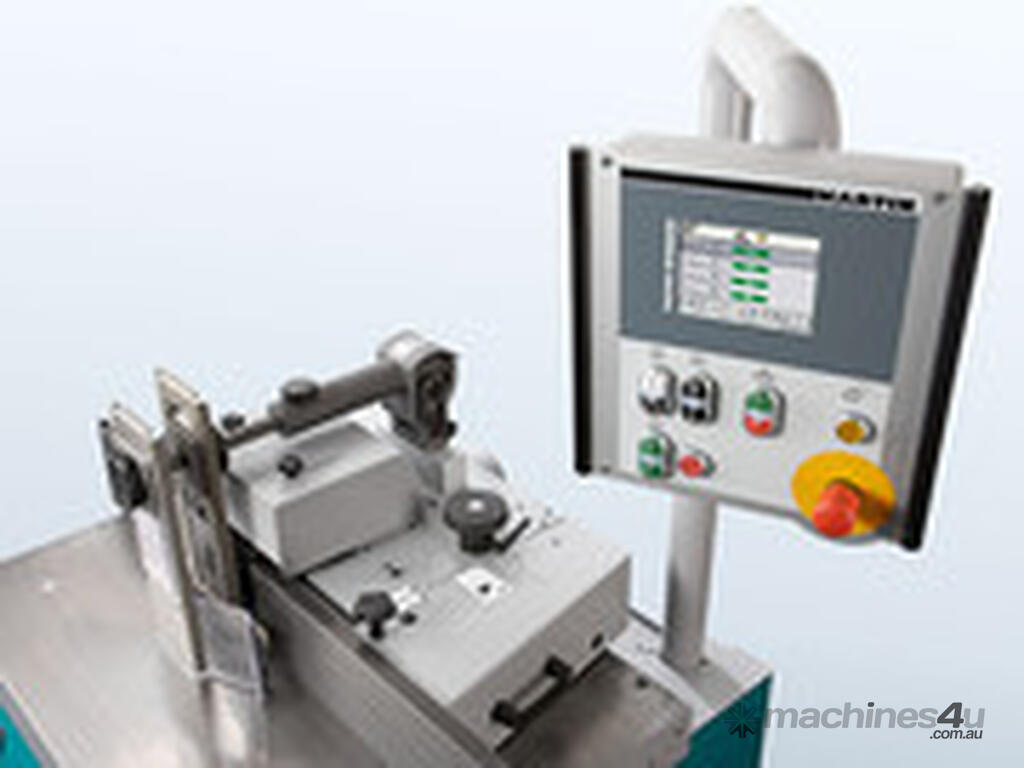

• Control panel: Control panel at eye level, can be folded away, ergonomically tilted
• Control: "PowerPC control with separate industry standard operating system (Linux)
bus-controlled servo drive (CANopen), USB interface for backup and updates;
Touch-Screen interface 5.7"" (145 mm), colour TFT (8-bit colour depth)"

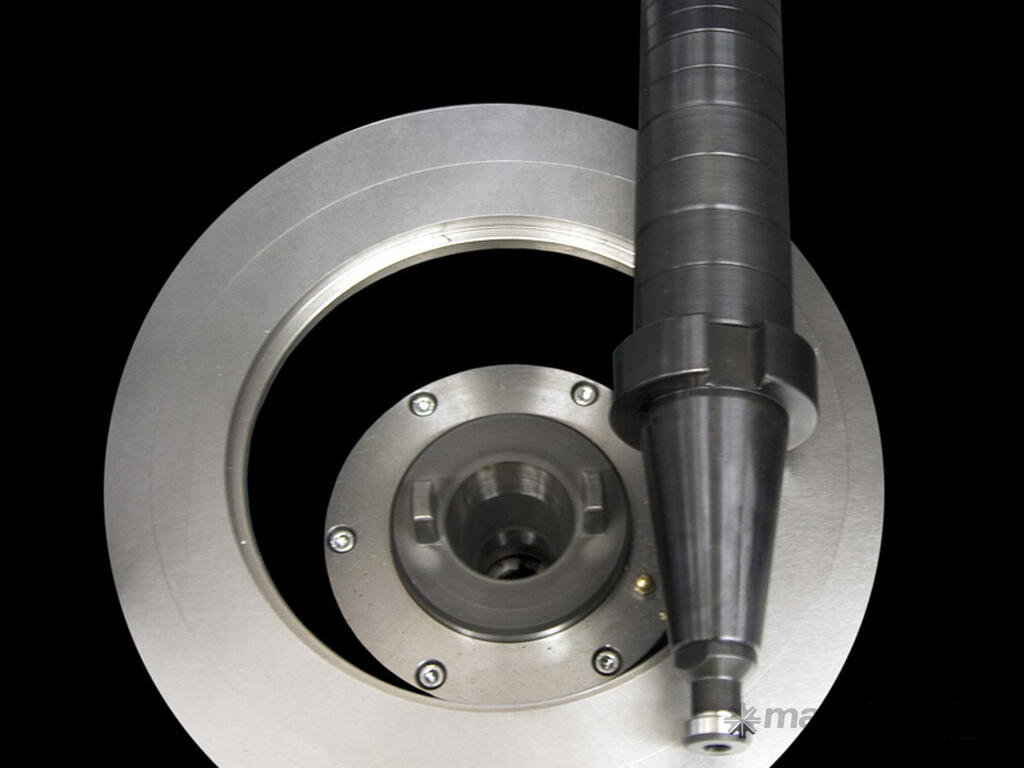

• Cutter spindle: DornFix quick-change system, torque wrench included; for frequent arbor changes we
suggest option T1270_85-a or T1270_63F-a; steep taper SK 40; controlled motorised
height adjustment; integrated mechanical lock for arbor and tool change

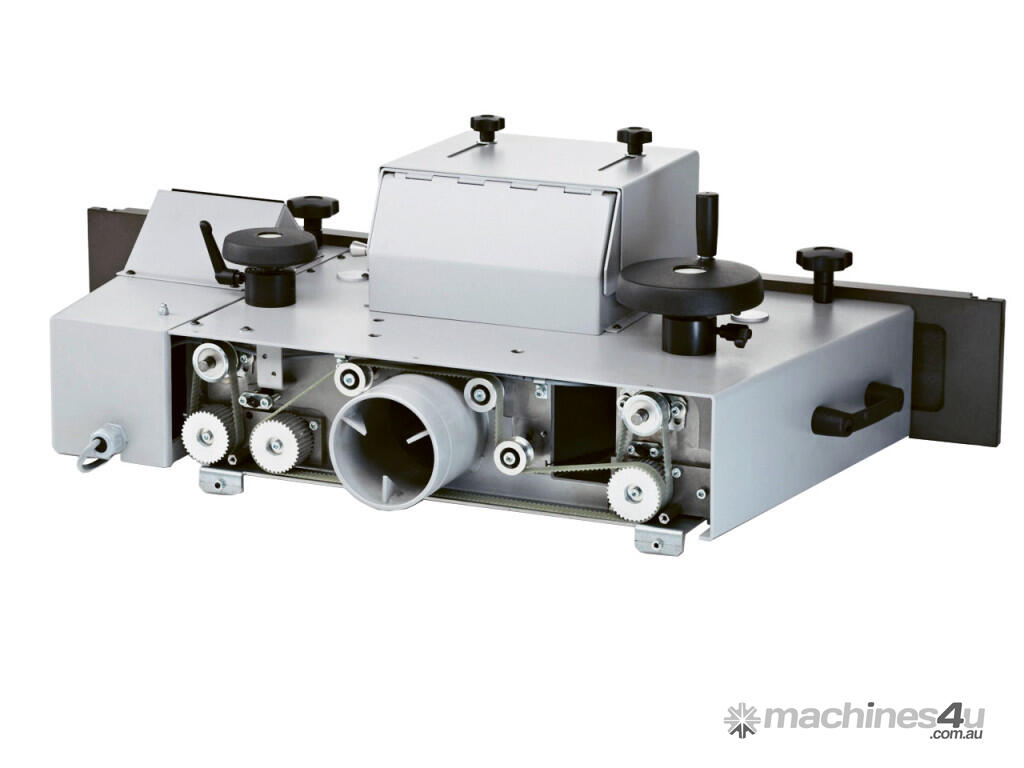

• Fence: "Precise, bilaterally guided fence, adjustable with one hand using the hand wheel
according to digital display integrated in the control; easy, extremely precise
reinsertion of fence after working without fence; adjustment of fence jaw (right) with
hand wheel according to scale with nonius; MARTIN fence jaws made of aluminium,
hard-coated, with holders for moulding board and guide bars; movement range overall
fence -6/+125 mm; movement range of fence jaw (right) -10/+10 mm;
display resolution 0.05 mm"

- Table extensions on both sides to take the table length to 3000mm complete with front pull-out table support.
- SK30 Tooling arbours included x 2

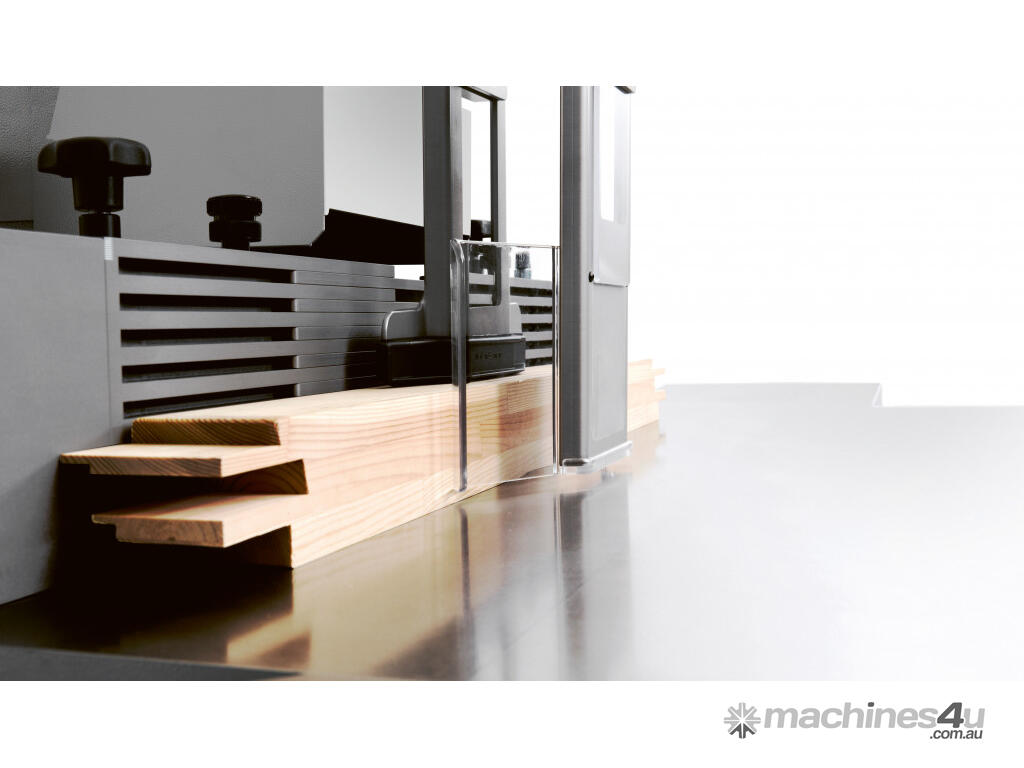

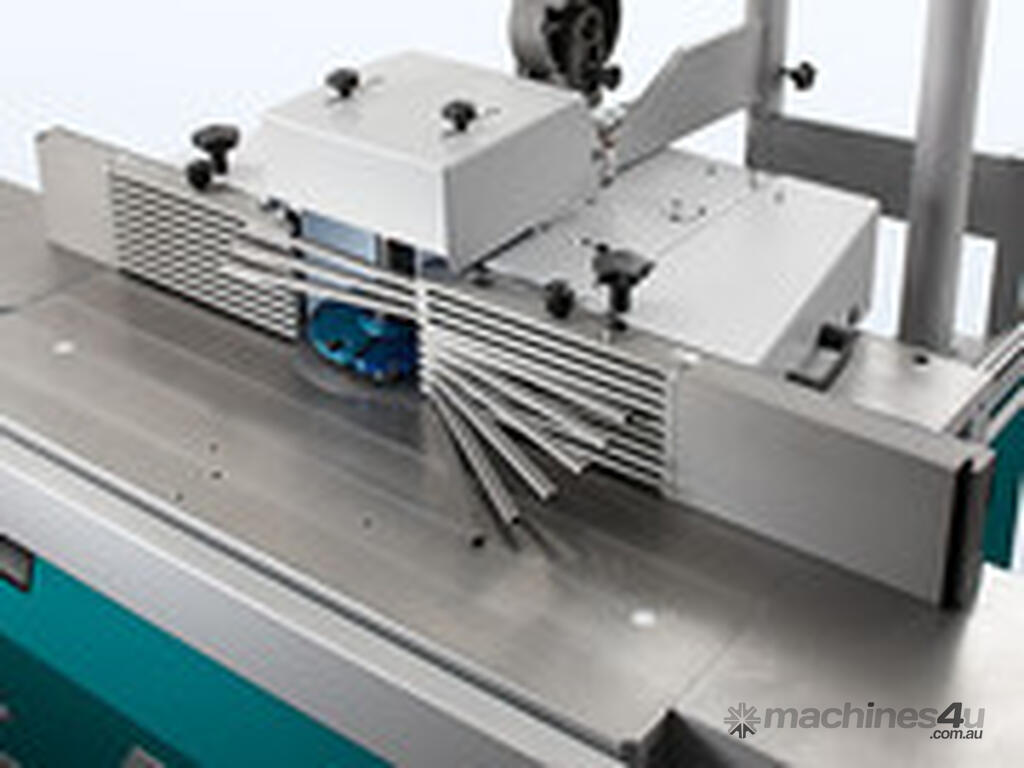

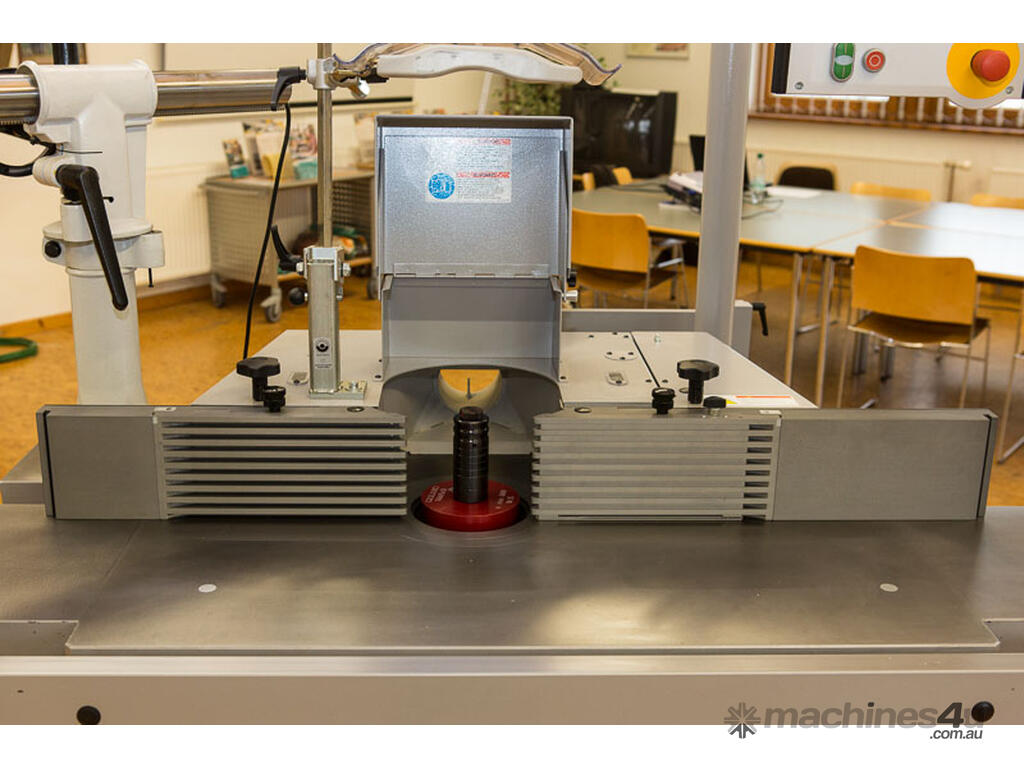

- Intergral fences with filling bars
- Digital read-out for front fence positioning

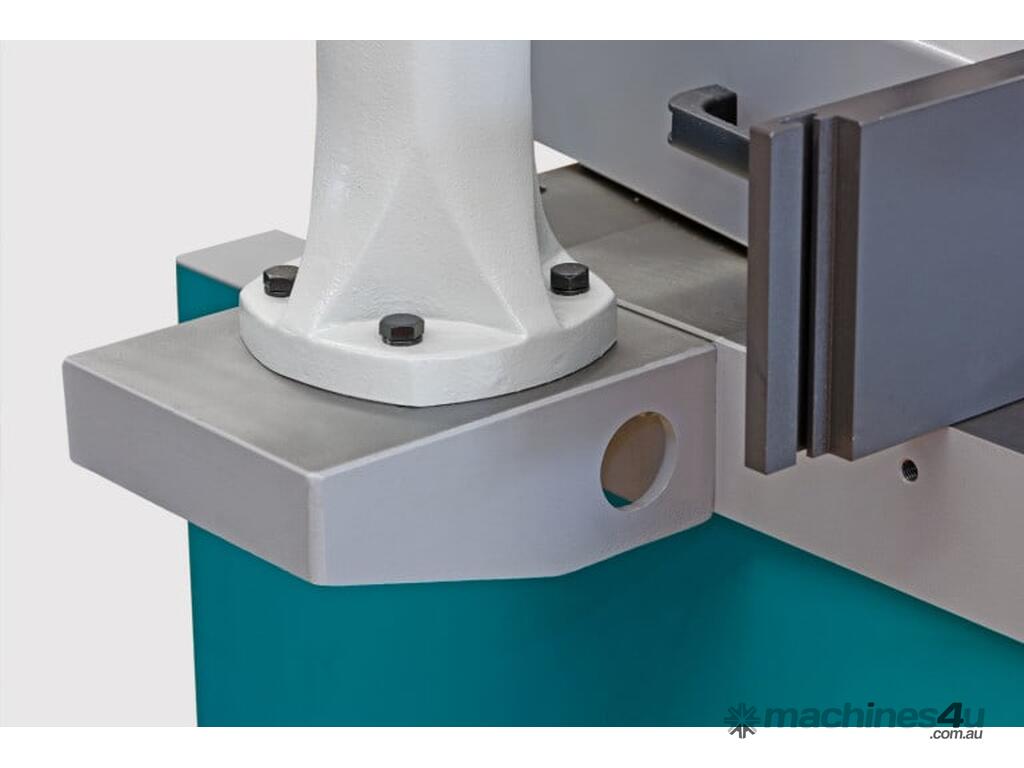

- Console for power-feed

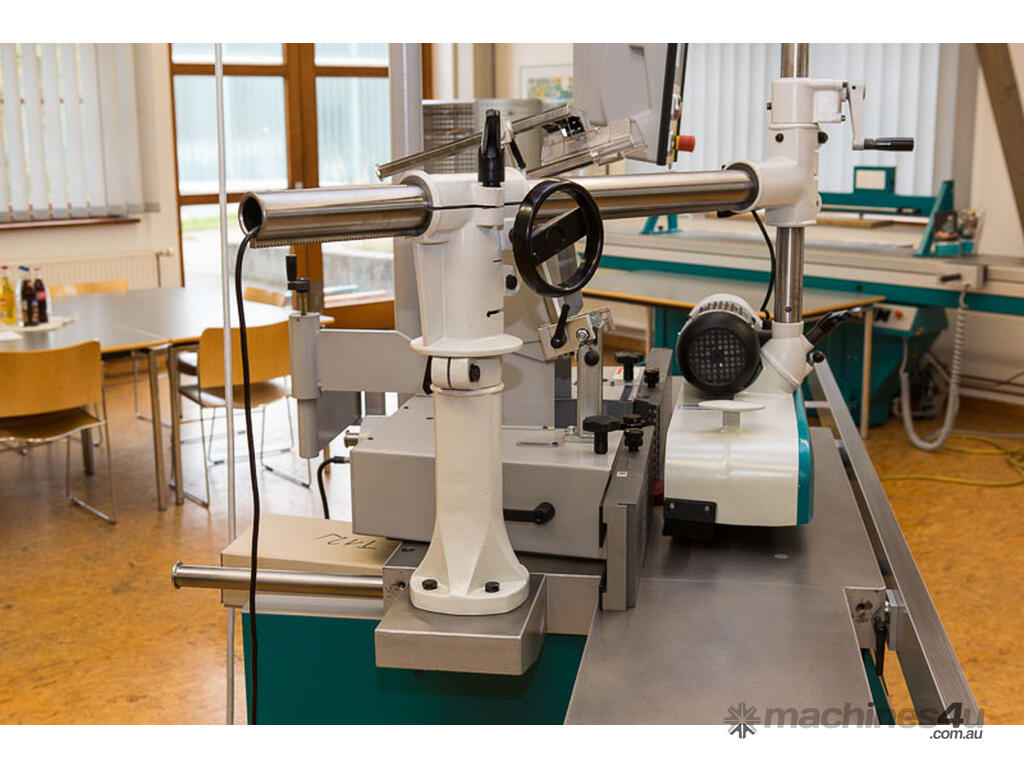

- Special "Komfort power-feed support" for easy movement of the power-feed
- "Variomatic" Variable speed power-feed, 4 Roller

Arrives in stock approximately September 2024
