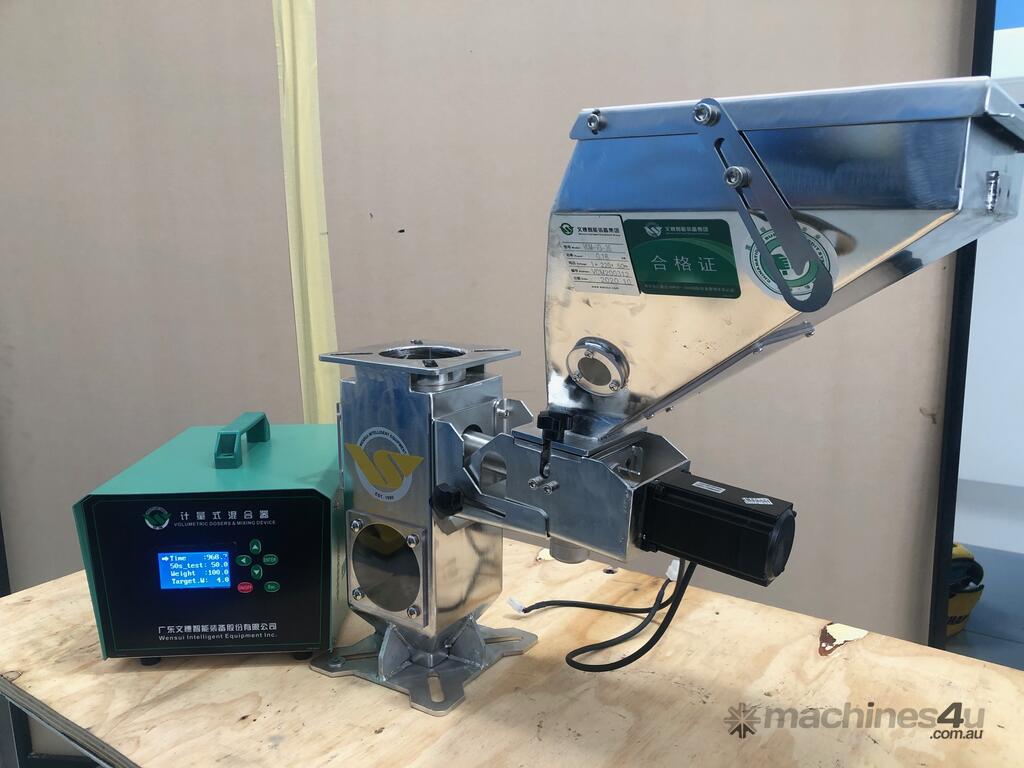

MASTER BATCH FEEDER (VOLUMETRIC) PRECISE, ACCURATE & EFFICIENT

VCM-V3-20 (VCM-20) Volumetric doser (20 mm screw) can precisely measure and mix ingredients such as virgin, regrind, master batch and additive. It is applicable for Injection moulding machines, extruder machine and blow moulding machines and not for conveying recycled crushed materials and powders.

1. Torque: 2.0 Nm
2. Speed: 0-3000r/min
3. Hopper capacity: 10L
4. Auger Diameter: 20mm
5. Output: 0.0025-25kg/hr

* Controlled by microcontroller and consists of LCD screen and Keyboard
* Simple operating system interface with troubleshooting function.
* Imported brushless maintenance free gear motor .
* Conveying accuracy between 1%-5%.
* 50 recipes memory.
* Automatic stops and alarms.
* Modularized structure for easy installation, maintenance and replacement.
