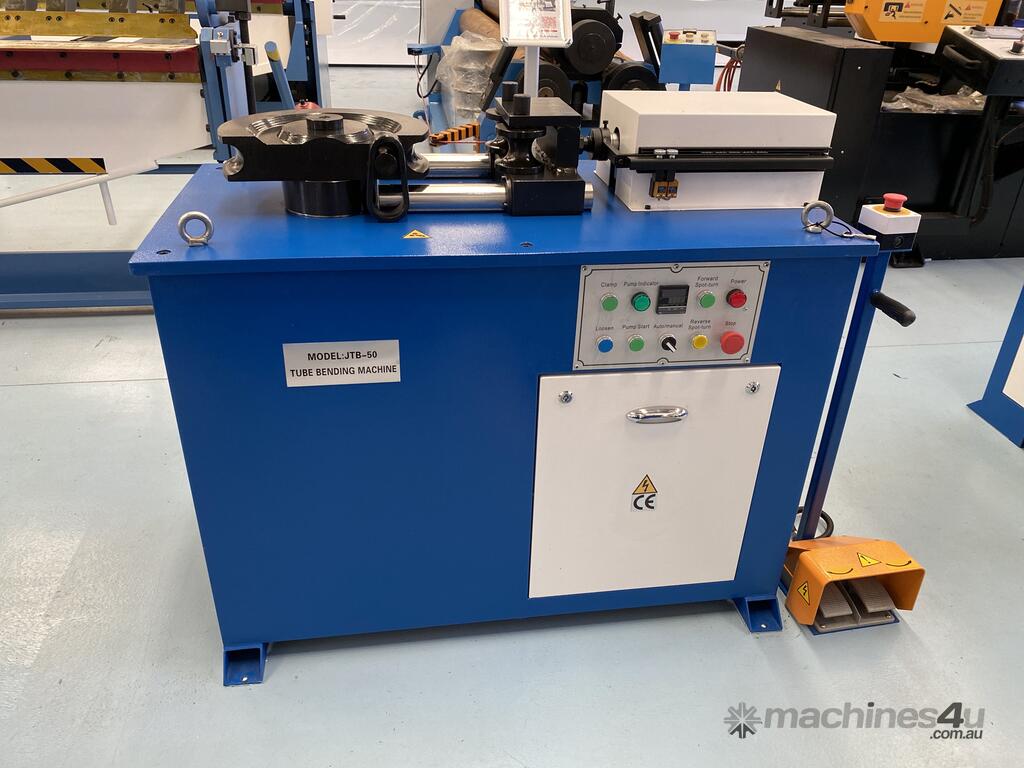

MASTERBEND JTB-50 TUBE-PIPE BENDER | 50MM CAPACITY | MANDRELESS | HYDRAULIC | 4 SETS OF DIES

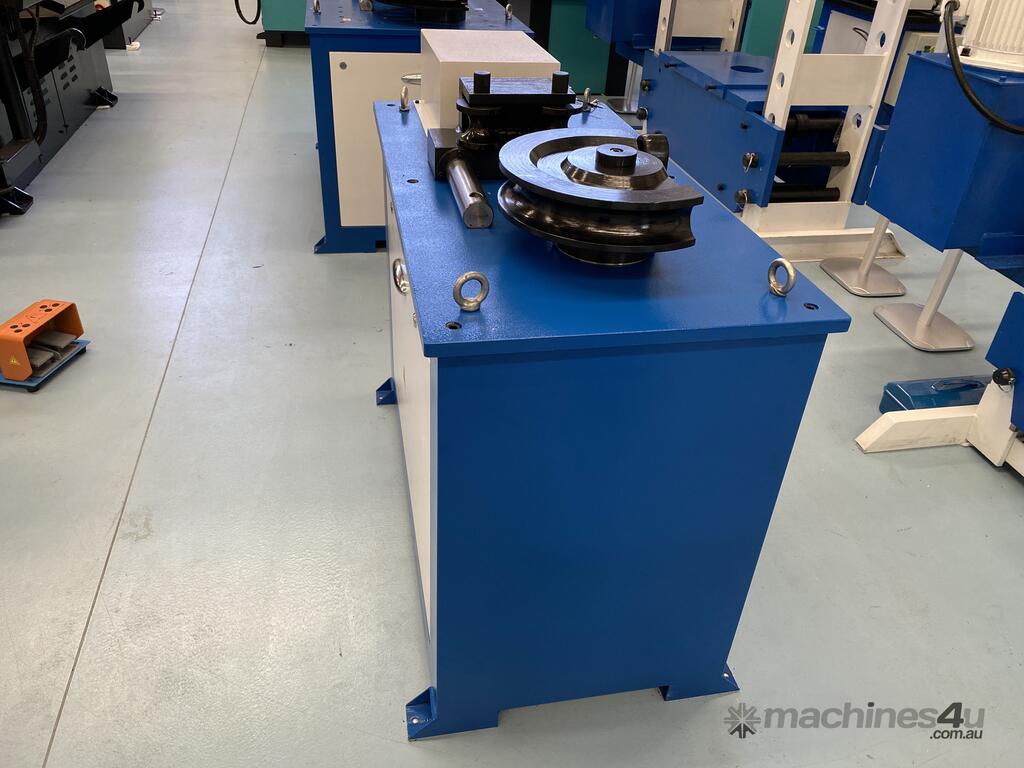

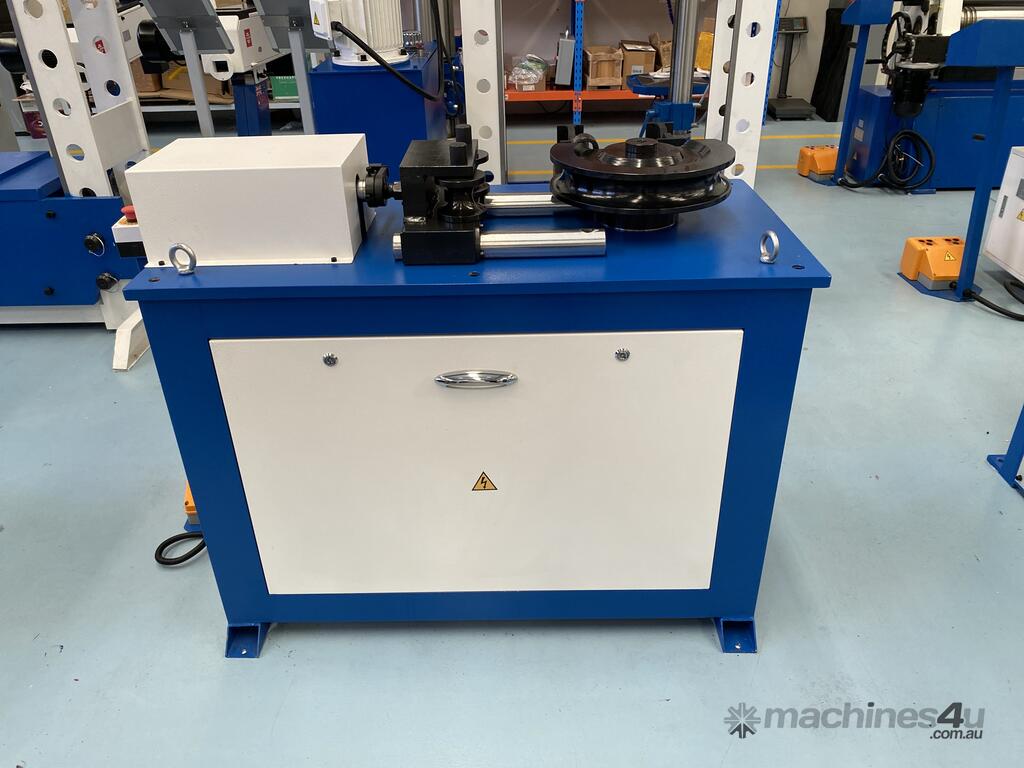

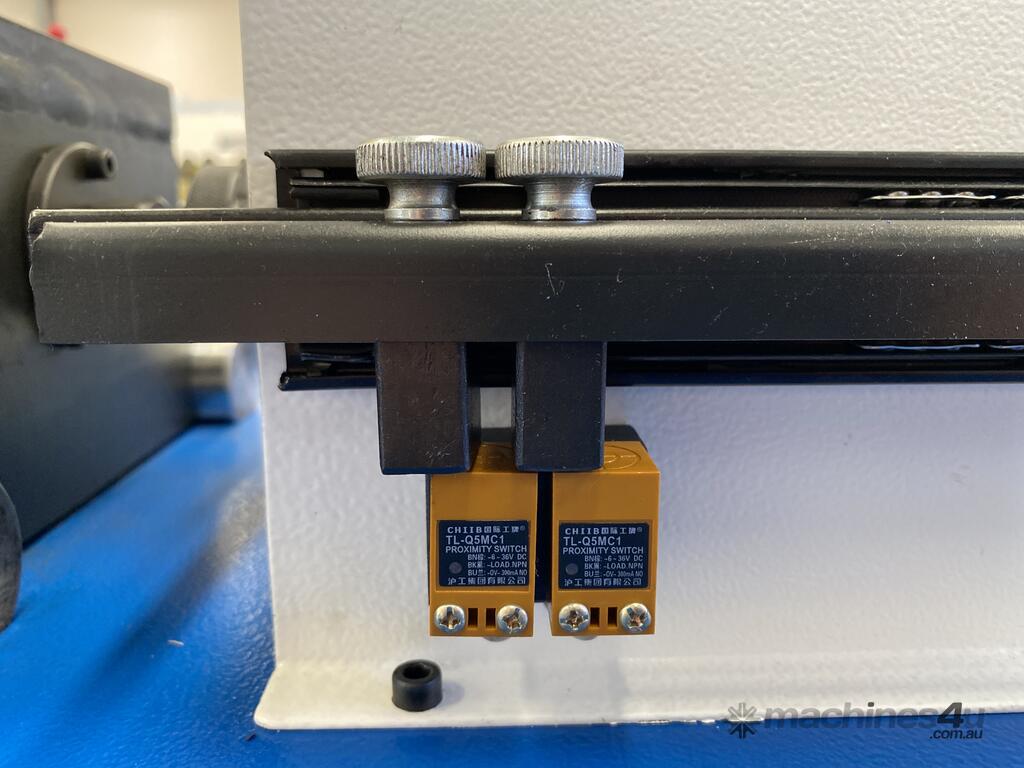

The Masterbend JTB-50 is a easy to use mandreless pipe bender that comes standard with 4 sets of dies. This machine is hydraulic and has adjustable stroke both in and out so stroke can be adjustable close to the job to save time.

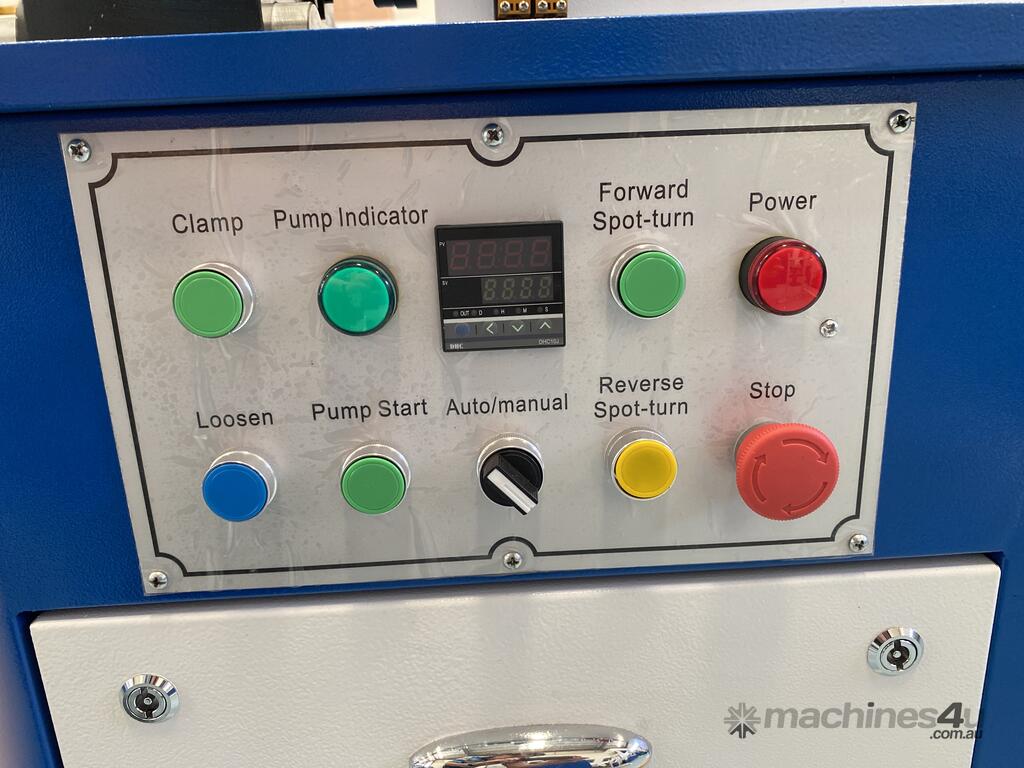

Setting the angle is simply done through a digital readout system. A compact unit that can be moved around the workshop if needed.

Features:

1. Bending work pieces such as low carbon round tubes, stainless round tubes, square tubes, and round steel bars to achieve desired shapes.

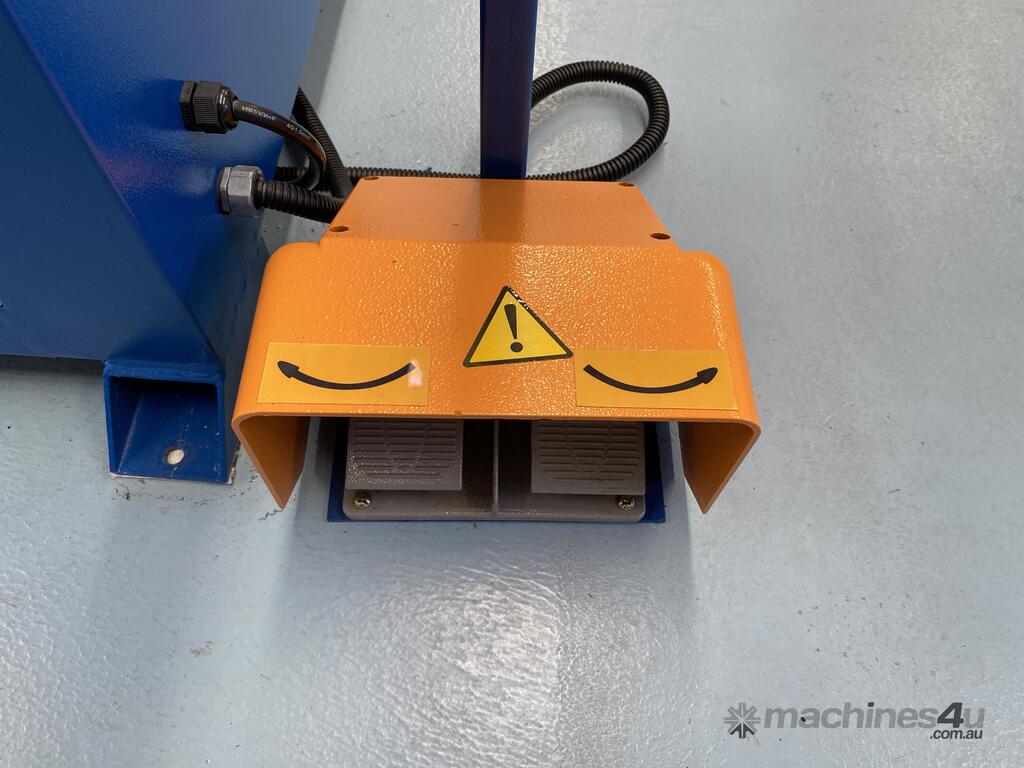

2. The equipment features “one-touch” operation on single workpiece and data-program controlled mass processing.

3. Easy to operate and low power consumption with high work efficiency.

4.Hydraulic power drive, PLC control

5. Wall thickness: 1-5mm

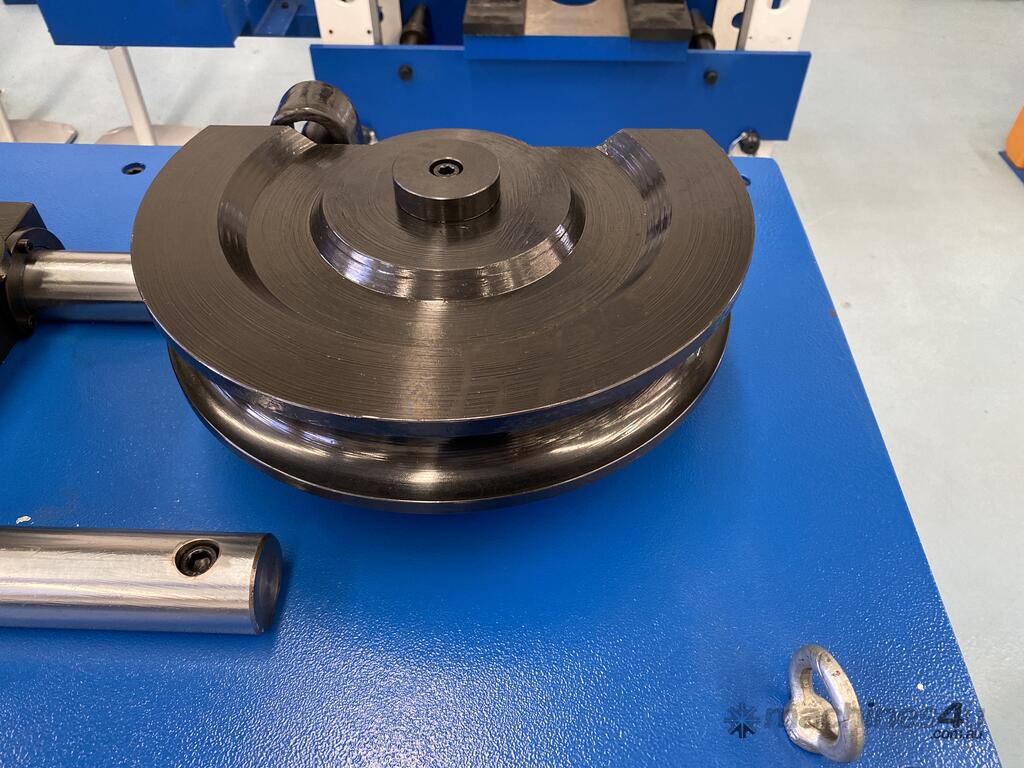

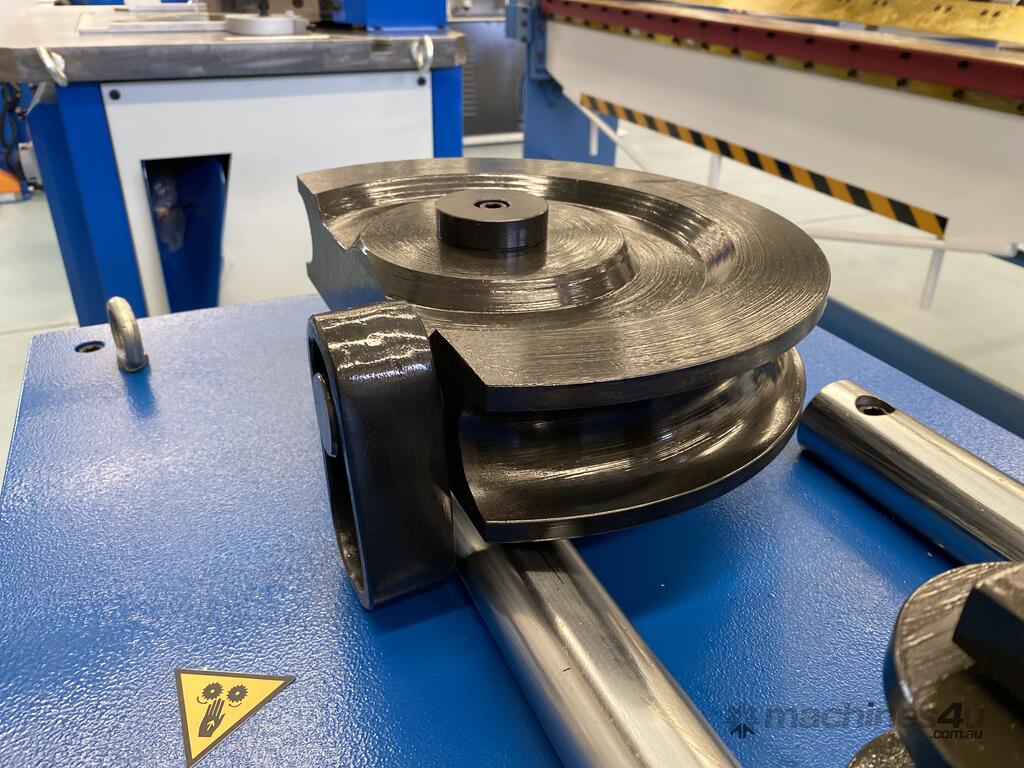

6. Comes standard with

Pipe Dies (OD) -

15NB | 21.3mm (CLR 90mm)
20NB | 26.9mm (CLR 90mm)
25NB | 33.7mm (CLR 134mm)
32NB | 42.4mm (CLR 170mm)
40NB | 48.3mm (CLR 170mm)

***** Numerous other dies are available to suit tube, pipe & RHS, full list at bottom of advert *****

Dimensions of workpieces

Round pipe

Max. 51mm
Min. 16mm

Stainless steel pipe

Max. 38mm
Min. 16mm

Square pipe

Max. 50x50mm
Min. 16x16mm

Angle of bending 180°
Rate of main shaft rotation r/min 5
Motor(Kw) 2.2
Packing size 1450x 690x 1170 mm
N.W/G.W. 550 / 620 kg

****** DIFFERENT DIE SIZES AVAILABLE ******

Tube sizes (OD) -

3/4" | 19.05mm Die (CLR 90mm)
7/8" | 22.225mm Die (CLR 90mm)
1" | 25.4mm Die (CLR 90mm)
1 1/4" | 31.75mm Die (CLR 134mm)
1 1/2" | 38.1mm Die (CLR 150mm)
1 3/4" | 44.45mm Die (CLR 170mm)
2" | 50.8mm Die (CLR 170mm)

Pipe Sizes (OD) -

15NB | 21.3mm (CLR 90mm)
20NB | 26.9mm (CLR 90mm)
25NB | 33.7mm (CLR 134mm)
32NB | 42.4mm (CLR 170mm)
40NB | 48.3mm (CLR 170mm)

RHS dies -

20 X 20MM (CLR 80MM)
25 X 25MM (CLR 82MM)
30 X 30MM (CLR 120MM)
35 X 35MM (CLR 150MM)
40 X 40MM (CLR 170MM)
