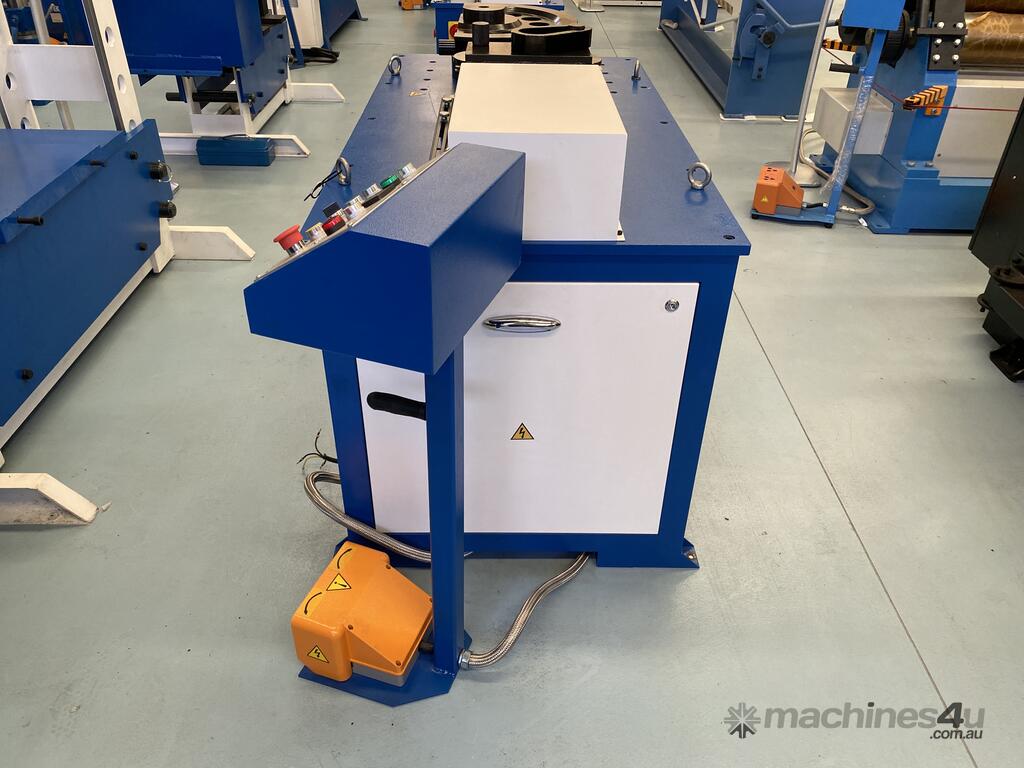

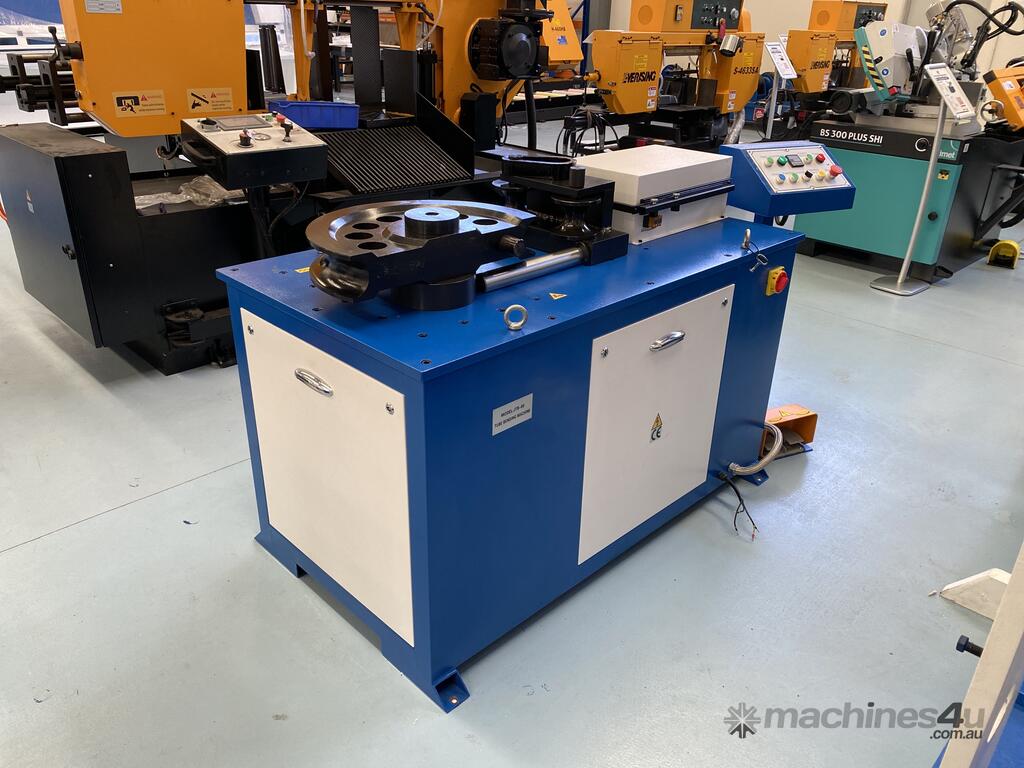

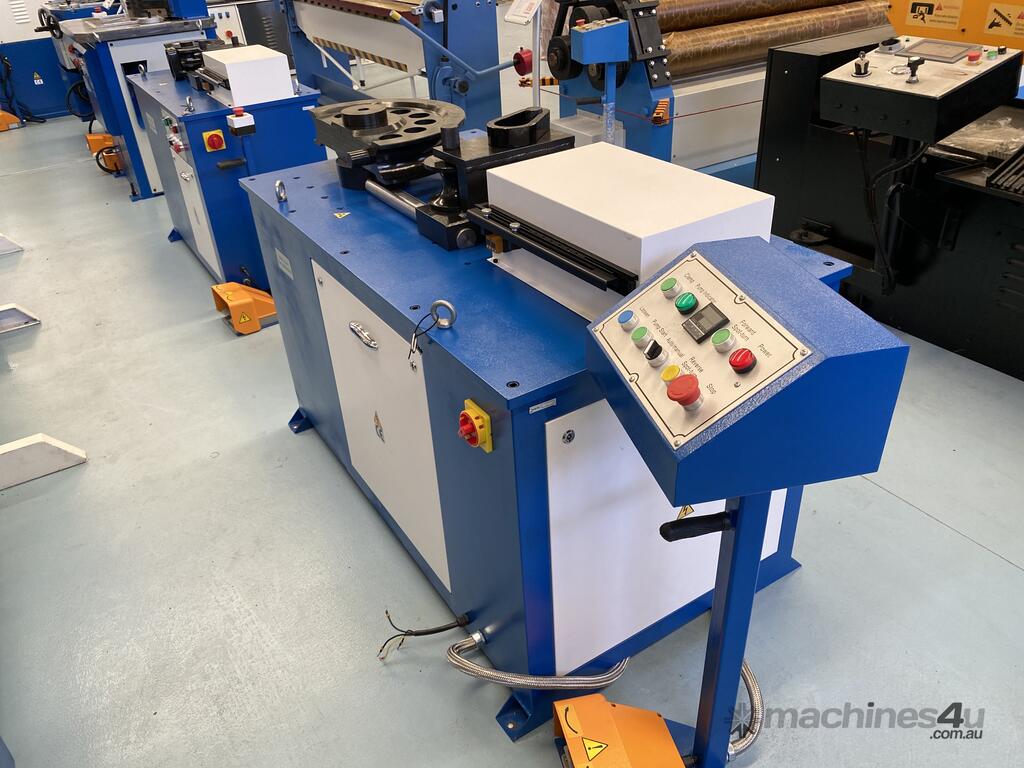

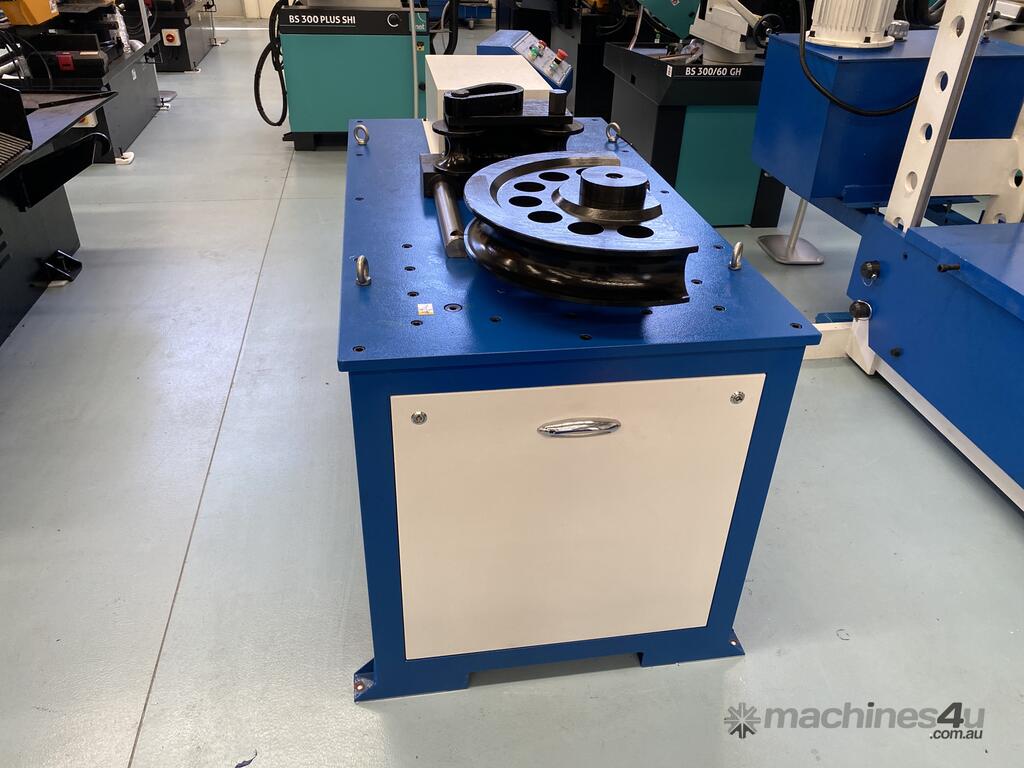

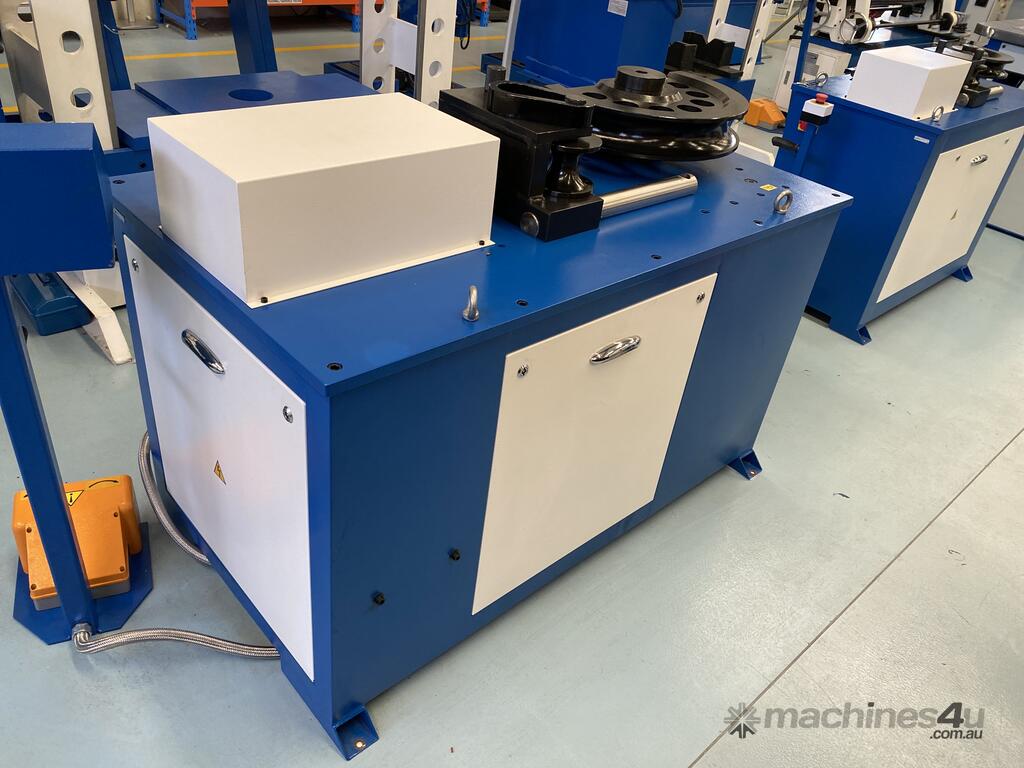

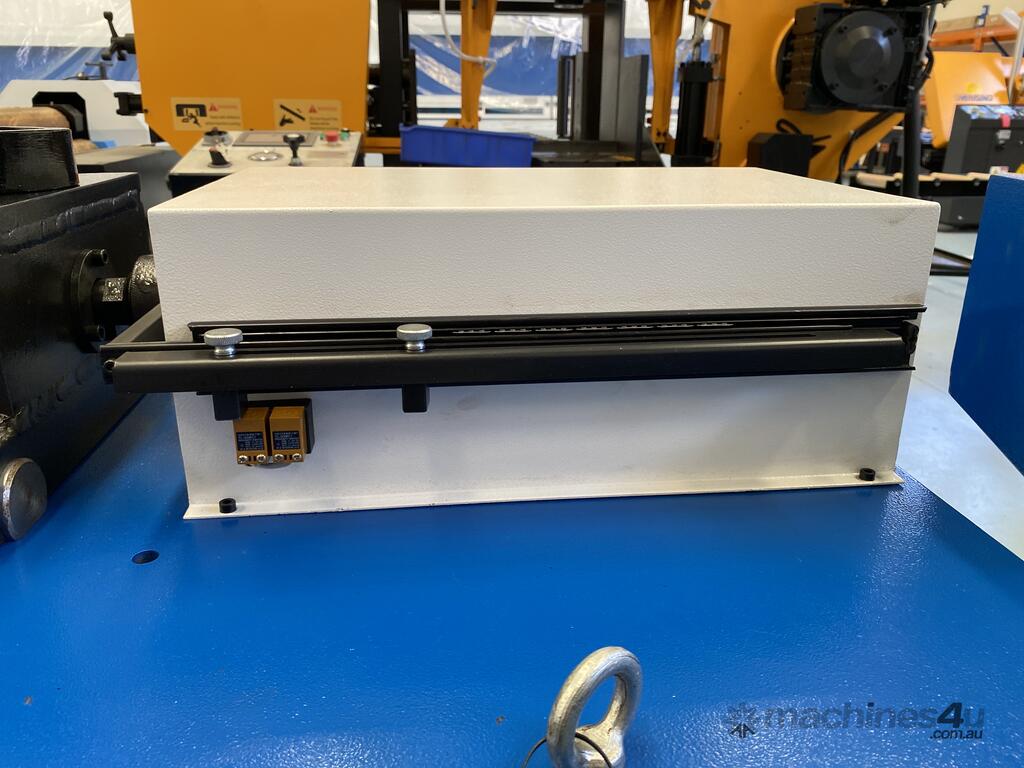

The Masterbend JTB-80 is a easy to use mandreless pipe bender that comes standard with 1 x 76mm die. This machine is hydraulic and has adjustable stroke both in and out so stroke can be adjustable close to the job to save time.
Setting the angle is simply done through a digital readout system. A compact unit that can be moved around the workshop if needed.
Features:
1. Bending work pieces such as low carbon round tubes, stainless round tubes, square tubes, and round steel bars to achieve desired shapes.

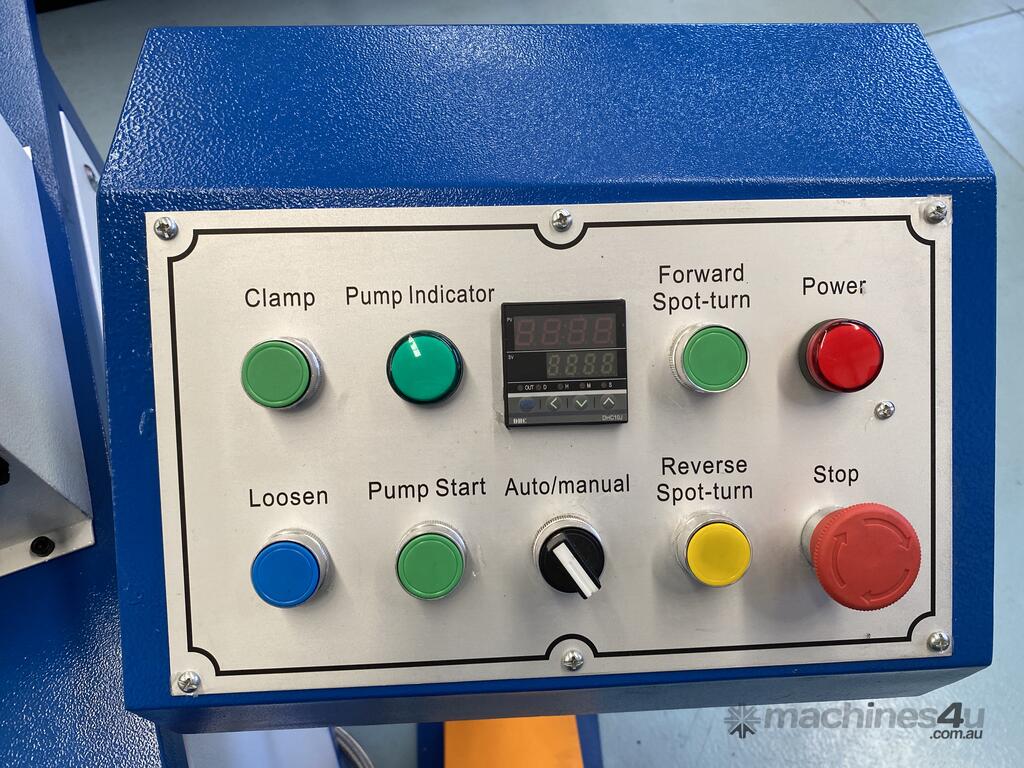

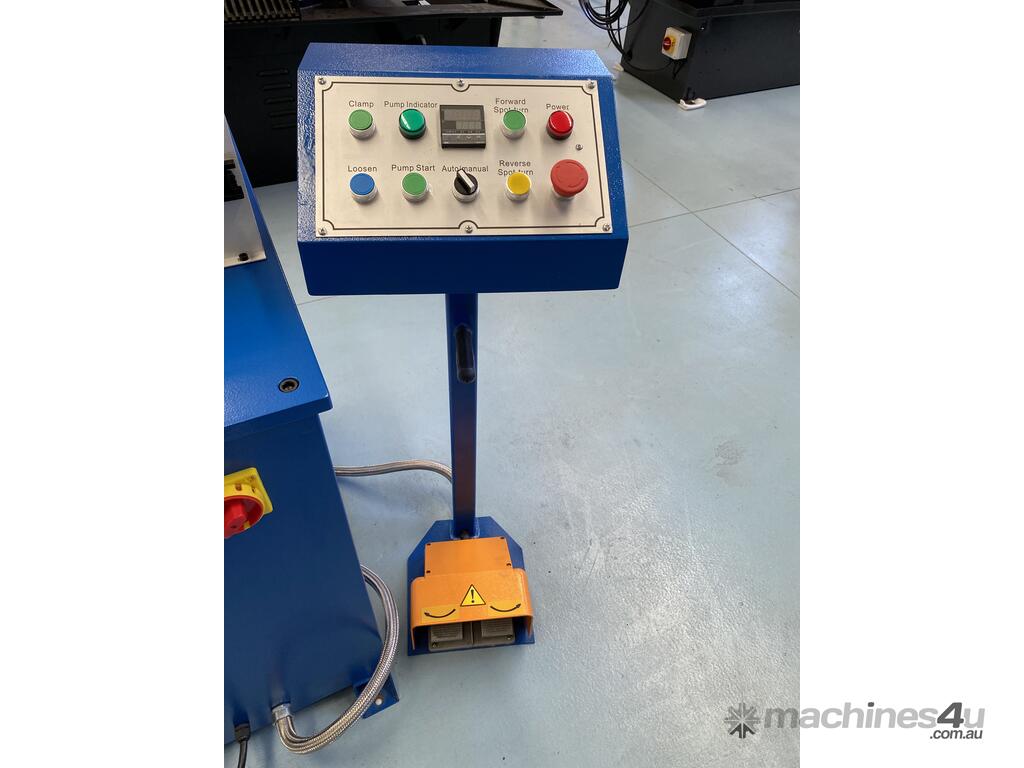

2. The equipment features “one-touch” operation on single workpiece and data-program controlled mass processing.
3. Easy to operate and low power consumption with high work efficiency.
4.Hydraulic power drive, PLC control
5. Wall thickness: 1-9mm
6. Comes standard with

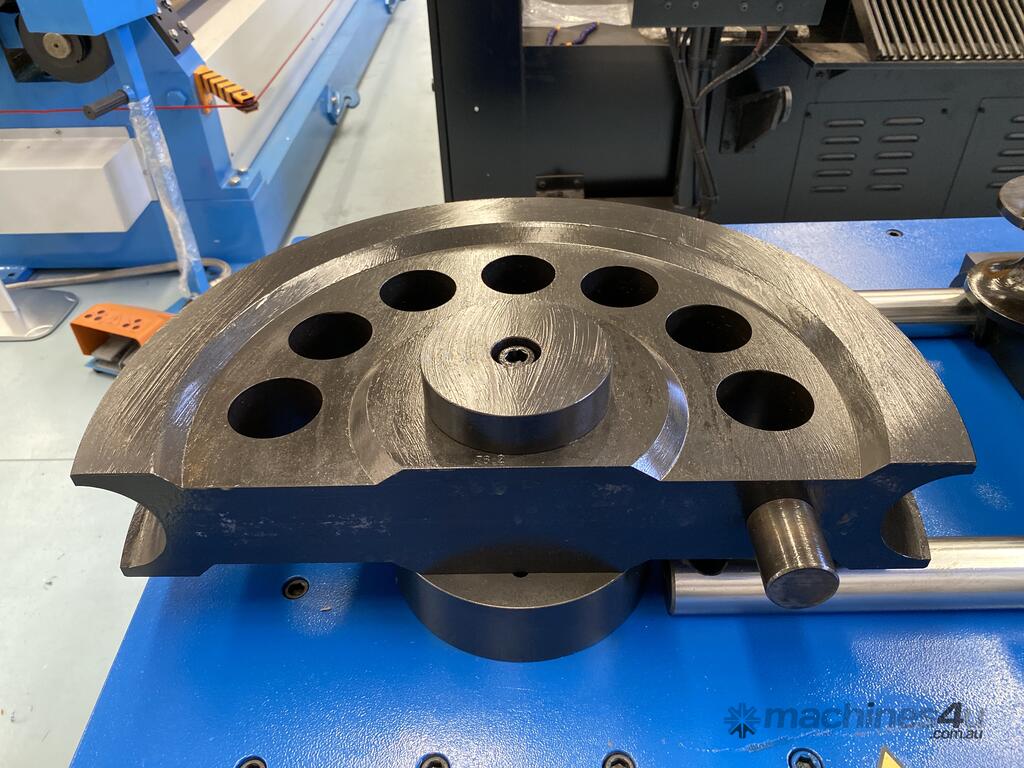

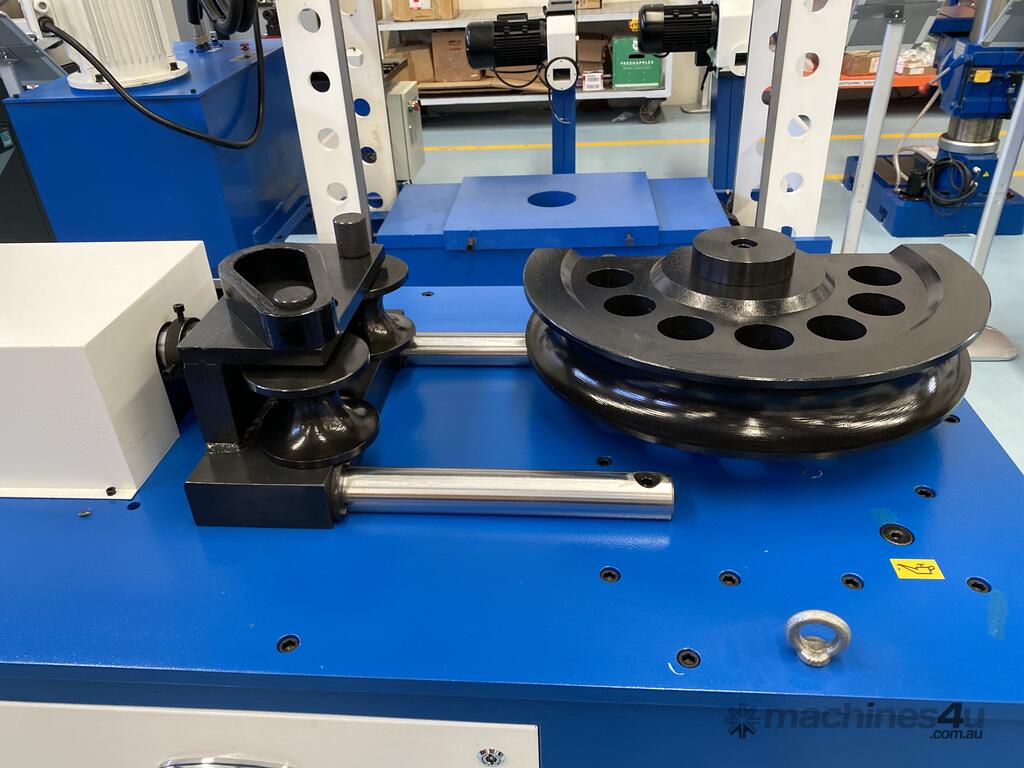

- 76mm | 3" | 265mm
****** OTHER DIES AVAILABLE TO SUIT PIPE, TUBE AND RHS, FULL LIST AT BOTTOM OF ADVERT *******
Dimensions of workpieces
Round pipe
Max. 80mm
Min. 19mm
Stainless steel pipe
Max. 50.8mm
Min. 19mm
Square pipe
Max. 80x80mm
Angle of bending 180°
Rate of main shaft rotation r/min 2
Motor(Kw) 5.5
Packing size 150 x 91 x 155cm
N.W/G.W. 1300 / 1400 kg
****** DIFFERENT DIE SIZES AVAILABLE ******
Tube sizes (OD) -
3/4" | 19.05mm Die (CLR 140mm)
7/8" | 22.225mm Die (CLR 140mm)
1" | 25.4mm Die (CLR 140mm)
1 1/4" | 31.75mm Die (CLR 140mm)
1 1/2" | 38.1mm Die (CLR 140mm)
1 3/4" | 44.45mm Die (CLR 170mm)
2" | 50.8mm Die (CLR 170mm)

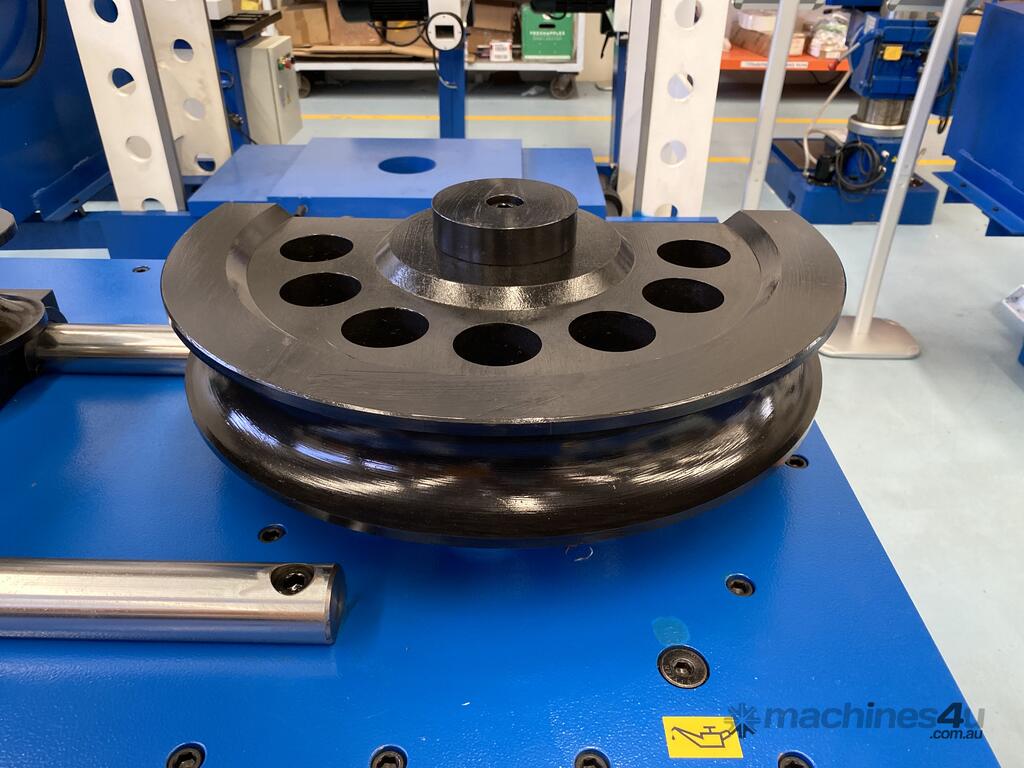

3" | 76mm Die (CLR 265mm)
Pipe Sizes (OD) -
15NB | 21.3mm (CLR 140mm)
20NB | 26.9mm (CLR 140mm)
25NB | 33.7mm (CLR 140mm)
32NB | 42.4mm (CLR 170mm)
40NB | 48.3mm (CLR 170mm)
50NB | 60.3mm (CLR 180mm)
RHS dies -
20 X 20MM (CLR 140MM)
25 X 25MM (CLR 140MM)
30 X 30MM (CLR 140MM)
35 X 35MM (CLR 140MM)
40 X 40MM (CLR 170MM)
