A great saw for an engineering shop or light | med fab shop looking at a versatile saw to do cutting in house. Great capacity and price point! Comes with hydraulic cutting frame up | down movement as standard.
Having a great deal of knowledge in sawing and its applications Complete Machine Tools are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.
A large product range is available that can suit the most demanding of applications regardless of size or complexity.
FEATURES

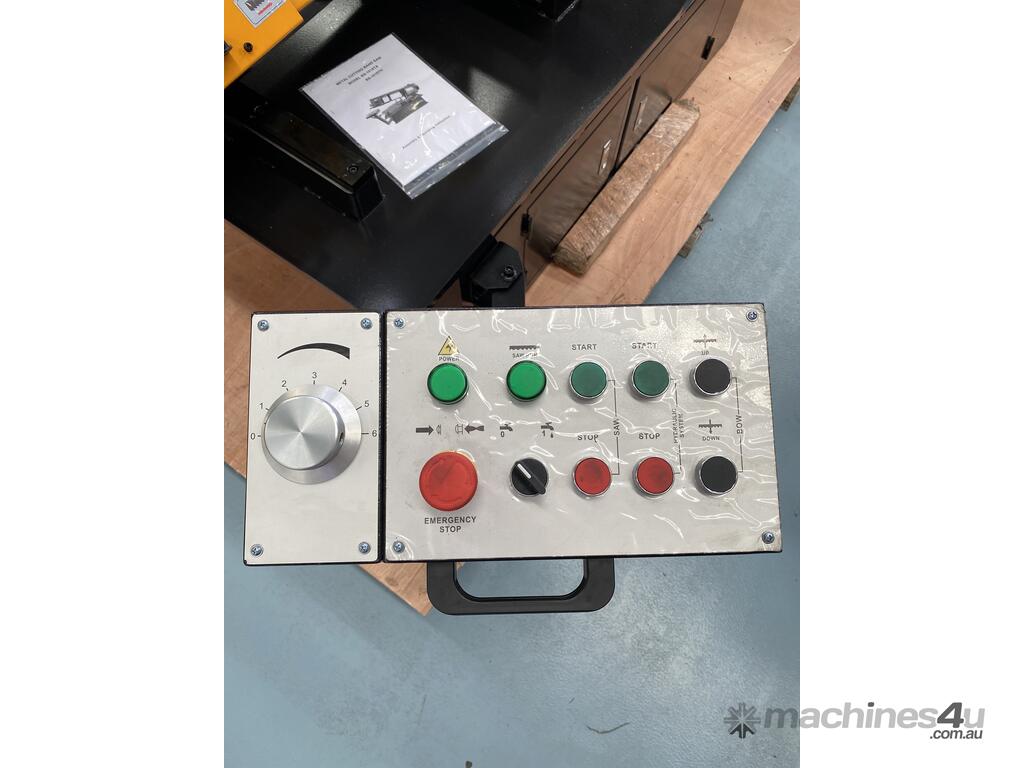

1. Pendant control
2. Solid design

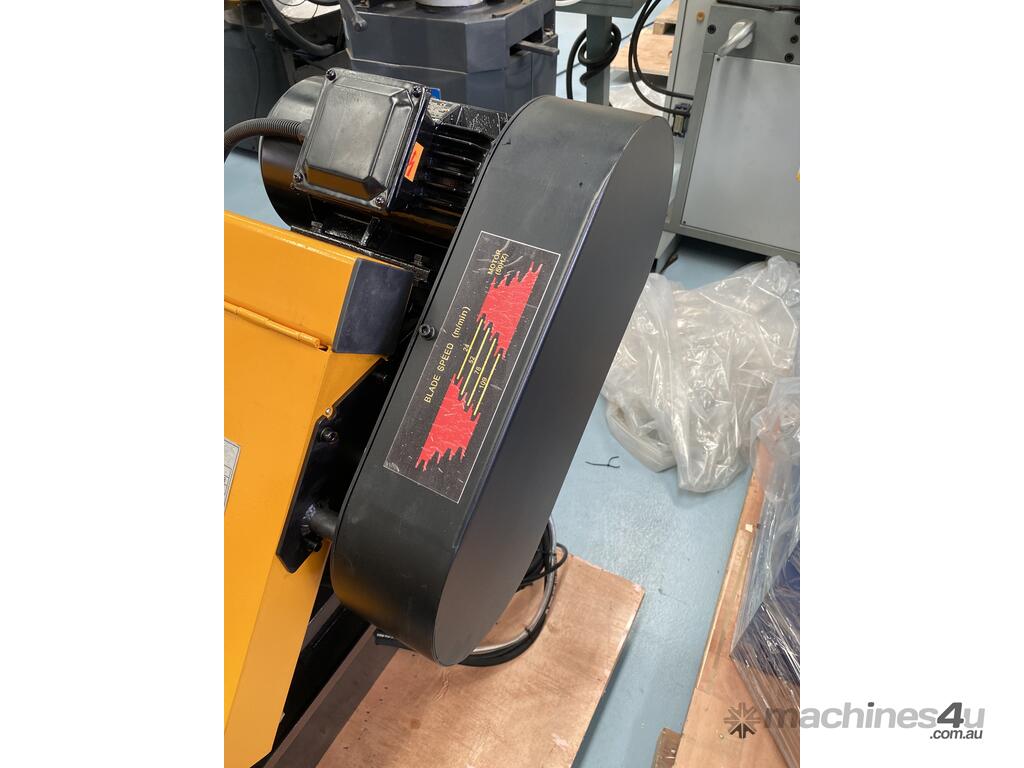

3. Variable blade speed (4 speeds)

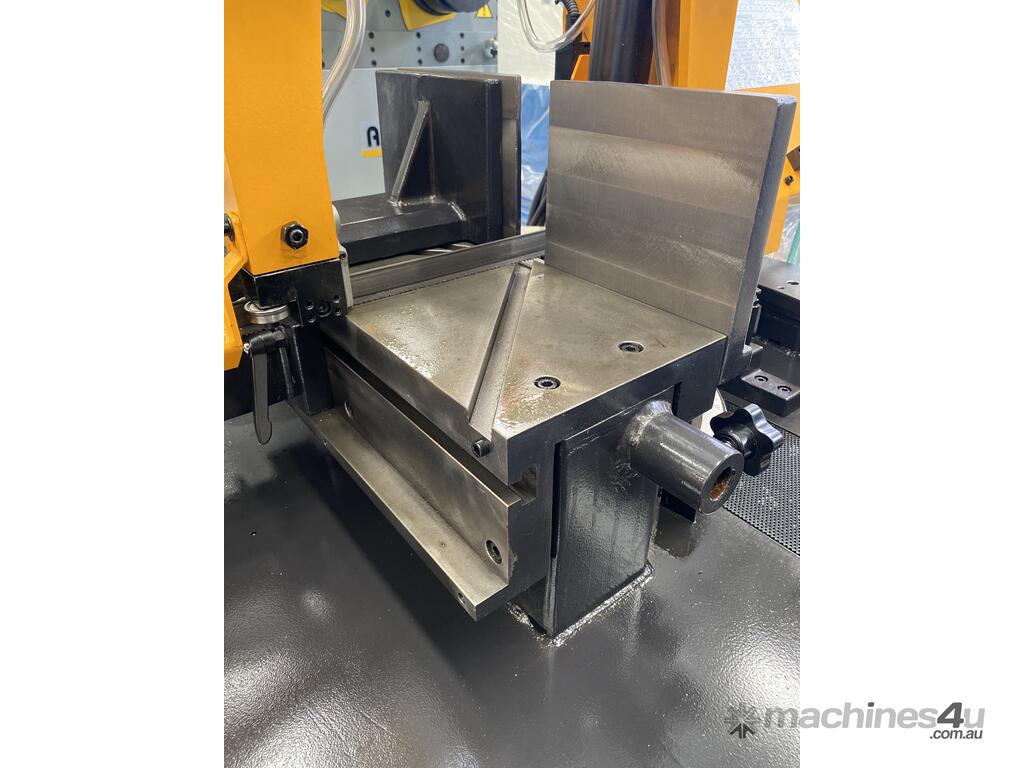

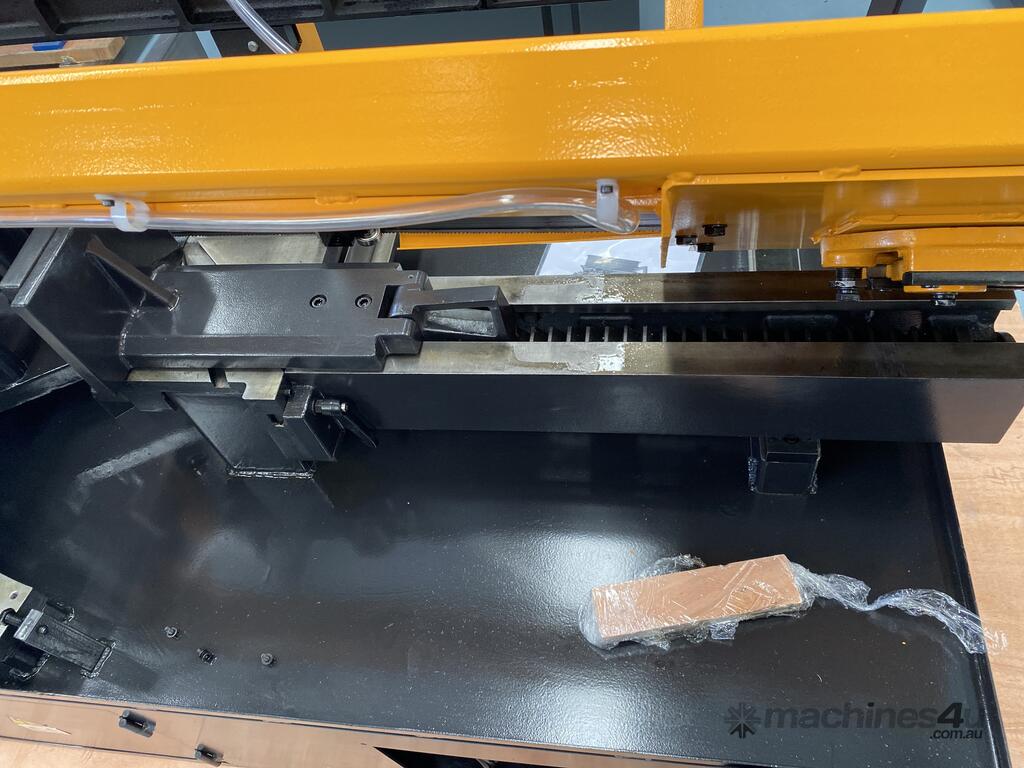

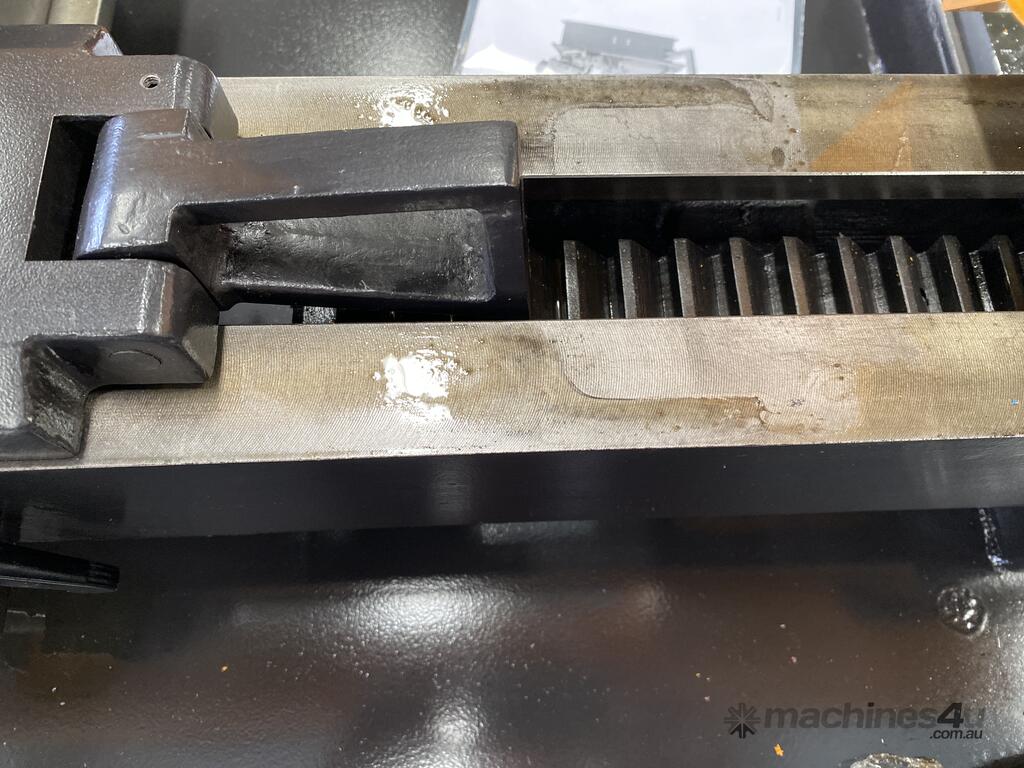

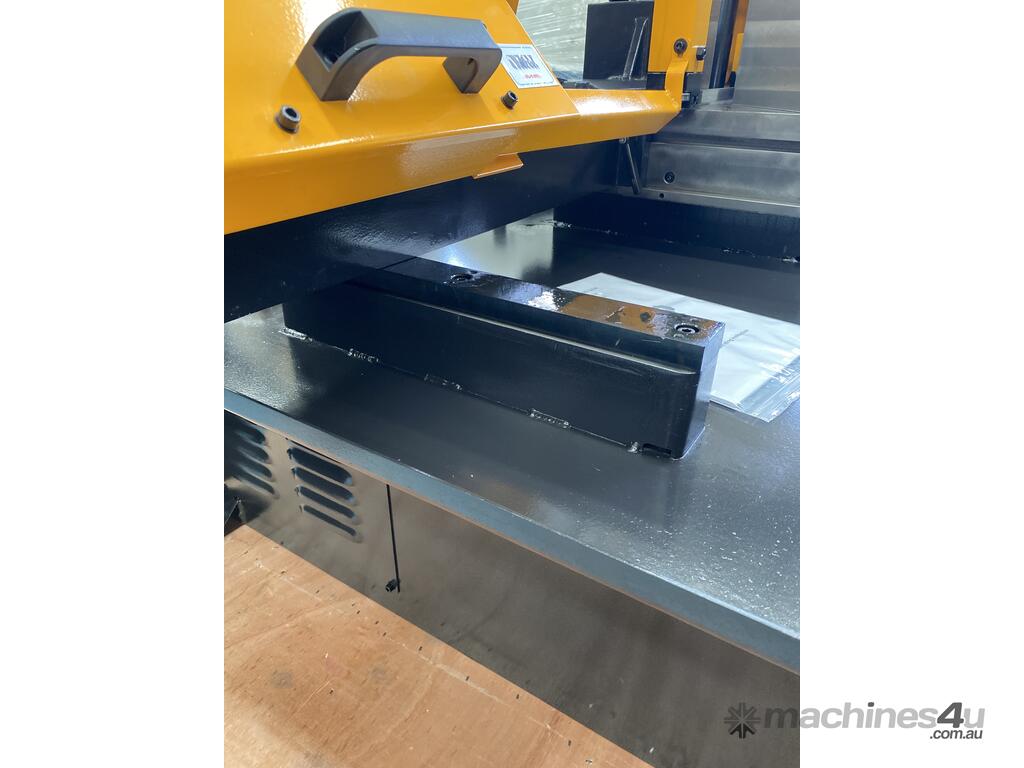

4. Rack and pawl type quick position vice

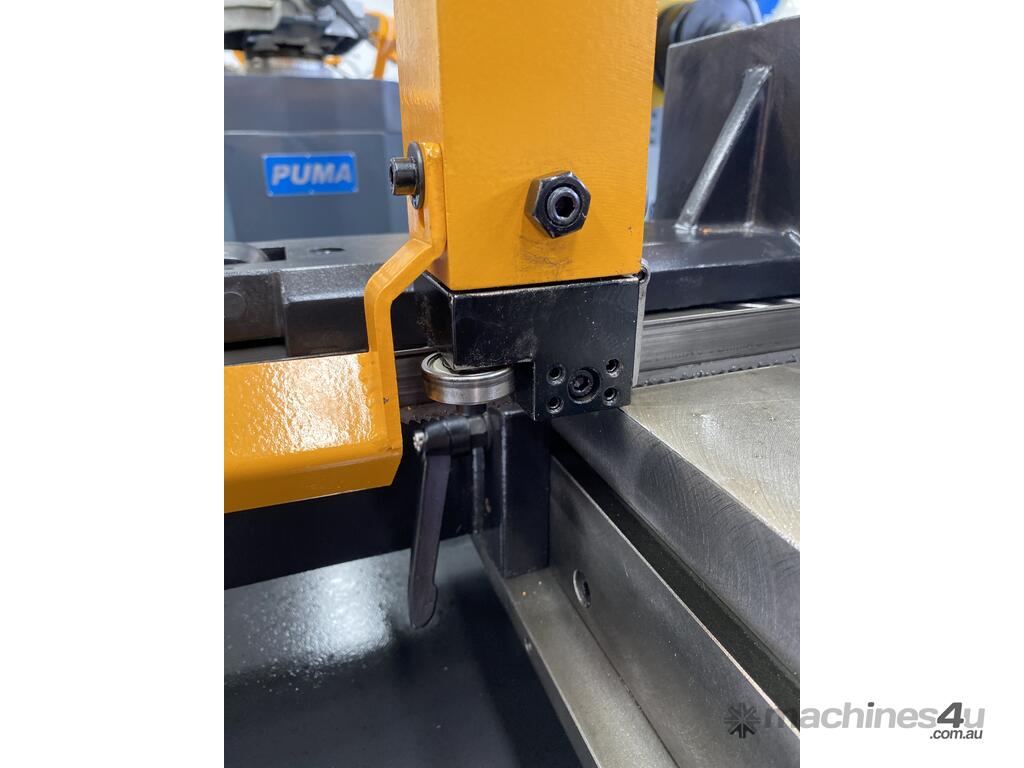

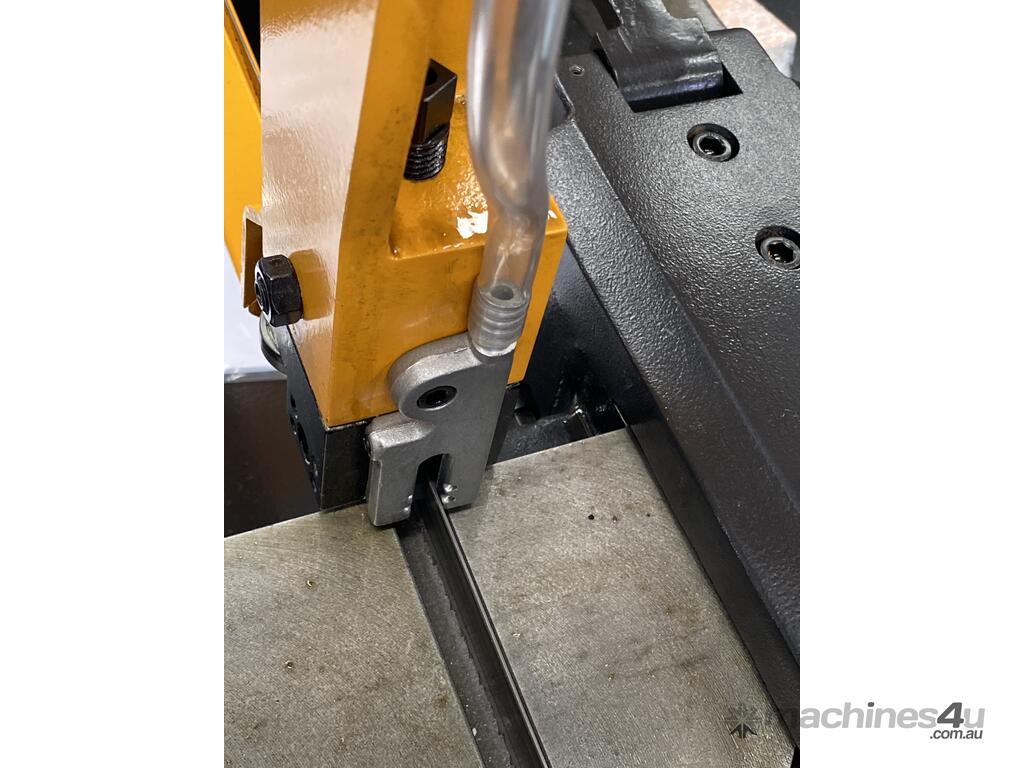

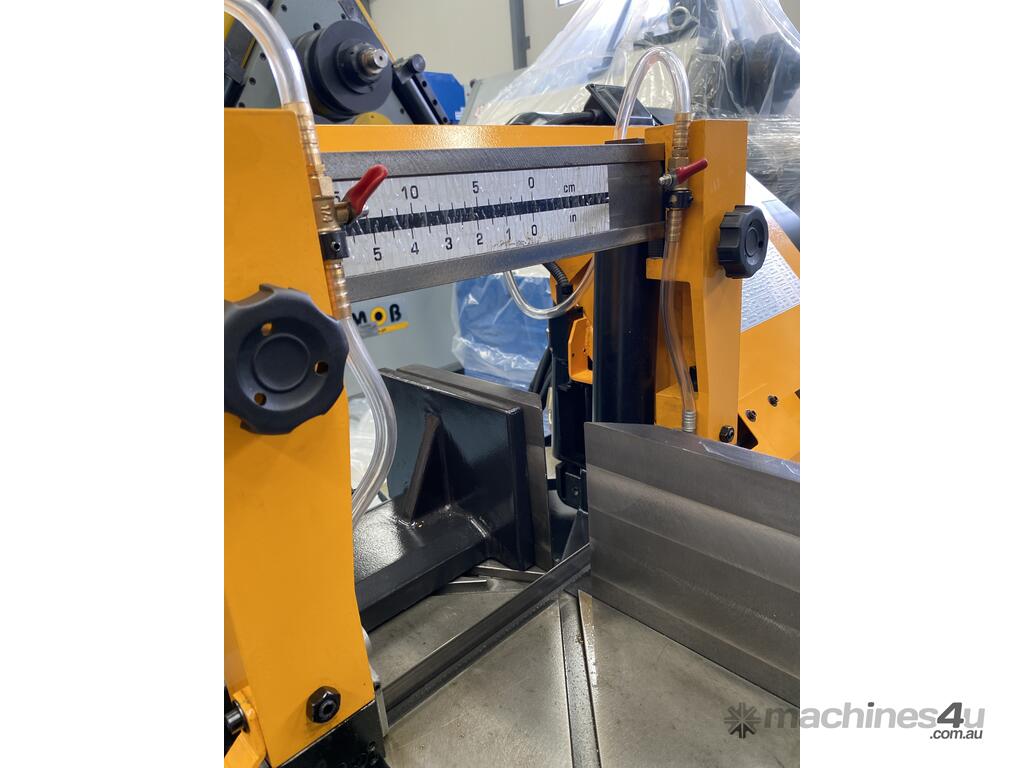

5. Large and precise carbide saw blade guides
6. Instant blade tension

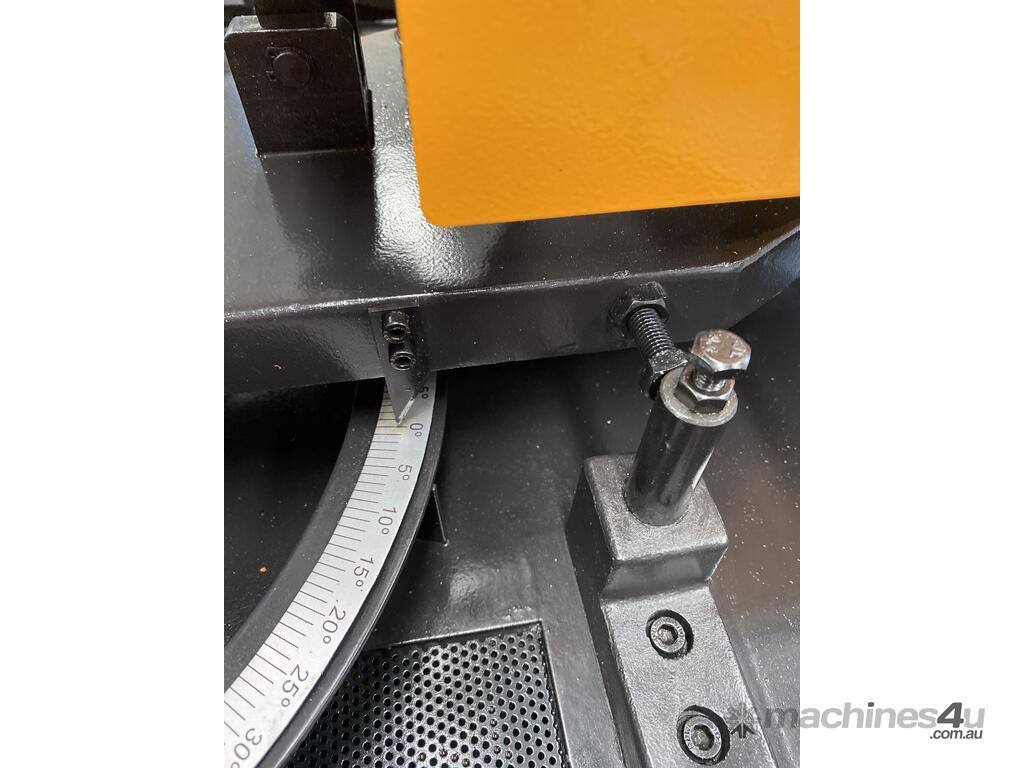

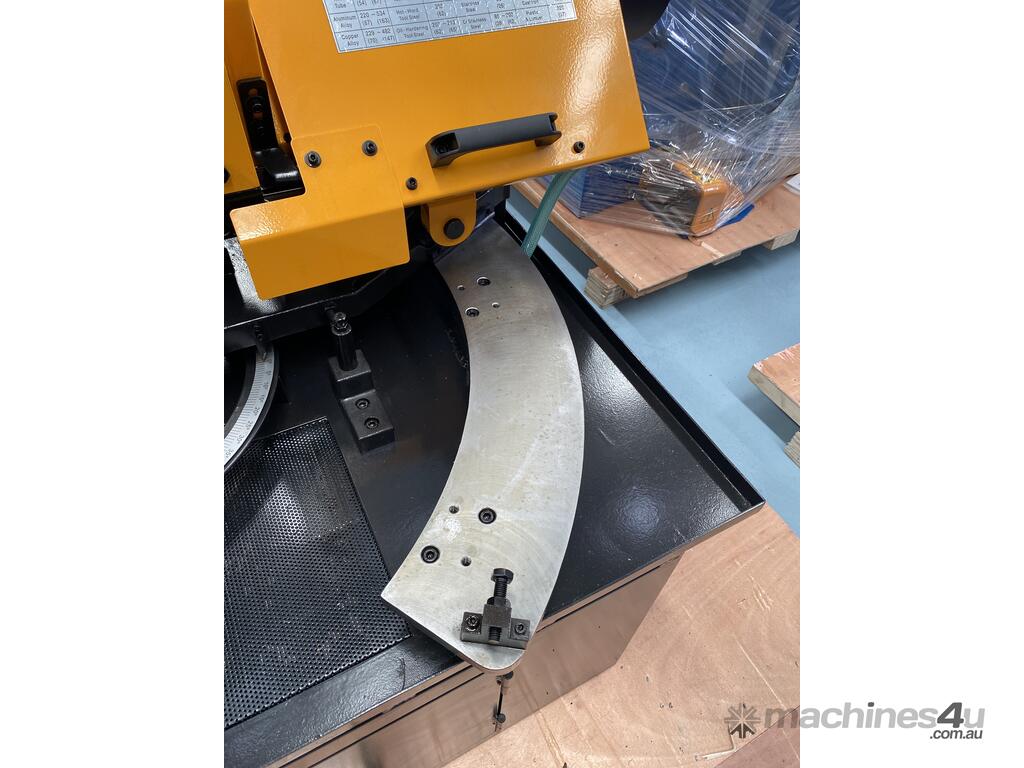

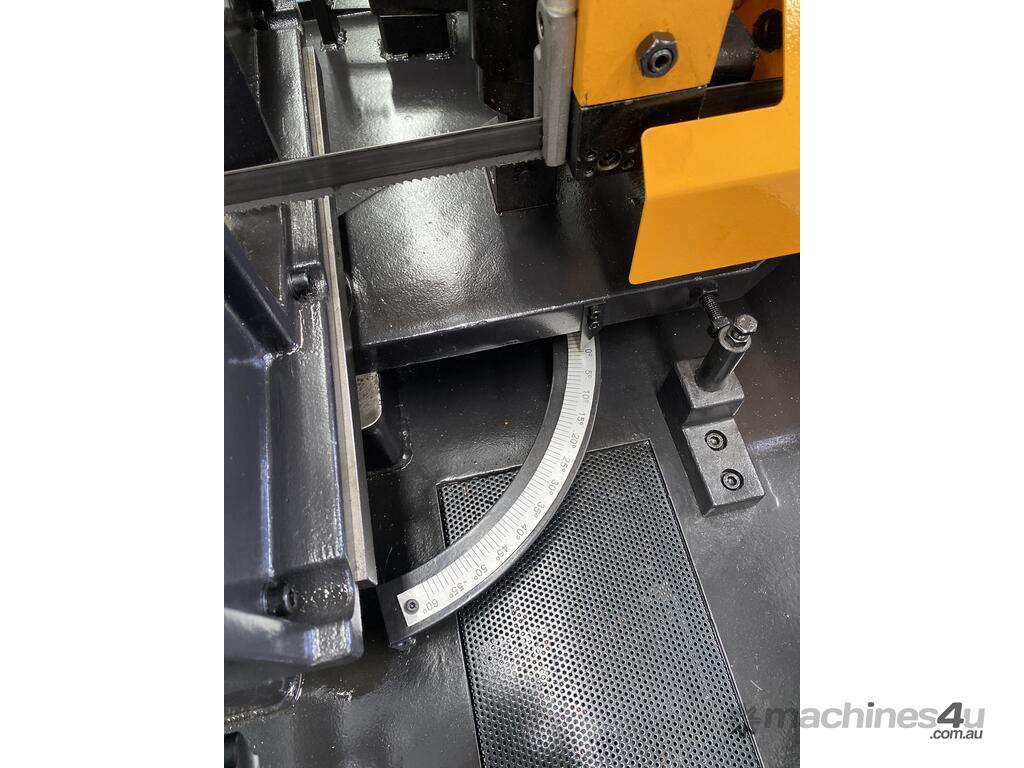

7. Frame swivel for angle cutting

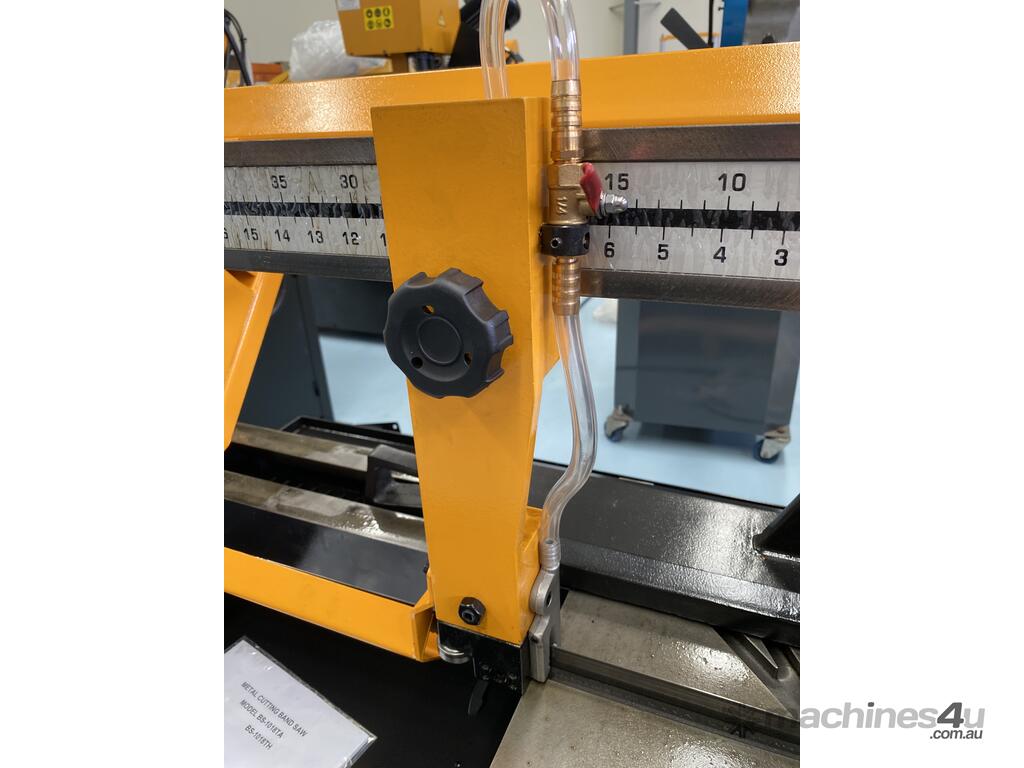

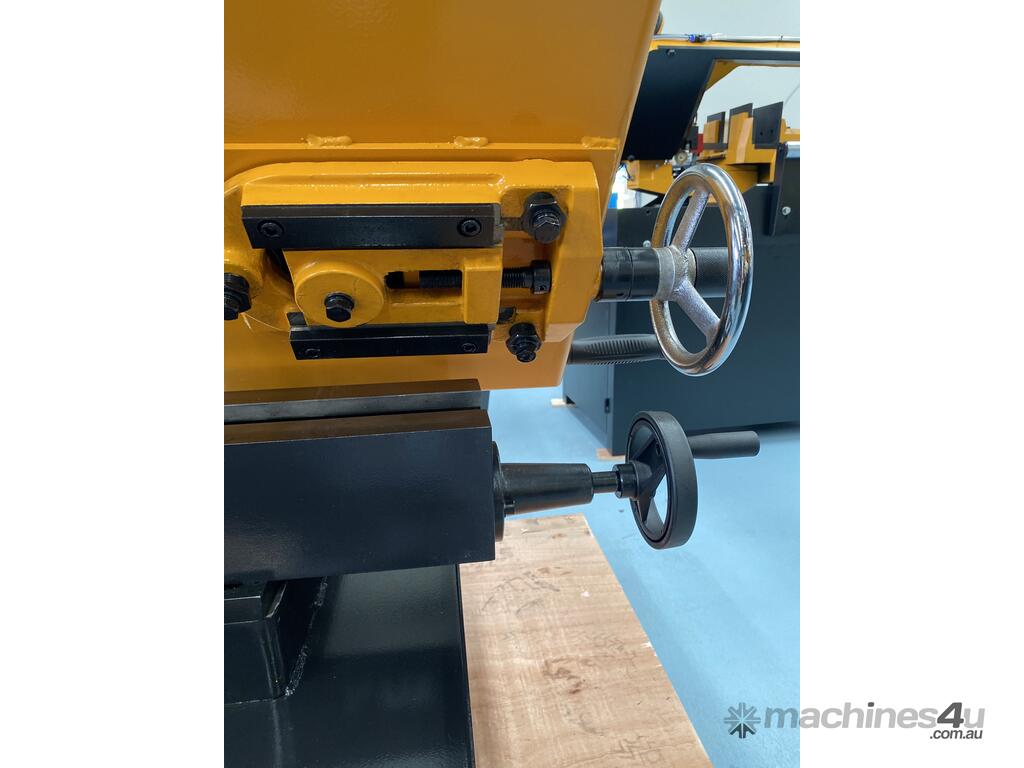

8. Easy blade change, adjustable tension, rigid and precise blade guides
9. Efficient coolant delivery system
10. Adapts to various metal materials such as rods, bars, tubes, pipes and I & H beams
11. Cutting fluid coolant system
12. One set of tools and tool box
13. One M42 bi-metal saw blade
14. Pre machined slots in cutting plate
15. Front length stop

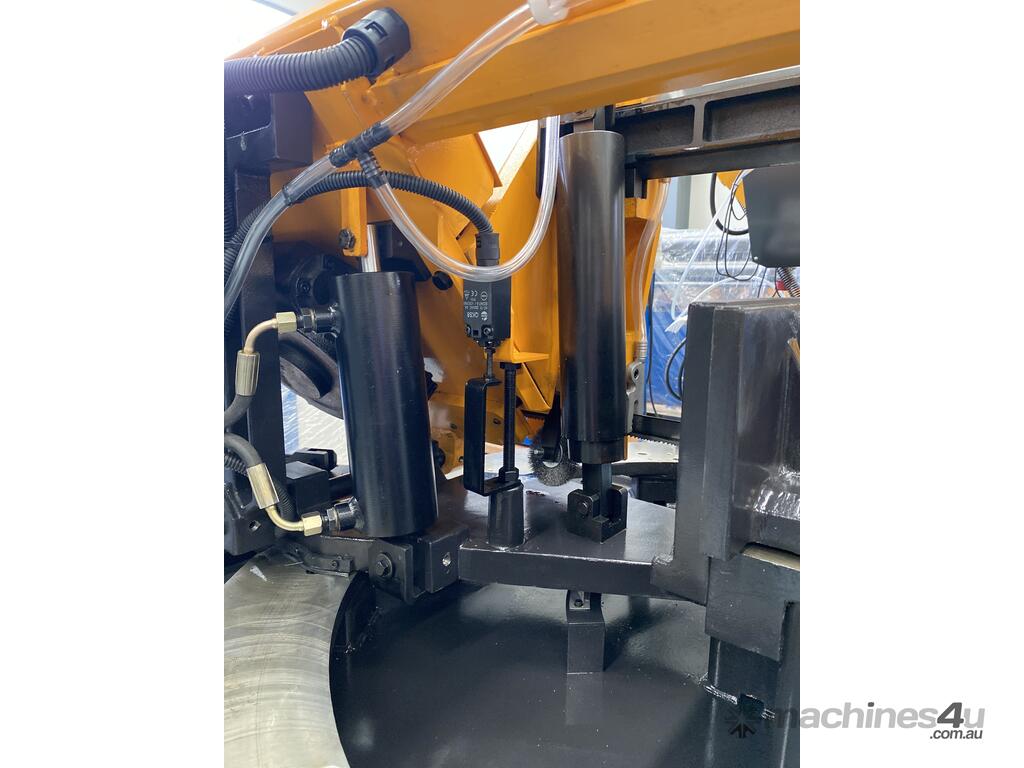

16. Hydraulic cutting frame action up & down
Cut circular 90° 260mm (10.2")
Cut rectangular 90° 260x430mm (10.2x16.9")
Cut circular 60° 155mm (6.1")
Cut rectangular 60° 125x125 mm (5"x5")
Cut circular 45° 260mm (10.2")
Cut rectangular 45° Left: 260x130mm (10.2"x5.1")Right: 300x200mm (11.8"x7.8")
Blade speed 28, 62, 93, 130 MPM
Blade size 27x0.9x3660 mm, 5/8 TPI
Motor power 1.5 kW
Drive Belt
Packing size 212x131x122 cm
N.W./G.W. 515/653 kg
