Save heaps on an automatic band saw with the Mastercut BS-460GB
The machine cuts angles to sixty degrees, feeds automatically up to 500mm in one shot, PLC controls, automatic feed & clamp, infeed & outfeed roller tables included.

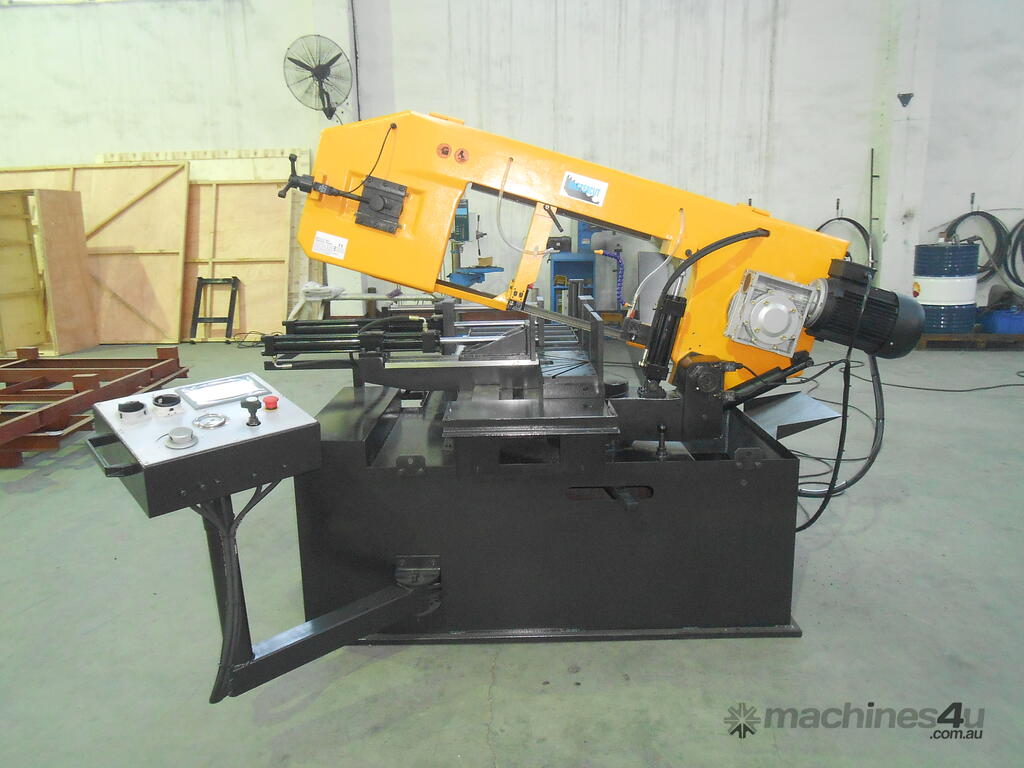

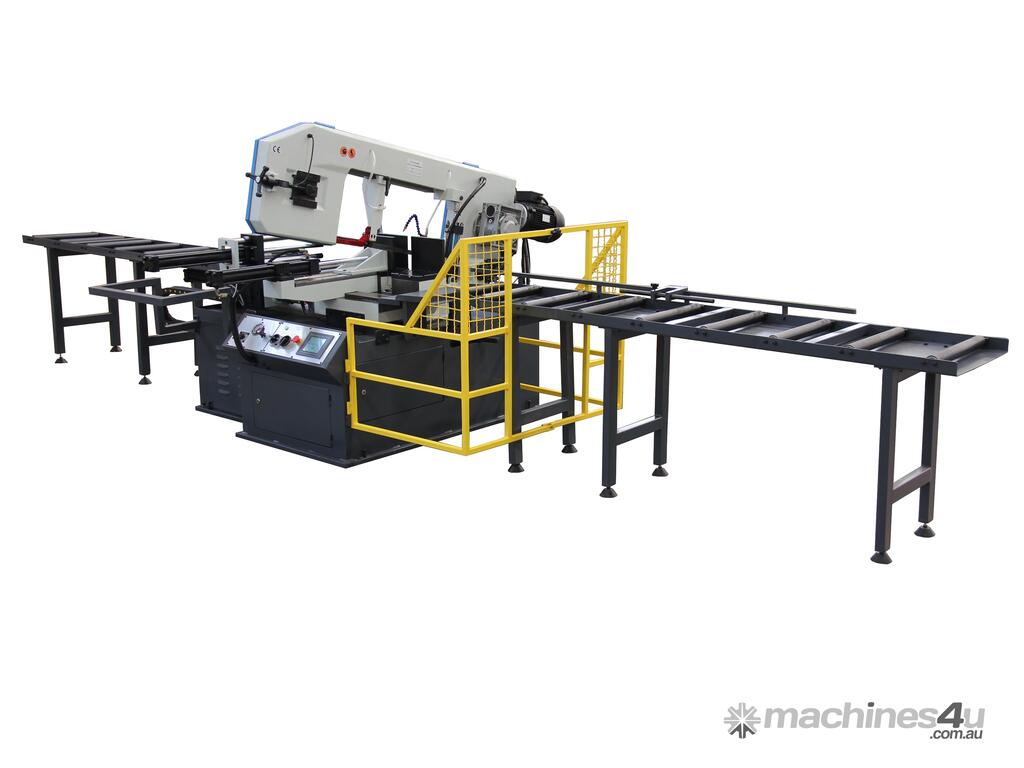

New Mastercut BS-460GB fully automatic bandsaw:

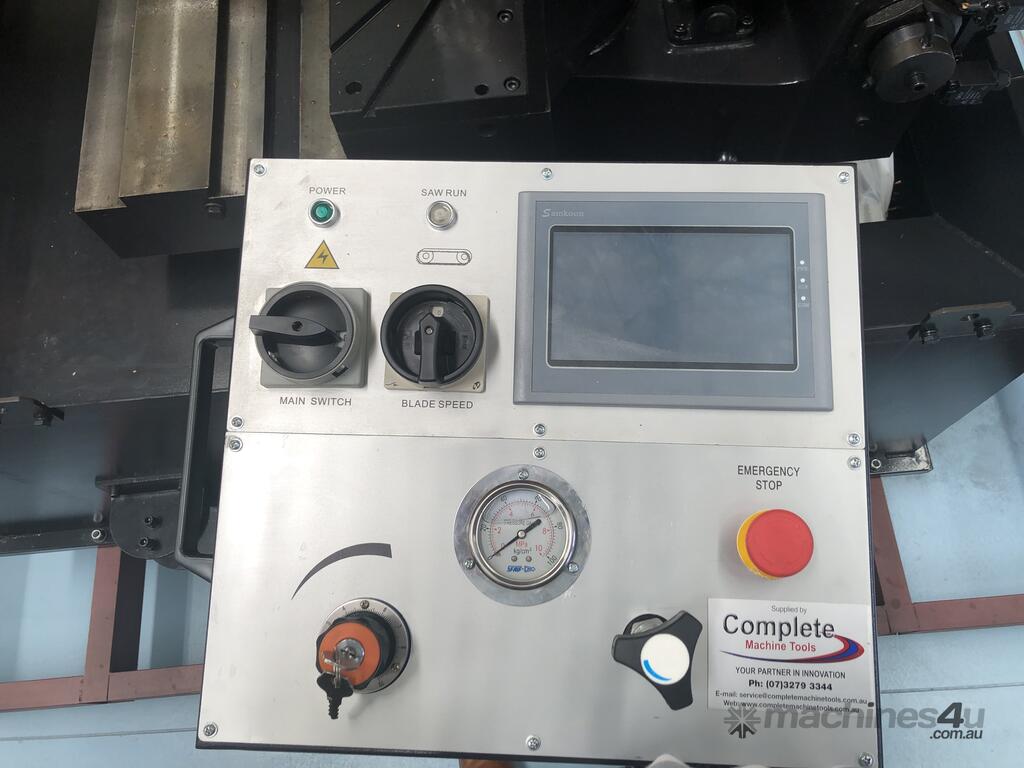

- PLC control with colour touch screen controller
- Control panel on pendant

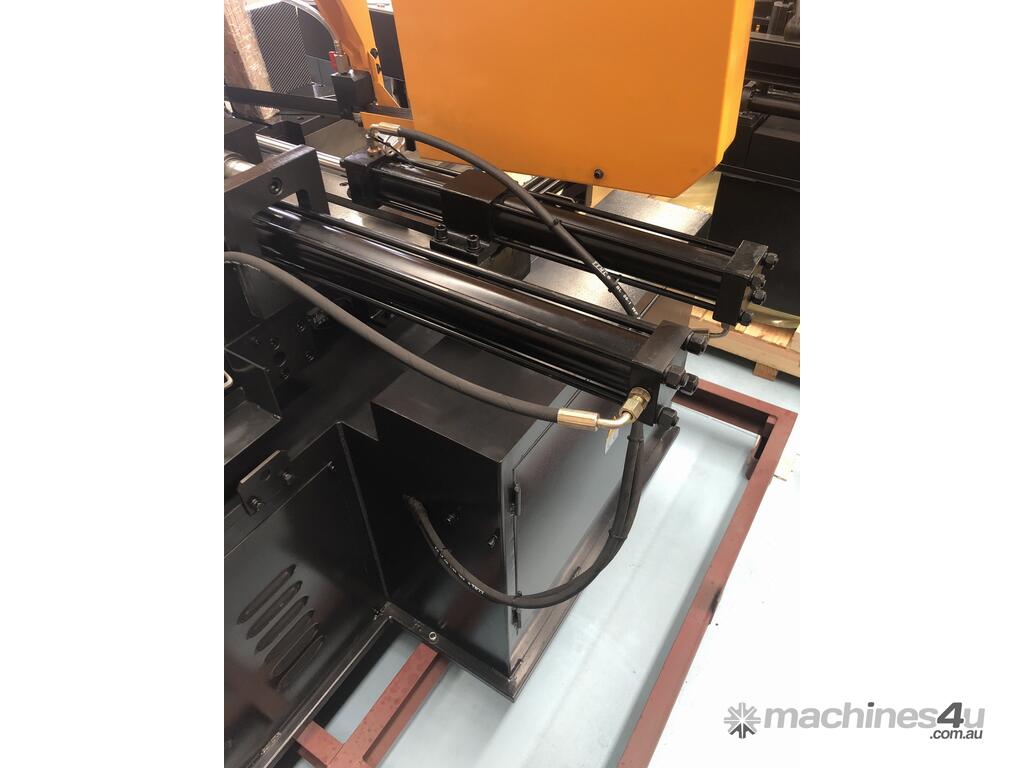

- Automatic feeding and clamping (fully automatic operation but with manual rotation of cutting head for angles)

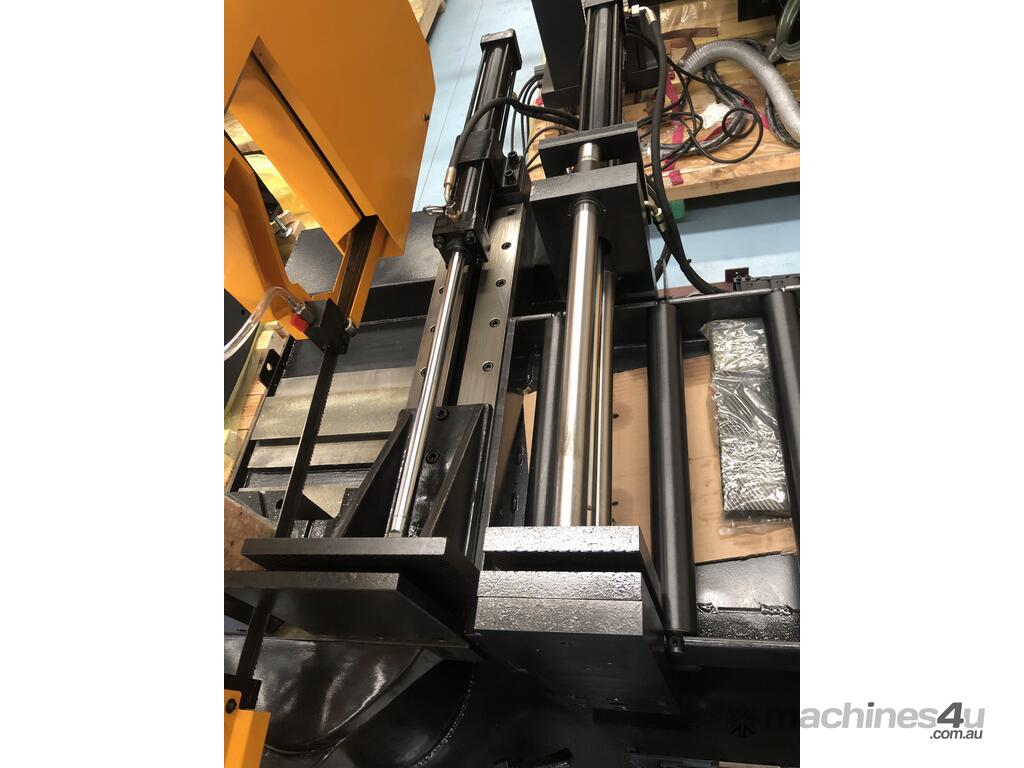

- Shuttle vice feeding
- E stop on control panel

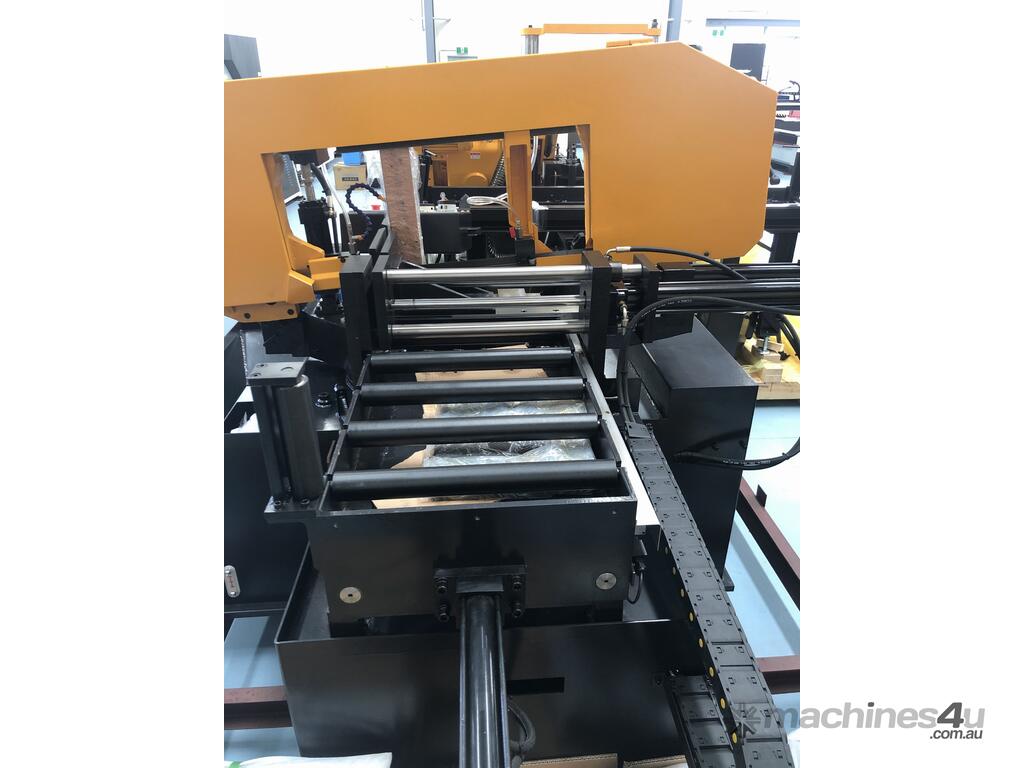

- 3m length infeed & outfeed rollers
- Manual safety guard around moving rear vice and front of machine
- multiple feeding length
- CE safety standards (interlock switch on blade cover)
- Guard behind the guide where the blade is exposed

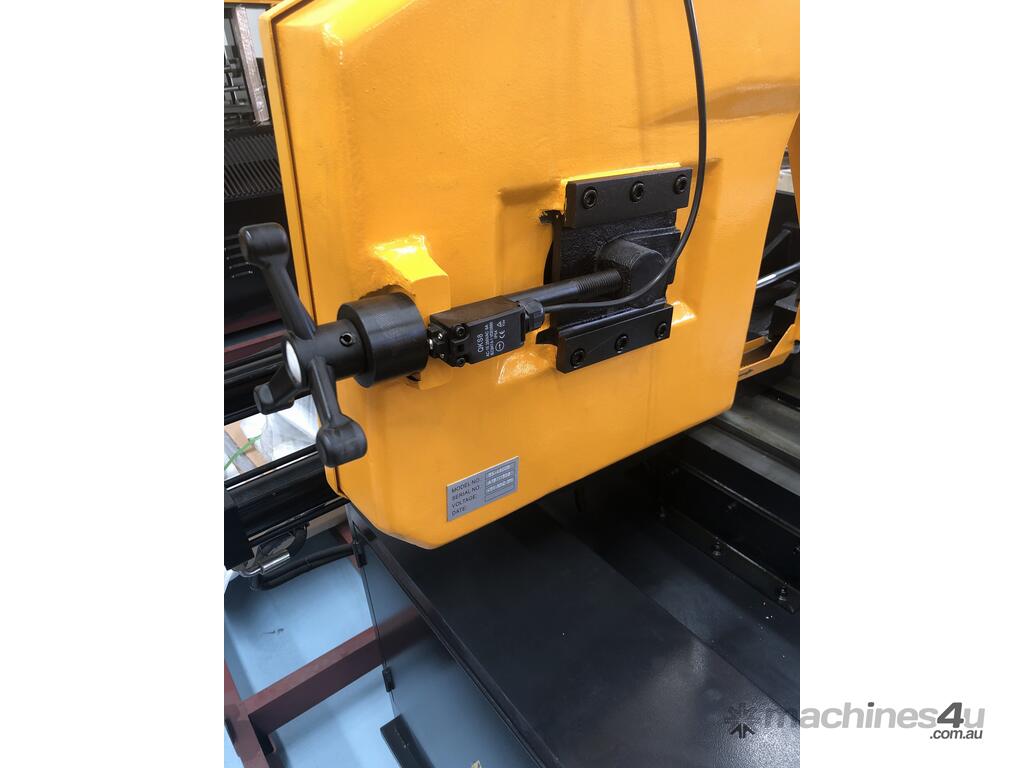

- Safety switch on blade tensioning device
- Adjustable cutting head return height by limit switch
- Carbide blade guides and double blade guide bearings

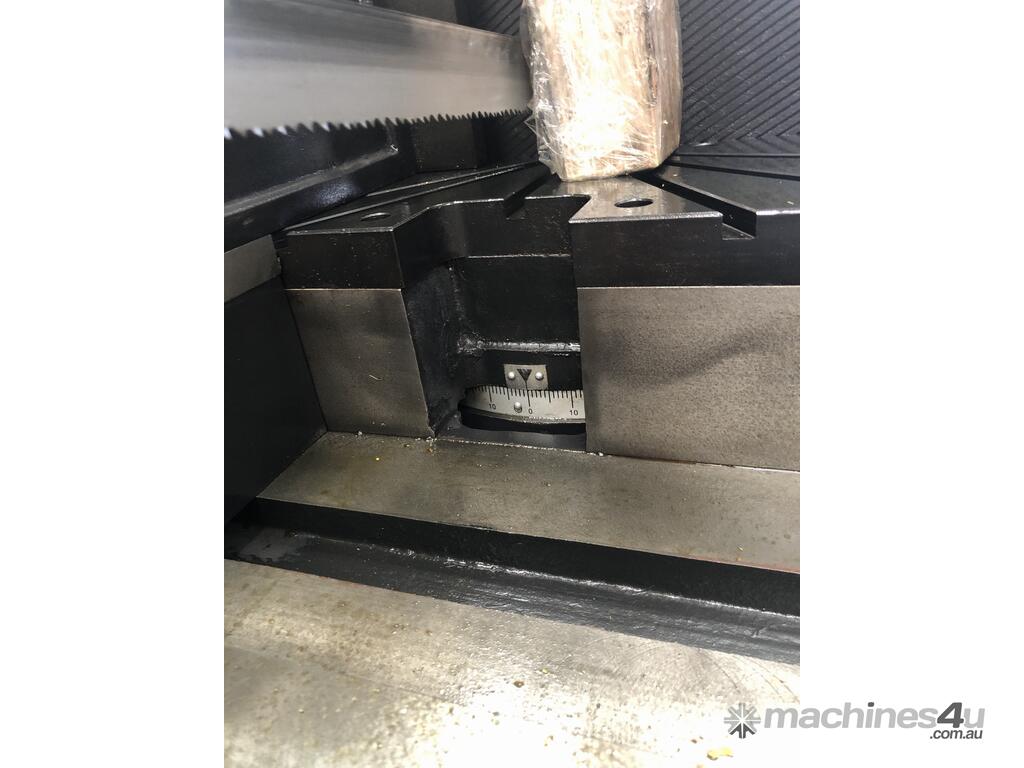

- 0 – 60 degree mitre capabilities
- Coolant system
- 2 blade speed selection
- 3PH 415V 50HZ
Capacity:
Round 90 deg.: 330mm
Rectangular 90 deg.: 460mm x 250mm
Round 60 deg.: 205mm
Rectangular 60 deg.: 205mm x 250mm
Round 45 deg.: 305mm
Rectangular 45 deg.: 305mm x 250mm
Blade Speeds: 40/80 mtr/min
Blade Size: 34mm x 0.9mm x 3960mm
Motor: 1.5/2.2 Kw

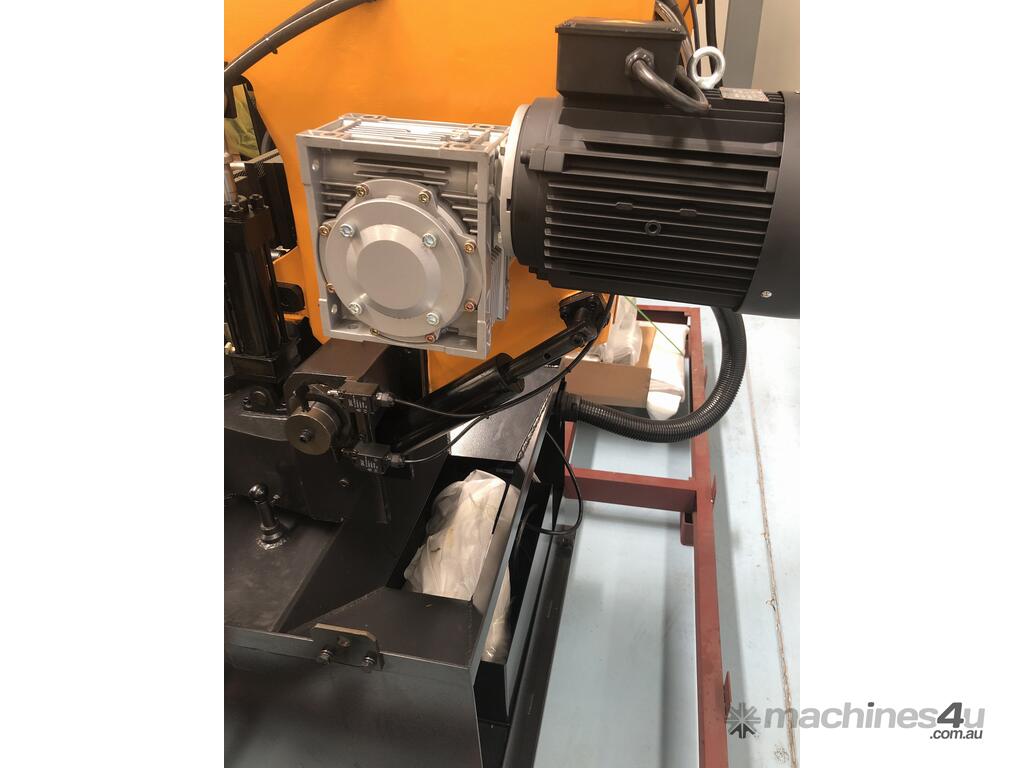

Drive: Fully Enclosed Reduction Drive
Packing Size: 250cm x 230cm x 163cm
G.W.: 1430 kg
