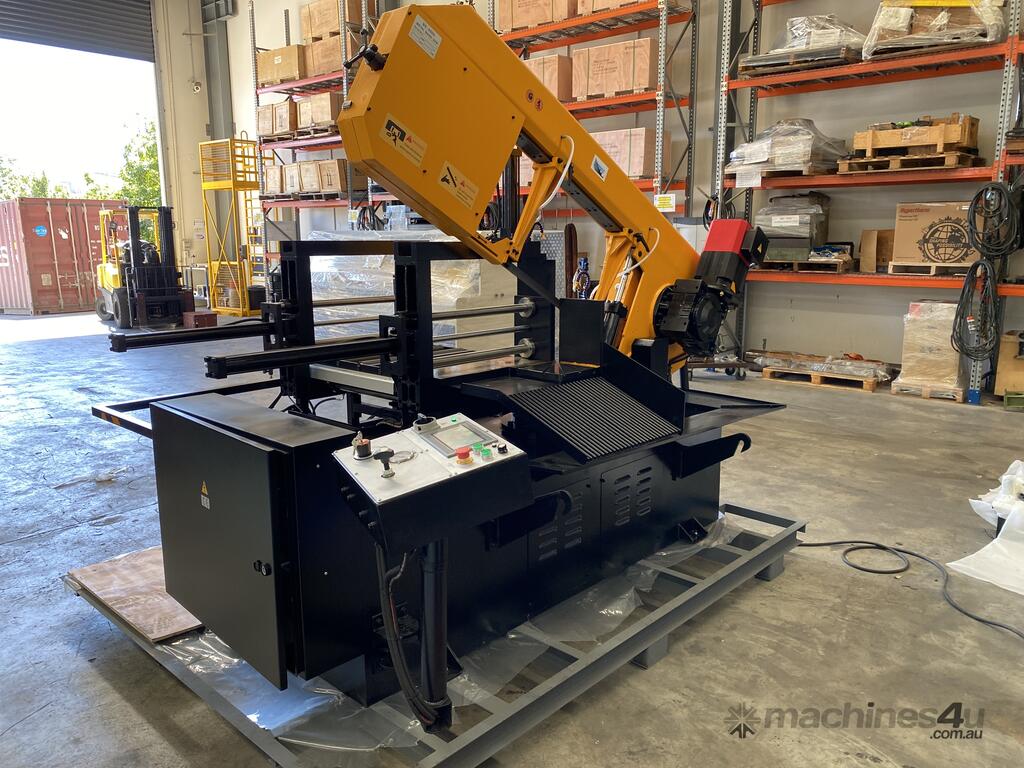

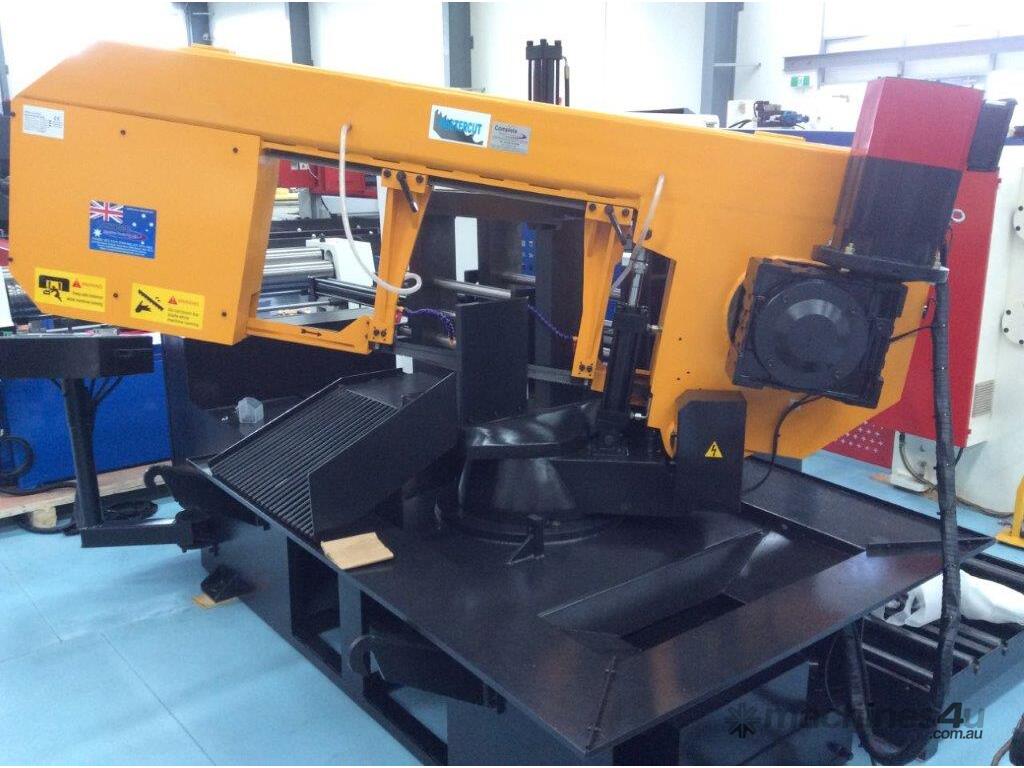

The Mastercut BS-650G is a large capacity mitre band saw at a very attractive price point. This machine comes standard with motorized angle movement controlled via the CNC color touch screen, a servo motor to control the blade speed, rigid construction, hydraulic vertical and horizontal clamping and automatic feeding of the material to the desired length.
A perfect additional or replacement for those fab / structural steel shops wanting a flexible feature packed machine to cut their jobs in house.
Features:

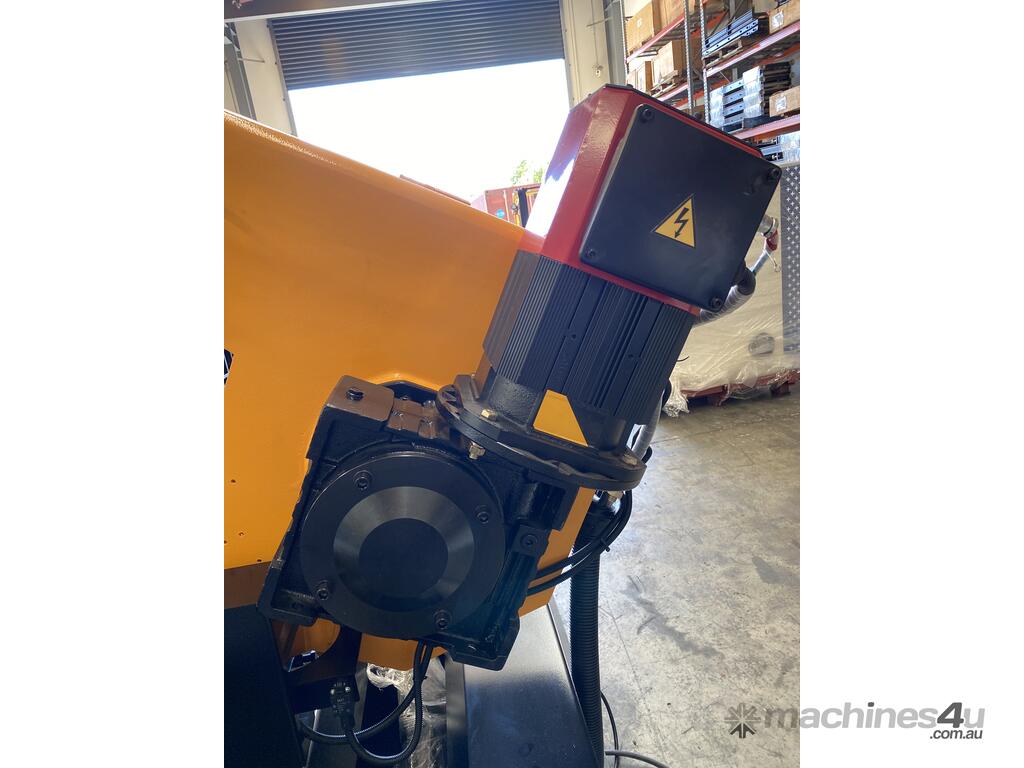

Variable speed high torque servo motor

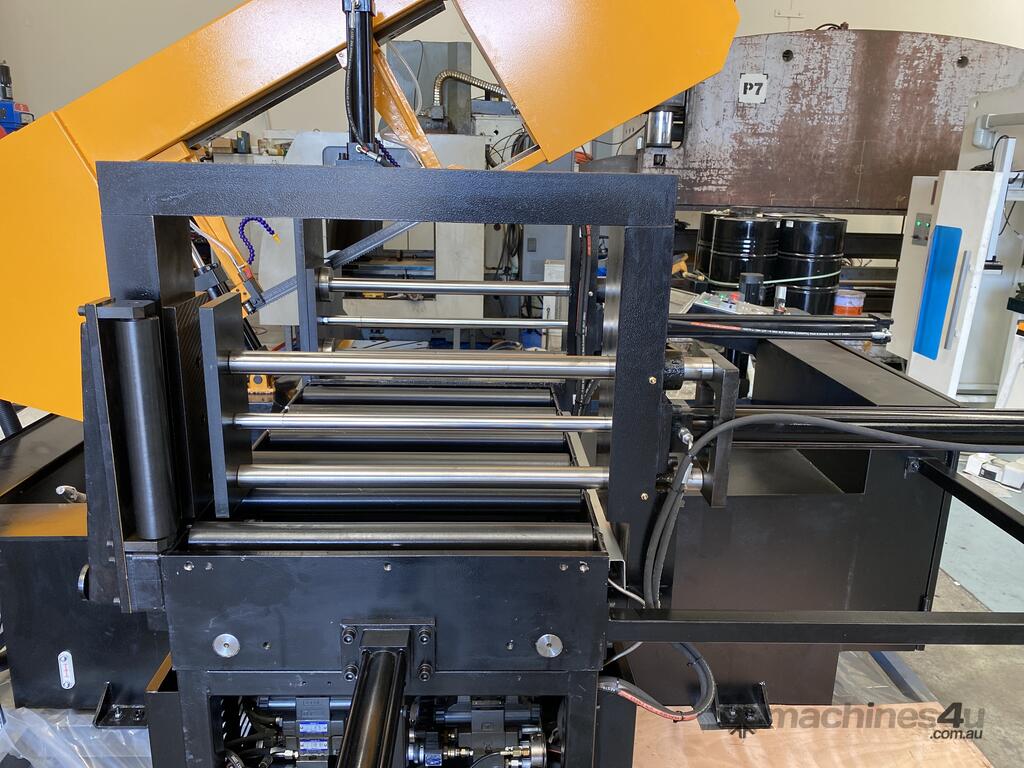

Shuttle vice for precision automatic feeding

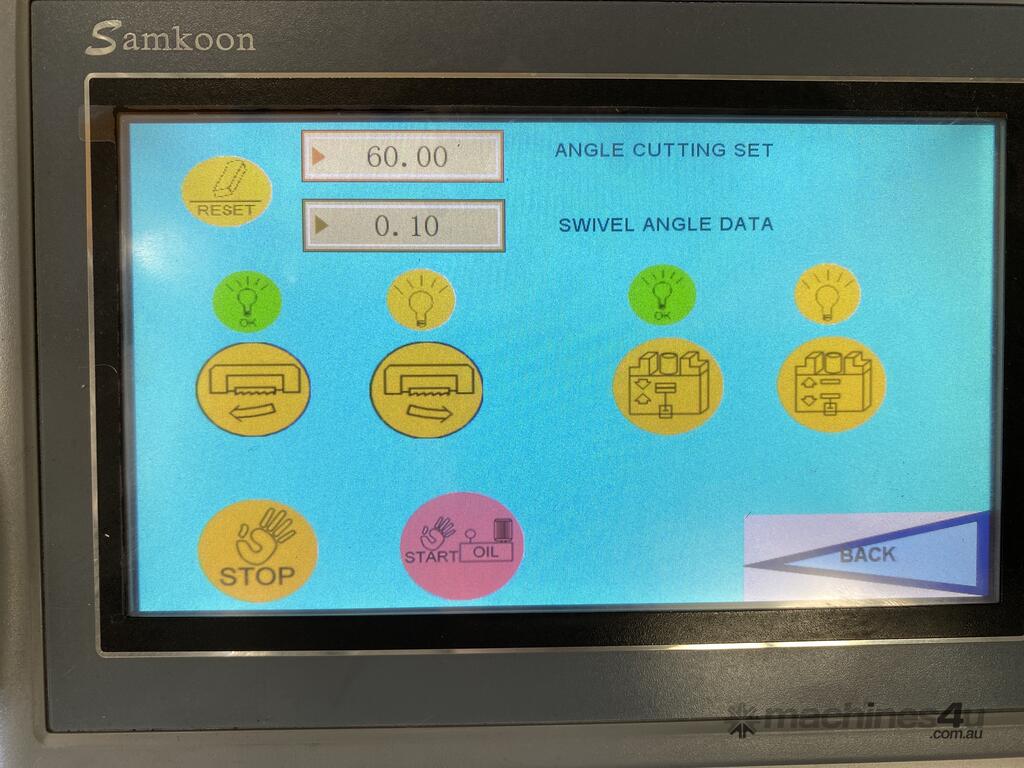

Cutting beam programmable swivel to 60 degrees in the right hand direction

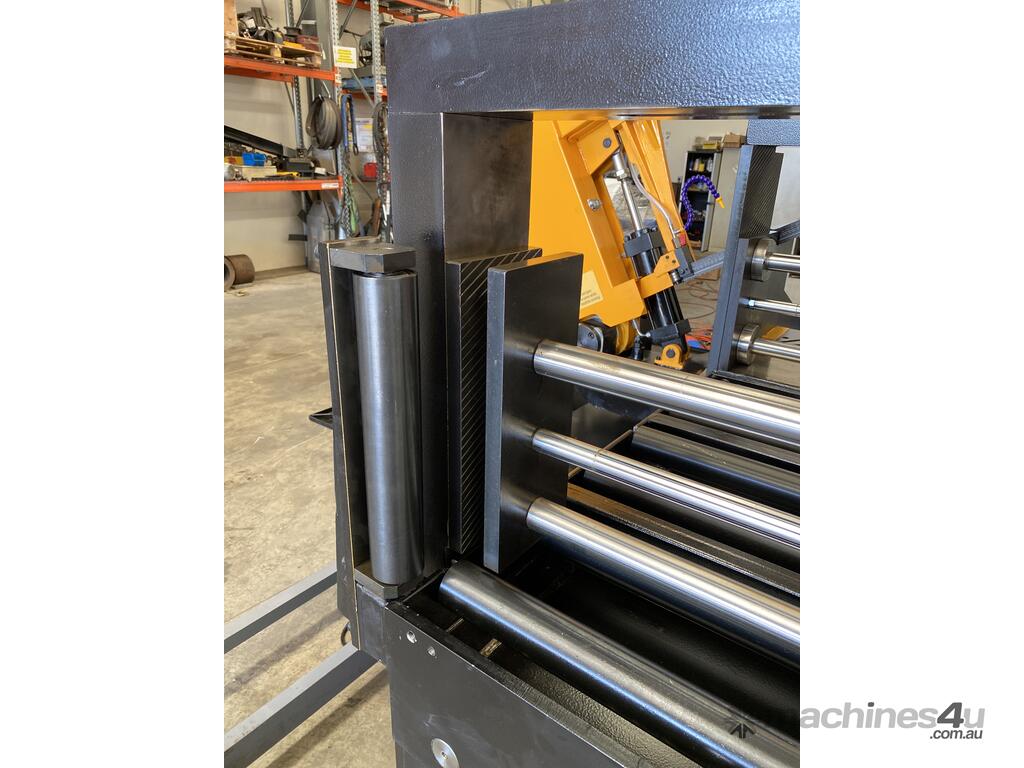

Box style top clamping hydraulic vice suitable for batch (bundle) cutting
Carbide blade guides and double blade guide bearings
Beam height adjustable by limit switch for improved productivity

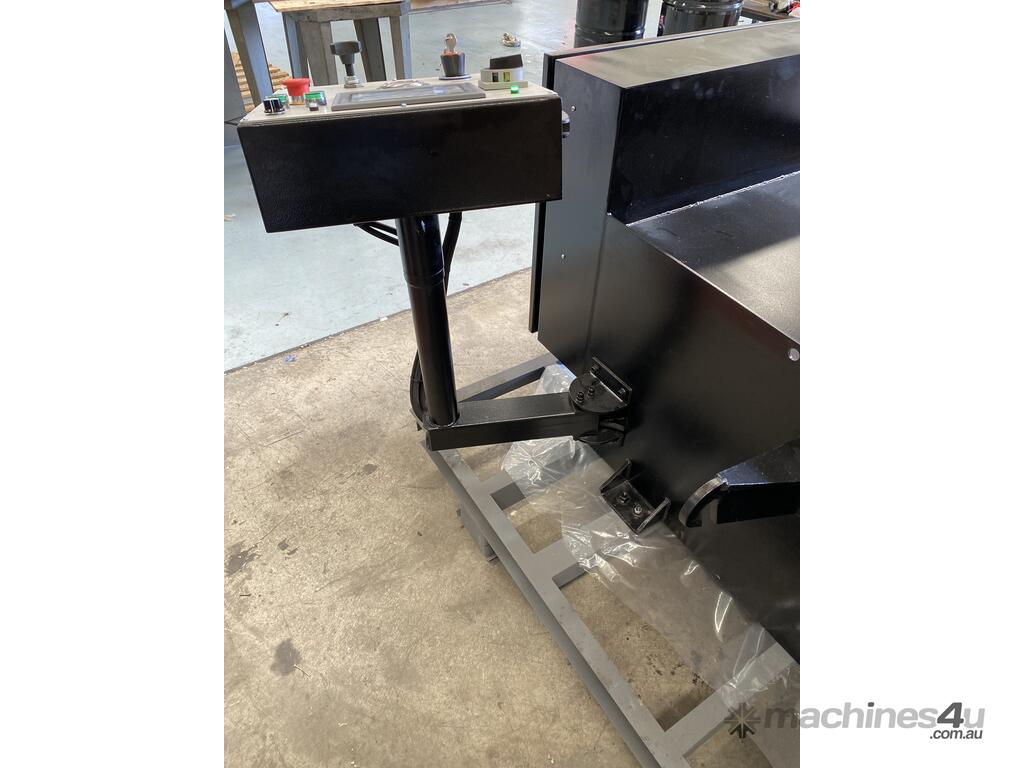

Controls on swiveling operators station

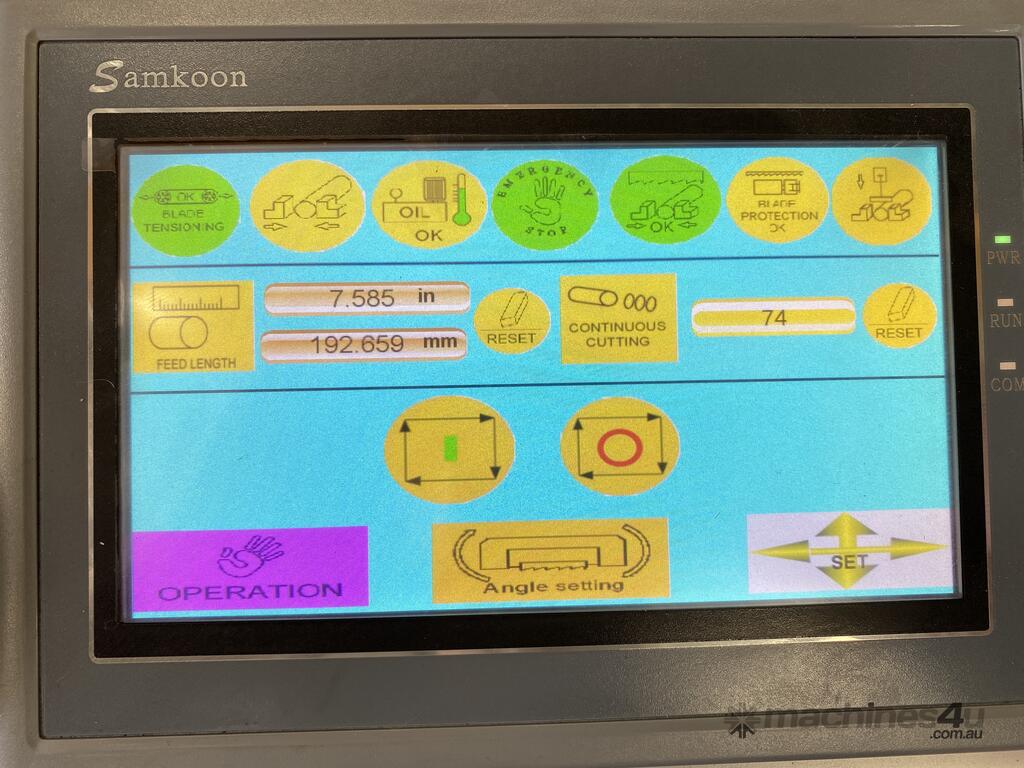

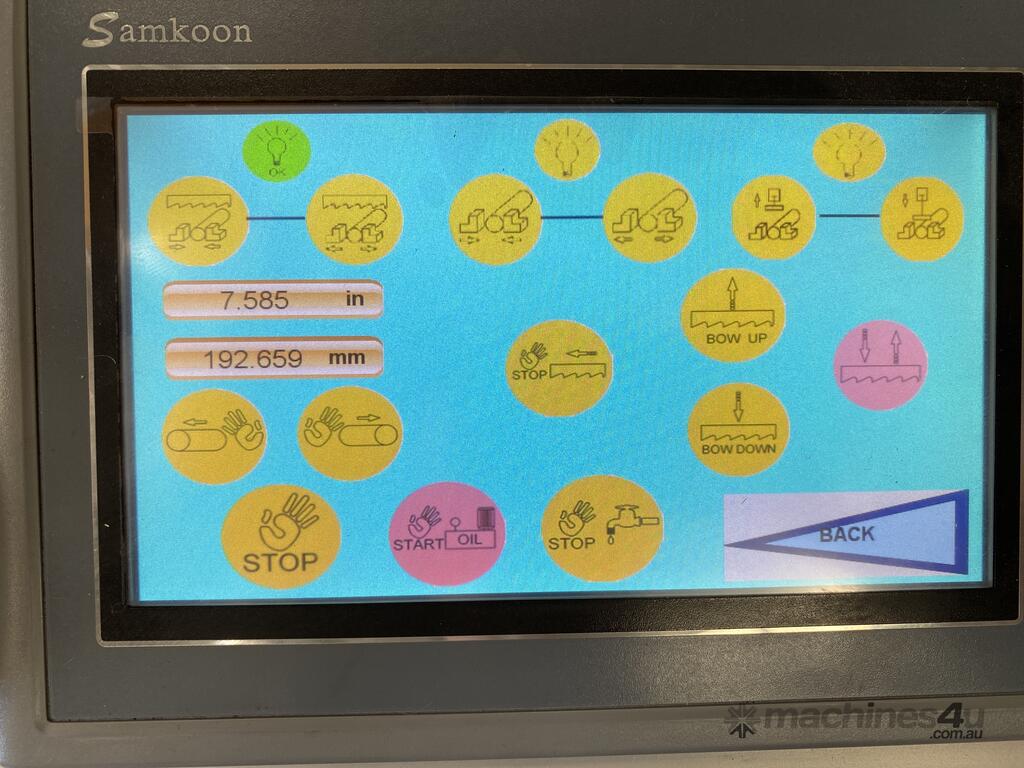

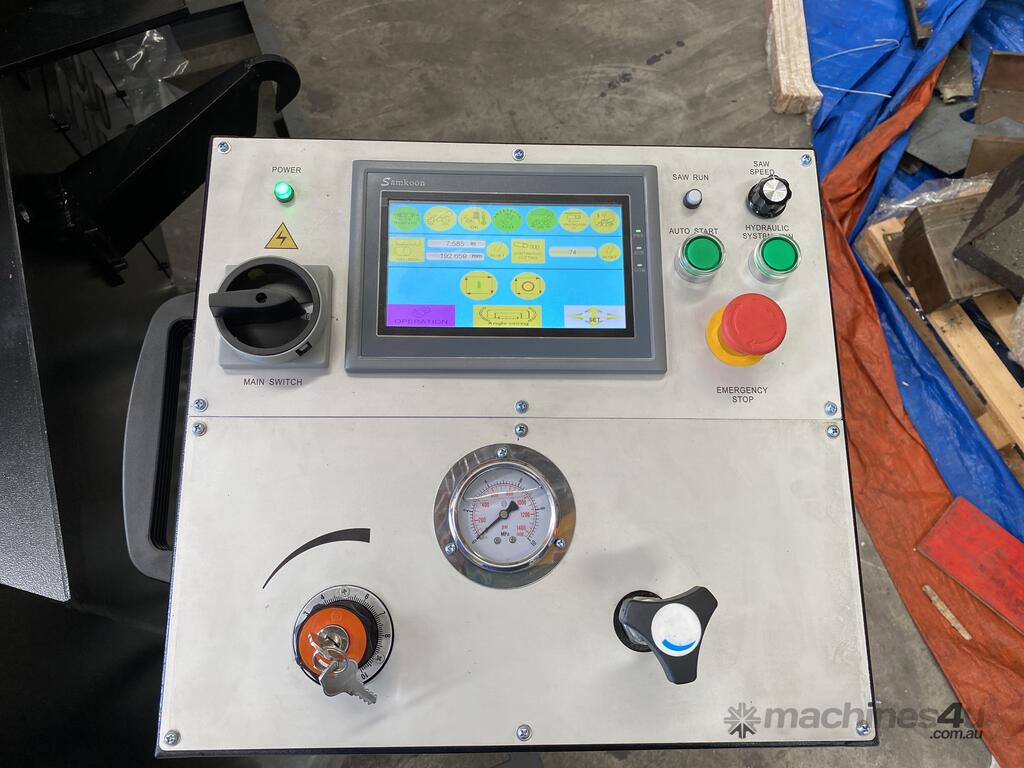

Color Touch screen machine controls for speed and simplicity
"E" Stop on operators station in easy reach at all times
All metric input for feed dimensions
CNC controlled automatic feeding
Hydraulic full stroke clamping vice
Maximum single auto feed length: 650mm
Programmable multiple feed length

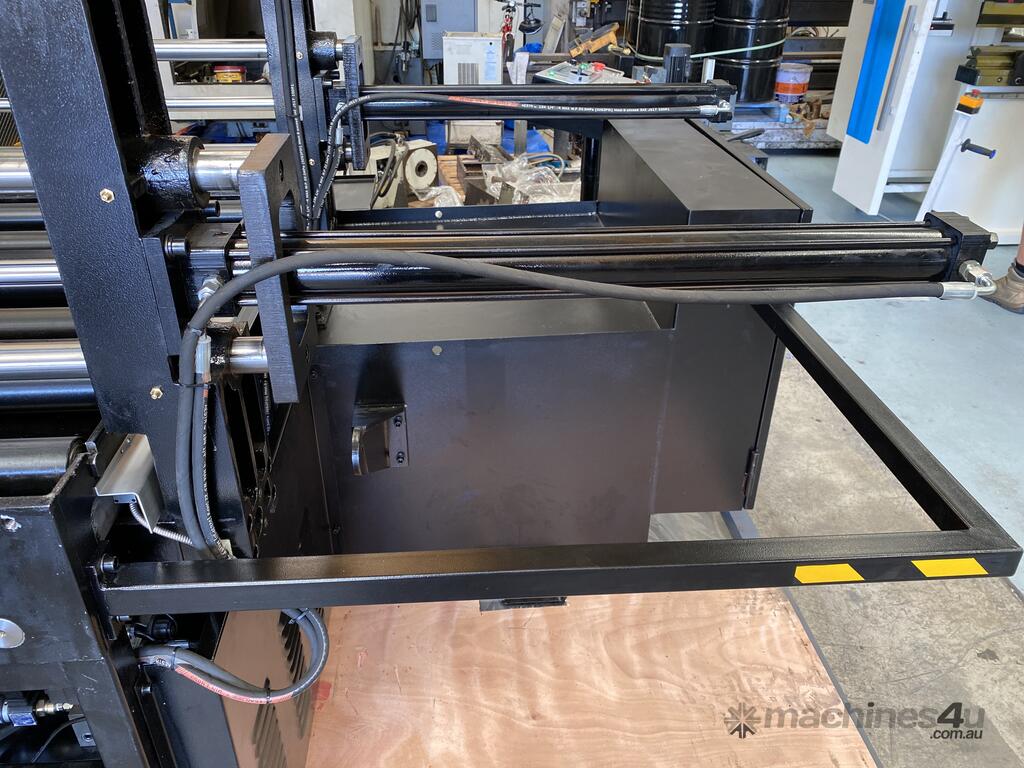

Physical safety guards around moving rear feed vice
Integral roller table on infeed side

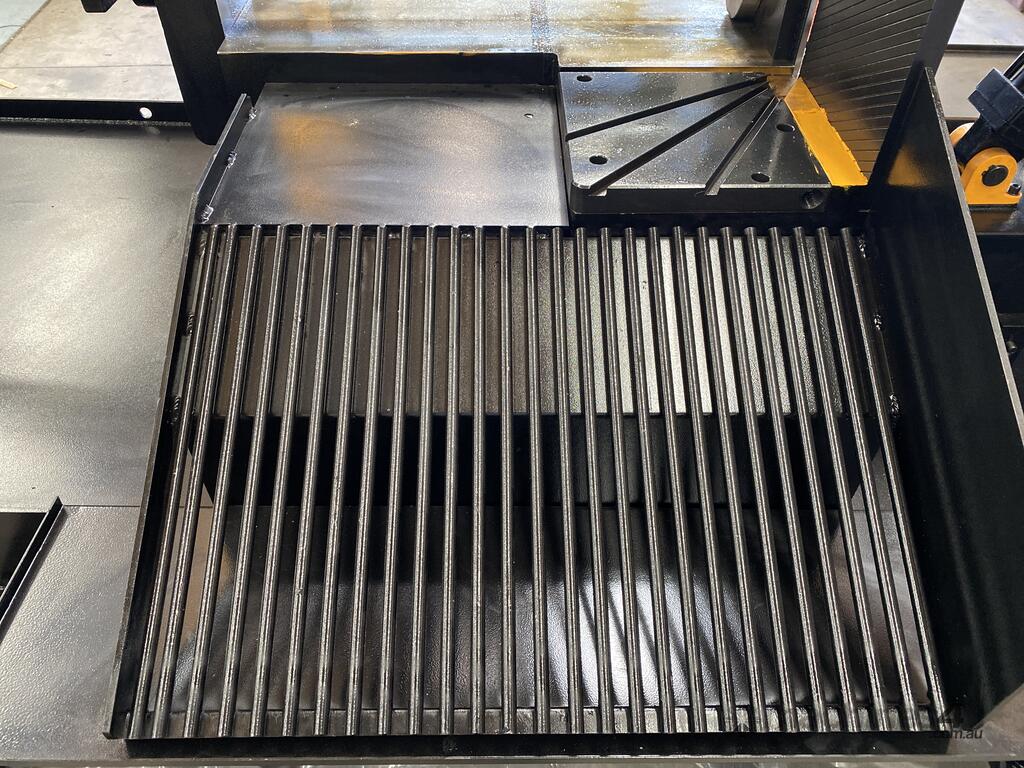

Material slide on outfeed side
Blade tension adjustment with safety switch on blade tensioning device
Blade breakage/machine stop
Fully adjustable flood type coolant system
SPECIFICATIONS
Cutting round 90: 460mm
Cutting rectangular 90: 650mm x 350mm
Cutting round 60 deg (Right): 310mm
Cutting rectangular 60 deg (Right): 310mm x 350mm
Cutting round 45 deg (Right): 460mm
Cutting rectangular 45 deg (Right): 460mm x 350mm
Blade speed: Variable from 23 - 95 rpm
Blade size: 41 x 1.3 x 5220mm
Motor: 4.0 Kw servo motor
Drive: Hi - torque gear reduction
Packing dimensions: 2920mm x 2180mm x 2170mm
Gross weight: 2320 kg
