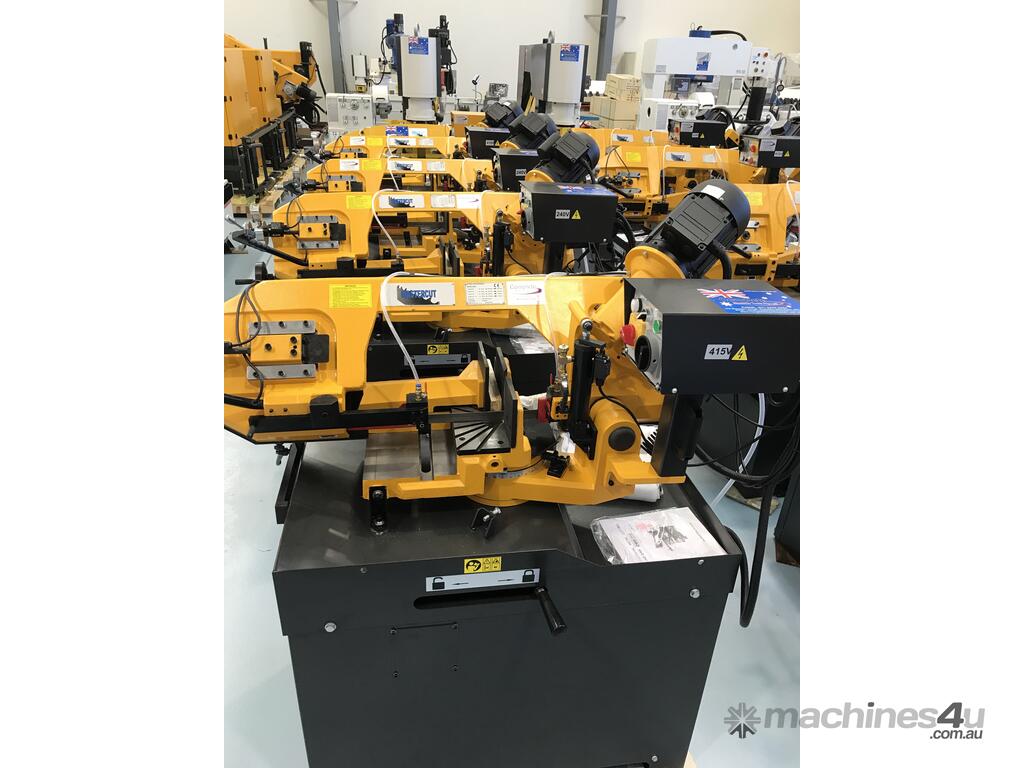

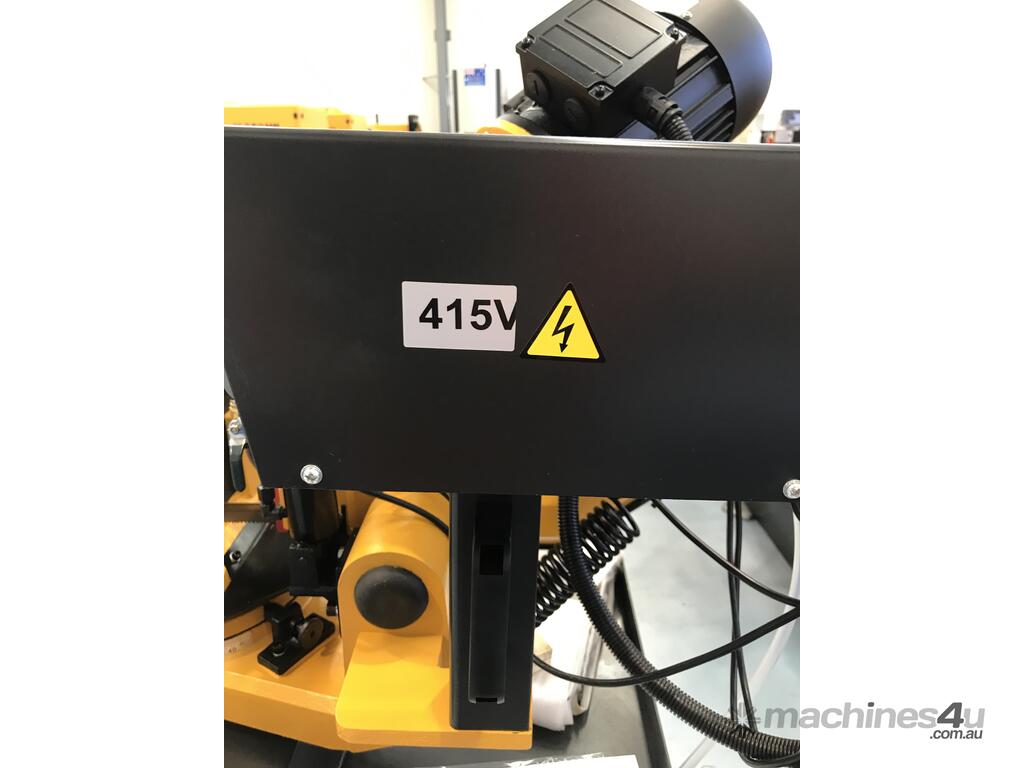

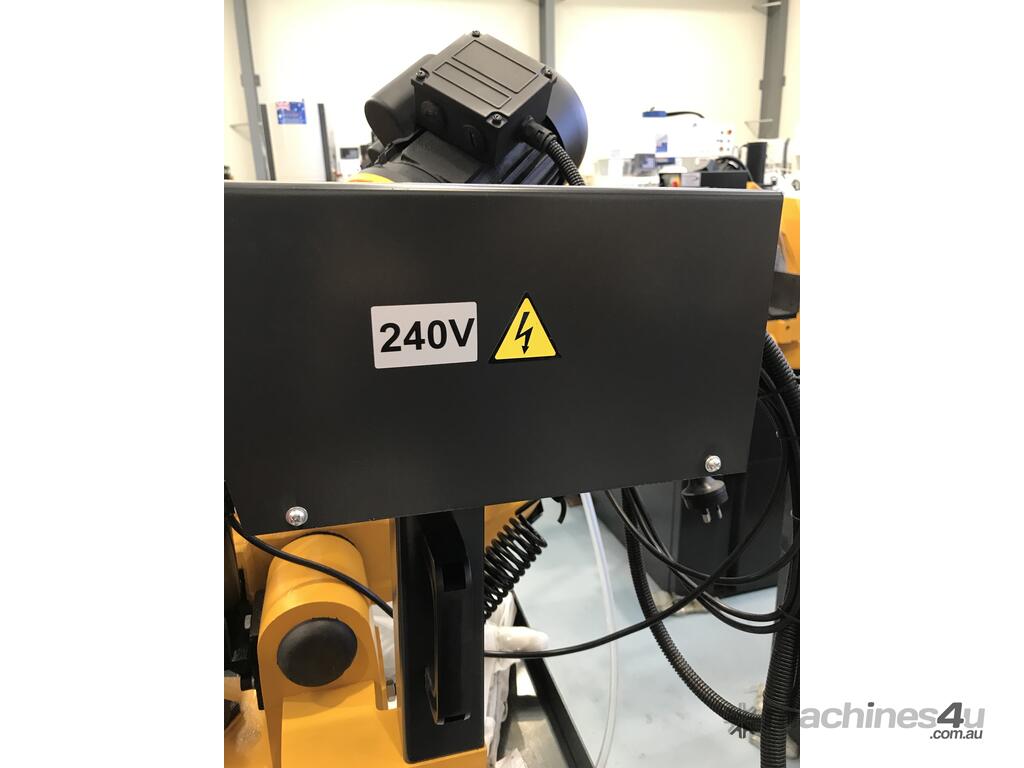

Mastercut CBS-310 2 speed | 3 Phase & 1 speed single phase mitre bandsaws
- Double mitre cutting capability
An industrial strength band saw with all of the features you will ever need.
Easily adjustable vice with quick locking lever
Error free blade tensioning using the hydraulic blade tension gauge.
Double coolant delivery puts coolant exactly where it is needed both in front and behind the cut to both lubricate the cutting action and wash chips clear of the cutting area.
Blade brush (replaceable) to clean chips from the blade as it operates.
Blade break protection. Micro switch stops the machine if a blade breakage occurs protection both the machine and the operator.
Precision ball bearing type blade guides.

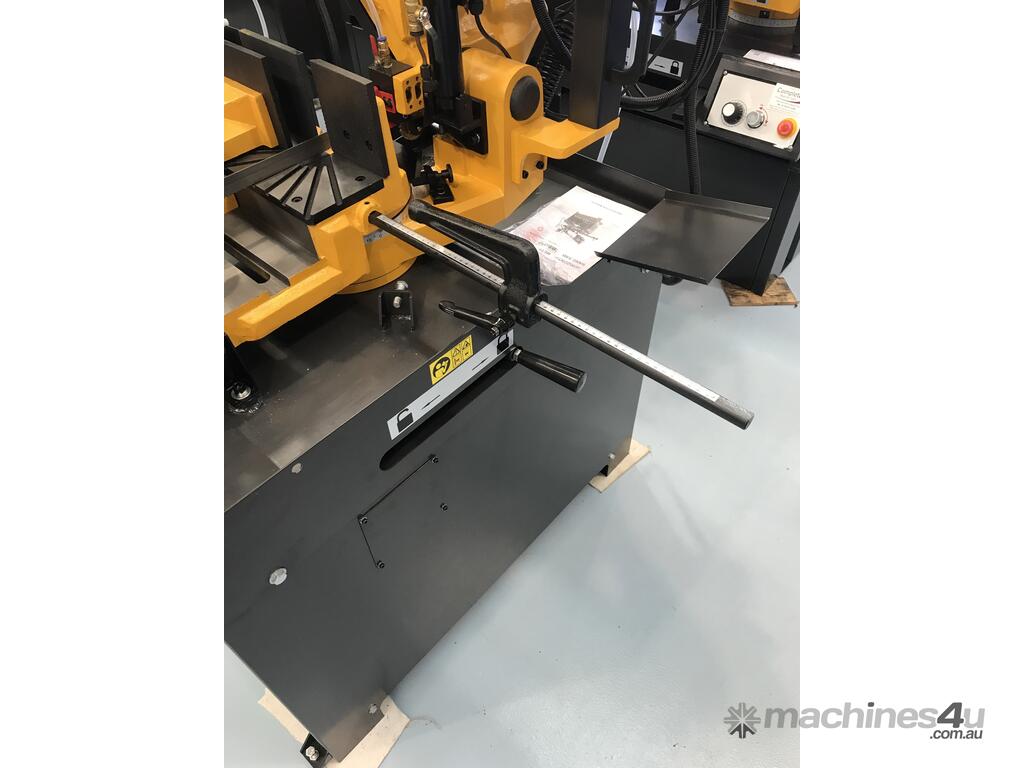

Easy to read gauge bar for repetition measuring small pieces to be cut.
Spring balance saw bow return saves labour.
Large swivel locking mechanism with angle scale and robust plastic covered lever ensures accurate setting and positive clamping.
Lever operated clamp for left/right vice positioning when mitre cutting
Round: 90° - 250mm
Square: 90° - 240mm x 240mm
Rectangular: 90° - 310 x 240mm
Round: 45° - 200mm
Square: 45° - 170mm x 170mm
Rectangular: 45° - 190 x 170mm
Round: 60° - 120mm
Square: 60° - 95mm x 95mm
Round: LEFT 45° - 150mm
Square: LEFT 45° - 130mm x 130mm
Rectangular: LEFT 45° - 170 x 90mm
BLADE SPEED - 72/36m/min
BLADE SIZE - 2715 X 27 X 0.9mm
