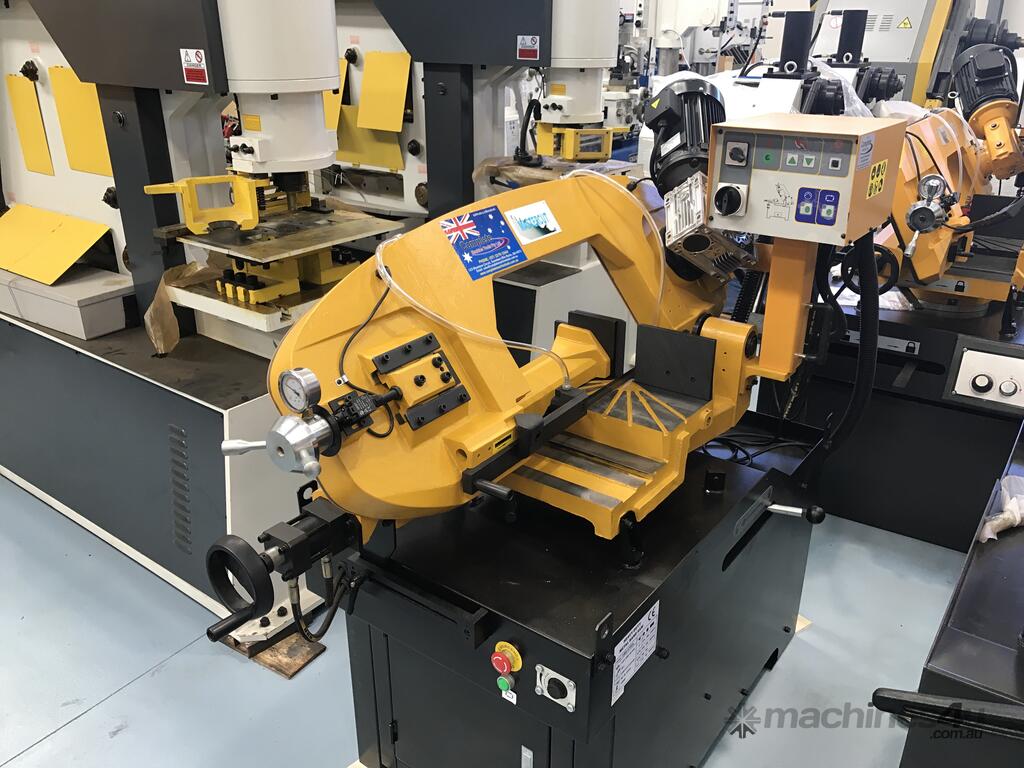

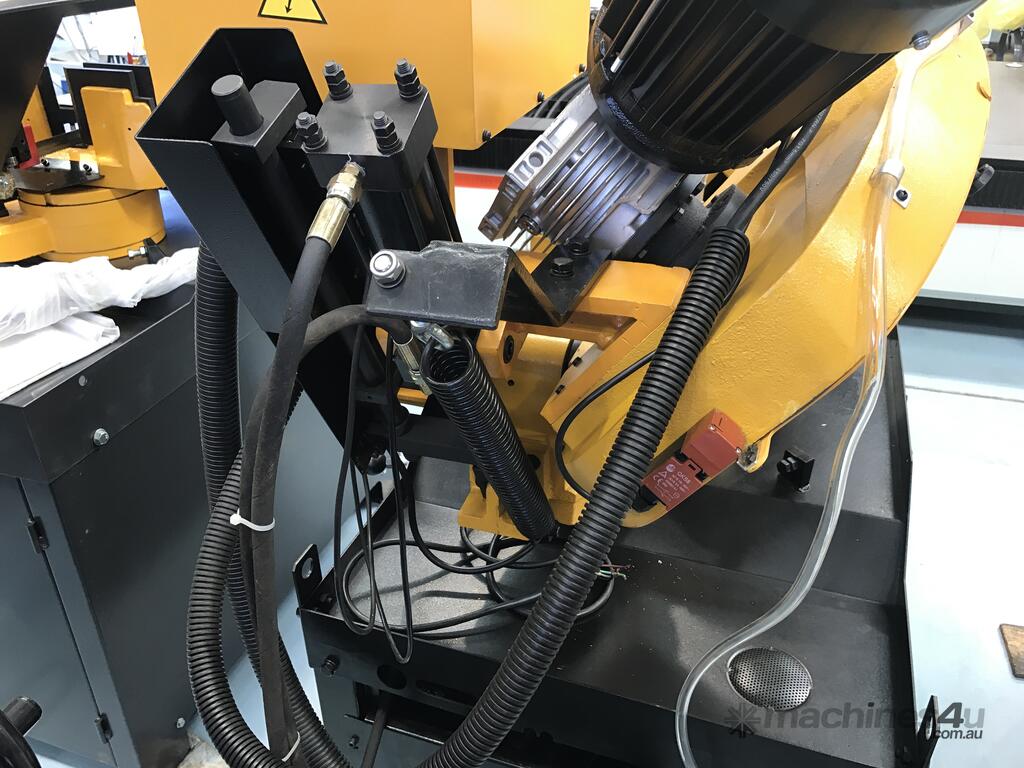

The Mastercut CBS-370SA is a 2 speed - 3 Phase semi auto band saw with the ability to mitre
An industrial strength band saw with all of the features you will ever need.
- Double mitre cutting capability

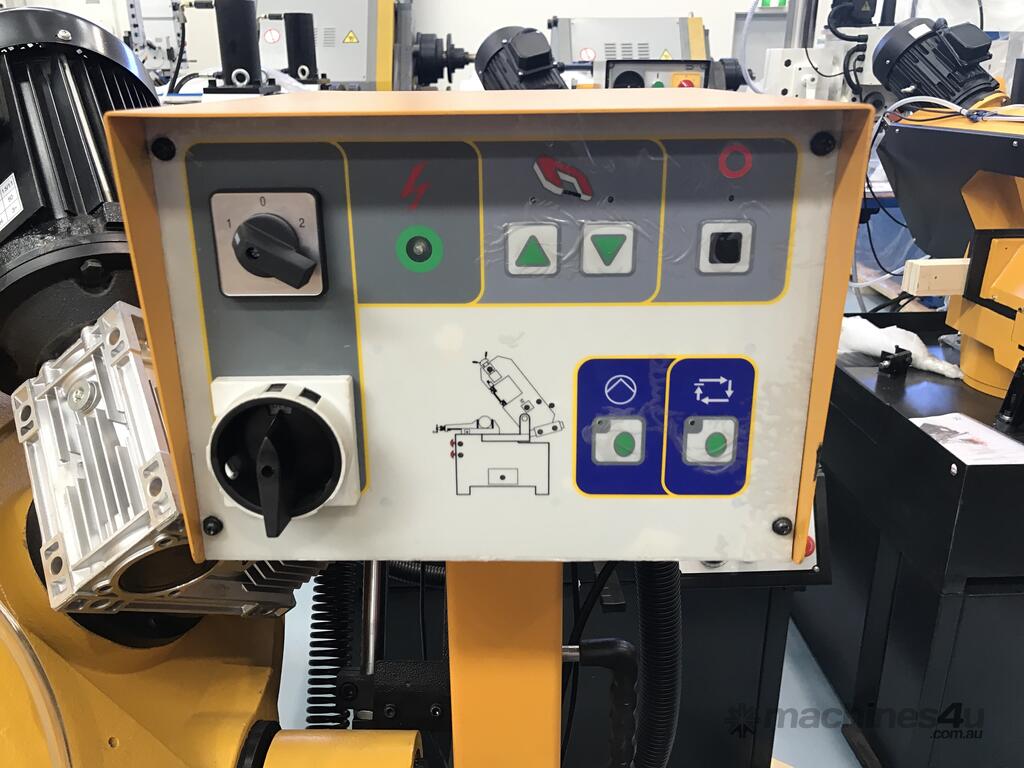

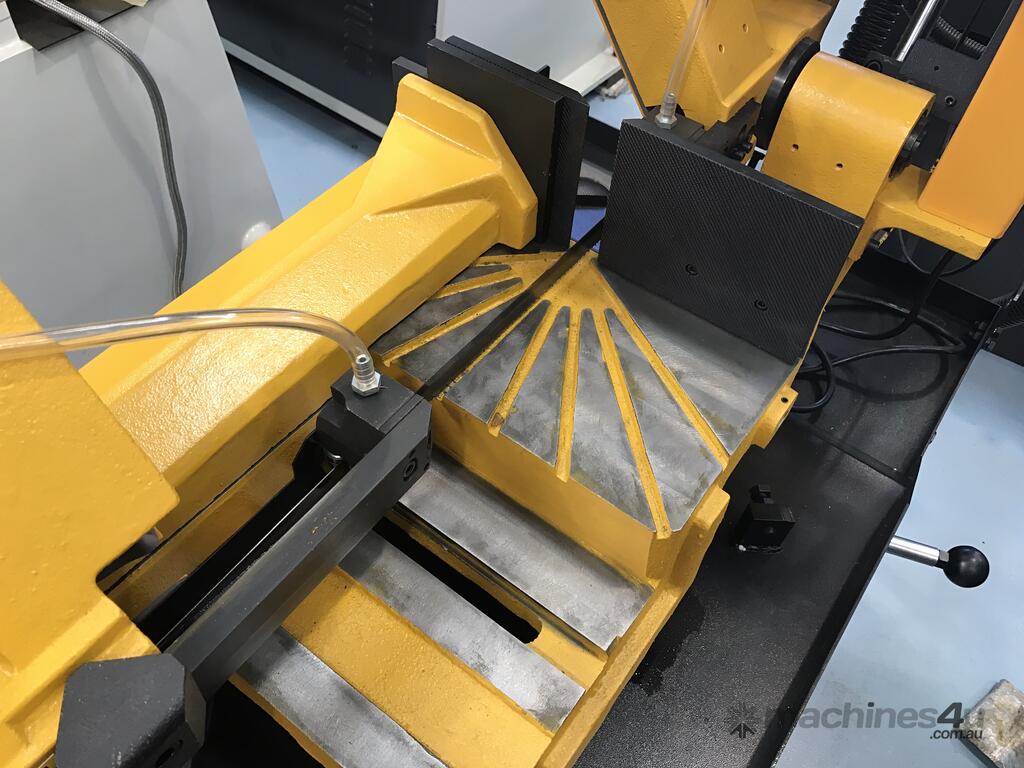

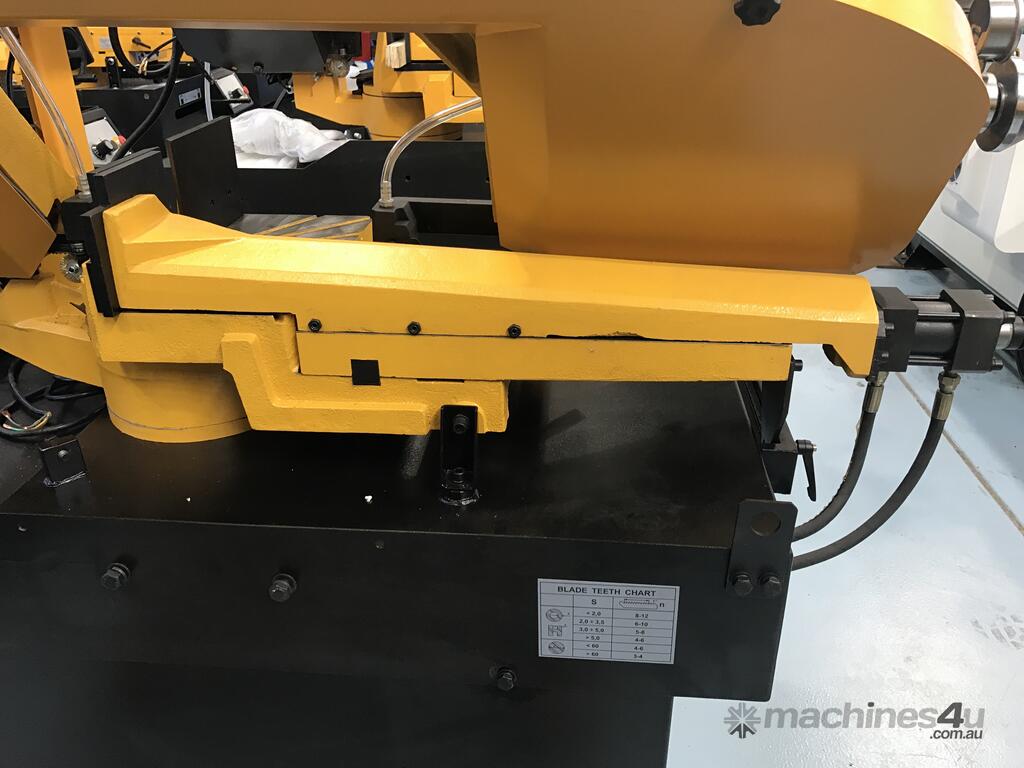

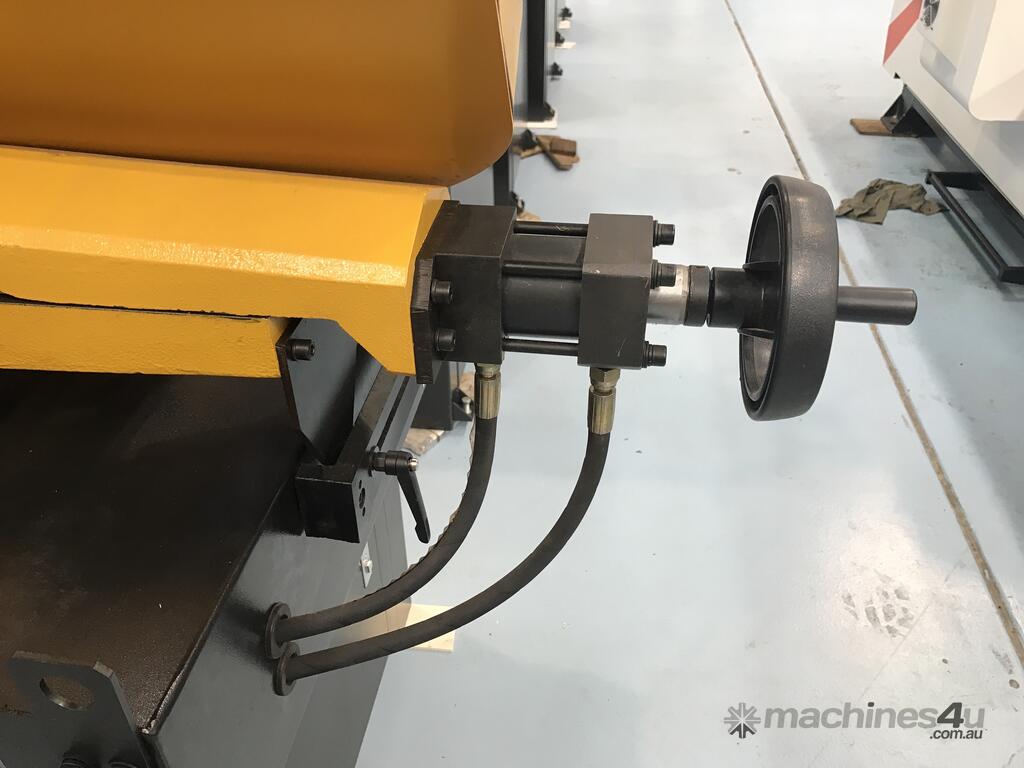

- Hydraulic clamping vice structure controlled via the control panel
- Hydraulic control of the cutting beam fall and raise via the control panel

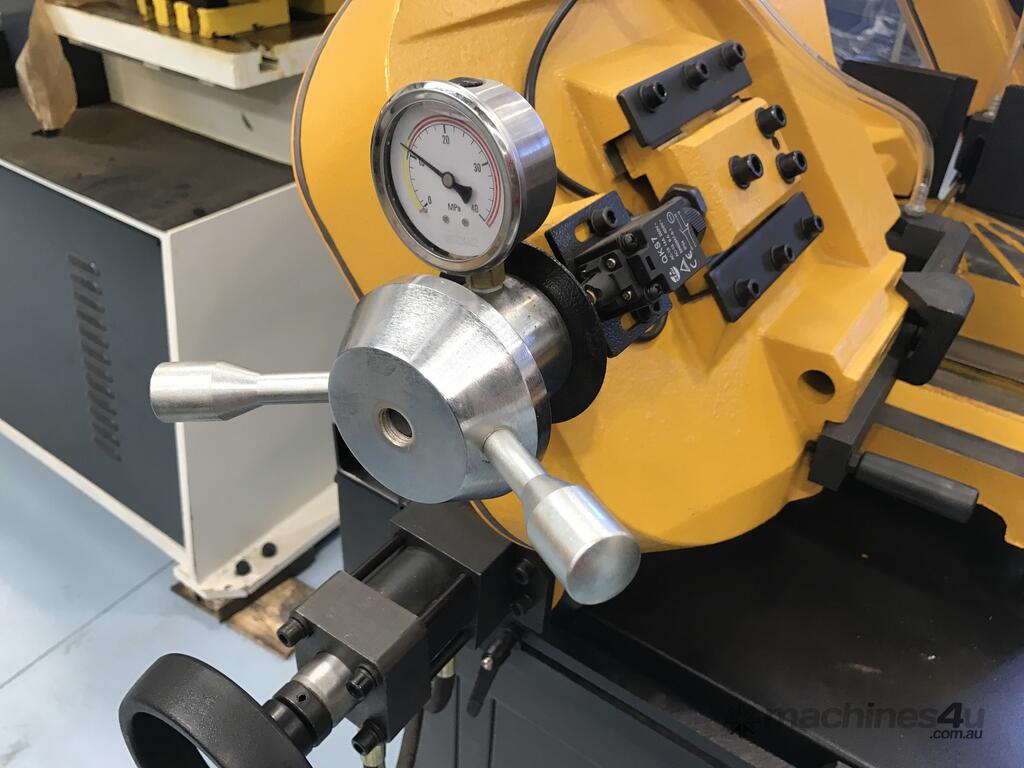

- Error free blade tensioning using the hydraulic blade tension gauge.

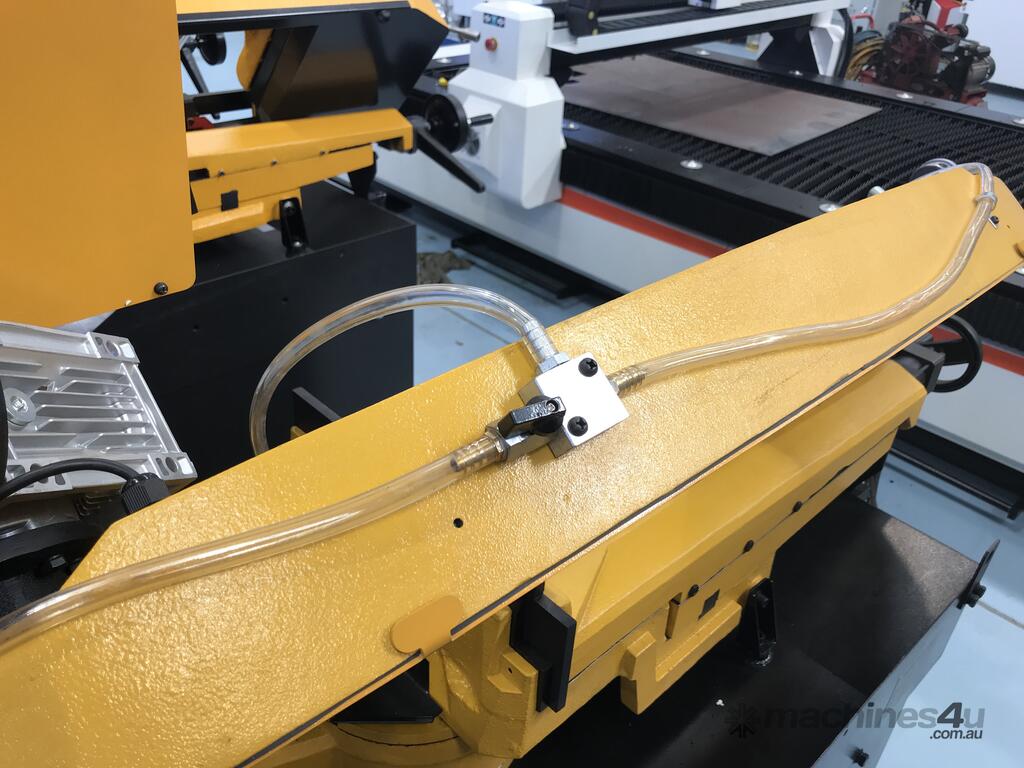

- Double coolant delivery puts coolant exactly where it is needed both in front and behind the cut to
both lubricate the cutting action and wash chips clear of the cutting area.
- Blade brush (replaceable) to clean chips from the blade as it operates.
- Blade break protection. Micro switch stops the machine if a blade breakage occurs protection both
the machine and the operator.

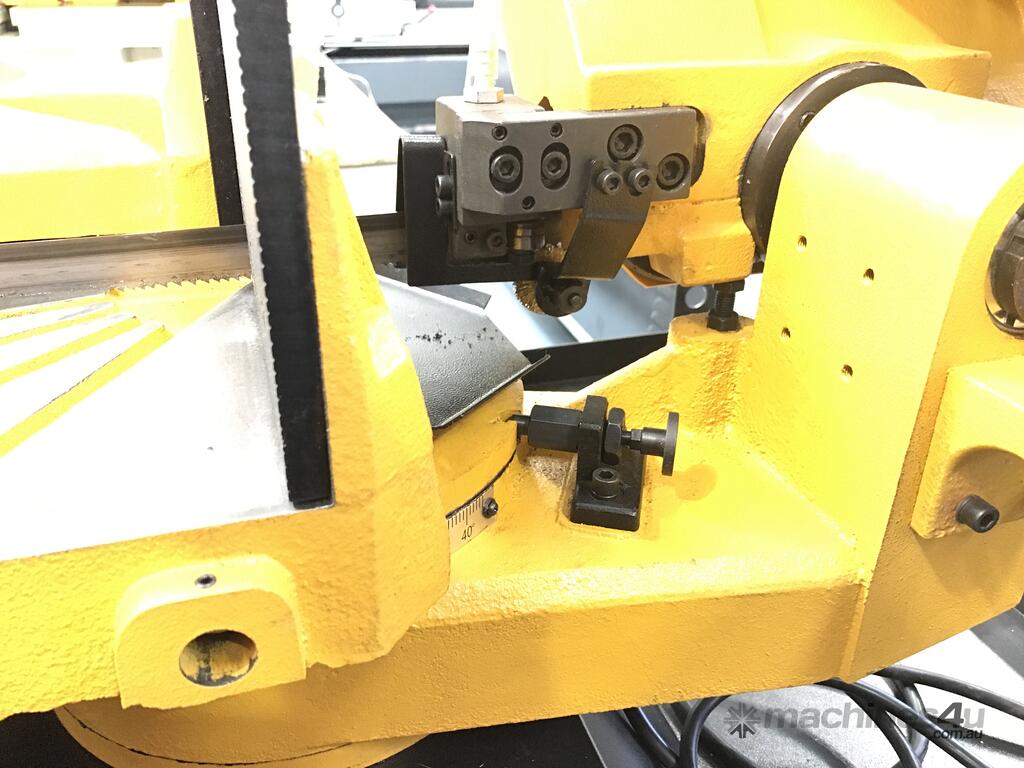

- Precision bearing type blade guides.
- Easy to read gauge bar for repetition measuring small pieces to be cut.
- Large swivel locking mechanism with angle scale and robust lever plastic covered lever ensures
accurate angle setting and positive clamping.
- Lever operated clamp for left/right vice positioning when mitre cutting
-
Round: 90° - 270mm
Square: 90° - 260mm
Rectangular: 90° - 370 x 220mm
Round: 45° - 240mm
Square: 45° - 180mm
Rectangular: 45° - 240 x 160mm
Round: 60° - 160mm
Square: 60° - 100mm
Round: LEFT 45° - 210mm
Square: LEFT 45° - 180mm
Rectangular: LEFT 45° - 180 x 180mm
BLADE SPEED - 68/34m/min
BLADE SIZE - 3160 X 27 X 0.9mm
